Home >> Mitsubishi >> 2005 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> Schematic

Schematic

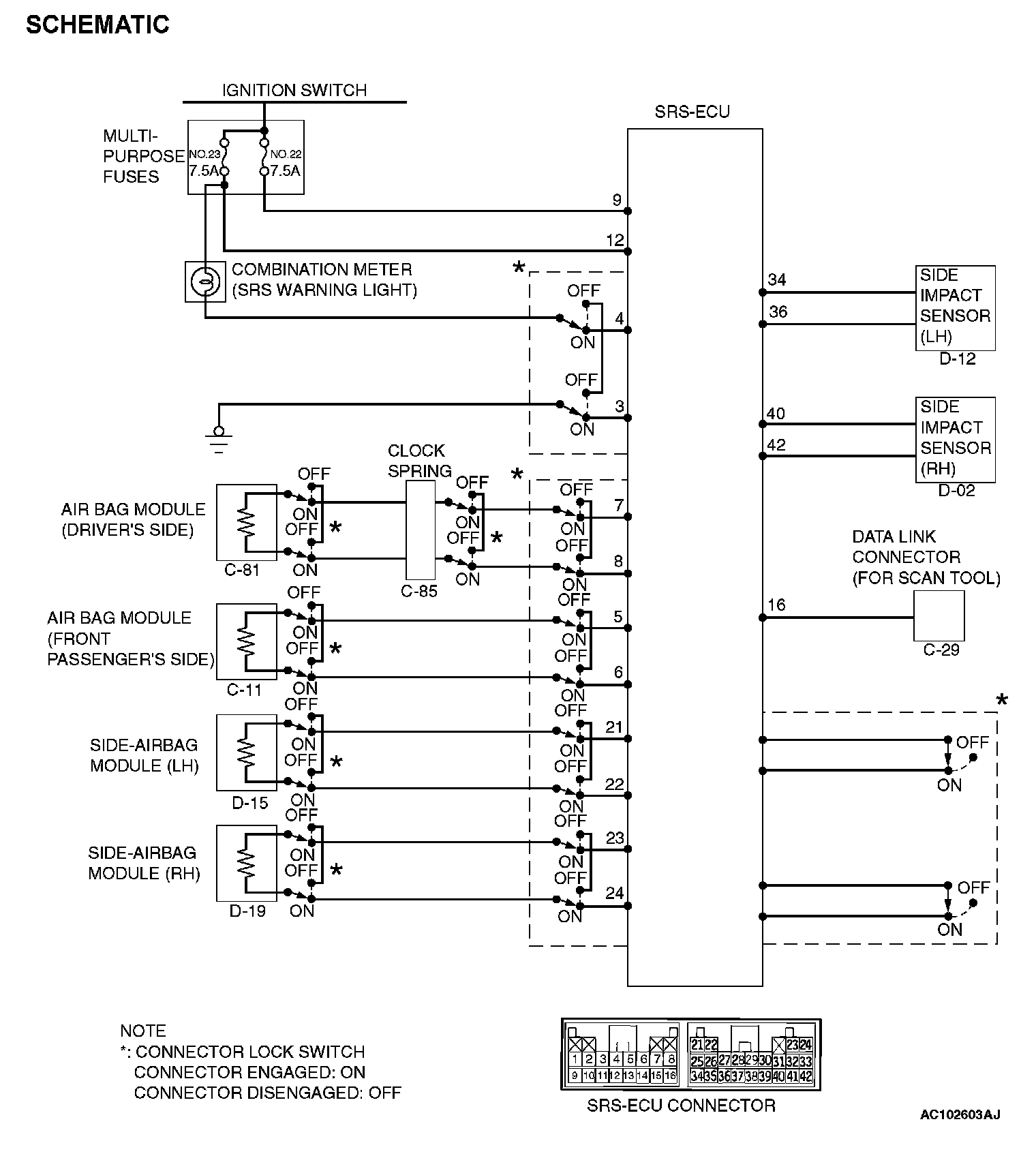

Supplemental Restraint System (SRS) Schematic:
