Eclipse L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

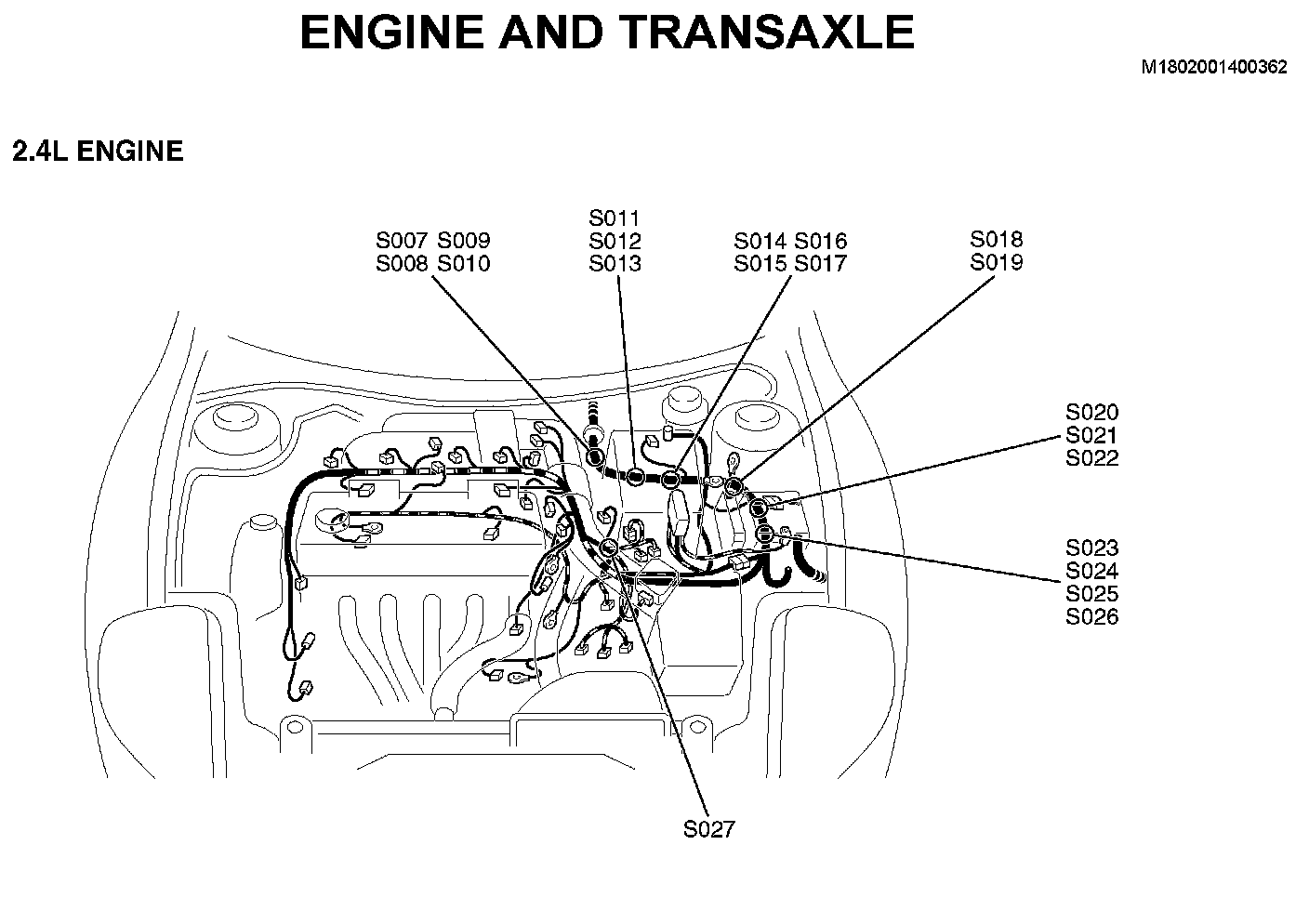

S007-S027 (Engine Transaxle)
S007-S027 (Engine Transaxle)
S007 To S027:
