Mitsubishi
>>
2005
>>
Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

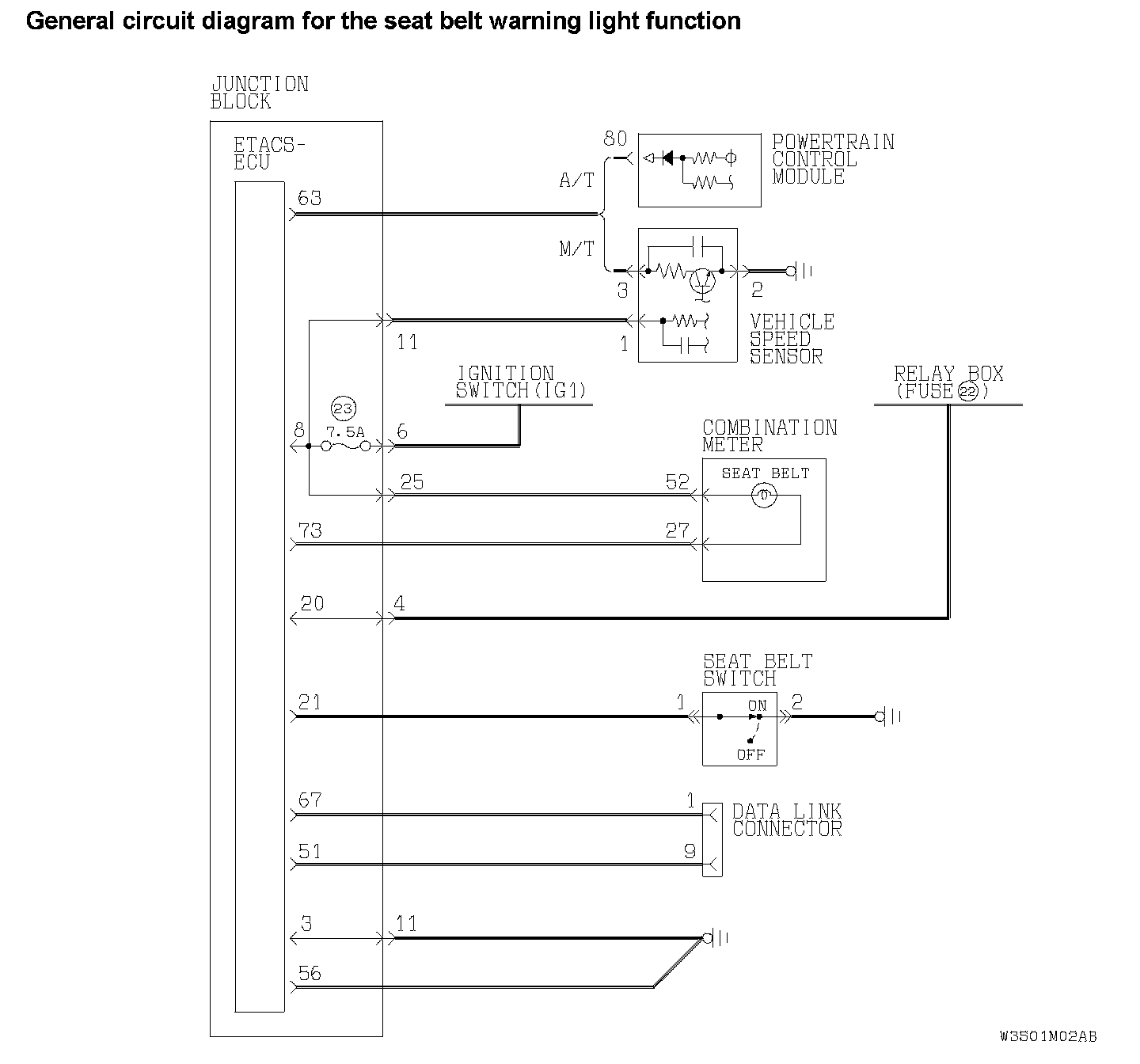

Seat Belt Reminder Lamp
Seat Belt Reminder Lamp
