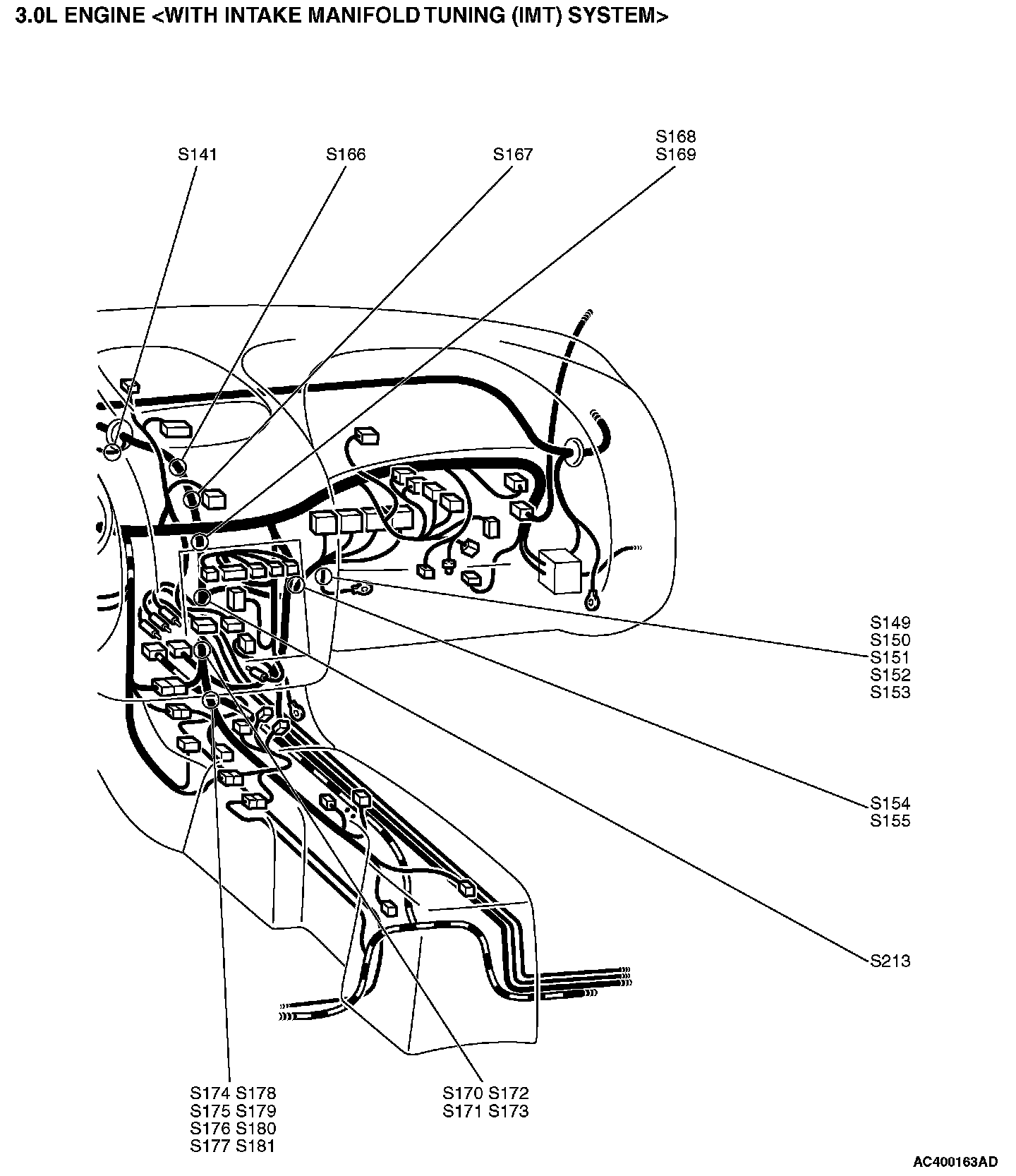

S141-S213 (Dash Panel)
>>
With Intake Manifold Tuning (IMT) System
With Intake Manifold Tuning (IMT) System
S141 To S213:
