Home >> Mitsubishi >> 2005 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Splices >> S031-S056 (Dash Panel)

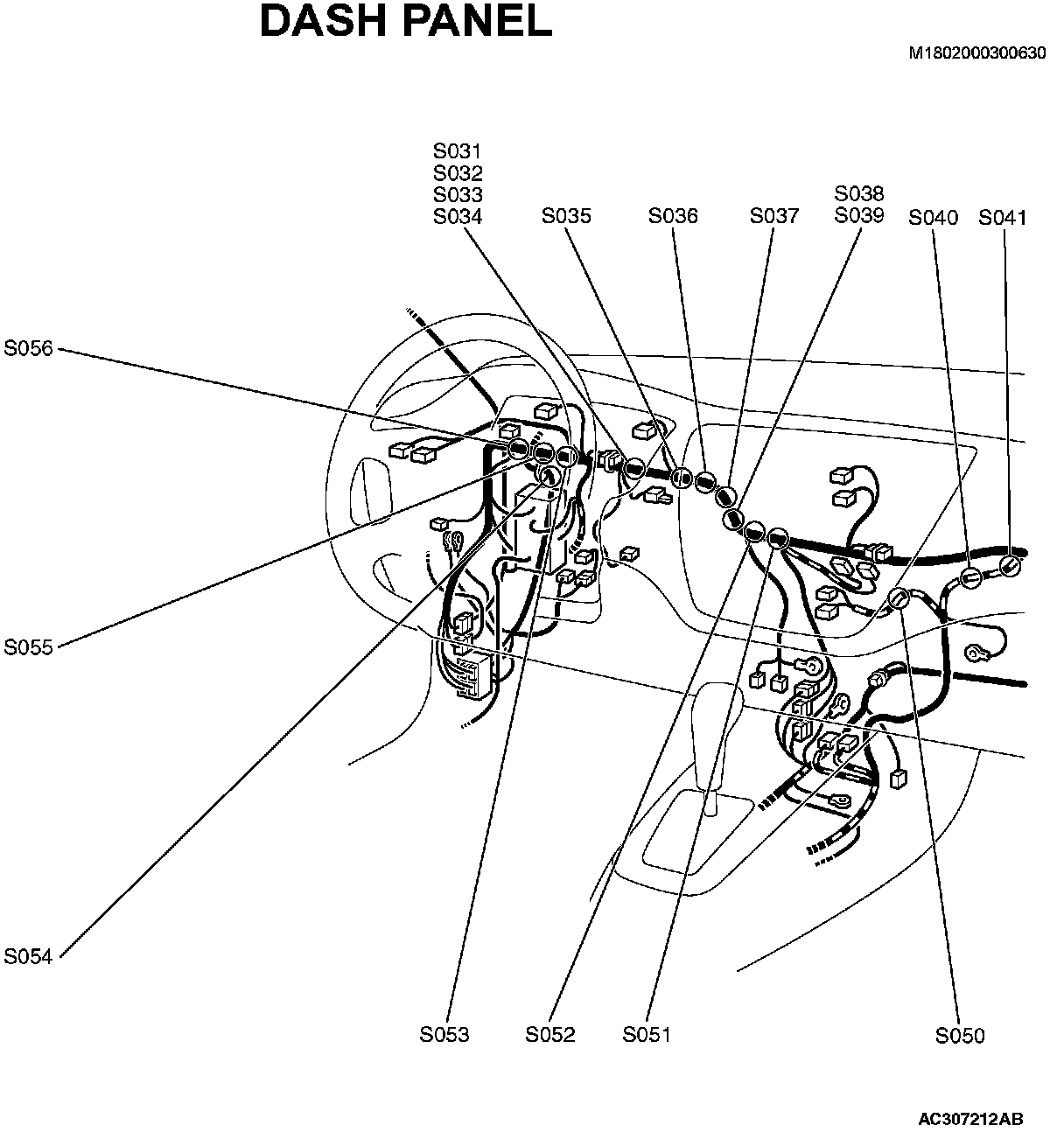

S031-S056 (Dash Panel)

S031 To S056 Part 1:



S031 To S056 Part 2:
