Brakes - Revised Specifications
No: TSB-05-35-004DATE: October 05, 2005
SUBJECT: BRAKE DISC THICKNESS SERVICE SPECIFICATION & RUN-OUT CORRECTIONS - SERVICE MANUAL REVISION
MODEL: See Below
PURPOSE
This bulletin contains omitted information related to brake disc thickness service specification and revised reference information for disc run-out check.
AFFECTED VEHICLES
2004-06 Lancer
2004 Lancer Sportback
AFFECTED SERVICE MANUALS
2004 Lancer Service Manual, Pages 35A-1, 29, 30, 59
2005 & 2006 Lancer Service Manuals, Pages 35A-1, 28, 29, 58
2004 Lancer Sportback Service Manual, Pages 35A-21, 39
SERVICE MANUAL REVISIONS

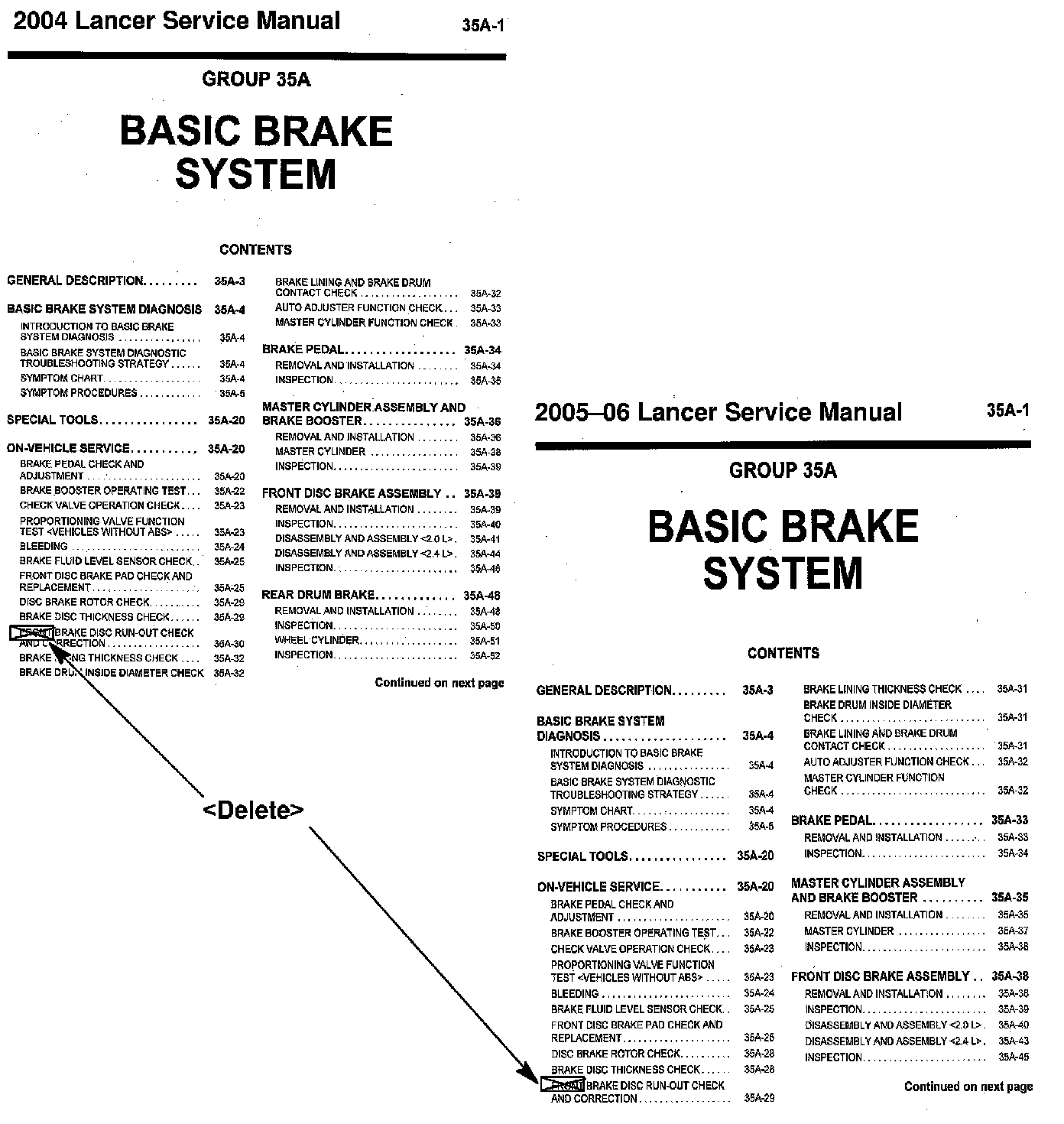

2004-06 Lancer, Page 35A-1
Disc run-out check is for front and rear disc (2.4L), so delete reference to FRONT as shown :

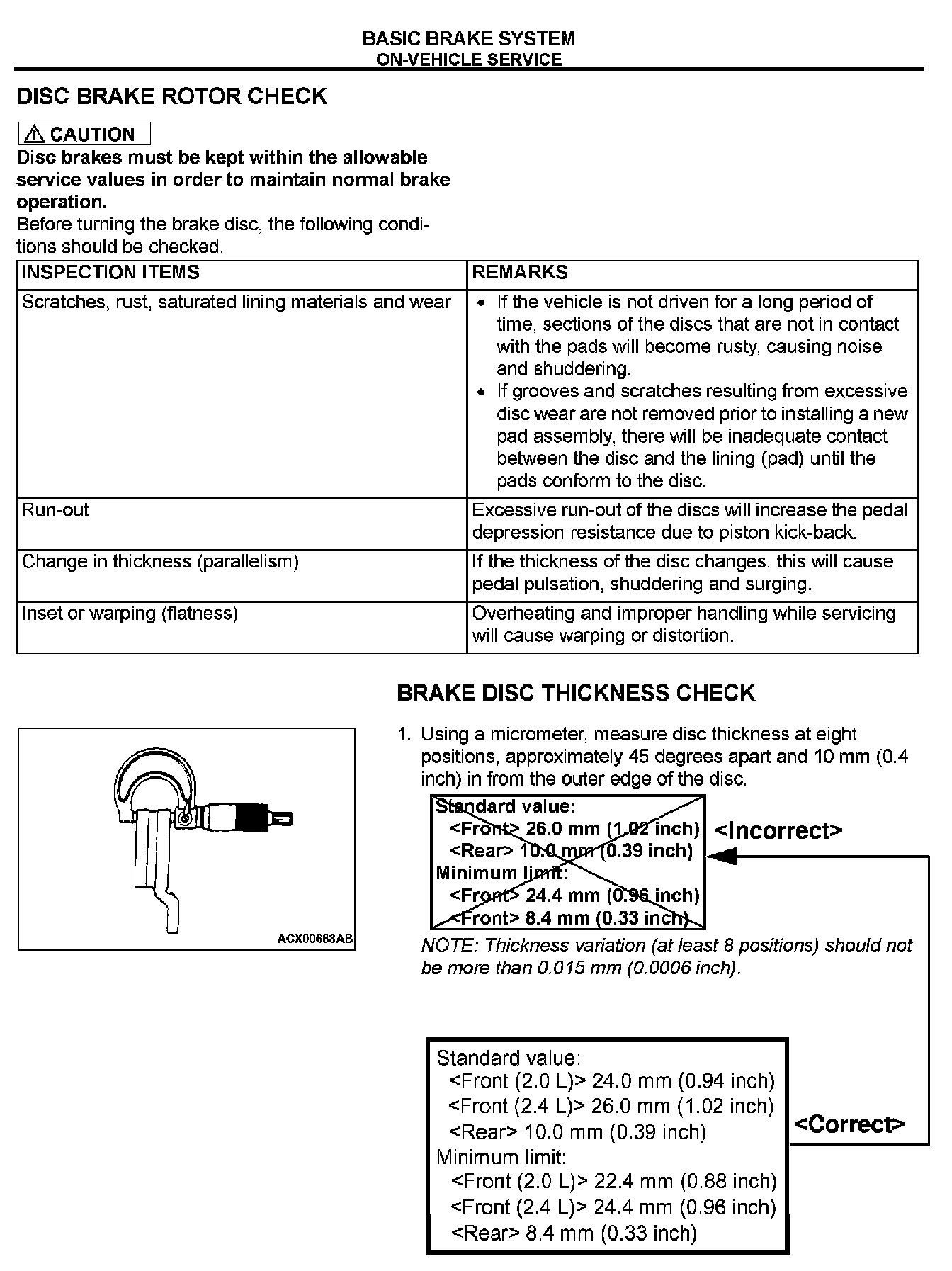

2004 Lancer, Page 35A-29; 2005-06 Lancer, Pages 35A-28
Correct the brake disc thickness service specification as shown:

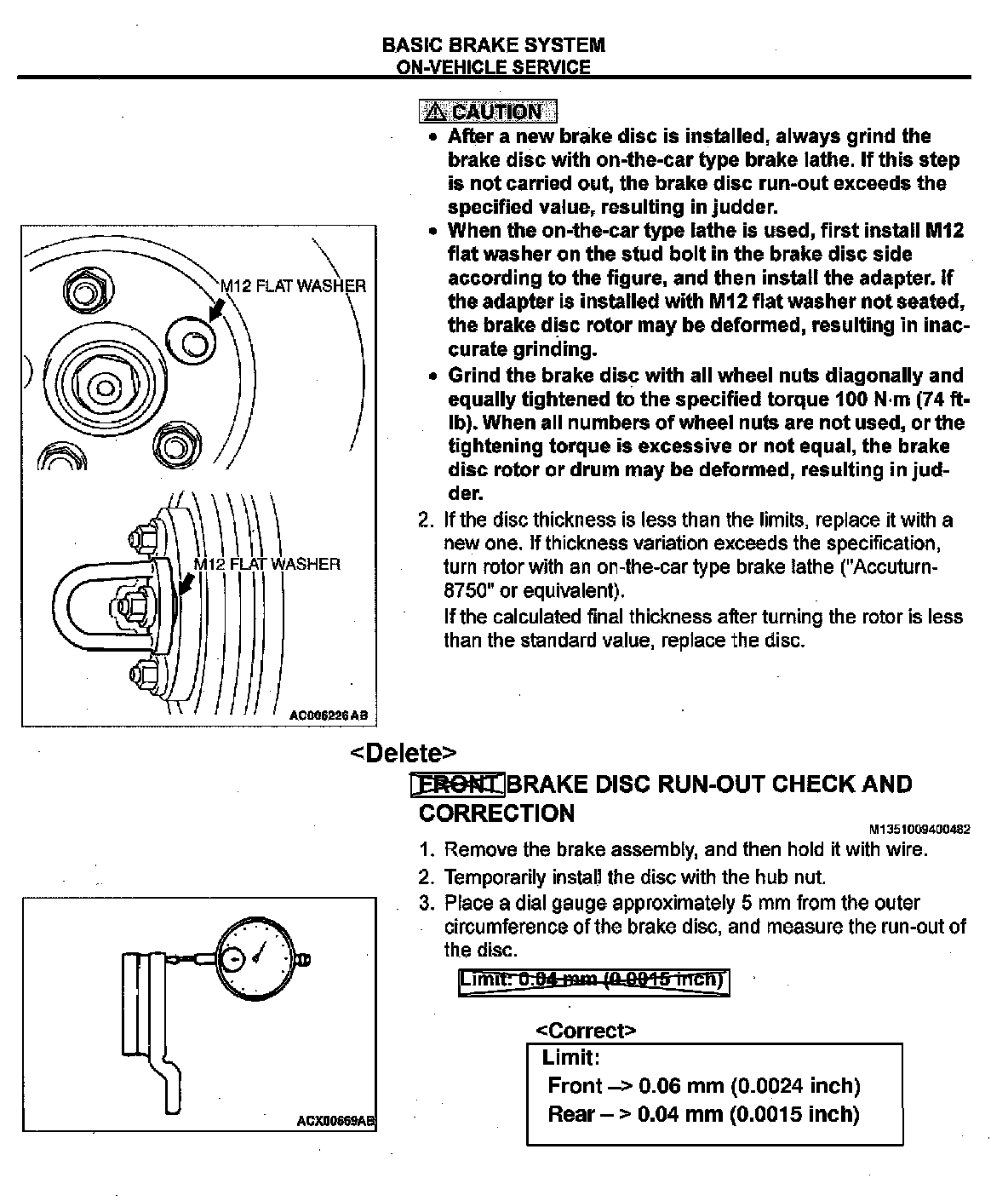

2004 Lancer, Page 35A-30; 2005-06 Lancer, Page 35A-29
Disc run-out check is for front and rear disc (2.4L), so delete reference to FRONT and add the new value as shown:
2004 Lancer, Page 35A-59; 2005-06 Lancer, Page 35A-58
Correct the brake disc thickness service specification and disc run-out limit as shown:

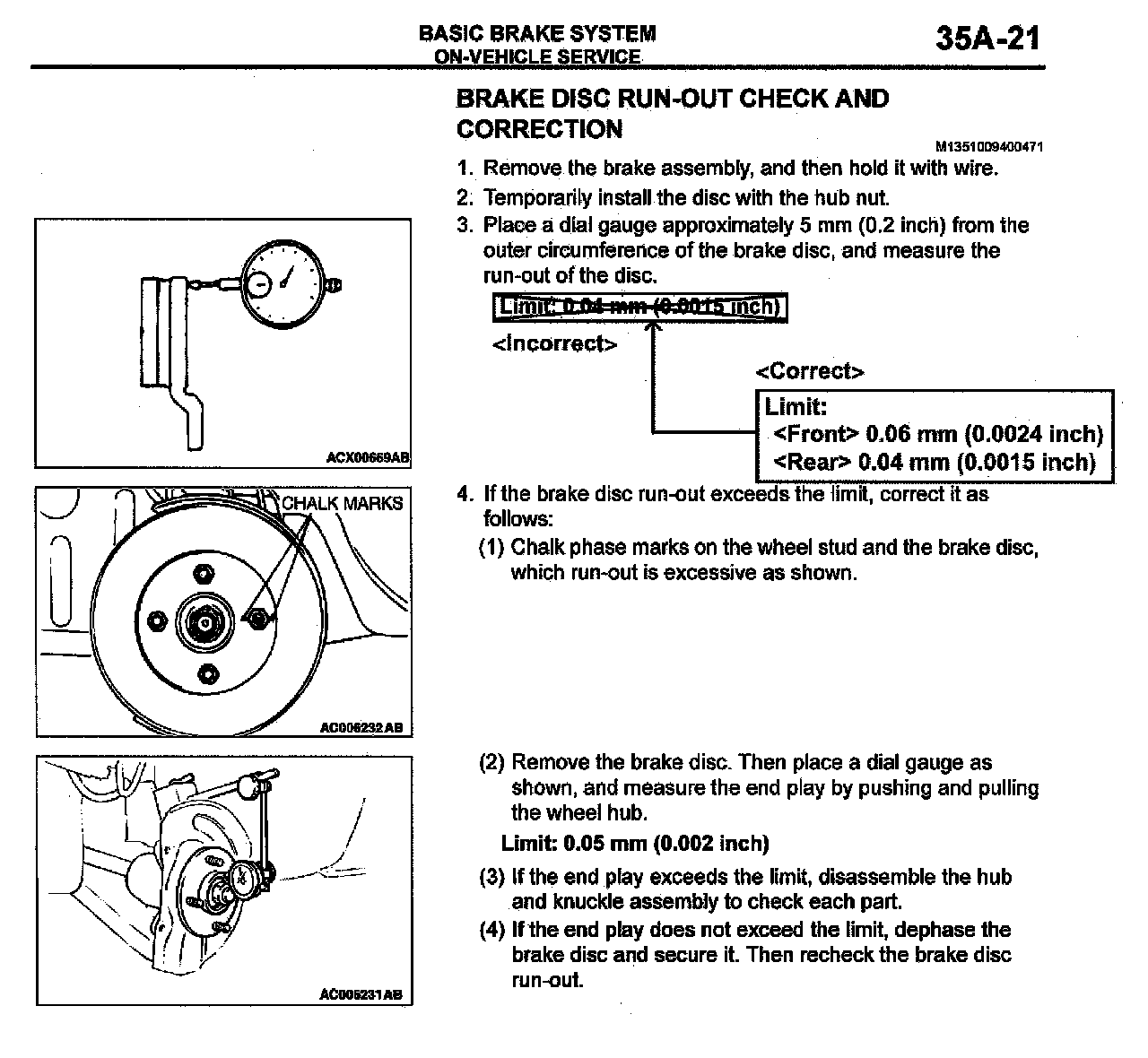

2004 Lancer Sportback, Page 35A-21
Correct the brake disc run-out limit as shown:

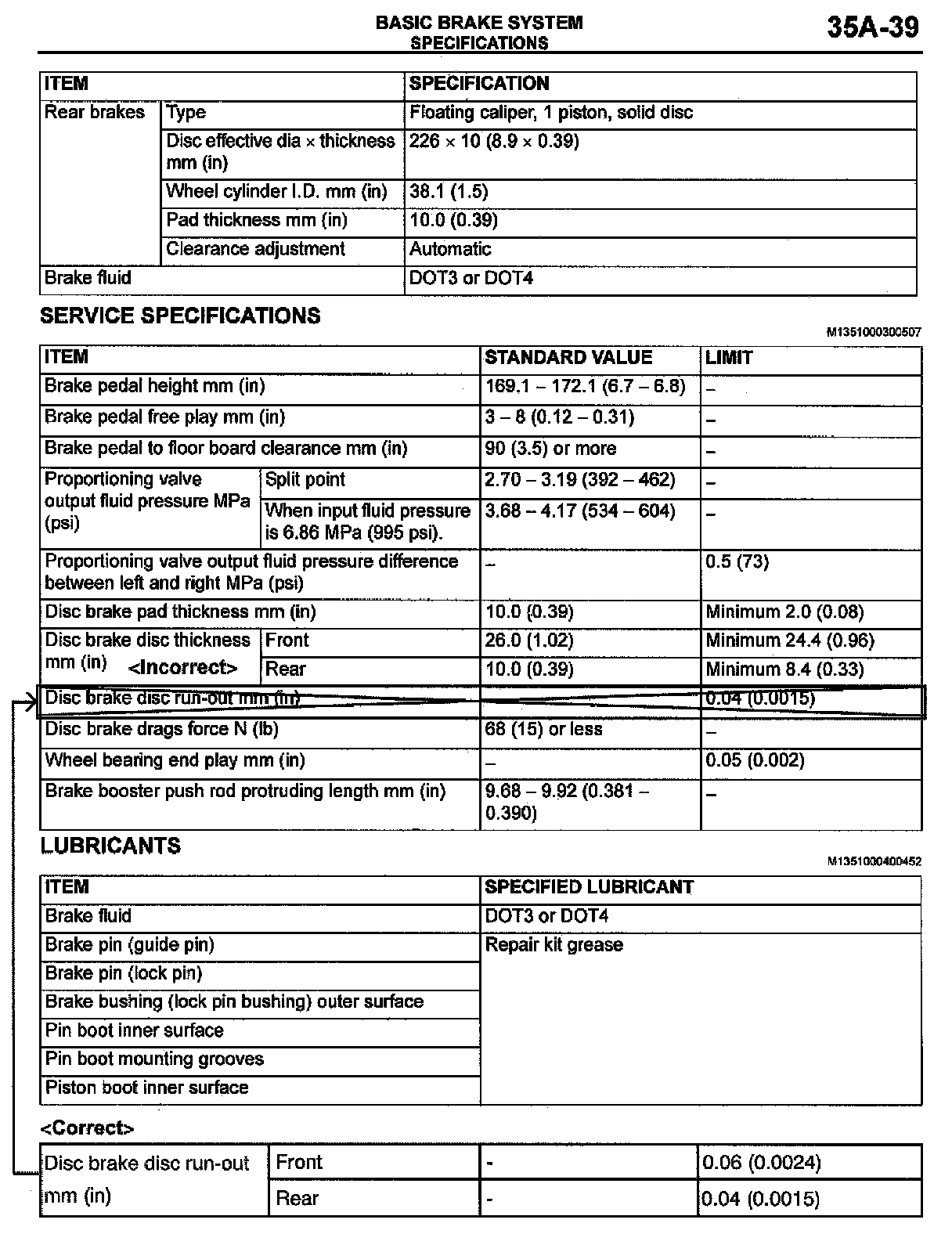

2004 Lancer Sportback, Page 35A-39
Correct the brake disc run-out limit as shown below:brake disc run-out limit as shown.
The information contained in this bulletin is subject to change. For latest version of this document go to the Mitsubishi Dealer Link, MEDIC, or the Mitsubishi Service Information website.
