Windshield Washer Pump: Testing and Inspection

FRONT WASHER MOTOR CHECK






1. Remove the washer tank assembly with the washer hose attached. Then fill the washer tank with water.

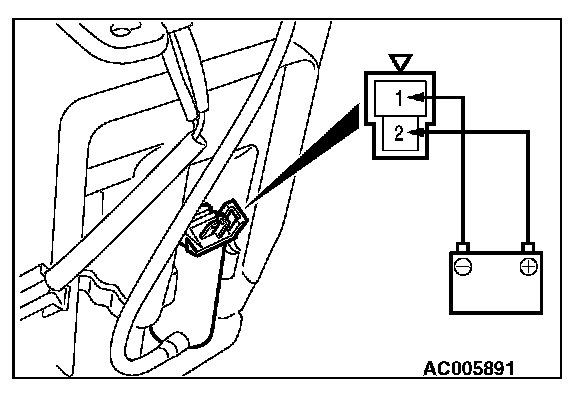

2. Check to see that the water sprays vigorously when connecting the positive battery terminal to terminal number 2 and terminal number 1 to the negative battery terminal.
