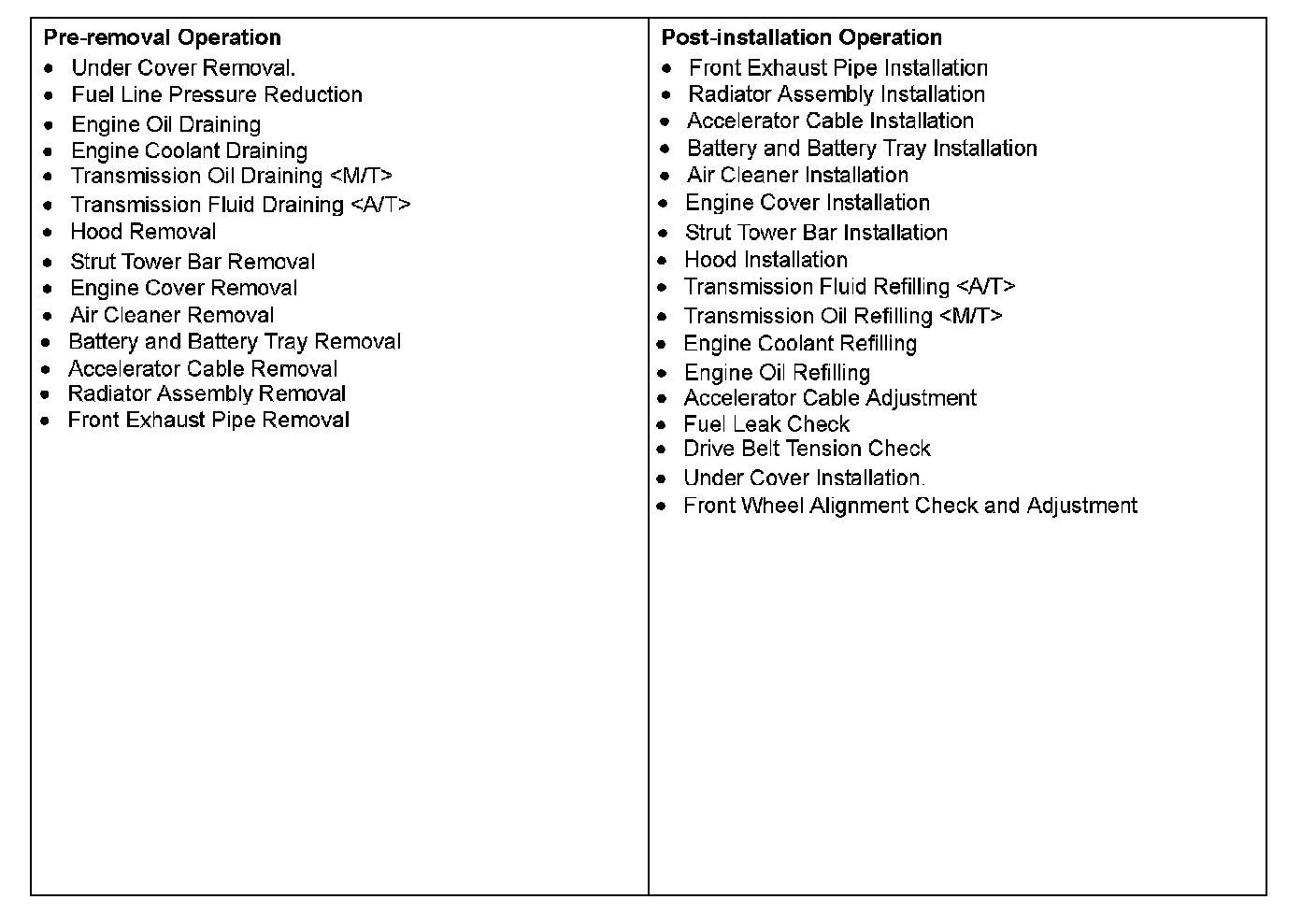

ENGINE ASSEMBLY
REMOVAL AND INSTALLATION
CAUTION: *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.
REMOVAL SERVICE POINTS
[[A]] DRIVE BELT REMOVAL
The following operations will be needed due to the introduction of the serpentine drive system with the drive belt auto-tensioner.
1. Securely insert the spindle handle or ratchet handle with a 12.7 mm (1/2-inch) insertion angle into the jig hole of the auto-tensioner.
2. Rotate the auto-tensioner counterclockwise and align hole A with hole B.
CAUTION: To reuse the drive belt, draw an arrow indicating the rotating direction (clockwise) on the back of the belt using chalk, etc.
3. Insert an L-shaped hexagon wrench, etc. into the hole to fix and then remove the drive belt.
[[B]] POWER STEERING OIL PUMP AND BRACKET ASSEMBLY REMOVAL
With the hose installed, remove the power steering oil pump and bracket assembly from the engine assembly.
NOTE: After removing the power steering oil pump and bracket assembly, secure it with a cord in the location where the removal and installation of the engine assembly cannot be hindered.
[[C]] A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL
With the hose installed, remove the A/C compressor and clutch assembly from the bracket.
NOTE: After removing the A/C compressor and clutch assembly, secure it with a cord in the location where the removal and installation of the engine assembly cannot be hindered.
[[D]] FUEL HIGH-PRESSURE HOSE REMOVAL

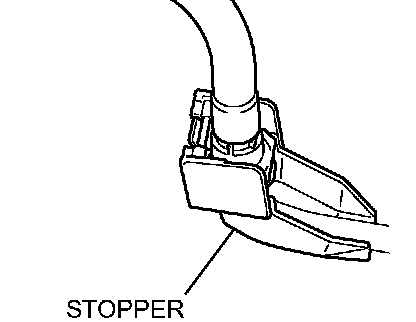

1. Remove the fuel high-pressure hose stopper.
2. Remove the fuel high-pressure hose in the direction shown in the figure while the retainer is pulled up.
NOTE: If the retainer is released, install it after removing the fuel high-pressure hose.
[[E]] TRANSAXLE ASSEMBLY REMOVAL

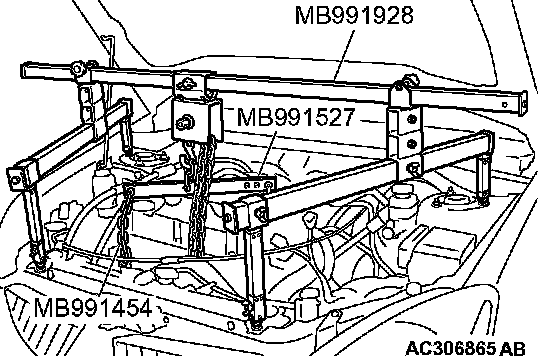

1. Pre-tighten the two bolts on the car to assemble the radiator support upper insulator to set special tool MB991895 or MB991928.
2. Remove the transaxle assembly.
[[F]] ENGINE FRONT MOUNTING BRACKET REMOVAL
1. Support the engine with a garage jack.
2. Remove the following special tool.

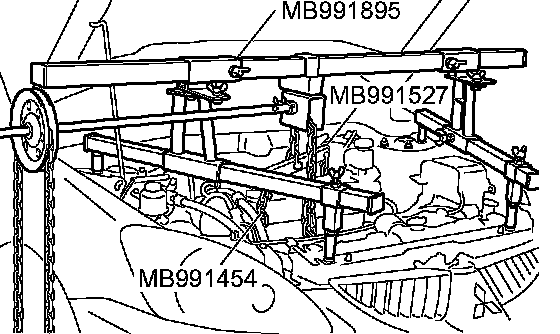

1. [Special tool MB991895 is used] Remove special tool MB991895.

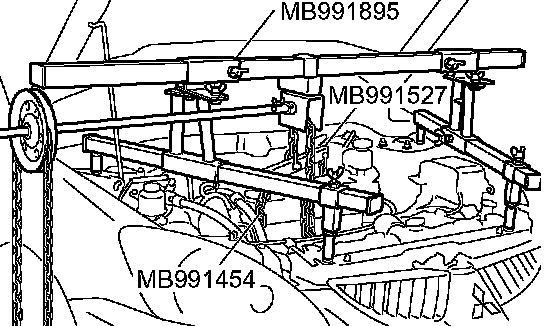

2. [Special tool MB991928 is used] Remove special tool MB991928.
3. Hold the engine assembly with a chain block, etc.
4. Place a garage jack against the engine oil pan with a piece of wood in between so that the weight of the engine assembly is no longer being applied to the engine front mounting bracket.
5. Loosen the engine front mounting bracket mounting nuts and bolts, and remove the engine front mounting bracket.
[[G]] ENGINE ASSEMBLY REMOVAL
After checking that all cables, hoses and wiring harness connectors and so on are disconnected from the engine, lift the chain block slowly to remove the engine assembly upward from the engine compartment.
INSTALLATION SERVICE POINTS
]]A[[ ENGINE ASSEMBLY INSTALLATION
Install the engine assembly, being careful not to pinch the cables, hoses or wiring harness connectors.
]]B[[ ENGINE FRONT MOUNTING BRACKET INSTALLATION
1. Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine front mounting bracket while adjusting the position of the engine.
2. Support the engine assembly with a garage jack.
3. Remove the chain block.
4. Use the following special tool as during removal to support the engine.
1. [Special tool MB991895 is used] Set special tool MB991895.
2. [Special tool MB991928 is used] Set special tool MB991928.
]]C[[ TRANSAXLE ASSEMBLY INSTALLATION
1. Install the transaxle assembly.
2. Remove from the car the two bolts, to assemble the radiator support upper insulator.
]]D[[ FUEL HIGH-PRESSURE HOSE INSTALLATION
CAUTION: After connecting the fuel high-pressure hose, slightly pull it to ensure that it is installed securely. Also confirm that there is a play approximately 3 mm (0.12 inch). Then install the stopper securely.
Apply a small amount of engine oil to the fuel line pipe and then install the fuel high-pressure hose.
