Removal and Replacement

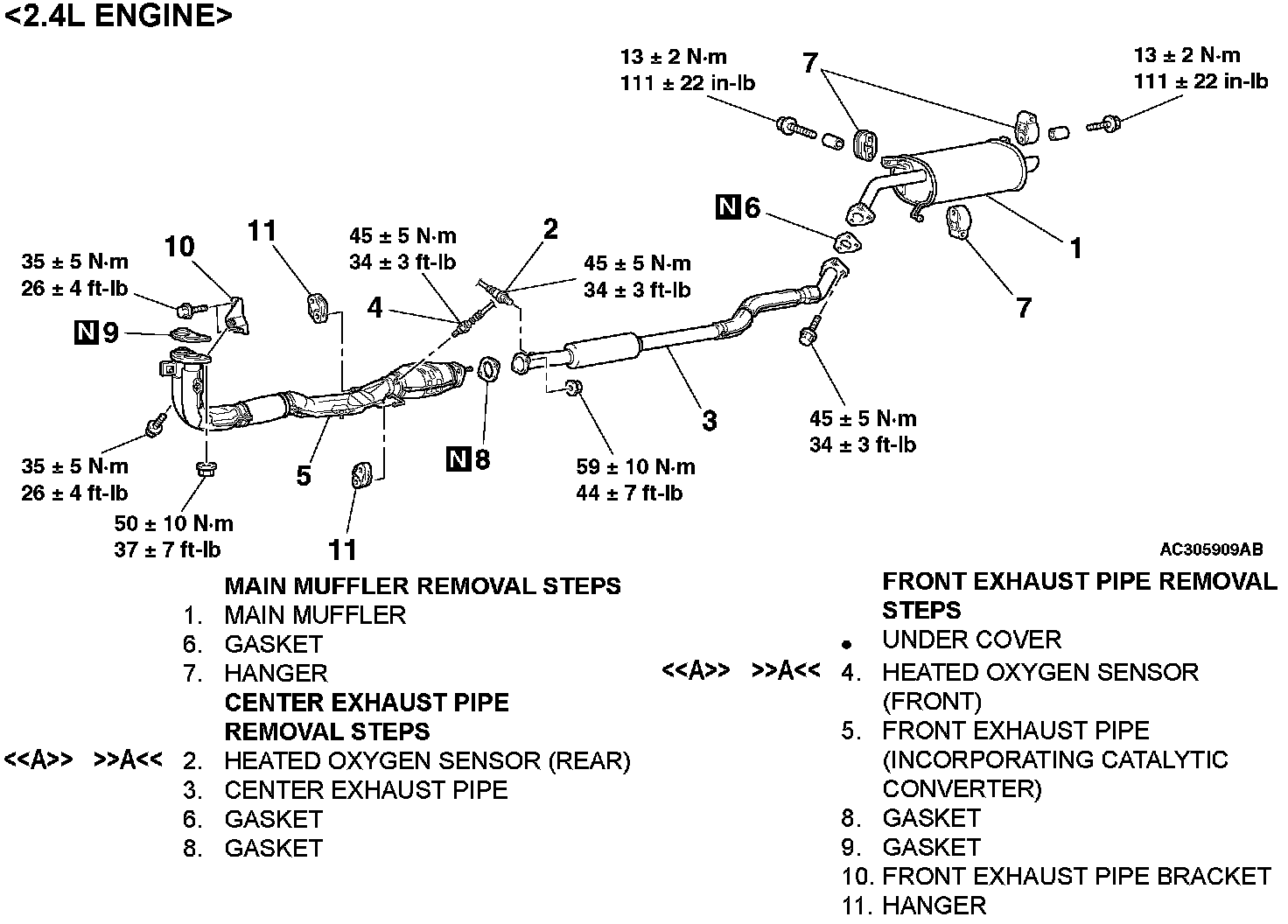

EXHAUST PIPE AND MAIN MUFFLER




REMOVAL AND INSTALLATION

Required Special Tool:
- MD998770: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

HEATED OXYGEN SENSOR/HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (FRONT) REMOVAL

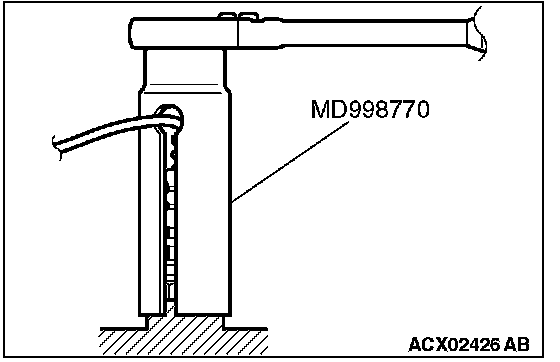

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

]]A[[ HEATED OXYGEN SENSOR/HEATED OXYGEN SENSOR (FRONT)/HEATED OXYGEN SENSOR (REAR) INSTALLATION




Use special tool MD998770 to install the oxygen sensor.

Removal And Installation <2.4L Engine Vehicles For California>:

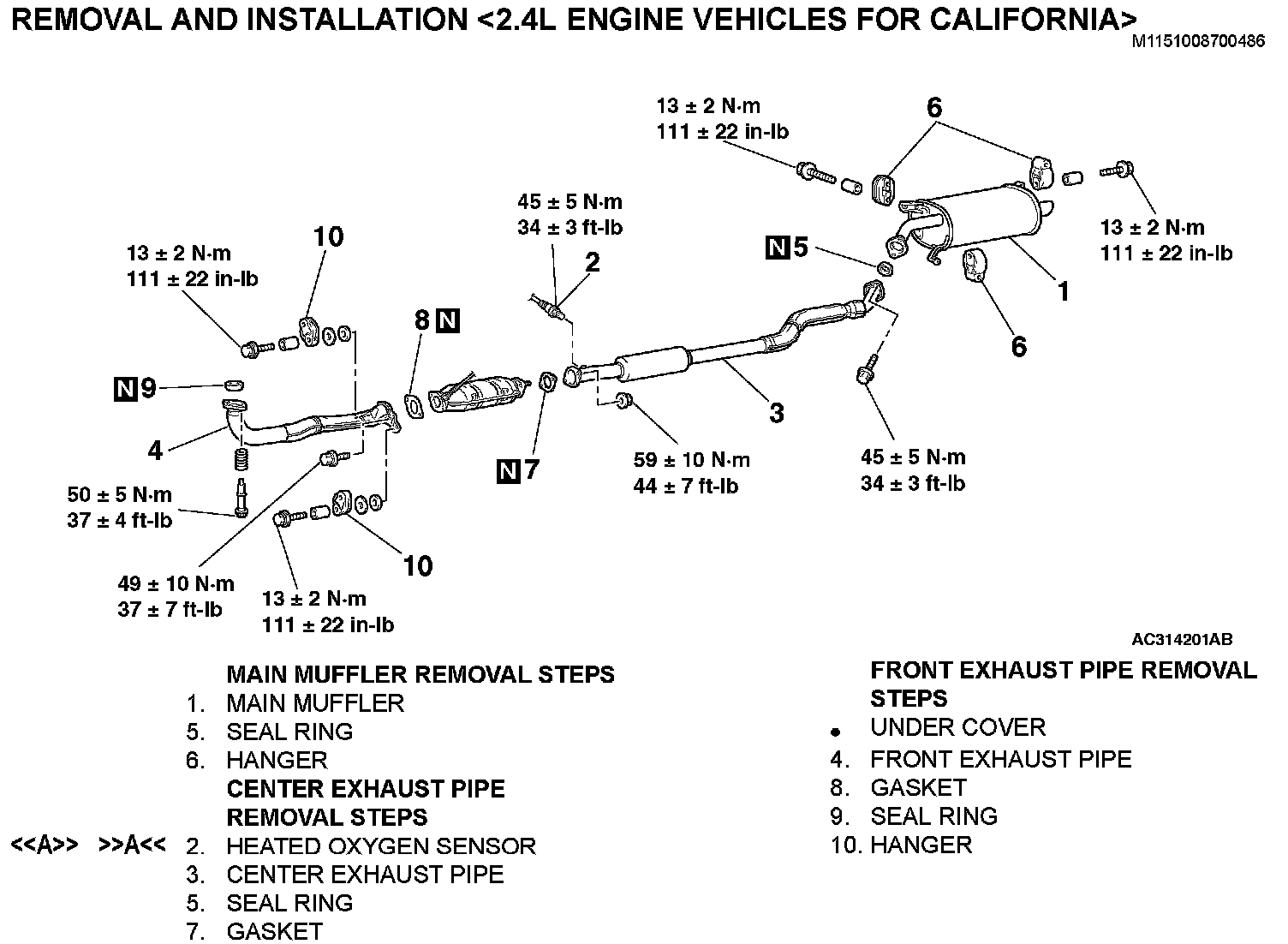

REMOVAL AND INSTALLATION <2.4L ENGINE VEHICLES FOR CALIFORNIA>

Required Special Tool:
- MD998770: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

[[A]] HEATED OXYGEN SENSOR REMOVAL

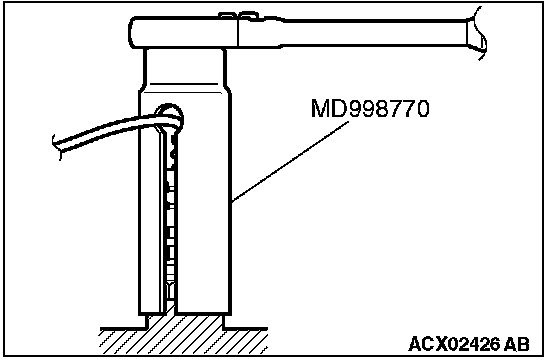

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

]]A[[ HEATED OXYGEN SENSOR INSTALLATION




Use special tool MD998770 to install the oxygen sensor.
