Component Tests and General Diagnostics

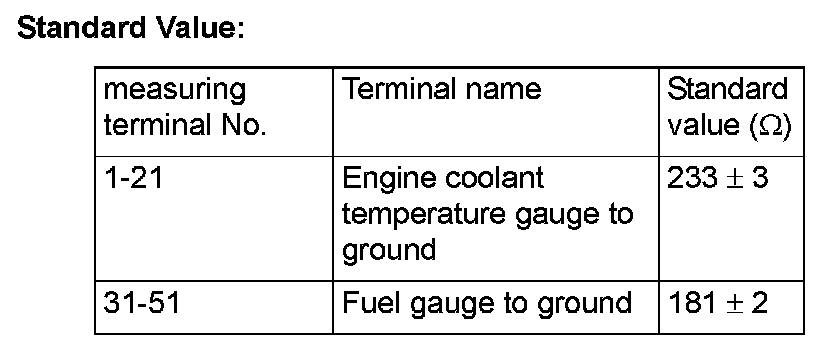

COMBINATION METER INTERNAL RESISTANCE CHECK
Use circuit tester to measure combination meter internal resistance.
