Fuse: Application and ID
Centralized Relay:
Fuses 1-24 (3 Of 3):

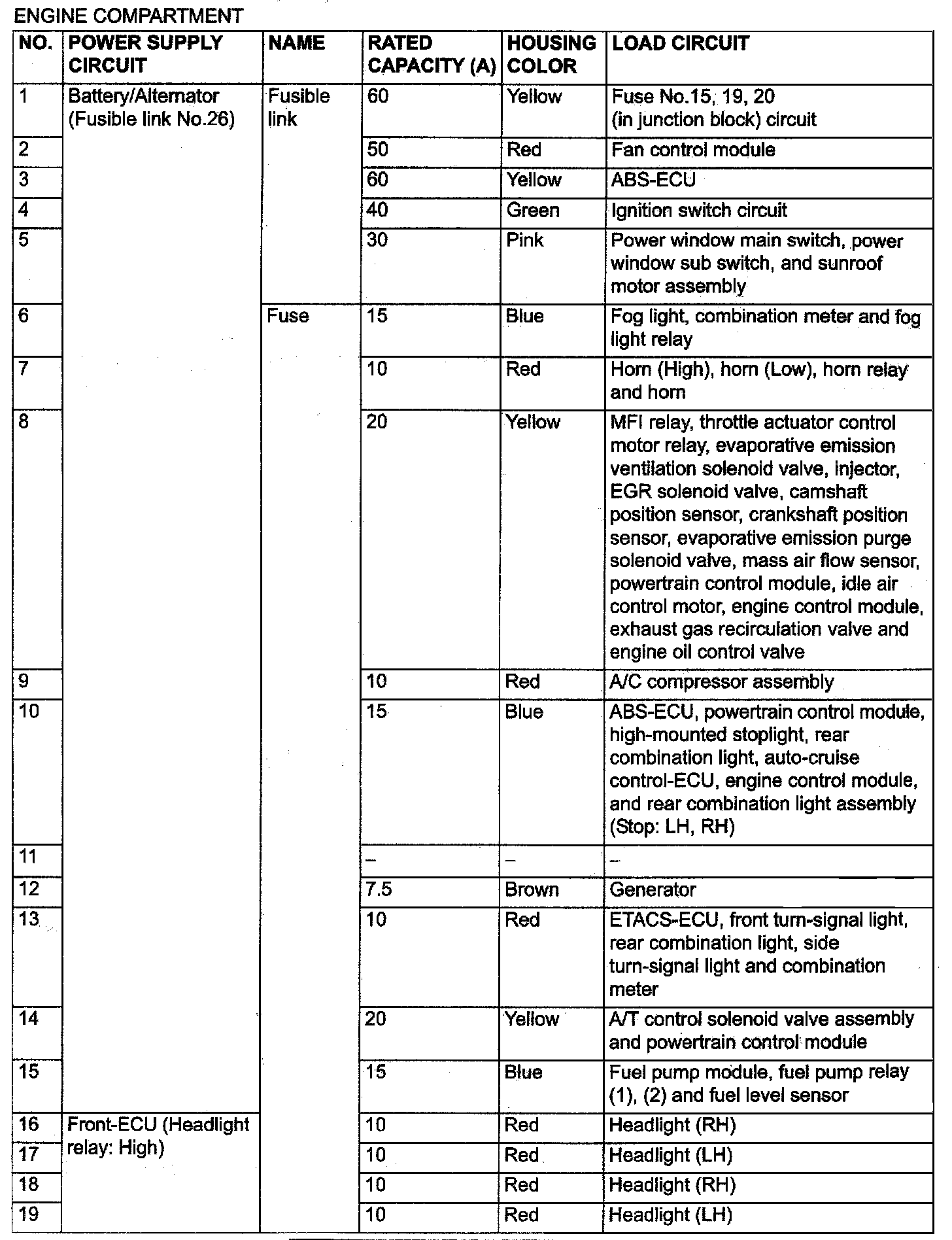

Fuses 1-24 (1 Of 3):
Fuses 1-26 (3 Of 4):
Fuses 1-26 (4 Of 4):
Fuses 1-26 (1 Of 4):
Fuses 1-26 (2 Of 4):
Fuses 1-24 (2 Of 3):
