Engine Controls - Mode Switching Speed Revision

No.: TSB-05-13-007

DATE: April, 2005

MODEL:
2005 Outlander/Lancer

SUBJECT:
MODE SWITCHING SPEED (2.4L MIVEC ENGINE) - SERVICE MANUAL REVISION

PURPOSE

The mode switching speed for the 2.4L MIVEC engine is incorrectly printed in the affected service manuals. This bulletin corrects the mode switching speed to 4,500 rpm.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2005 Outlander
2005 Lancer

AFFECTED SERVICE MANUALS
2005 Outlander, Volume 1, pages 13A-654, 13A-920, 13A-921
2005 Lancer, Volume 1, page 13B-642, 13B-894, 13B-896
2005 Outlander, page 13A-654 (DTC P1020)





13A-654 (DTC P1020)

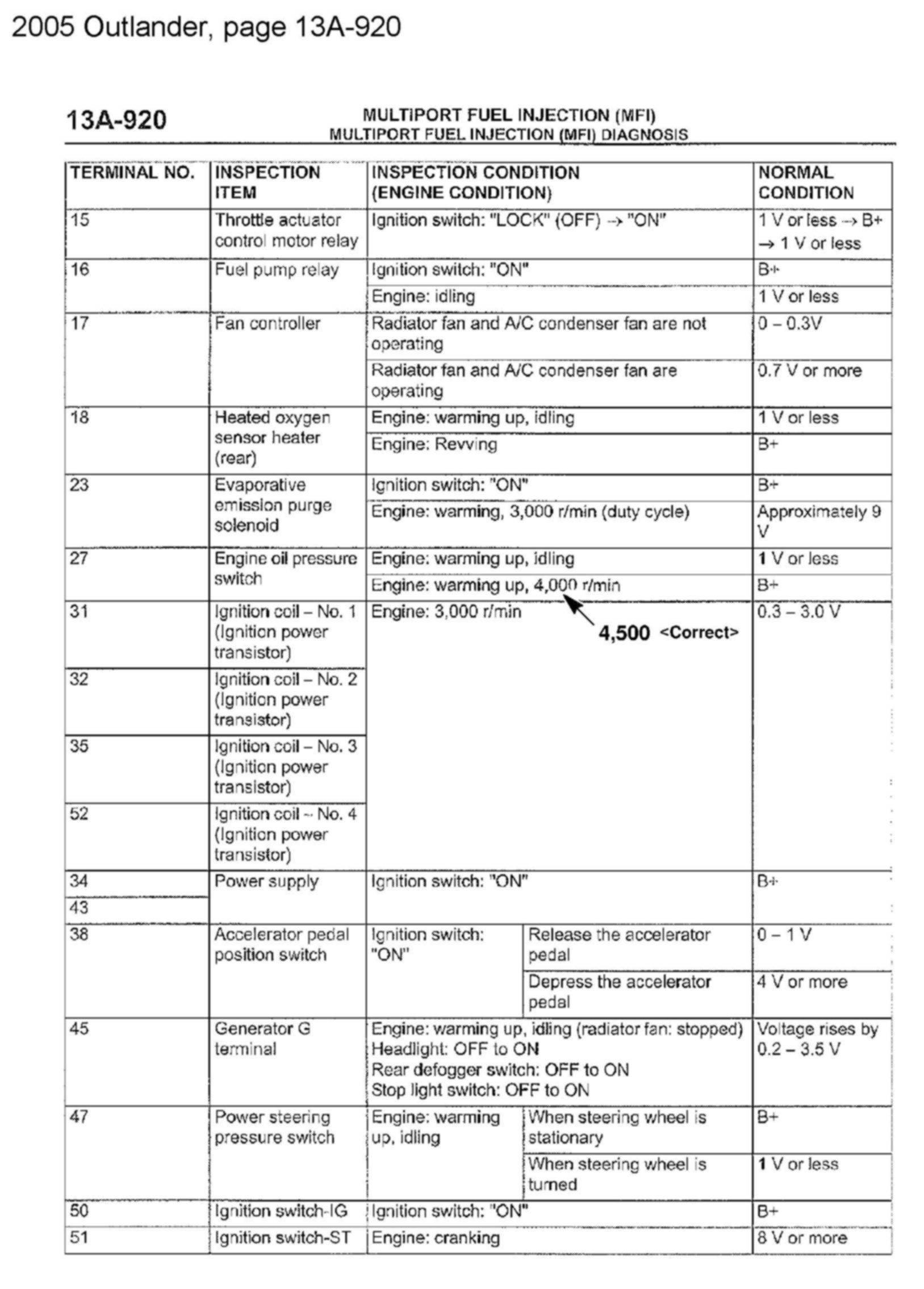

2005 Outlander, page 13A-920





2005 Outlander, page 13A-921

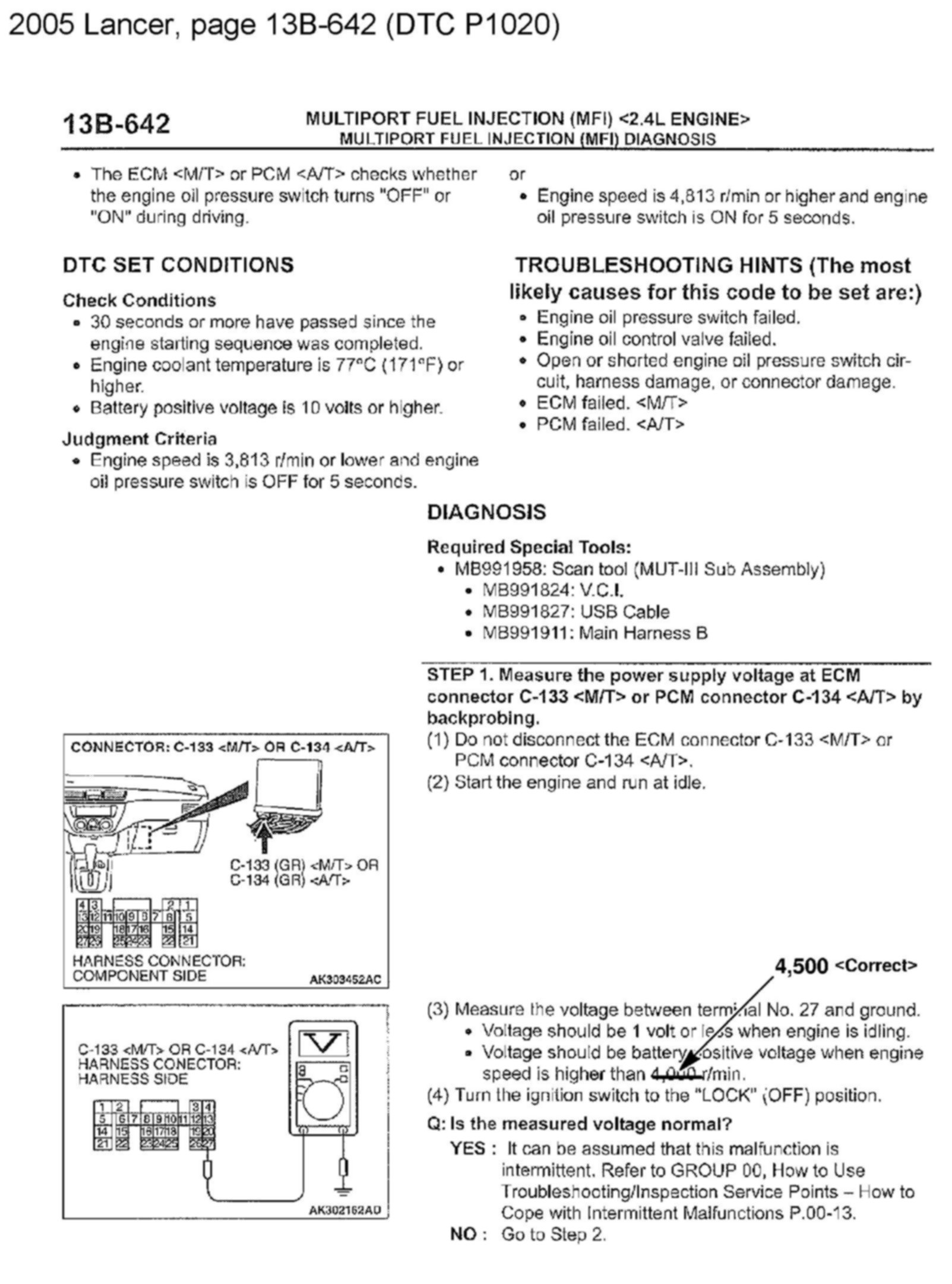

2005 Lancer, page 13B-642 (DTC 1020)

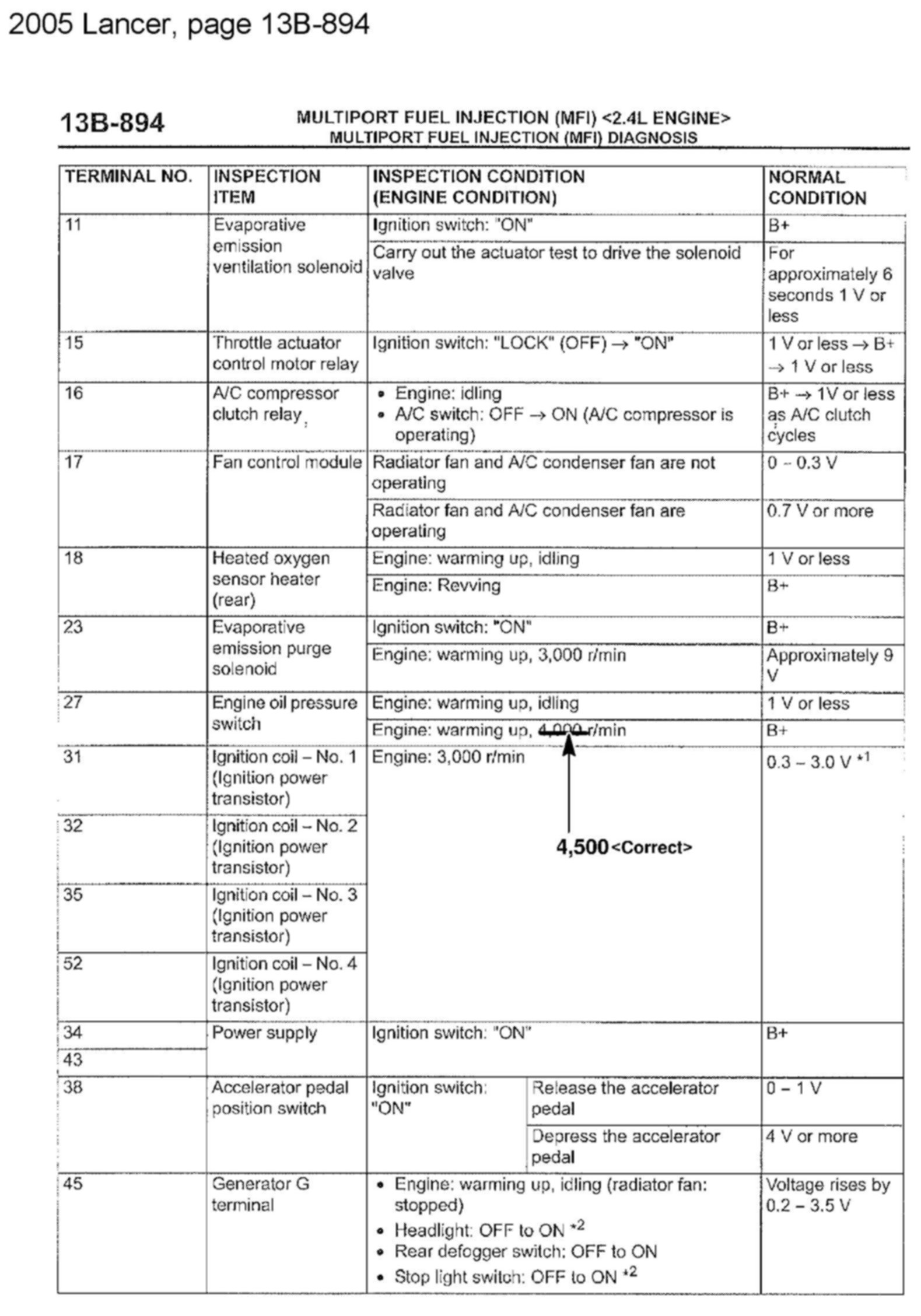

2005 Lancer, page 13B-894

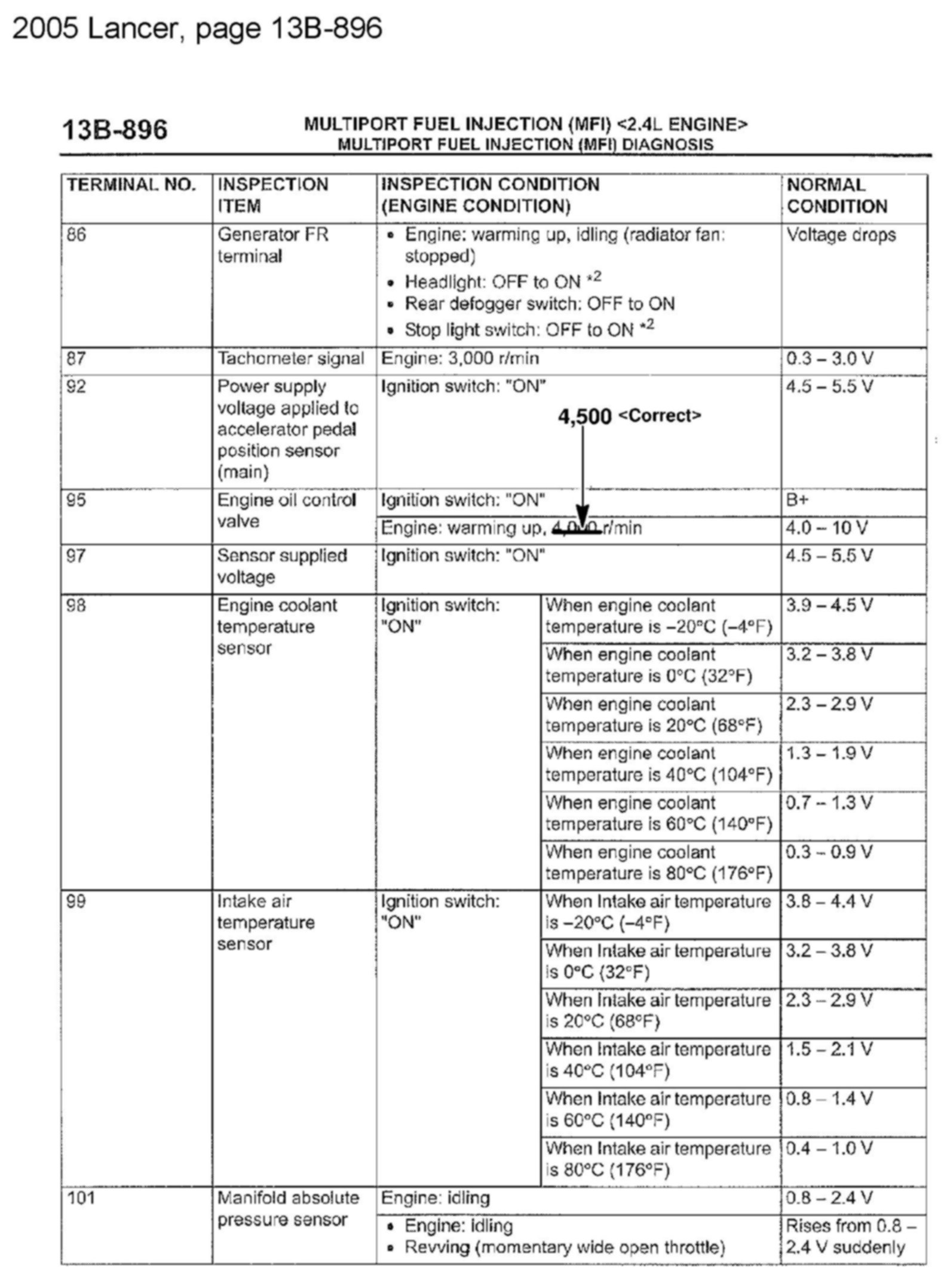

2005 Lancer, page 13B-896
