Condenser HVAC: Testing and Inspection

INSPECTION

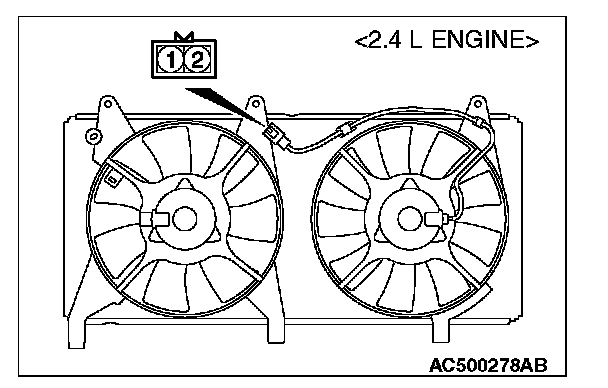

CONDENSER FAN MOTOR CHECK







Check to be sure that the condenser fan motor operates when battery voltage is applied to terminal 2 and terminal 1 grounded.
