Home >> Mitsubishi >> 2006 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Heating and Air Conditioning >> Heater Core >> Service and Repair

Heater Core: Service and Repair

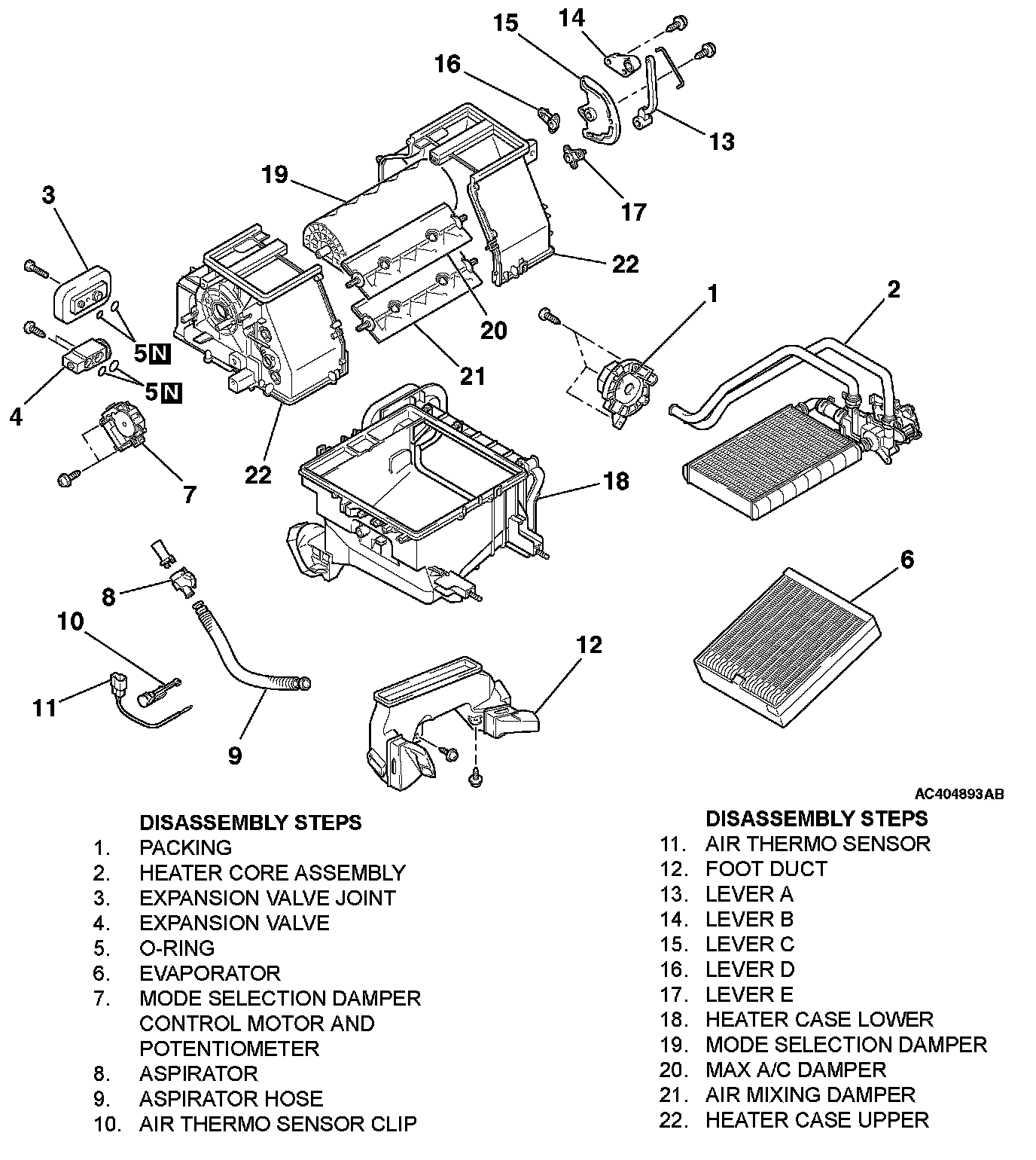

Disassembly Steps 1-22:
