Powertrain Management: Locations

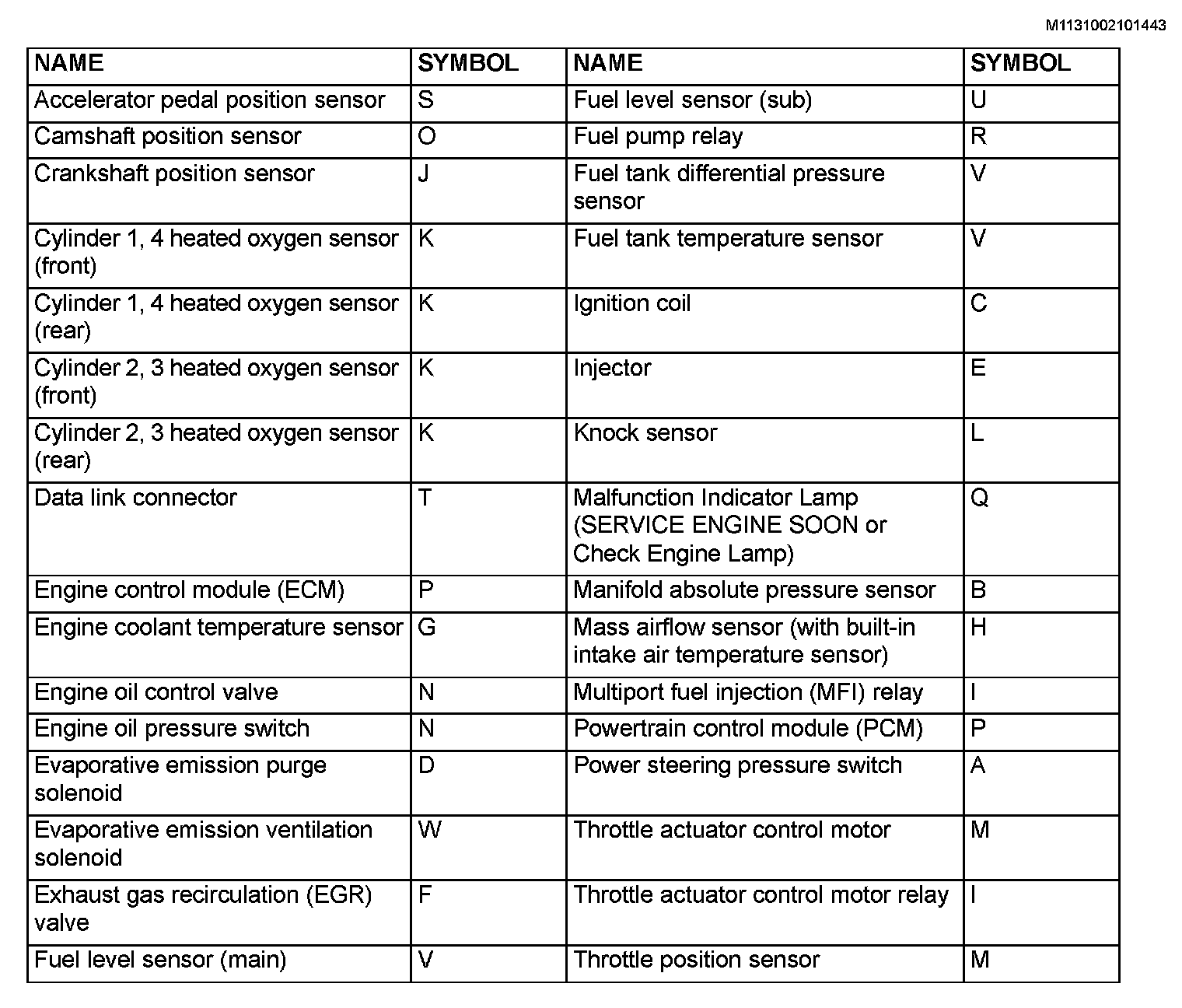

Component Location:

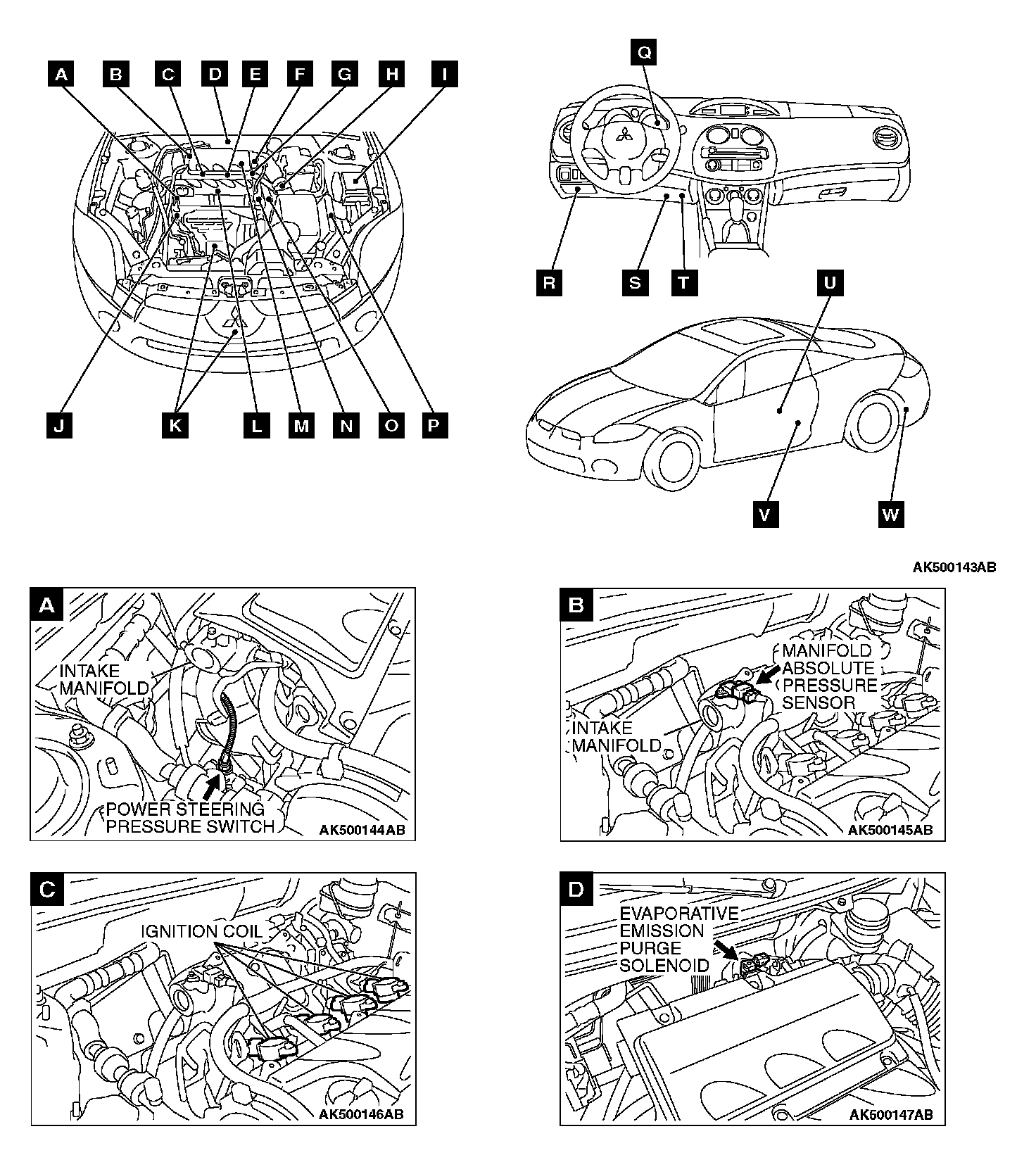

Overall View:

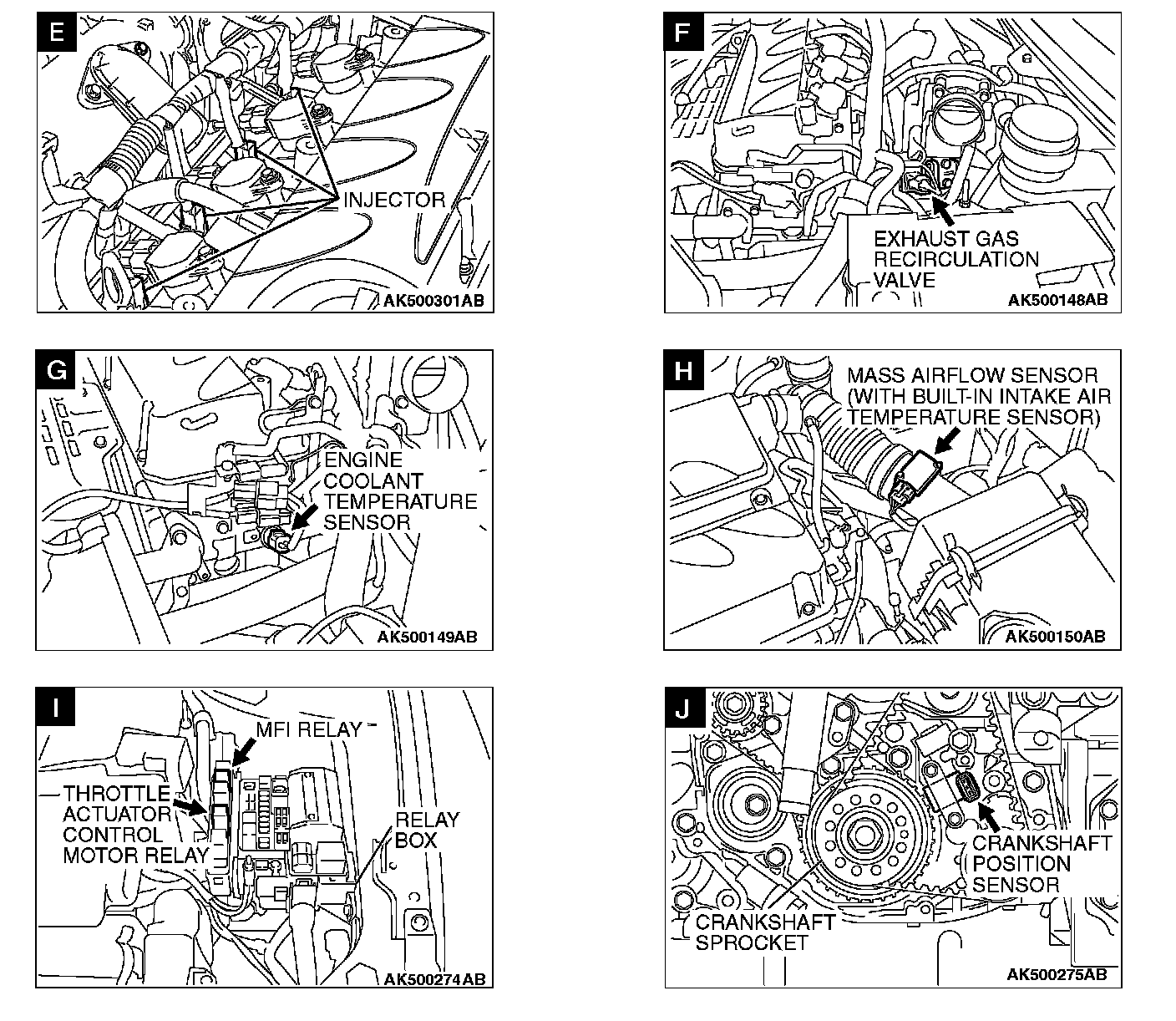

View E - J:

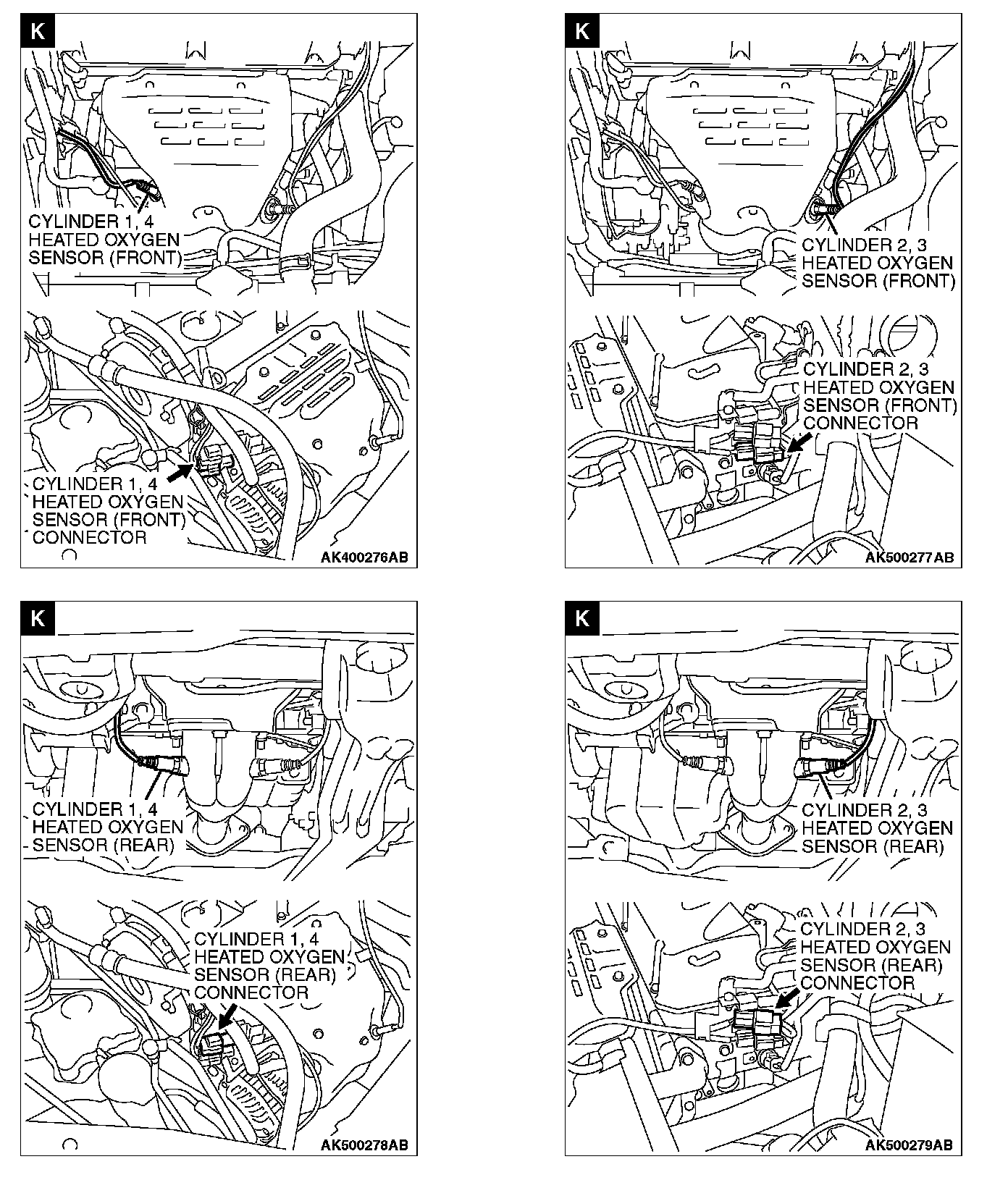

View K:

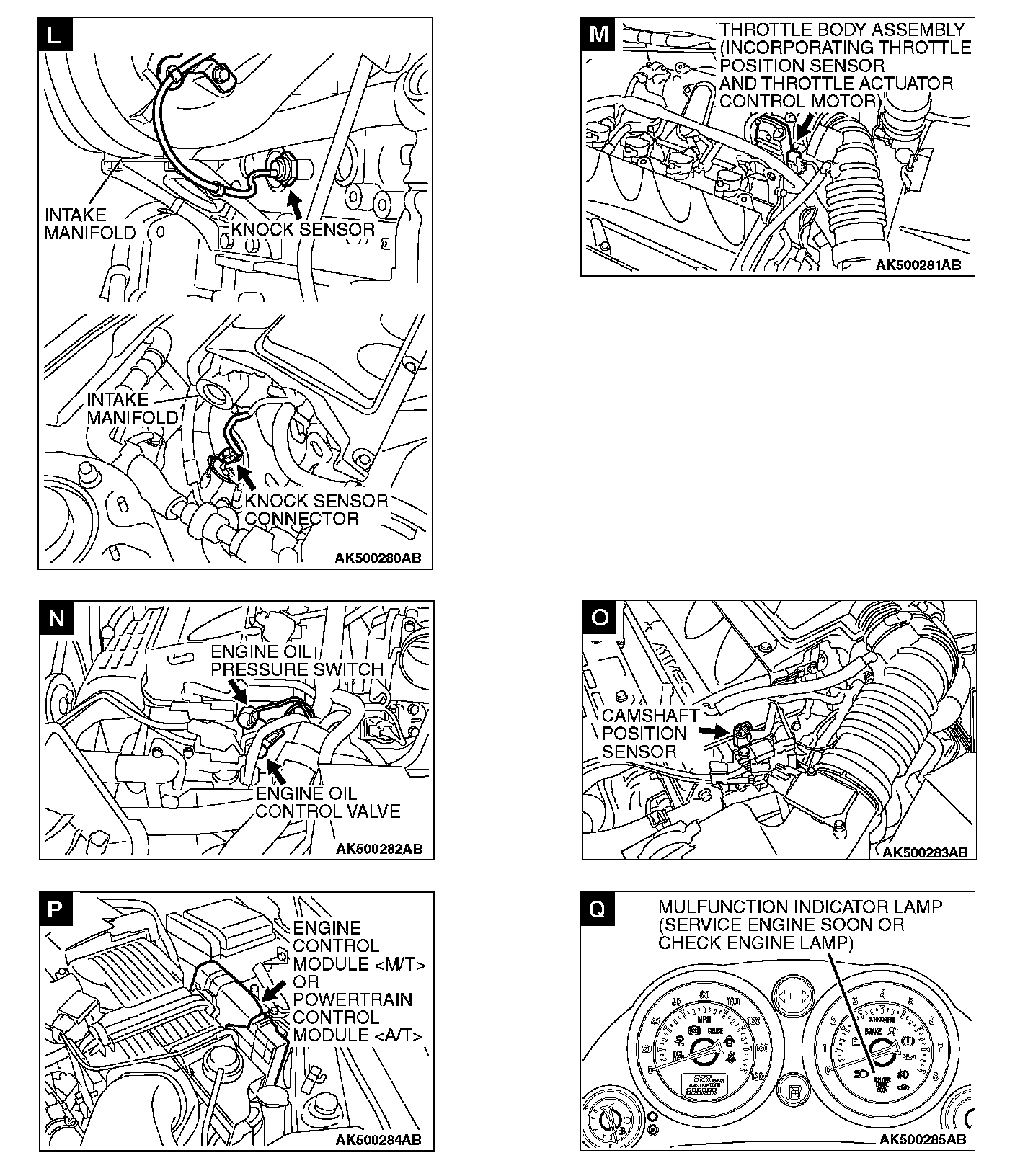

View L - Q:

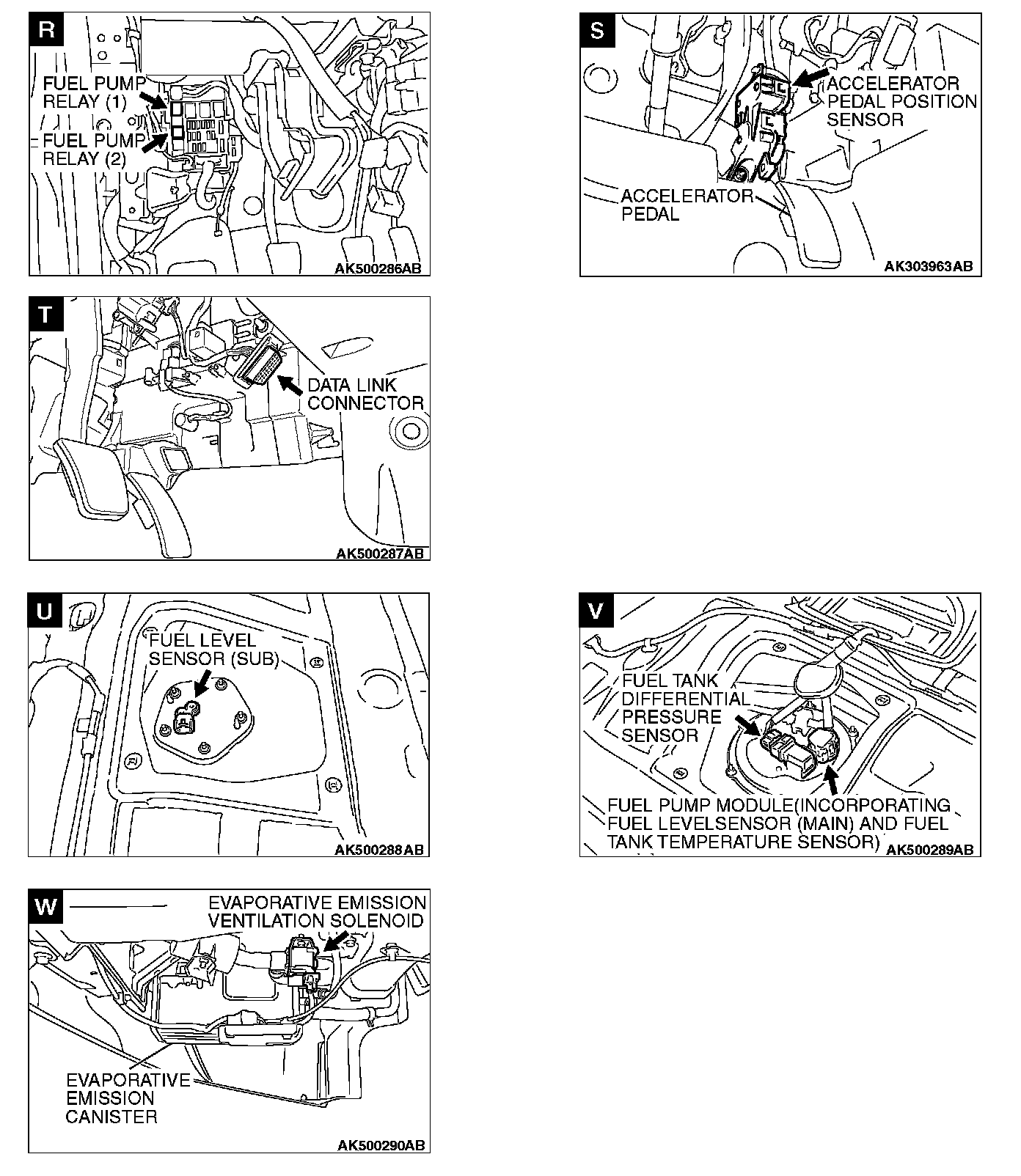

View R - V:
