Keyless Entry

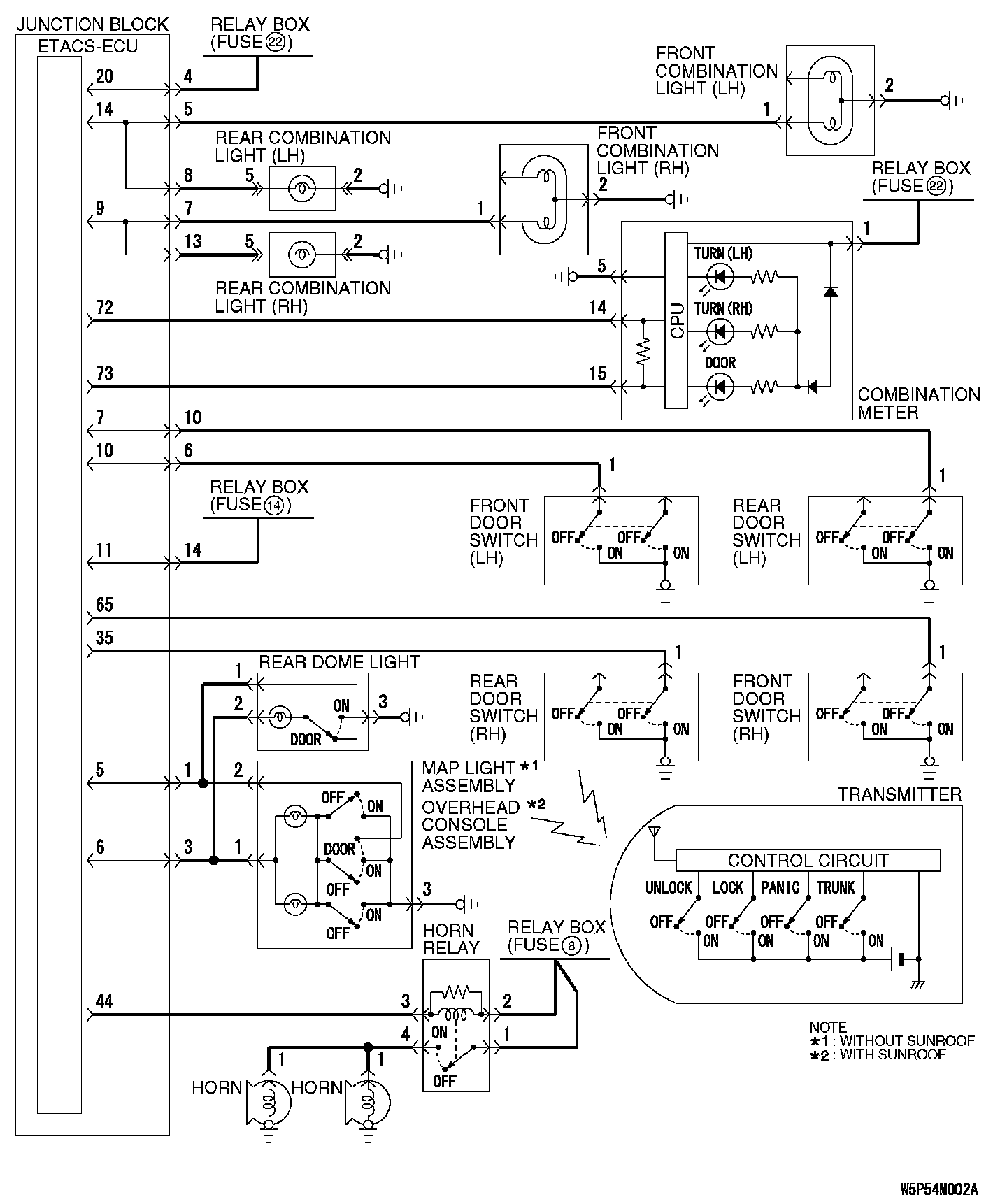

Part 1:



Part 2:

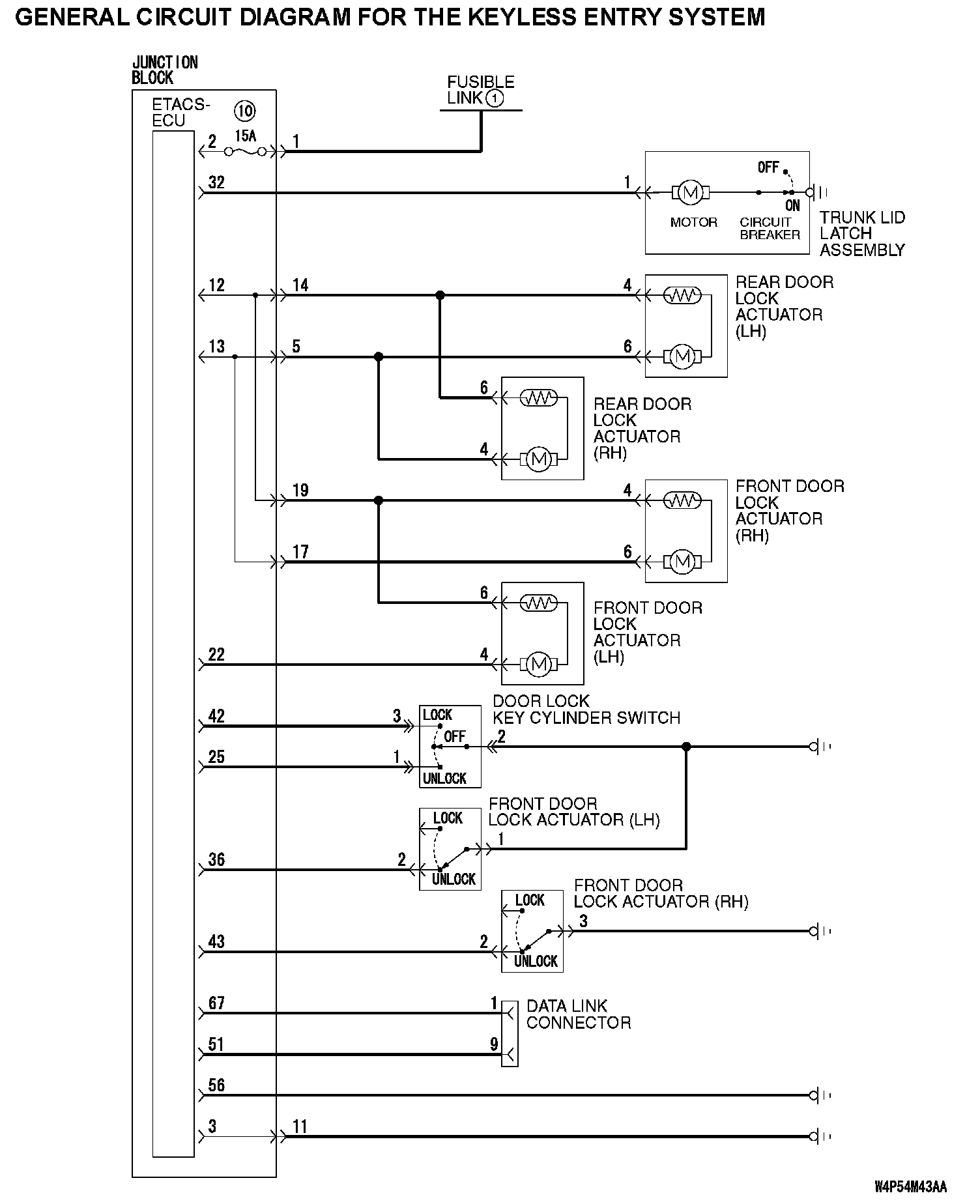

General Circuit Diagram For The Keyless Entry System Part 1:



General Circuit Diagram For The Keyless Entry System Part 2:
