Fuel Delivery and Air Induction
Fuel Delivery and Air Induction

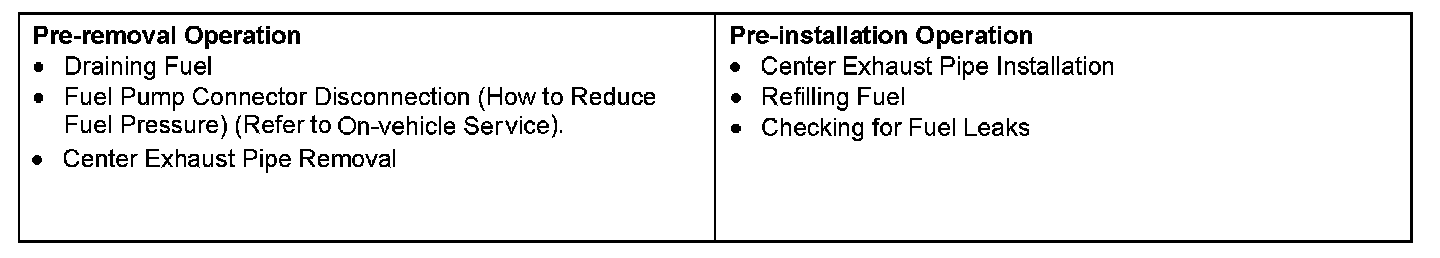

Pre-removal And Pre-installation Operation:
Removal Steps 1-12:
Removal Steps 13-34:

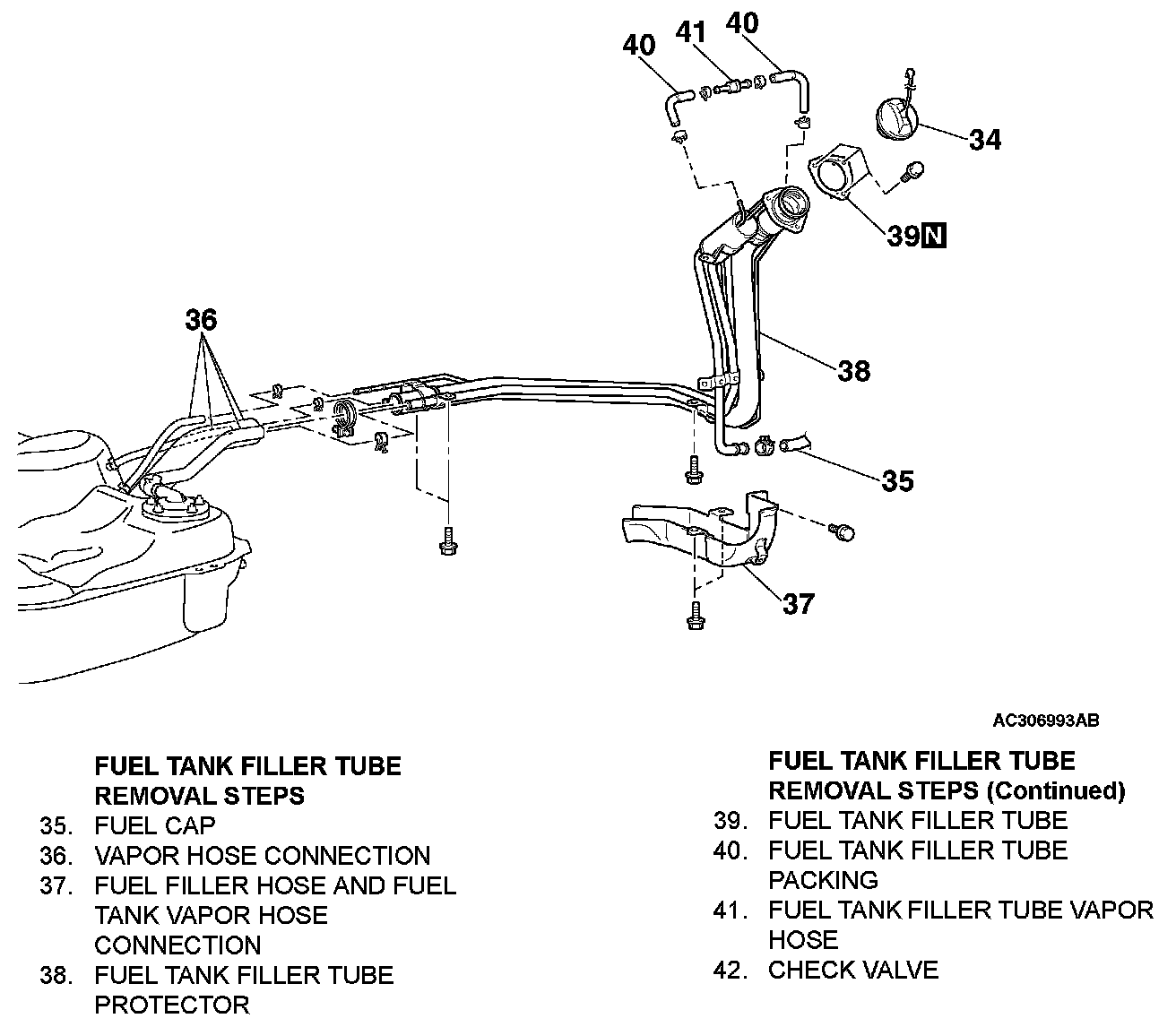

Removal Steps 35 - 42:
