System Relay: Testing and Inspection

POWER RELAY CHECK




Blower Relay Continuity Check:

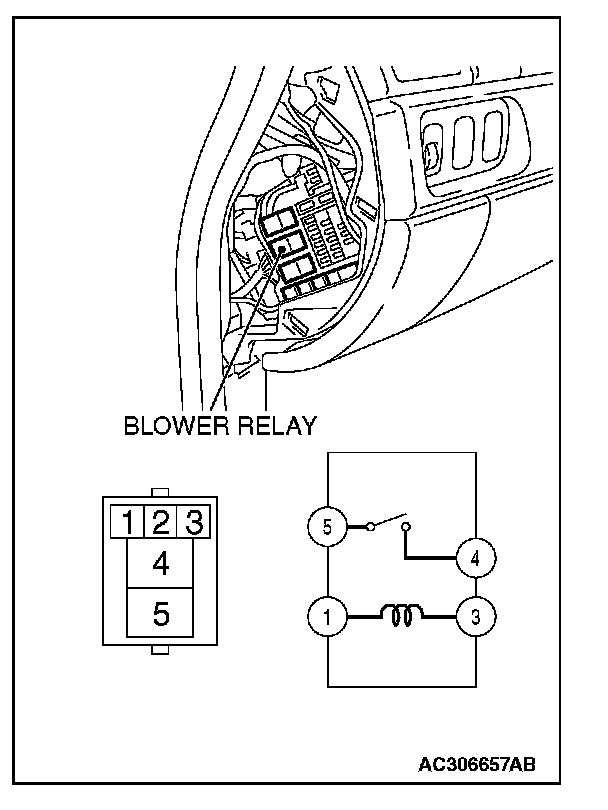

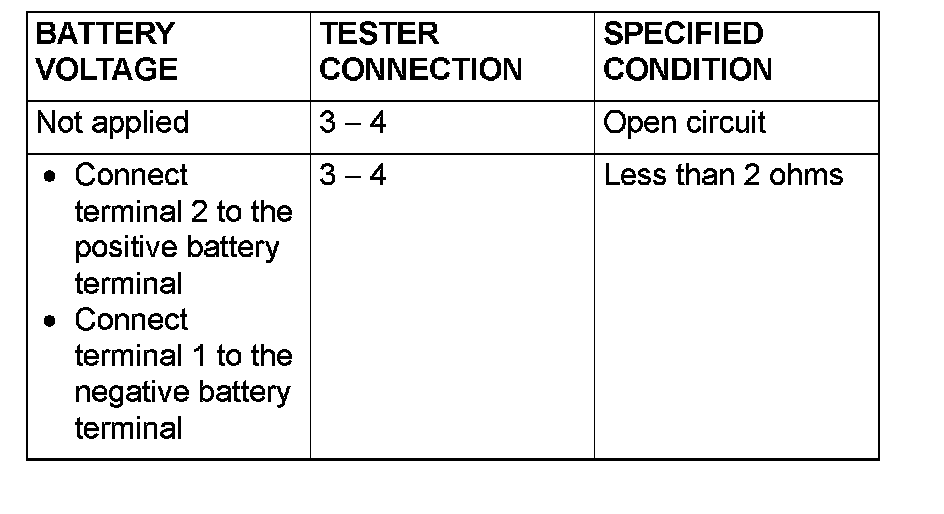

BLOWER RELAY CONTINUITY CHECK




A/C Compressor Clutch Relay Continuity Check:




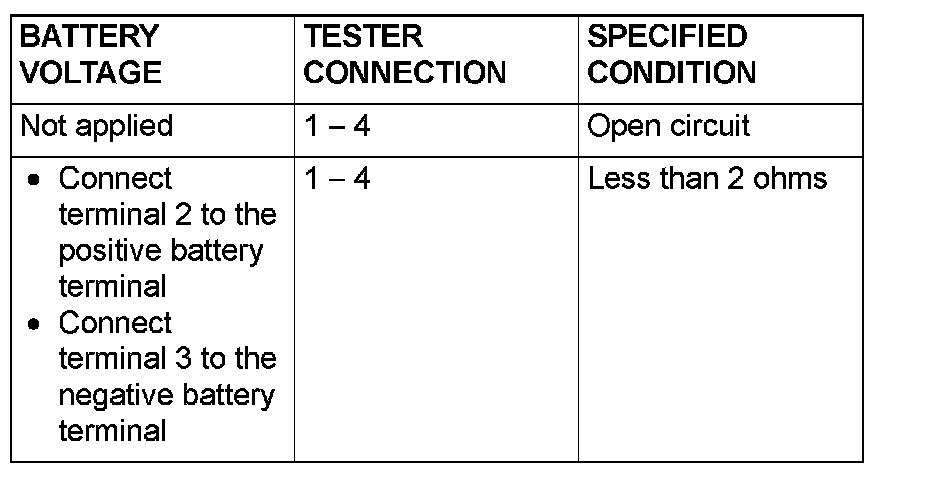

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK




Fan Control Relay Continuity Check:

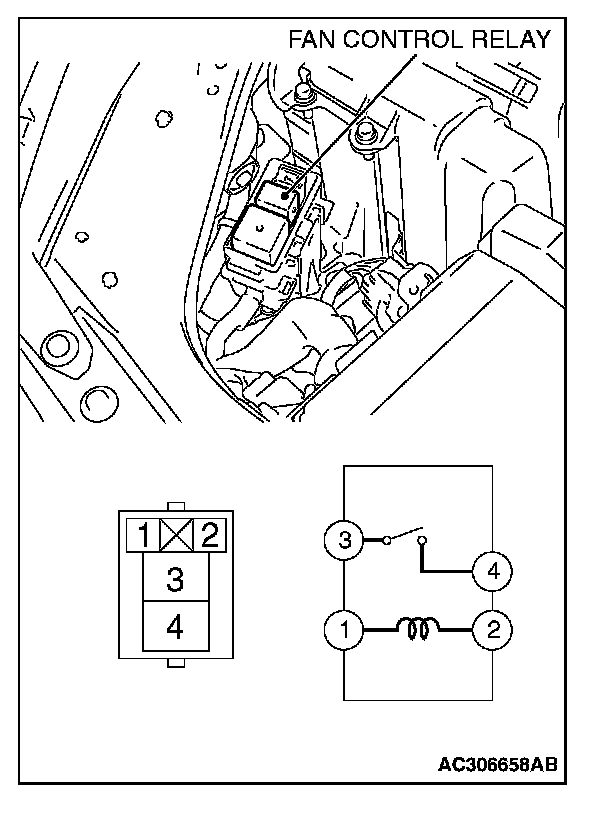

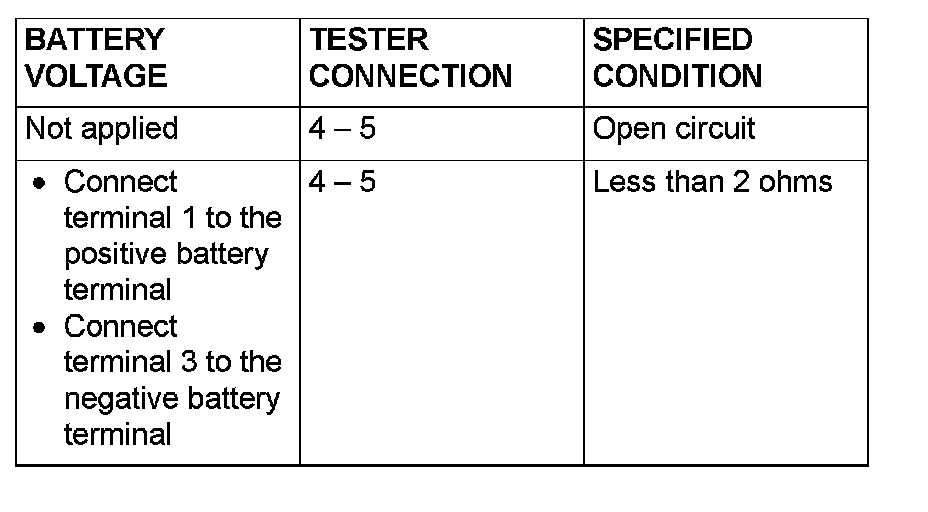

FAN CONTROL RELAY CONTINUITY CHECK
