Driver/Vehicle Information Display: Adjustments

ON-VEHICLE SERVICE

CONFIGURATION FUNCTION ADJUSTMENT BY OPERATING THE MULTI-CENTER DISPLAY




Part 1:




Part 2:

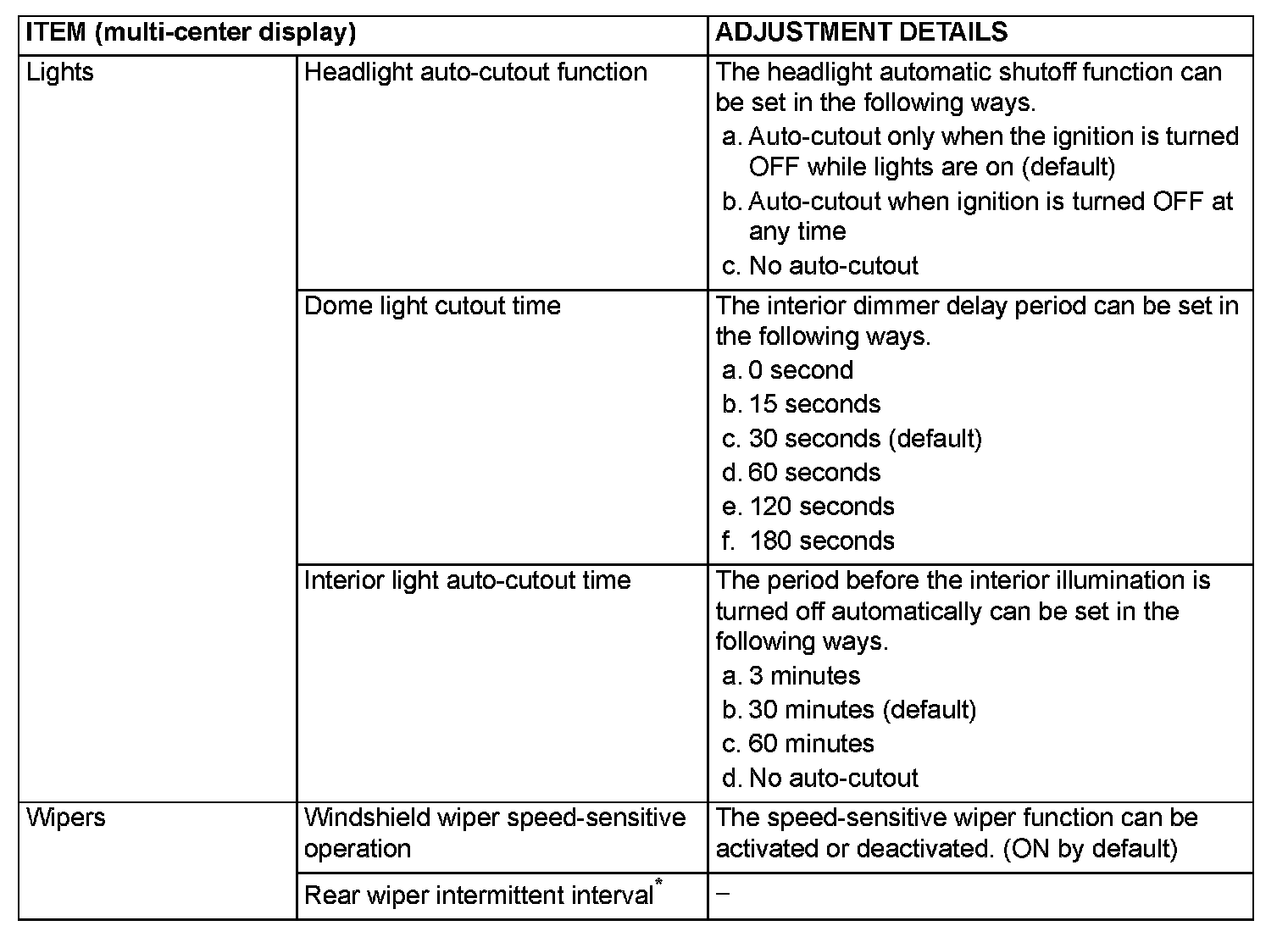

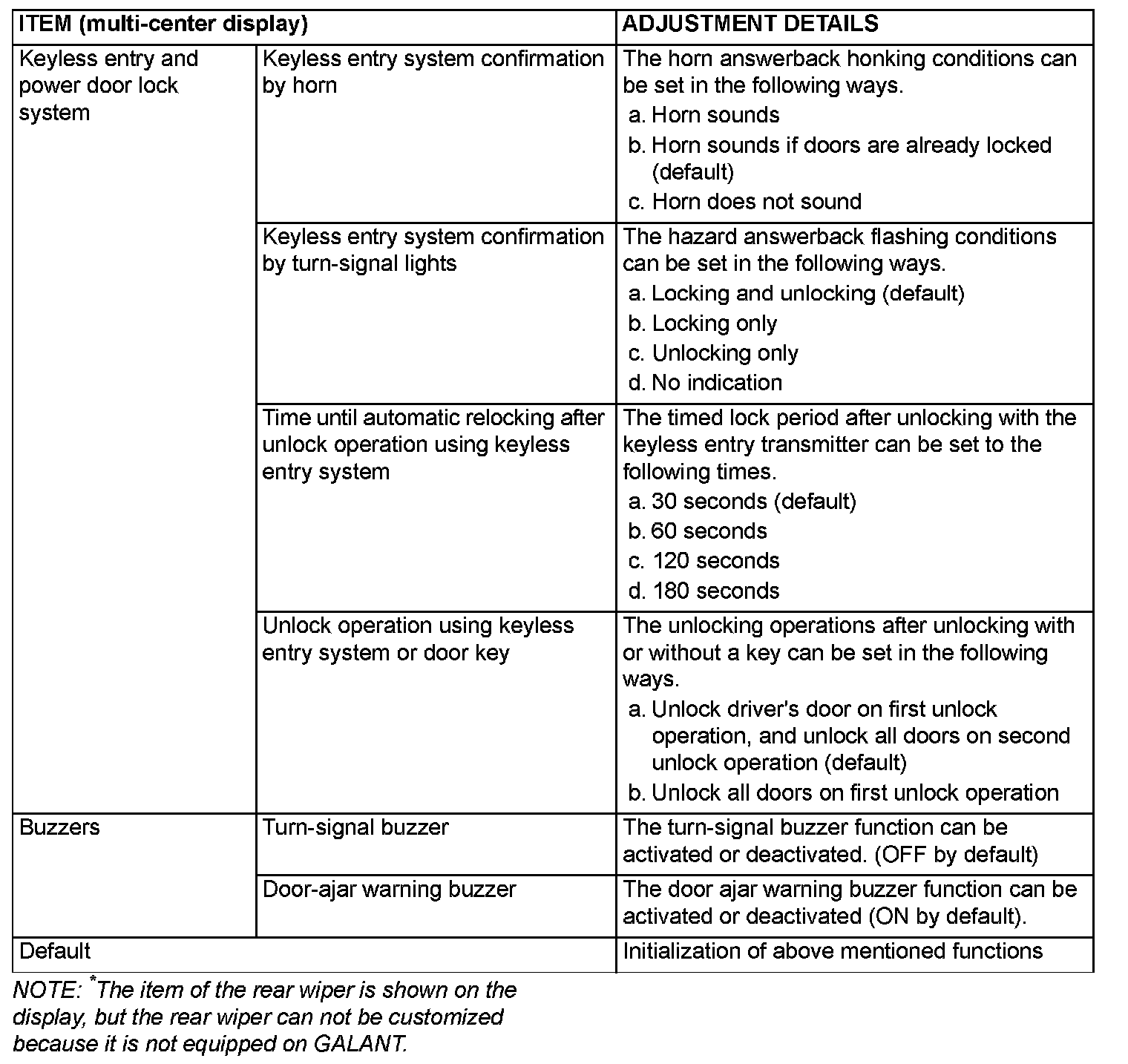

The given function and system customizations are possible by using the multi-center display.

NOTE: The item of the rear wiper is shown on the display, but the rear wiper can not be customized because it is not equipped on GALANT.
