Brakes - Revised Brake Booster Service Information
No: TSB-05-35-003DATE: September 01, 2005
SUBJECT: BRAKE BOOSTER SERVICE INFORMATION - SERVICE MANUAL REVISION
MODEL: 2006 Galant
TSB Revision: TSB-05-35-003
PURPOSE
Brake booster service information is incorrect in the 2006 Galant service manual. The brake booster push rod is NOT adjustable. This bulletin deletes the brake booster push rod adjustment procedure in the affected service manual.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2006 Galant
AFFECTED SERVICE MANUAL

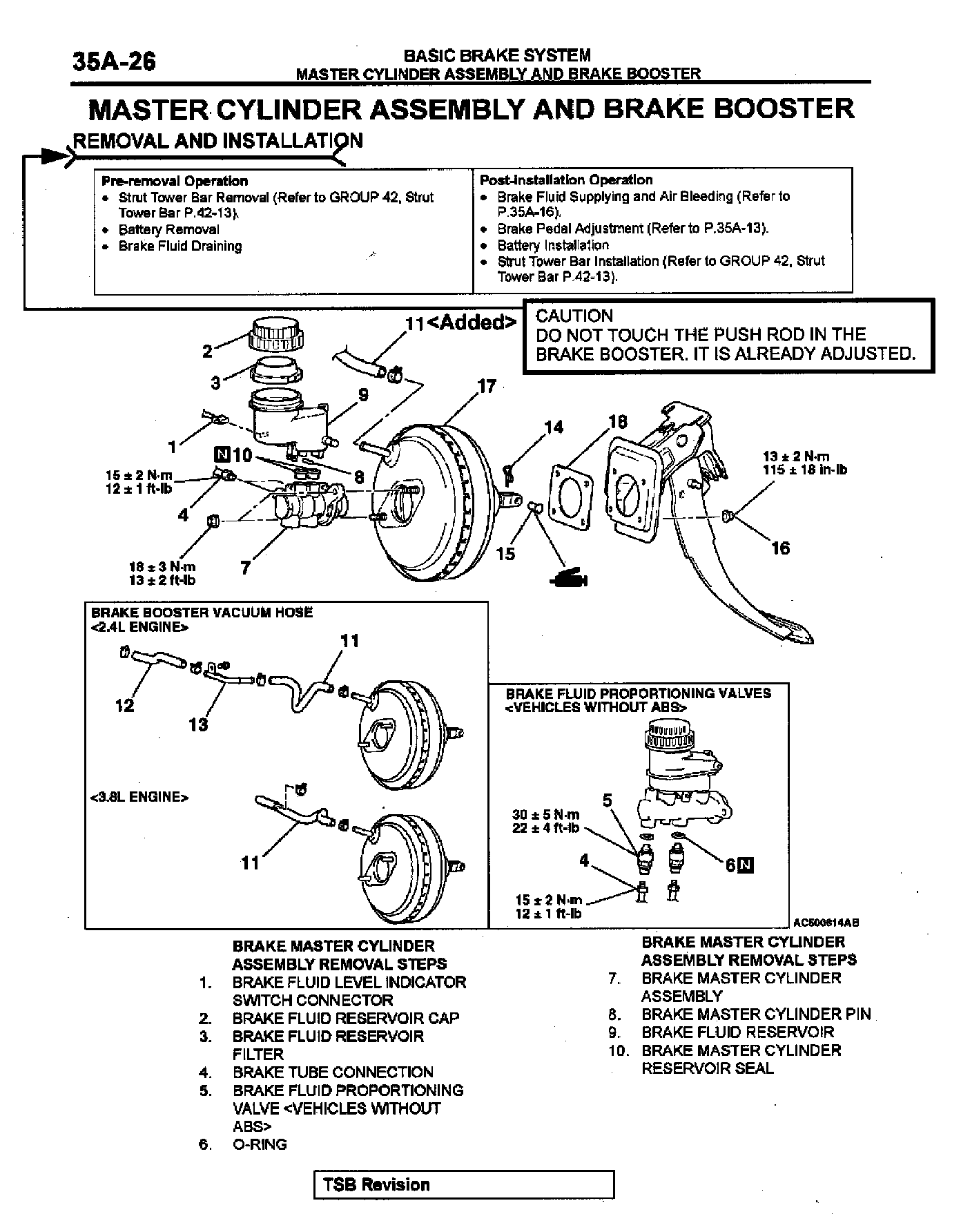

2006 Galant, page 35A-26

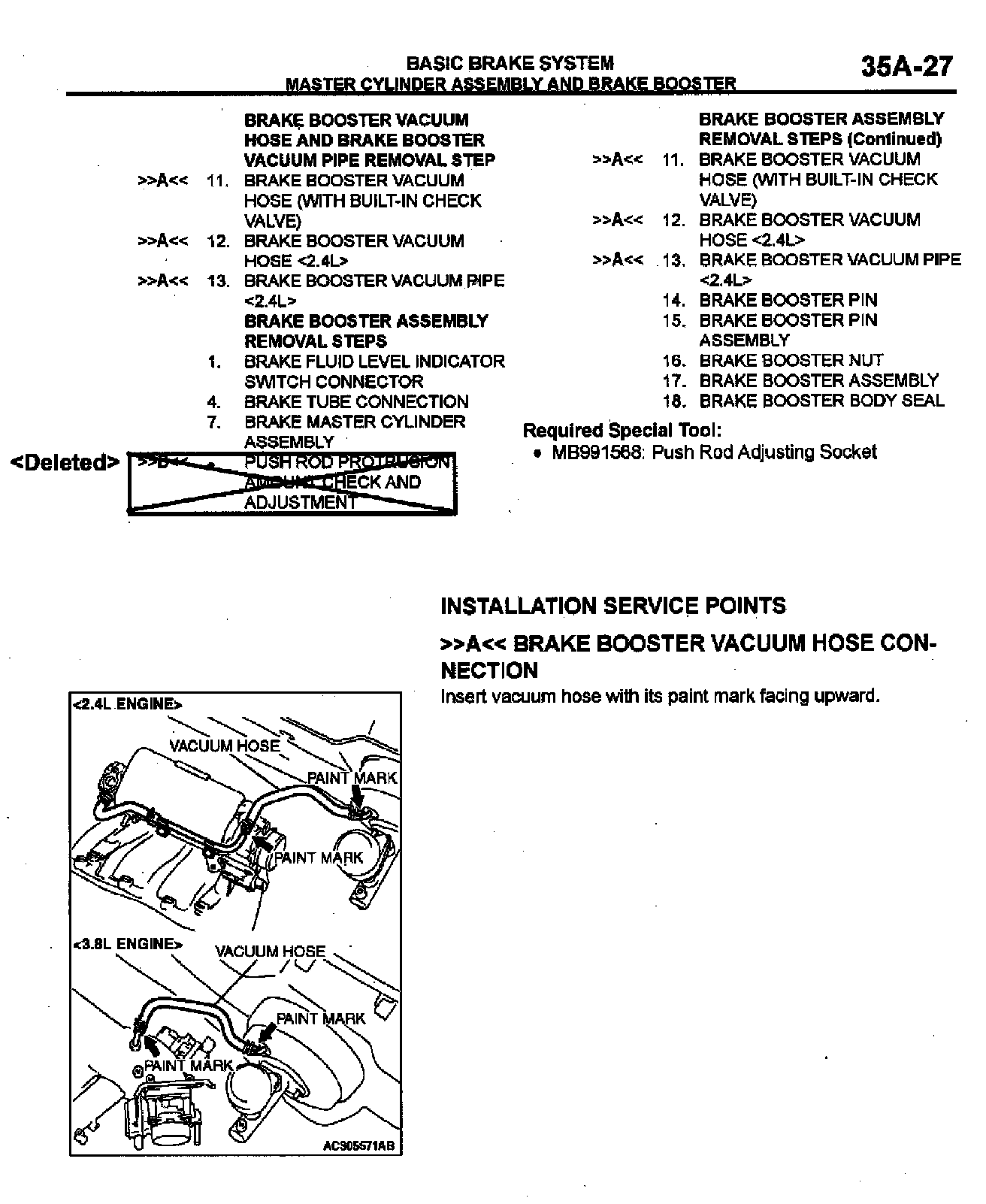

2006 Galant, page 35A-27

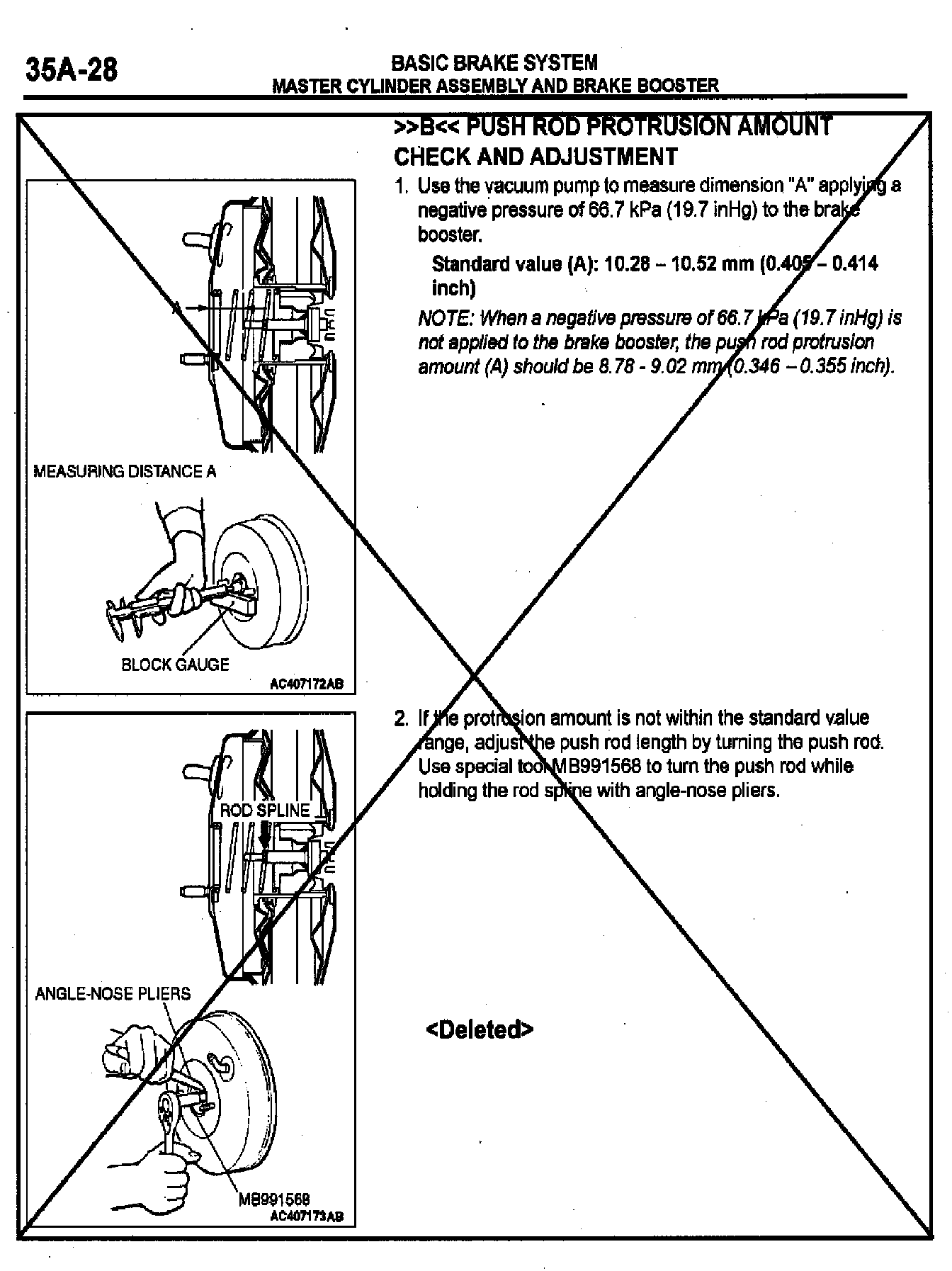

2006 Galant, page 35A-28
The information contained in this bulletin is subject to change. For latest version of this document go to the Mitsubishi Dealer Link, MEDIC, or the Mitsubishi Service Information website.
