Electrical - Revised Sunroof/Power Window Diagrams

No: TSB-05-54-009

DATE: November 11, 2005

SUBJECT: SUNROOF AND POWER WINDOWS CIRCUIT DIAGRAMS - SERVICE MANUAL REVISION

MODEL: 2006 Galant

PURPOSE
The circuit diagrams for power windows and sunroof are incorrectly shown in the affected service manual pages. This bulletin contains corrected circuit diagrams.

AFFECTED VEHICLES
2006 Eclipse models equipped with power windows and sunroof

AFFECTED SERVICE MANUAL

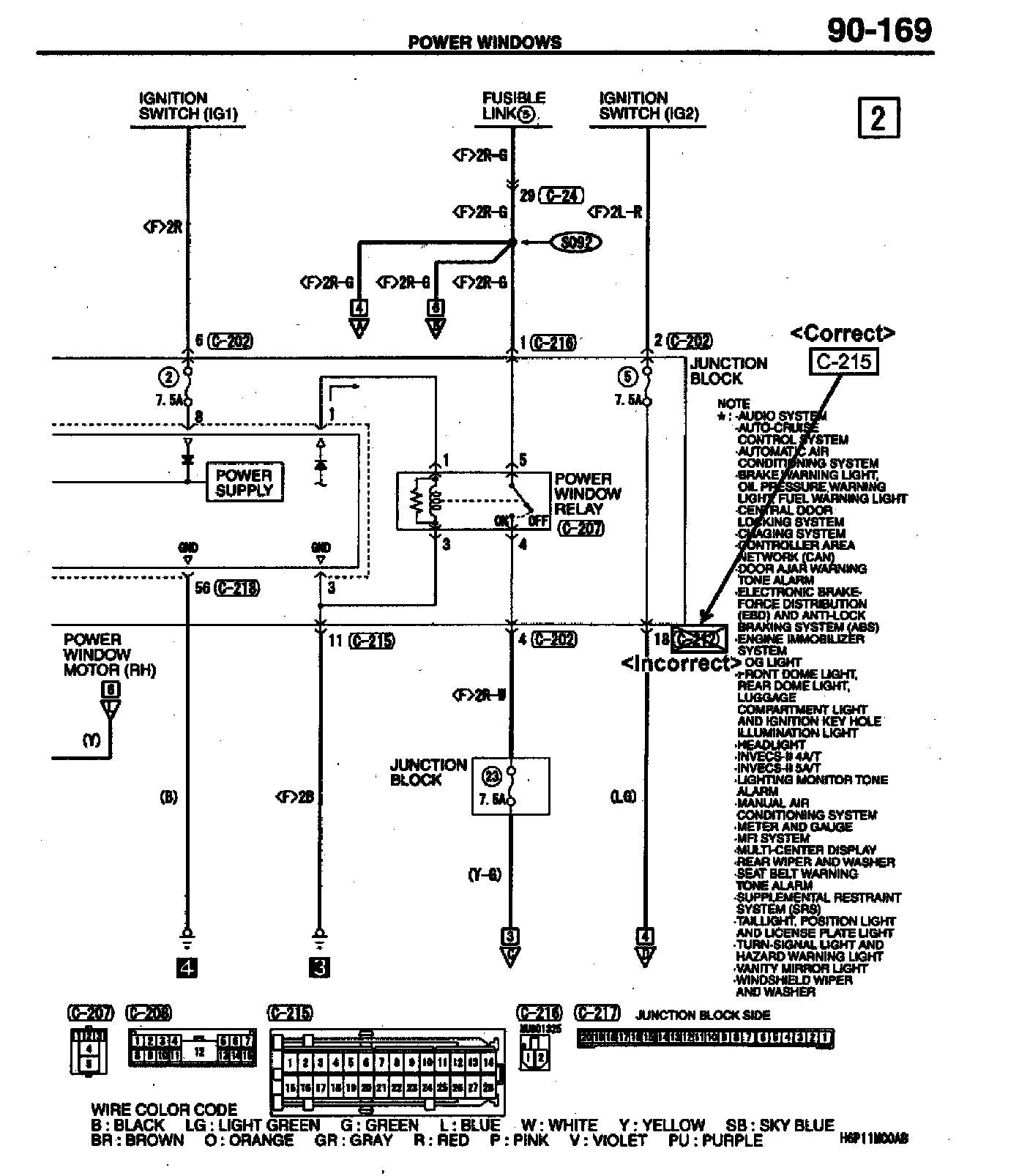

02006 Eclipse service manual, page 90-169

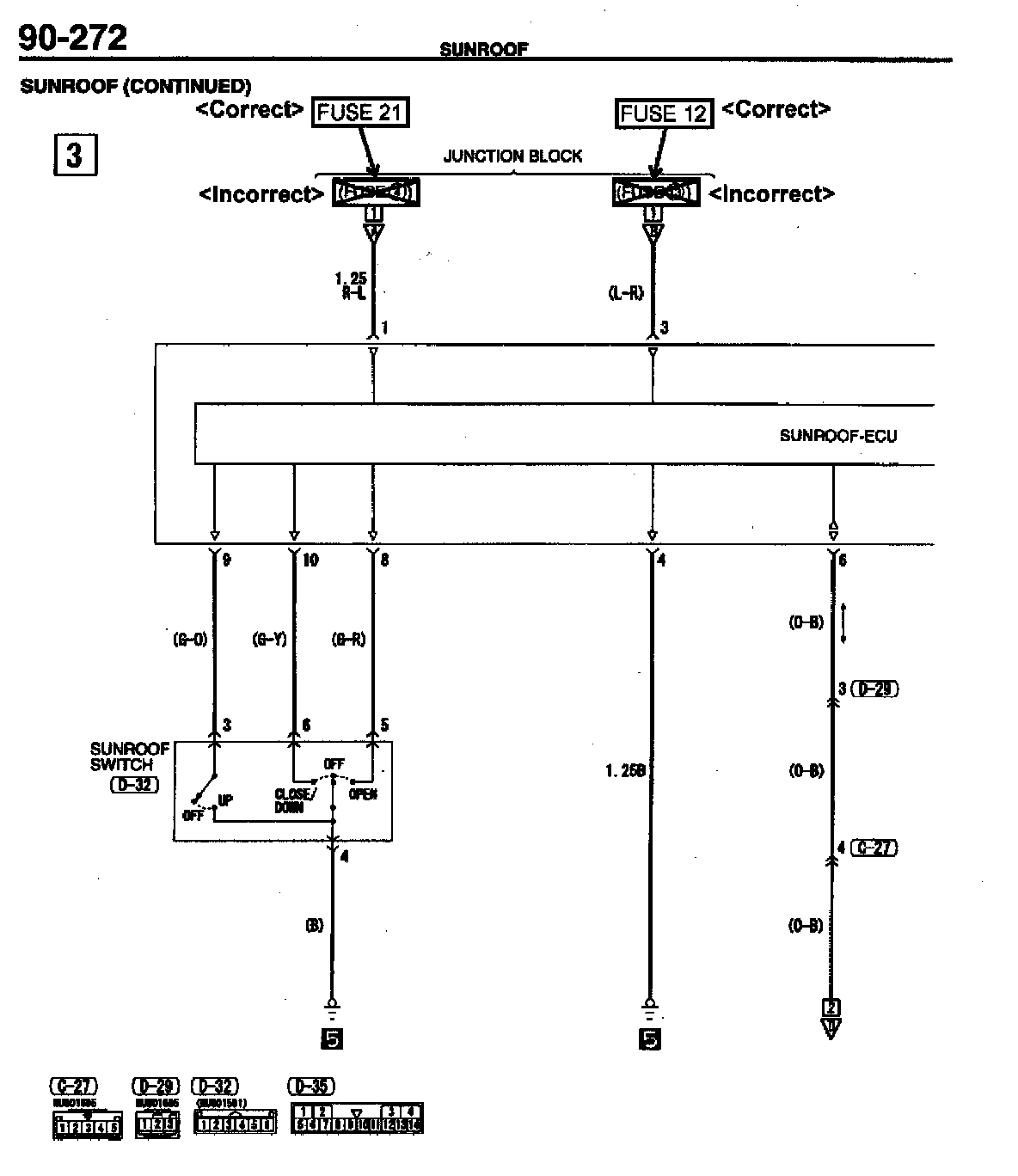

2006 Eclipse service manual, page 90-272


The information contained in this bulletin is subject to change. For latest version of this document go to the Mitsubishi Dealer Link, MEDIC, or the Mitsubishi Service Information website.
