Instruments - Momentary Incorrect Fuel Gauge readings

No: TSB-06-54-005

DATE: June, 2006

MODEL: See below

SUBJECT:
MOMENTARY INCORRECT FUEL ECONOMY READING

PURPOSE

Some customers may experience a momentary incorrect fuel economy reading. In some cases the MPG or L/100 KM may display fuel economy values three to four times greater than the actual vehicle condition. The Multi-center display software has been updated to correct this condition. If a customer reports this condition, replace the Multi-center display with an exchange unit from Yazaki Service Center as described in the bulletin.

AFFECTED VEHICLES
2006 Endeavor equipped with Multi-center display
2006 Galant equipped with Multi-center display

PROCEDURE

Replace the Multi-center display with an exchange unit from Yazaki Service Center. Refer to Service Manual group 54A for replacement procedure.

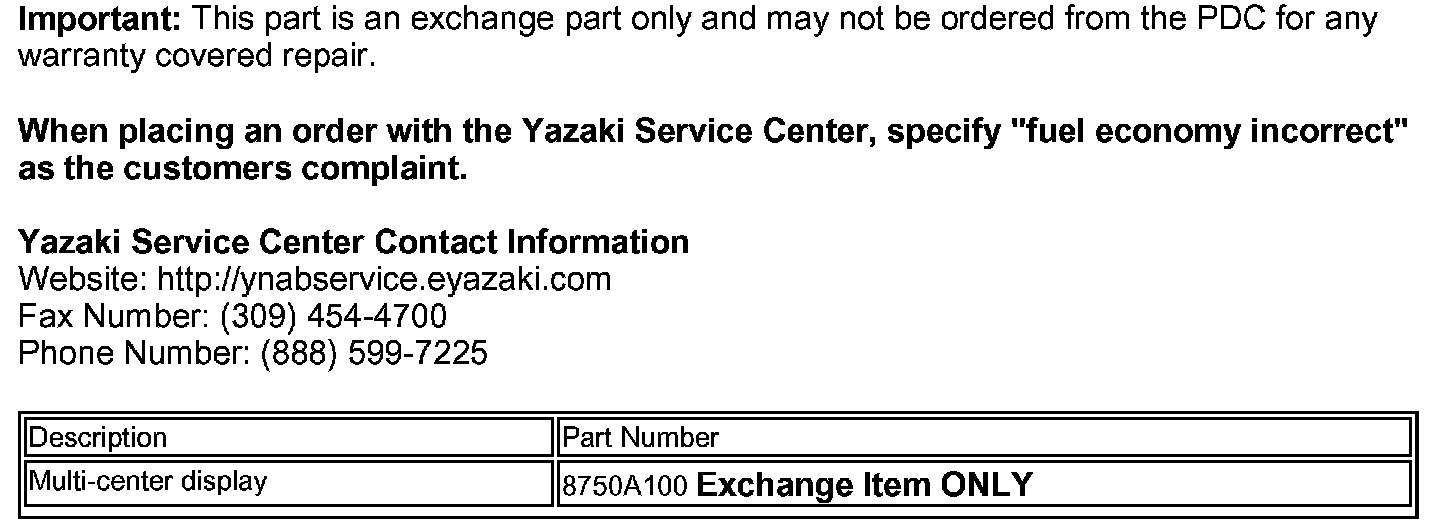

PARTS INFORMATION





WARRANTY INFORMATION
