Tire Monitor Sys - Revised Sensor ID Registration Proc.

No: TSB-11-31-003

DATE: October, 2011

MODEL: See below

SUBJECT:

TPMS SENSOR ID REGISTRATION PROCEDURE - SERVICE MANUAL REVISION

TSB Revision [TSB-11-31-003]

PURPOSE

TPMS sensors (transmitters) on the affected vehicles are now available as service parts. Accordingly the Tire Pressure Sensor ID Registration procedures in the affected service manuals have been revised to reflect this change.

This bulletin provides the revised sensor ID registration procedures for the affected service manual pages.

AFFECTED VEHICLES

2004 - 2006 Endeavor
2006 Galant
2004-2006 Montero

AFFECTED SERVICE MANUALS

2004 Endeavor page 31-73
2005 Endeavor page 31-68
2006 Endeavor page 31-69
2006 Galant page 31-68
2004 Montero page 31 page 31-89 to 31-93
2005 Montero page 31-89 to 31-93
2006 Montero page 31-86 to 31-90

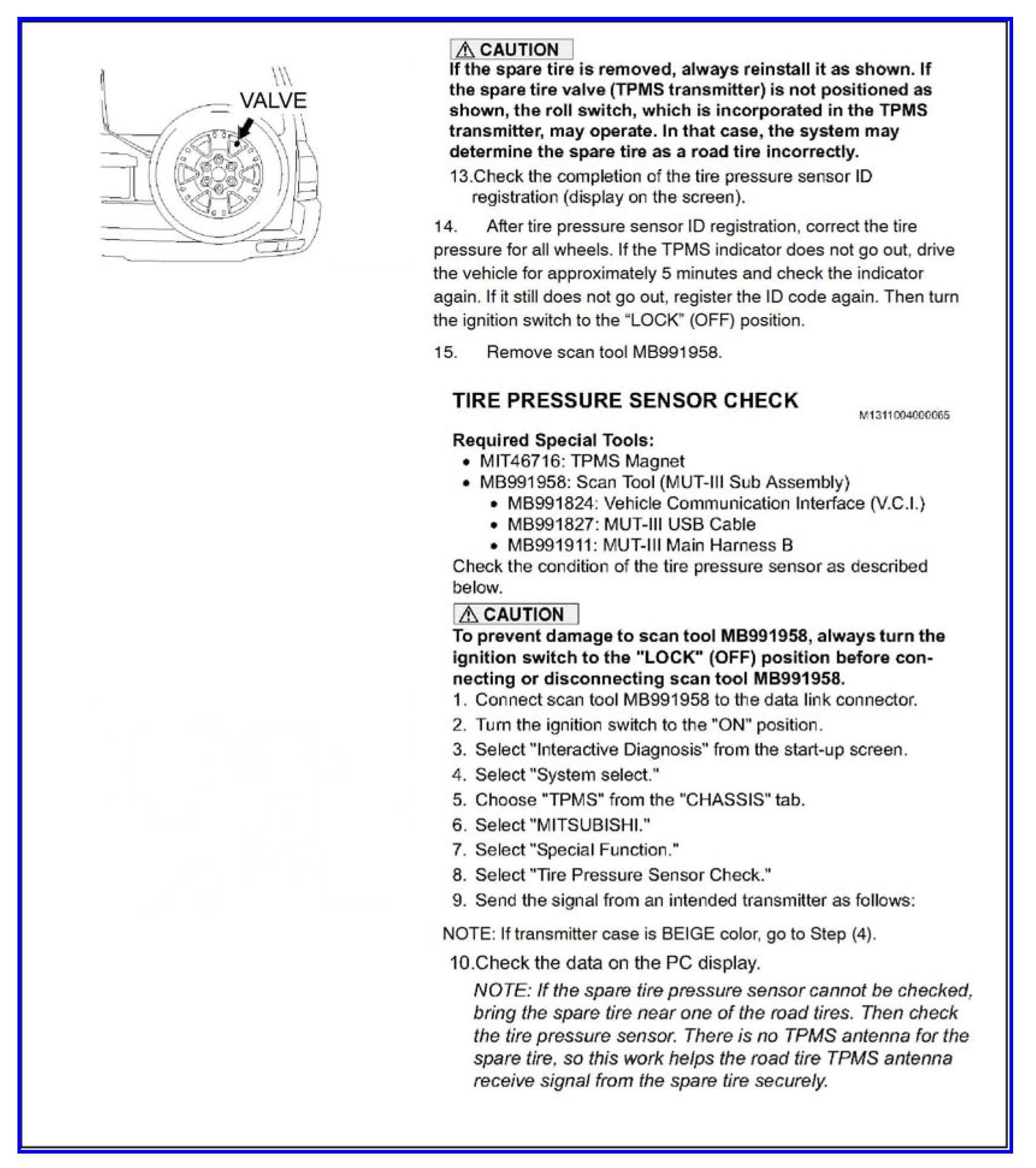

2005 Endeavor pages 31-68-69; 2006 Endeavor page 31-69. Replace the page with the following:

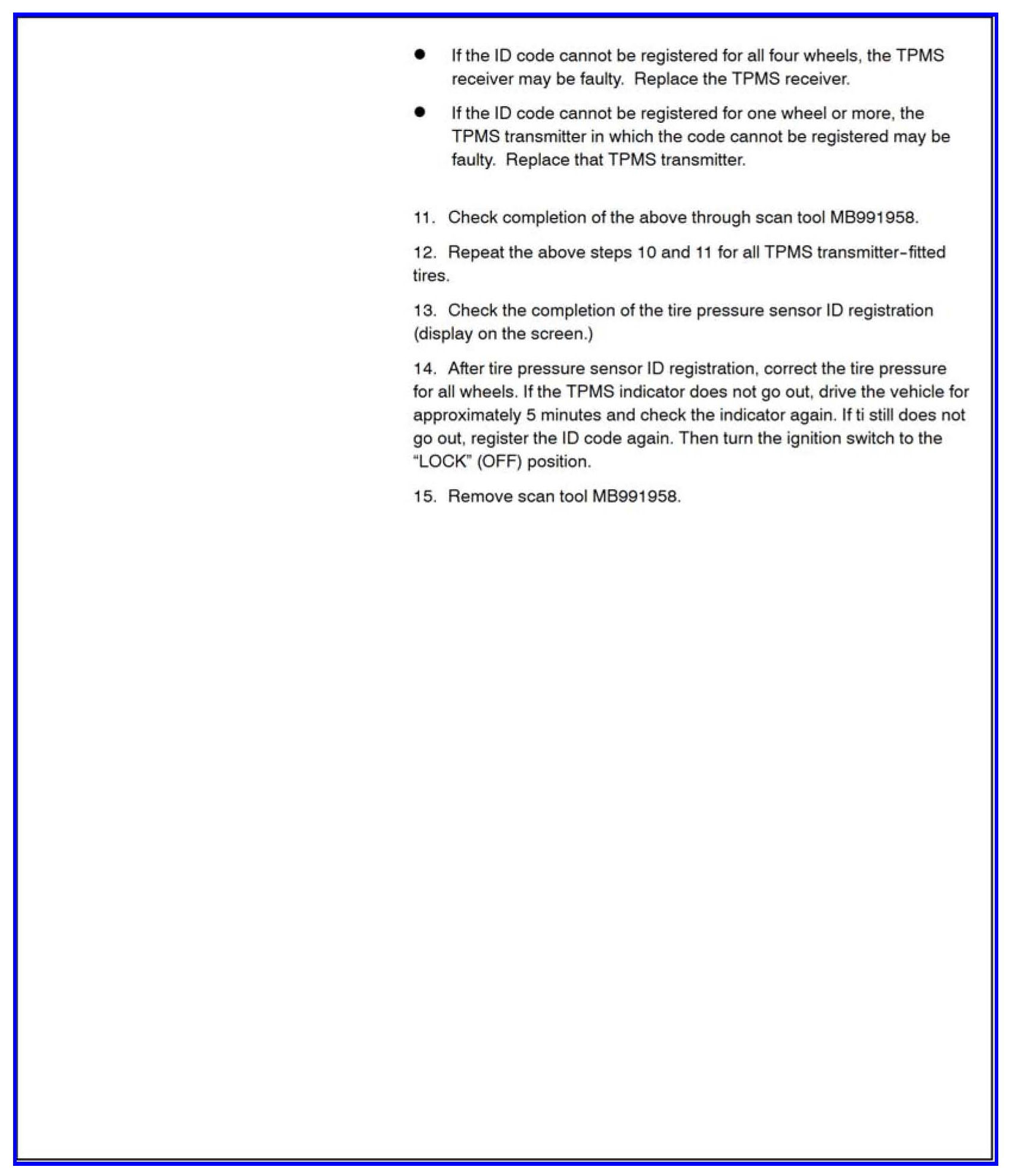

2005 Endeavor pages 31-68-69; 2006 Endeavor page 31-69. Replace the page with the following:

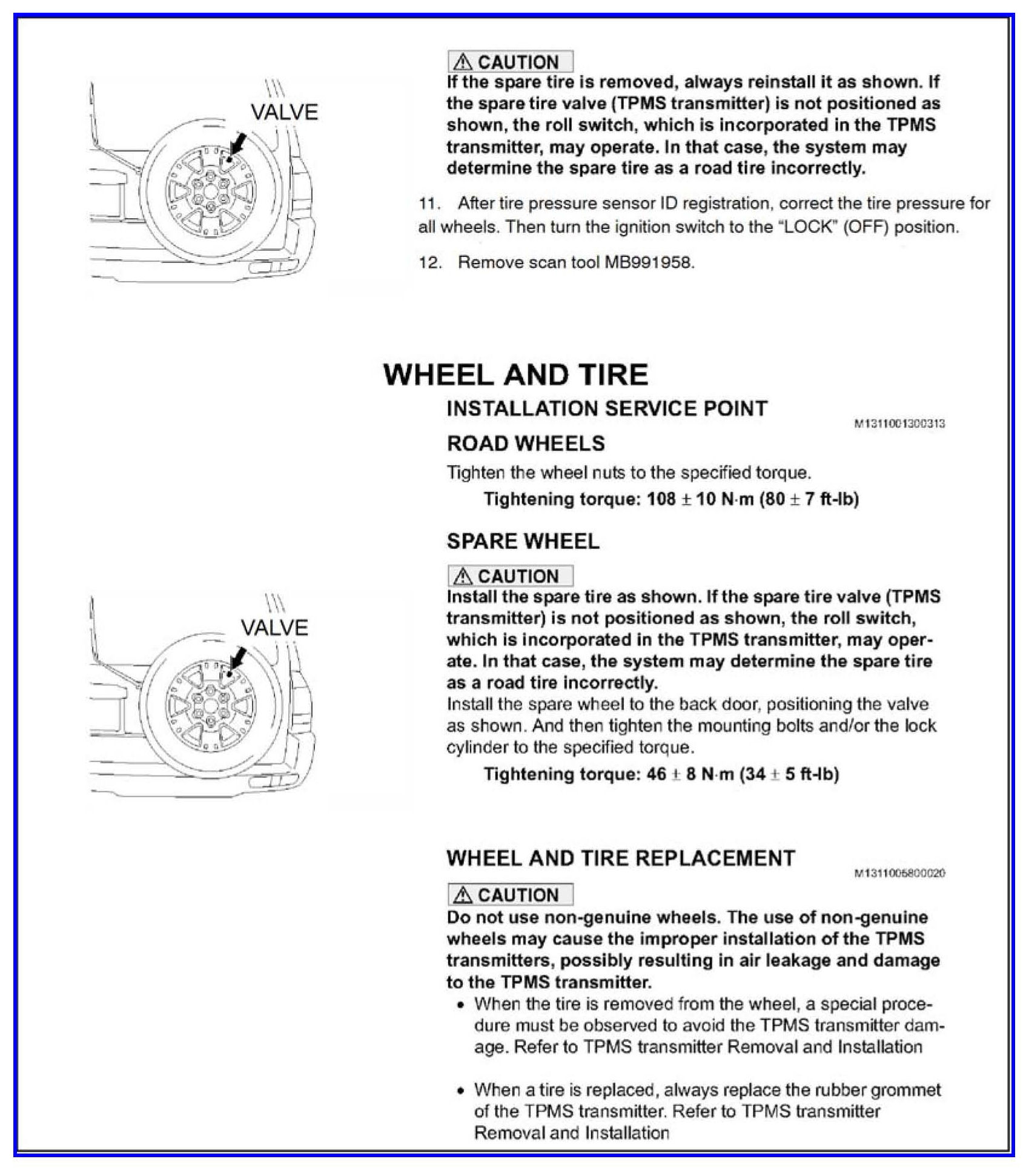

2006 Galant page 31-68. Replace the page with the following:

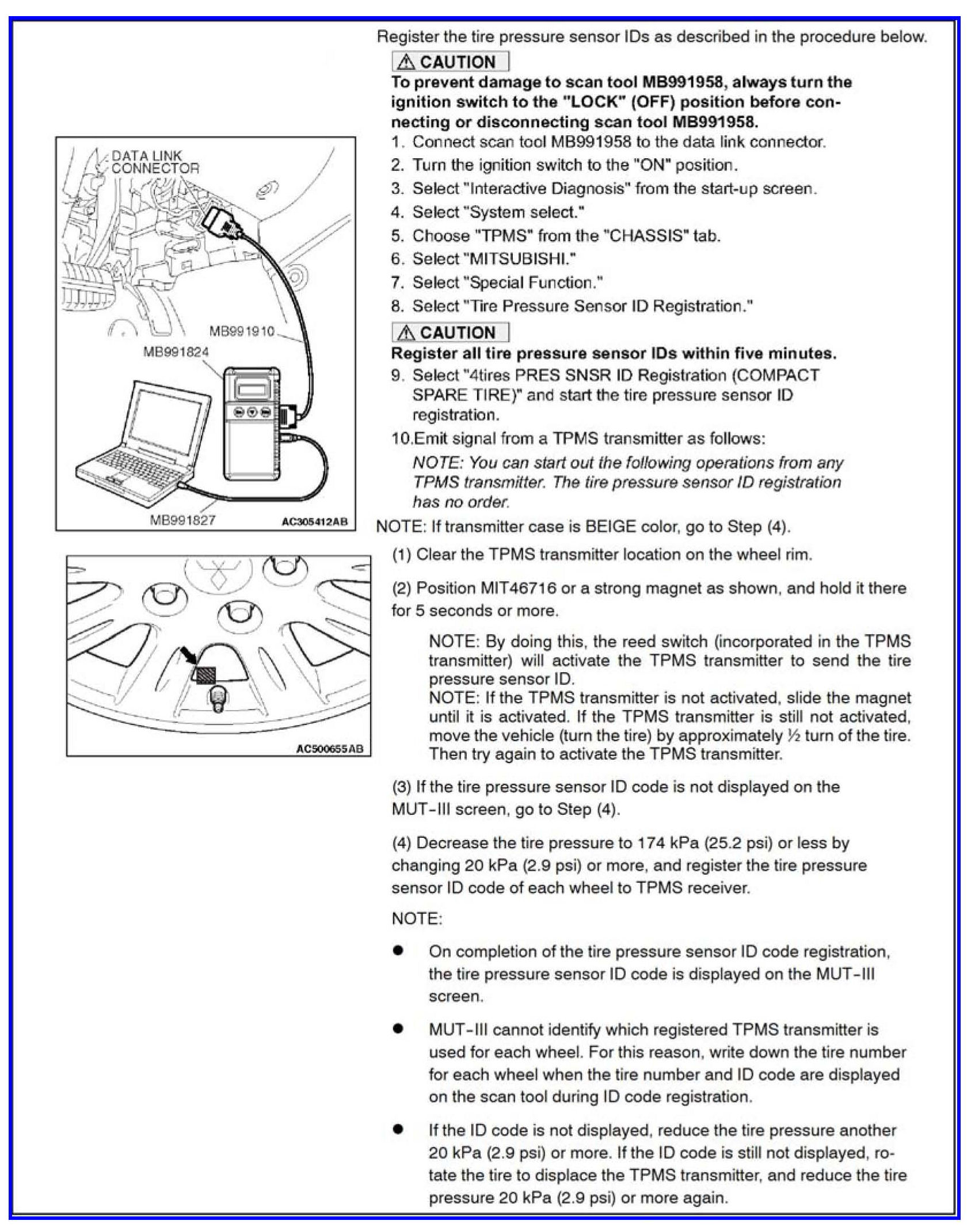

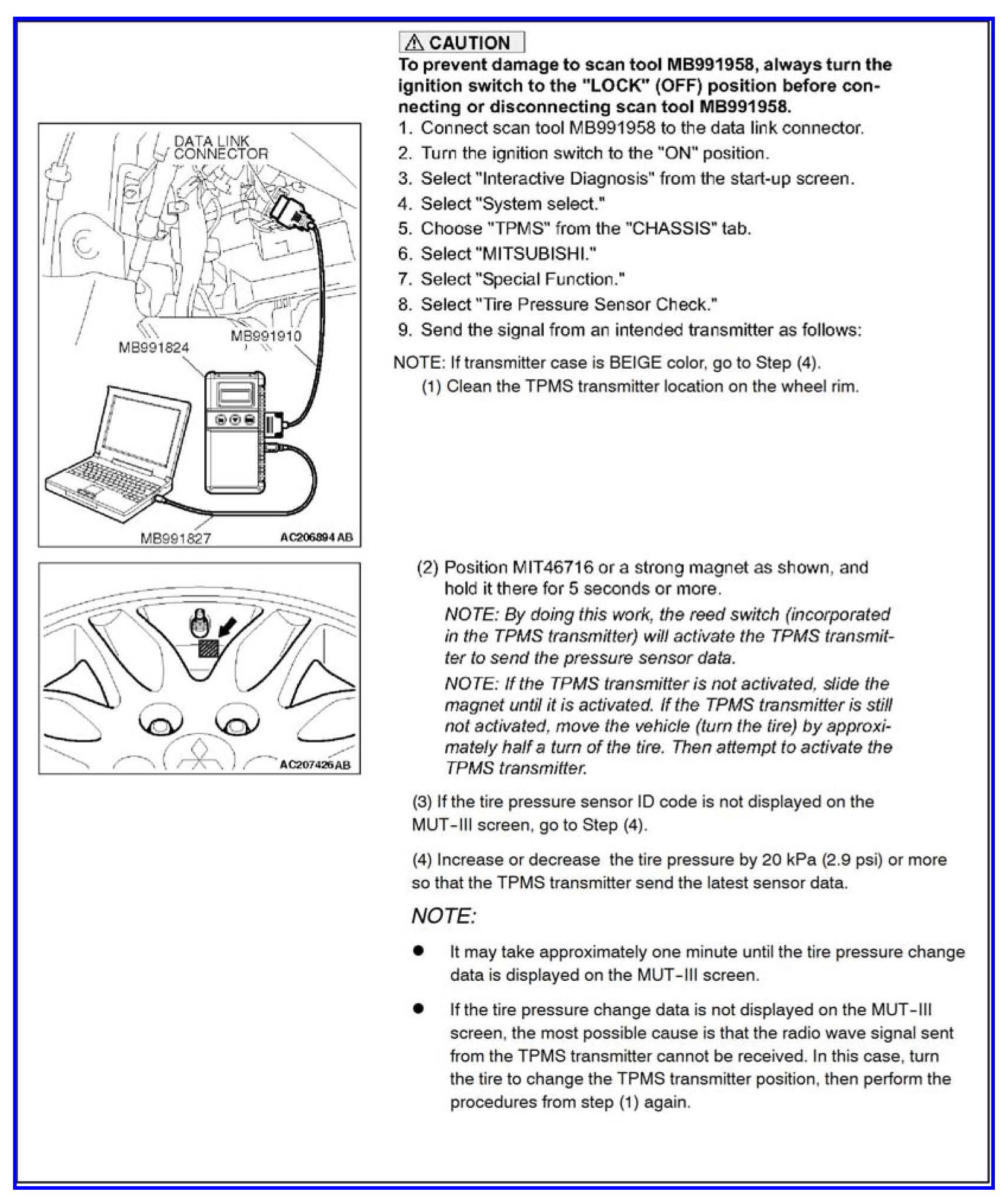

2004 & 2005 Montero pages 31-89 to -93; 2006 Montero pages 31-86 to -90 Replace the pages with the following:
