Home >> Mitsubishi >> 2006 >> Galant V6-3.8L (6G75) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Thermostat, Engine Cooling

Thermostat, Engine Cooling

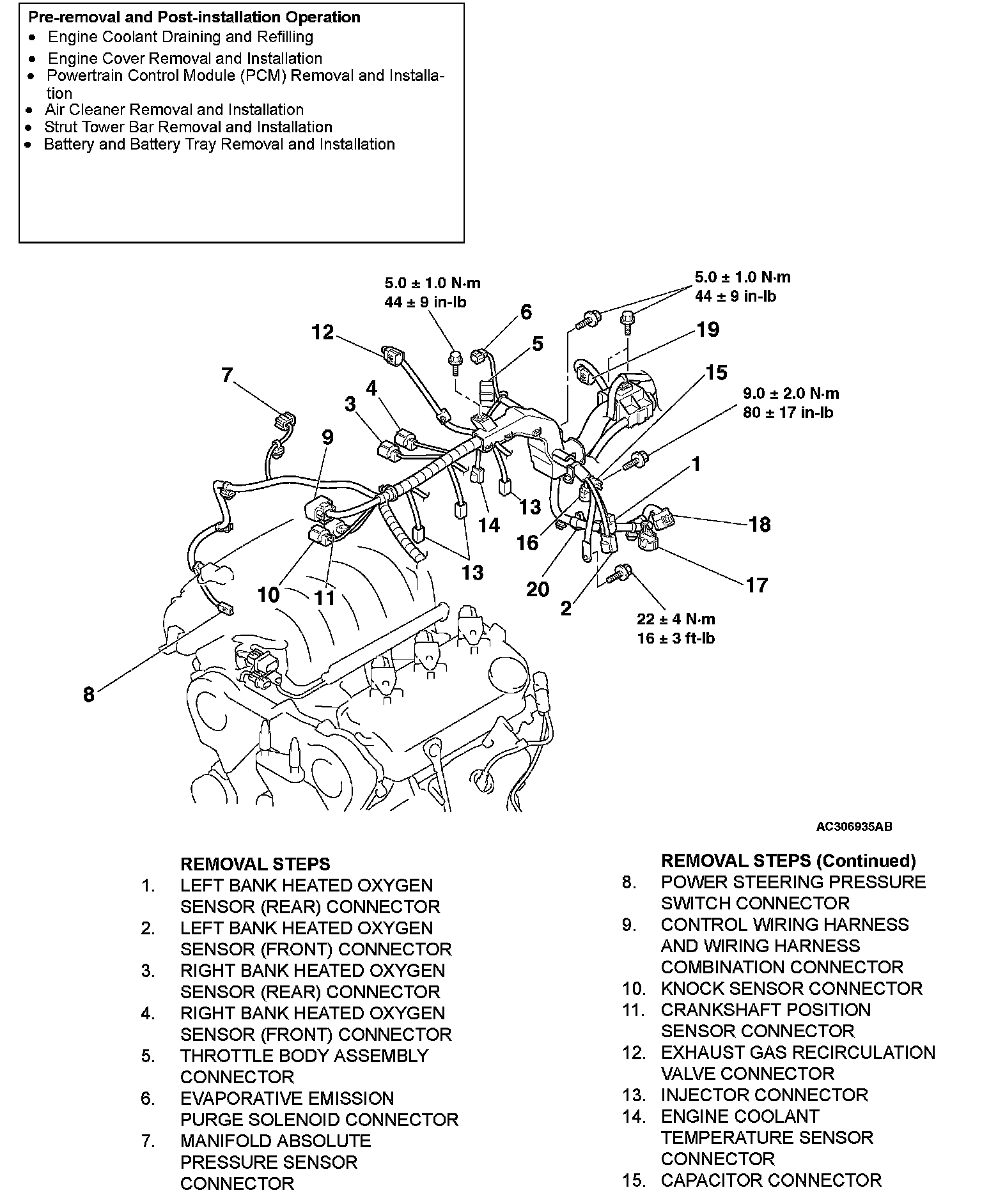

Part 1 Of 3:

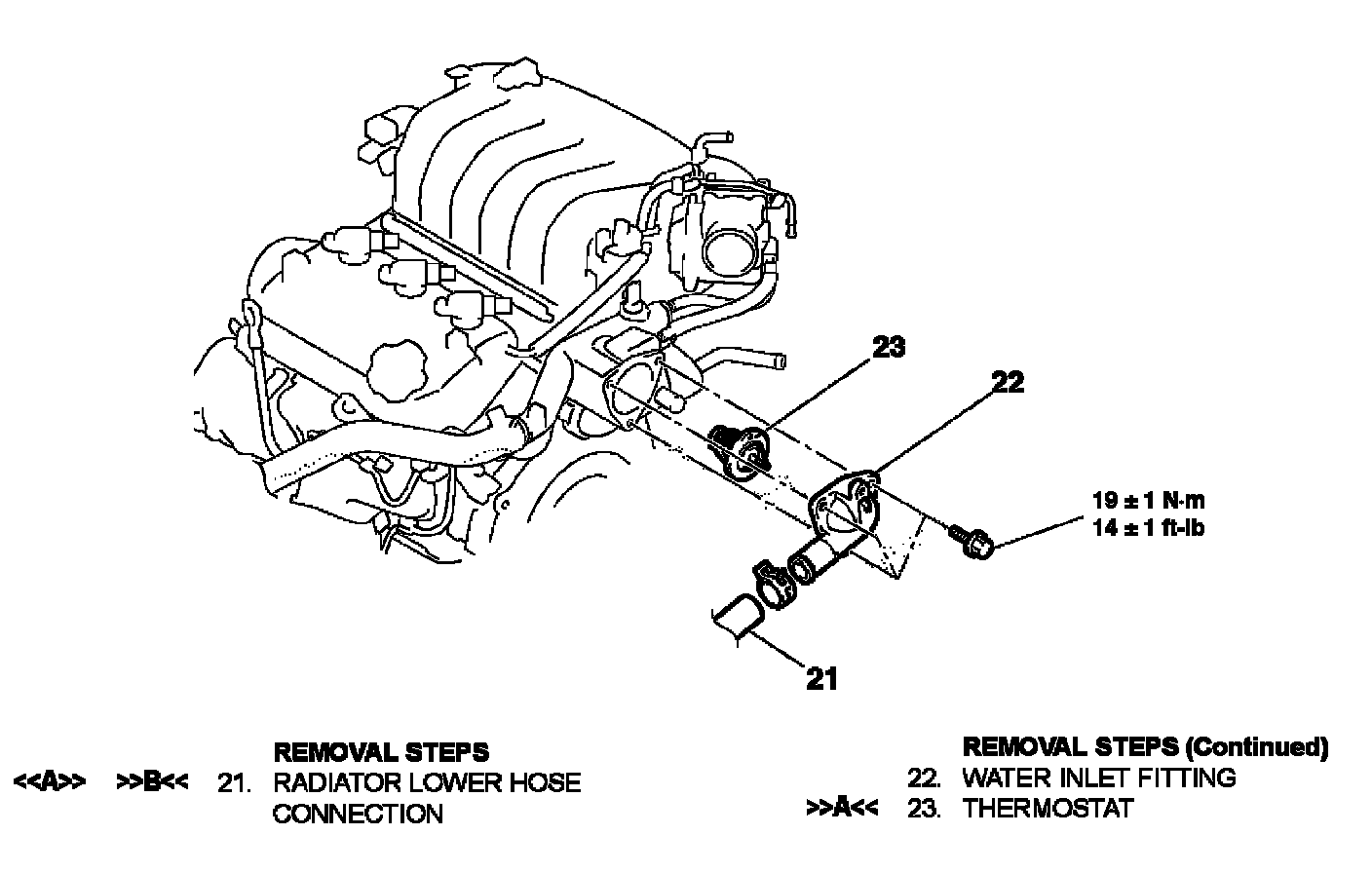

Part 2 Of 3:



Part 3 Of 3:
