Pinout Values and Diagnostic Parameters

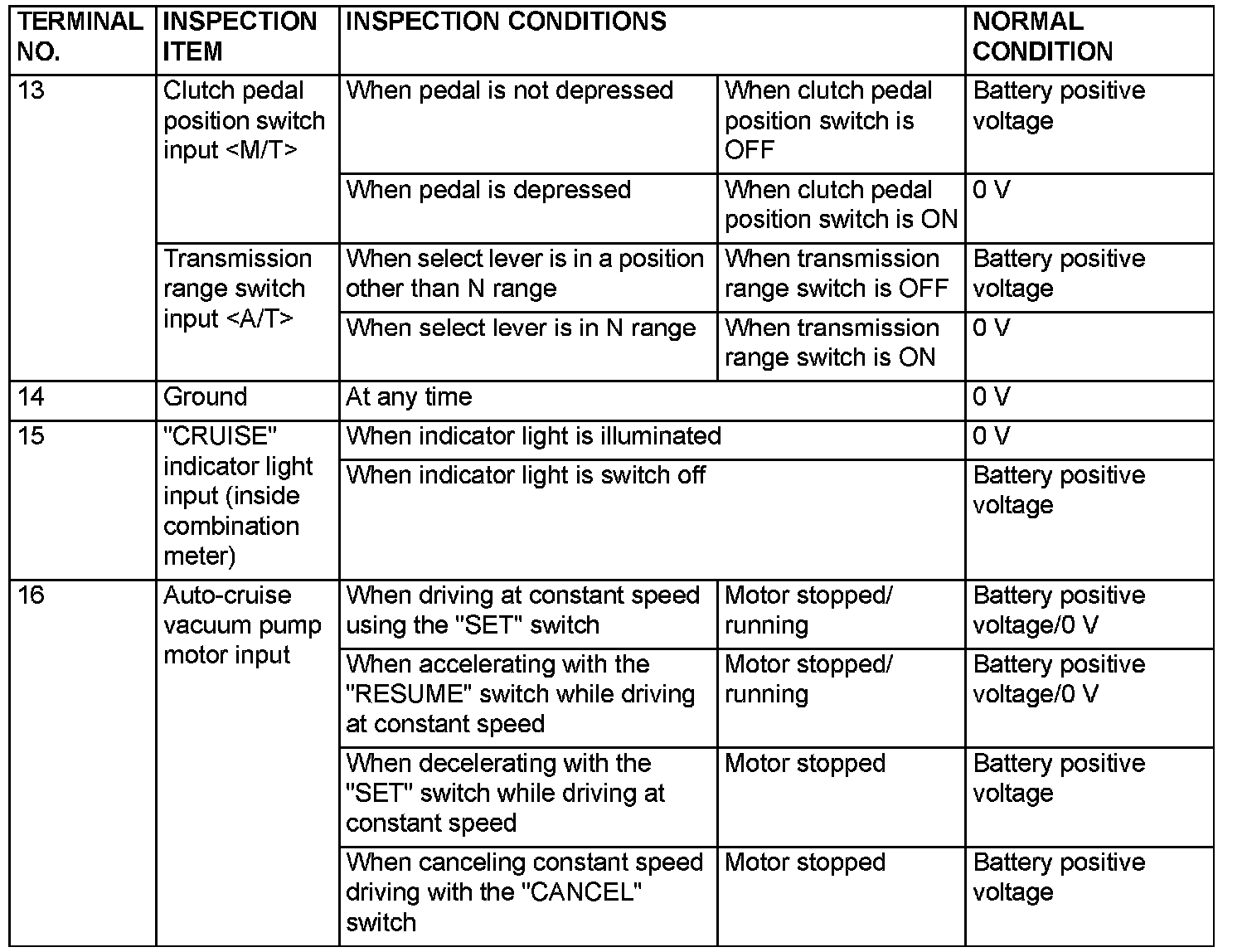

Check Auto-Cruise Control-ECU Terminals Part 1:
Check Auto-Cruise Control-ECU Terminals Part 2:
