Home >> Mitsubishi >> 2006 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Tools and Equipment

Drive Axles, Bearings and Joints: Tools and Equipment

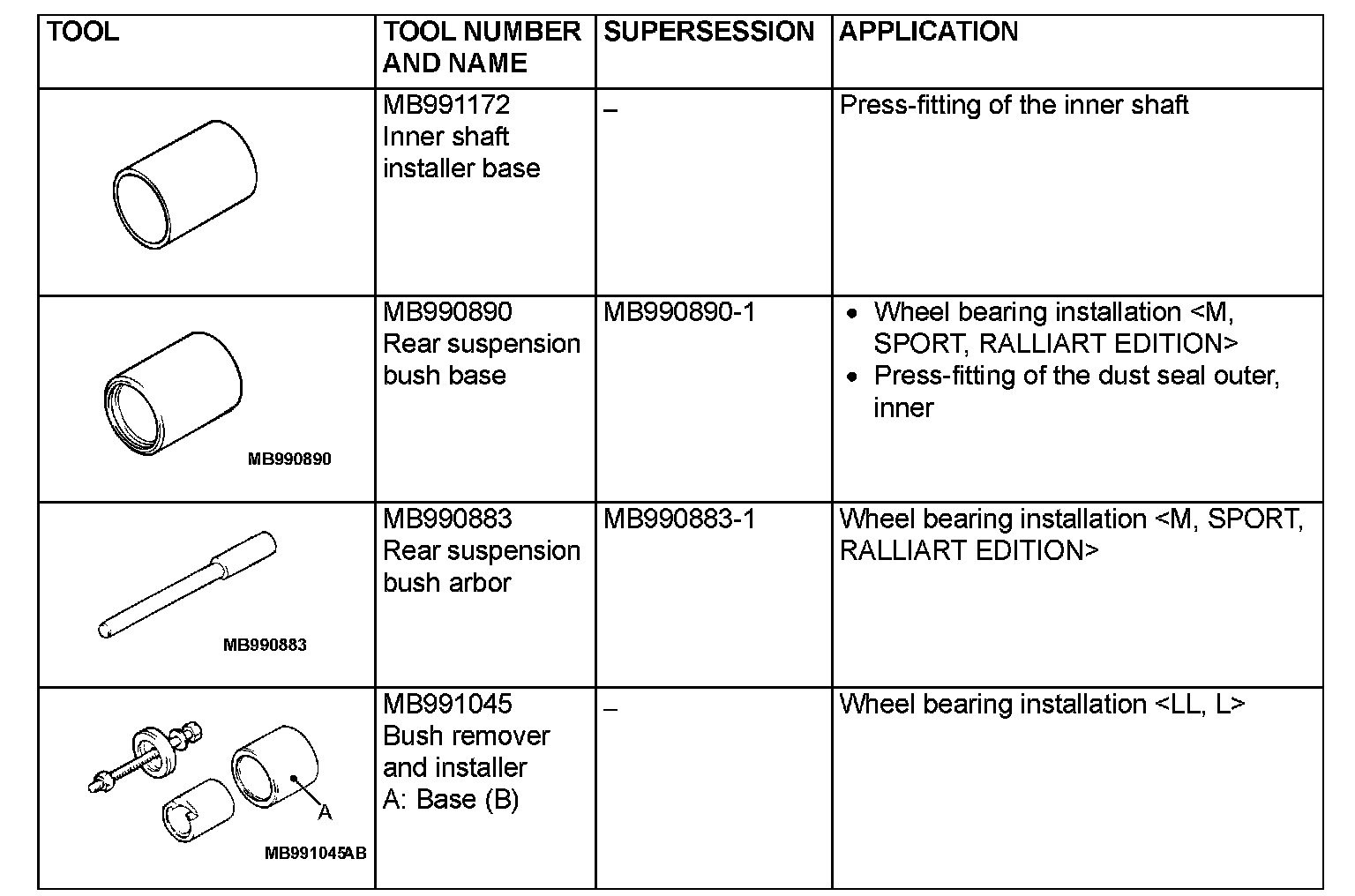

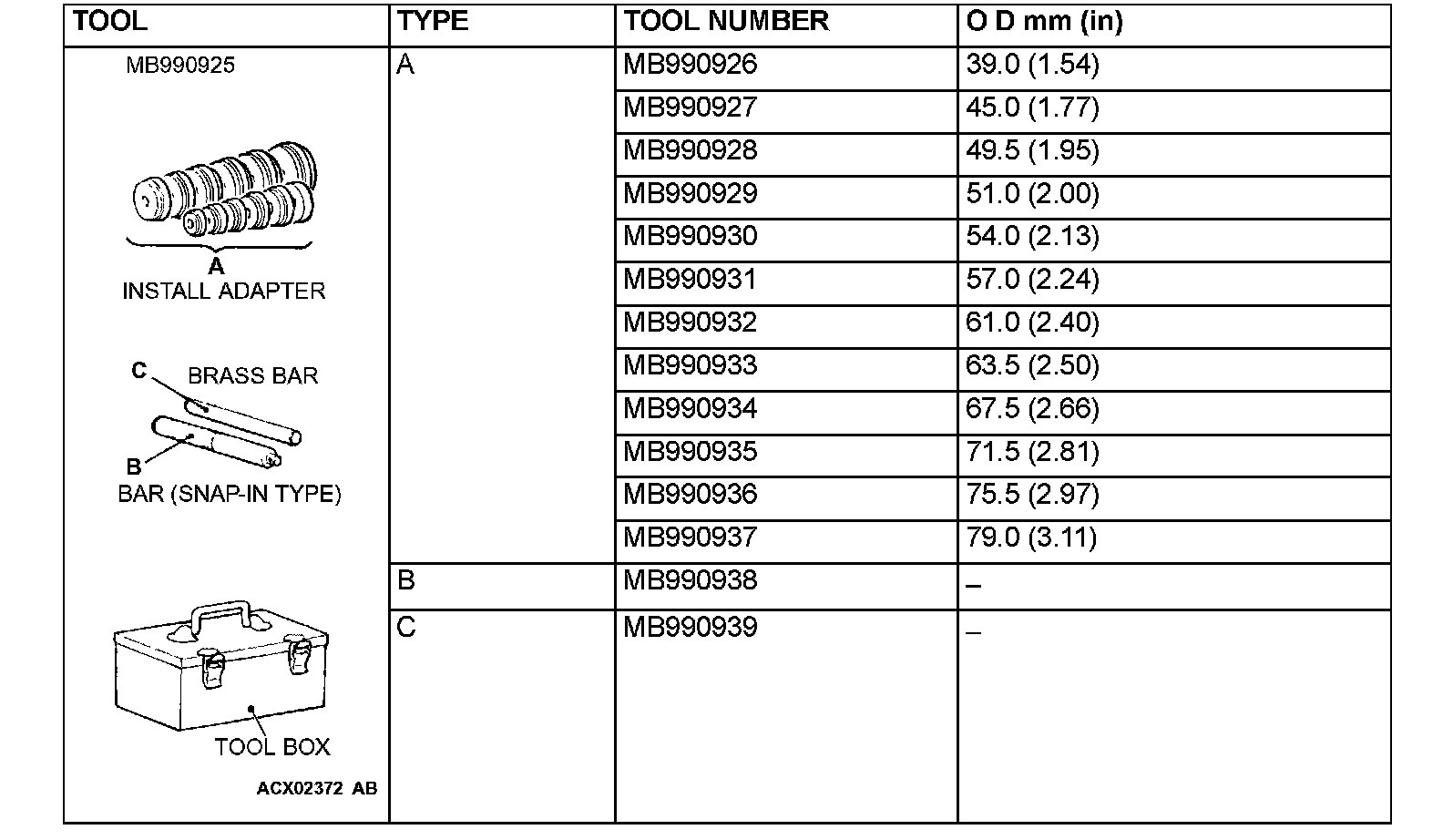

Part 1:



Part 2:



Part 3:



Part 4:
