A/C - Revised A/C Indicator Lamp Flashing Diagnostics
No: TSB-10-55-003DATE: April 2010
MODEL See below
SUBJECT:
A/C INDICATOR LIGHT FLASHES (GALANT & ENDEAVOR) SERVICE MANUAL REVISION
[TSB Revision TSB-10-55-003]
PURPOSE

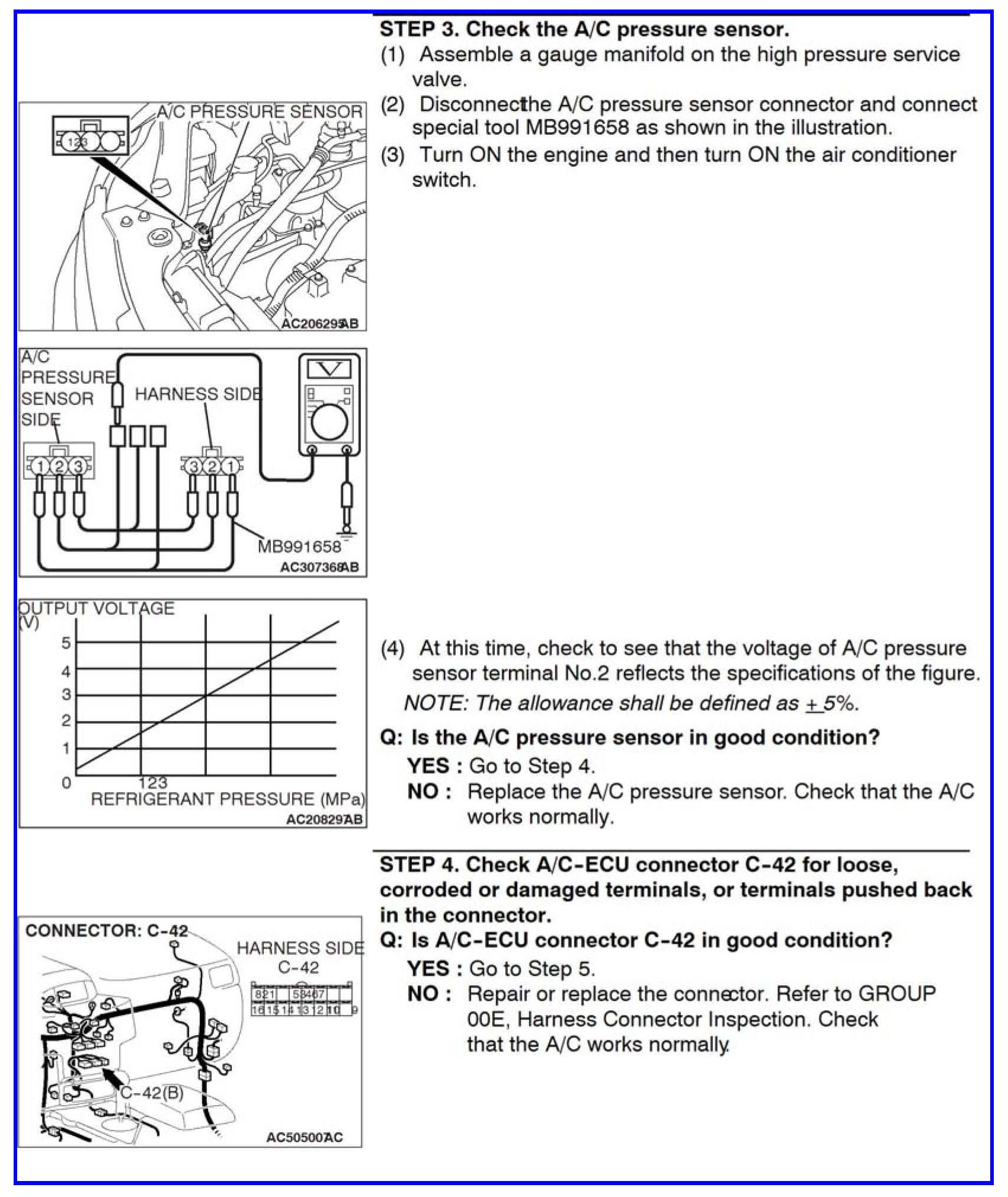

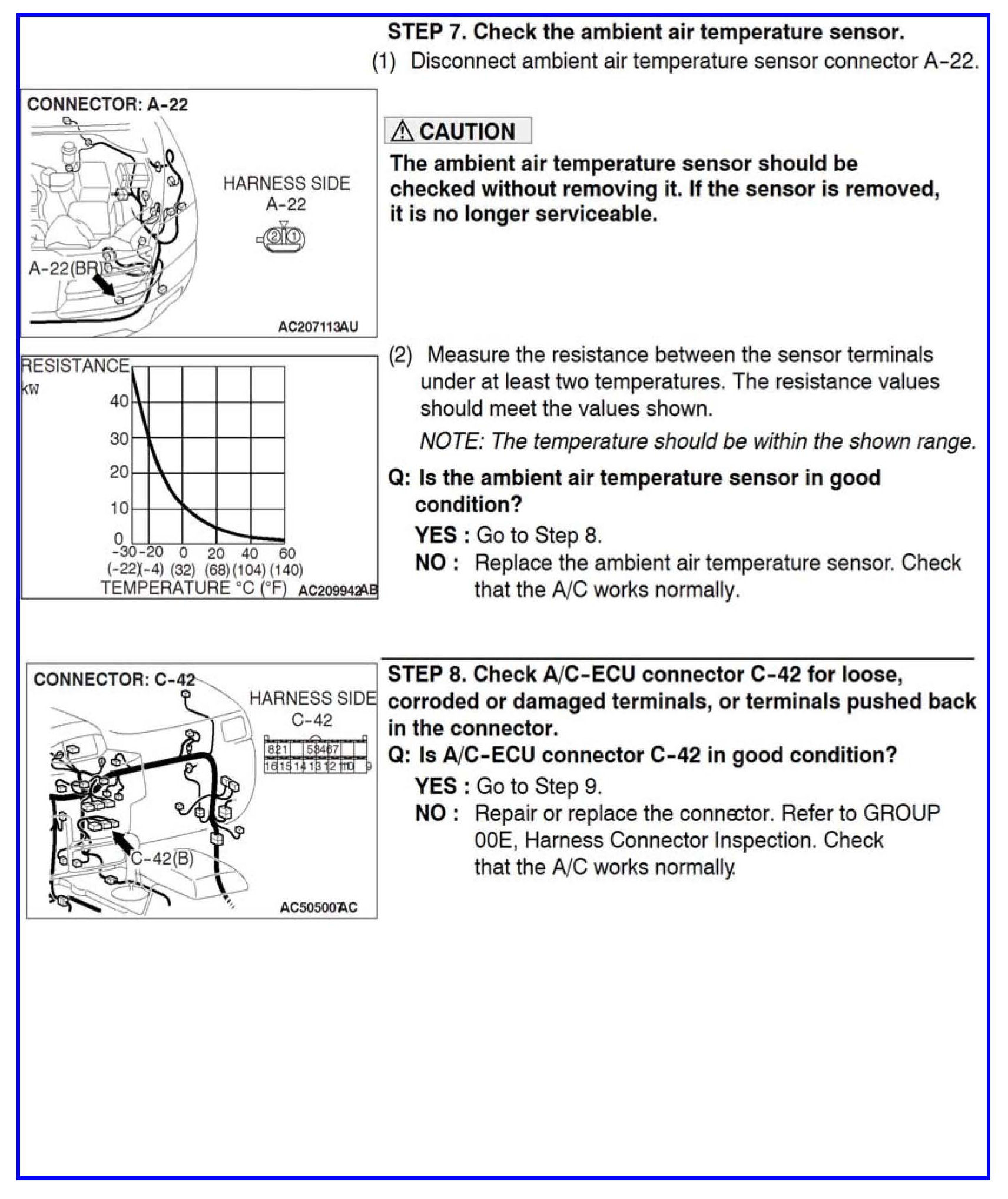

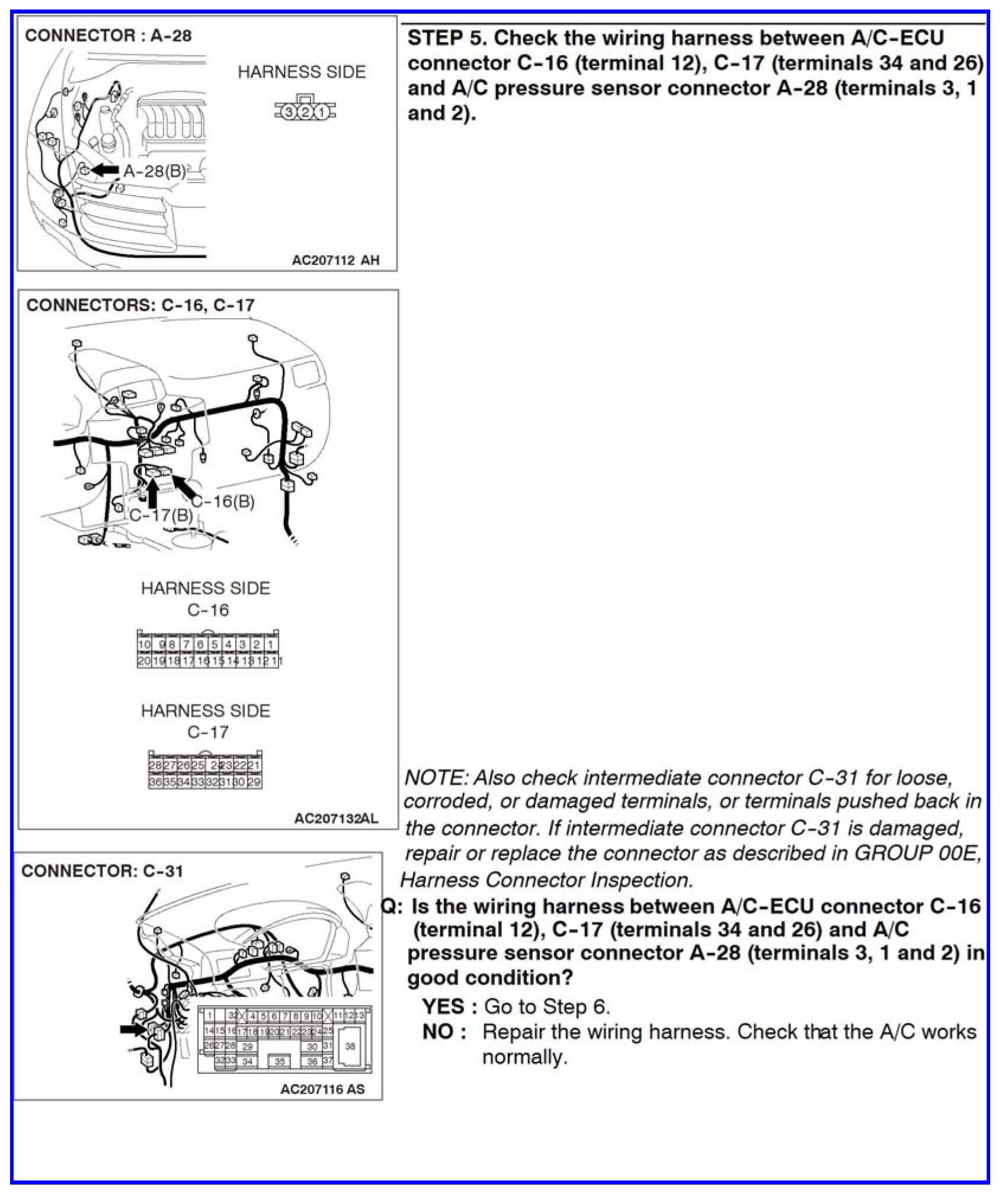

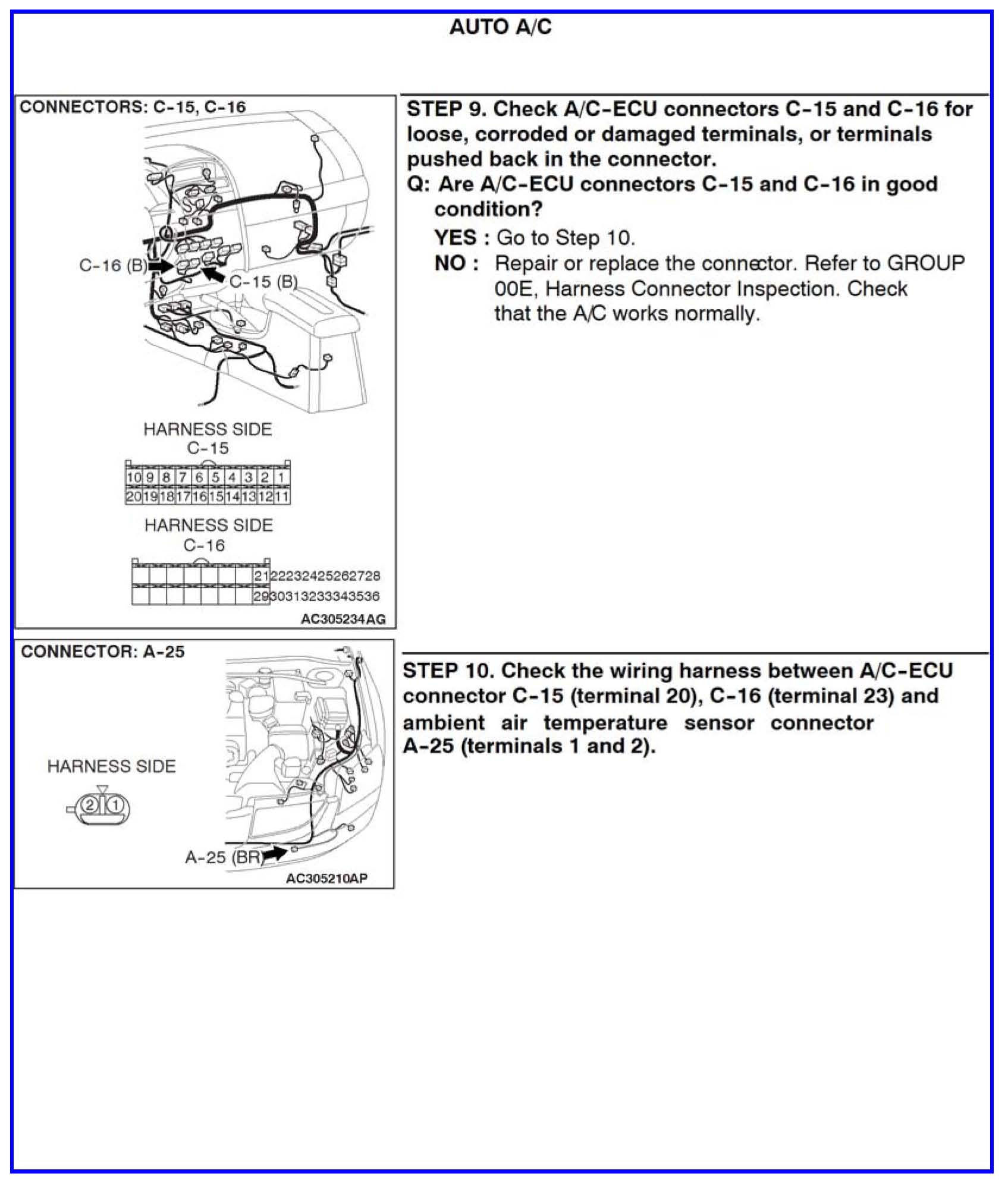

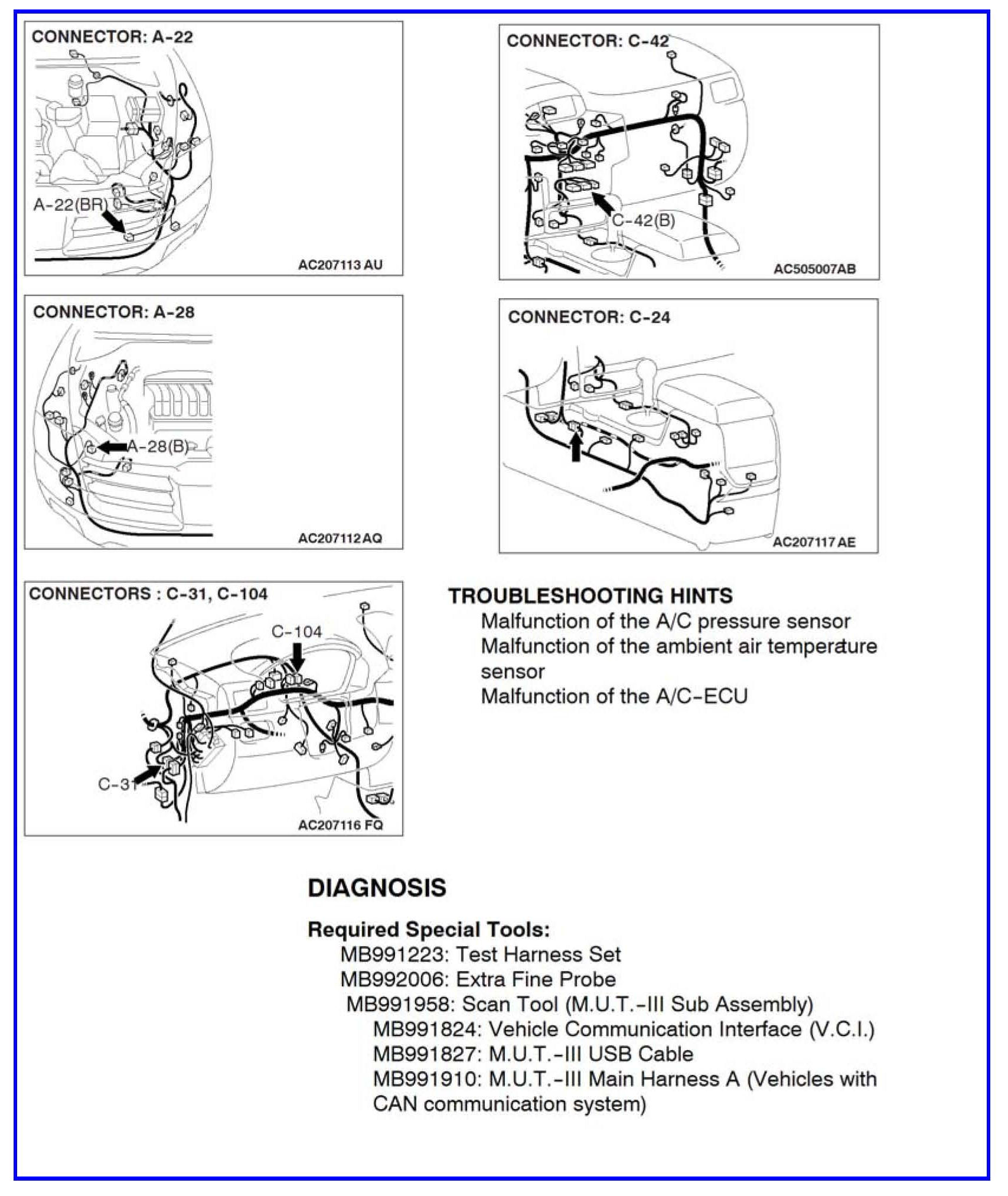

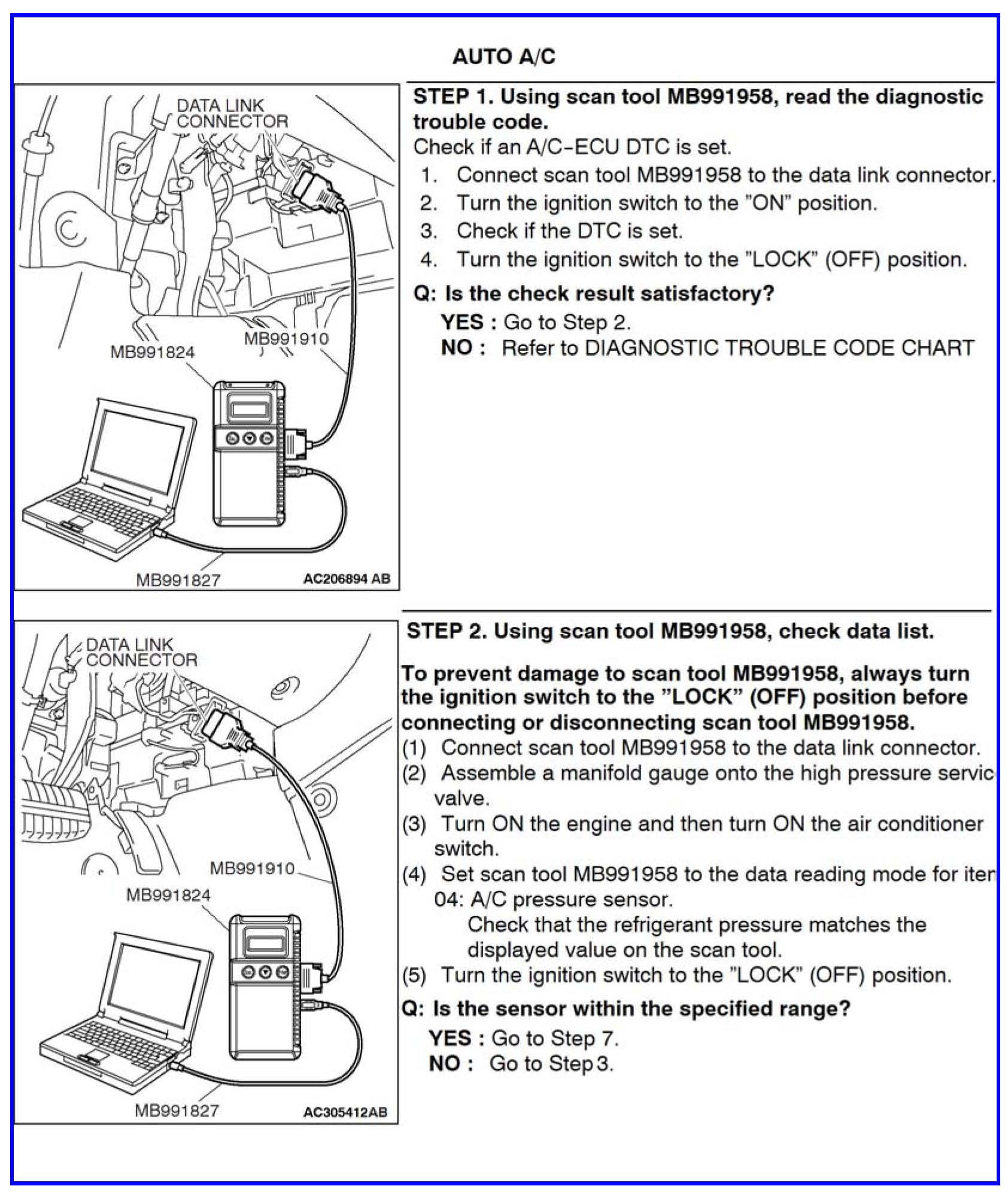

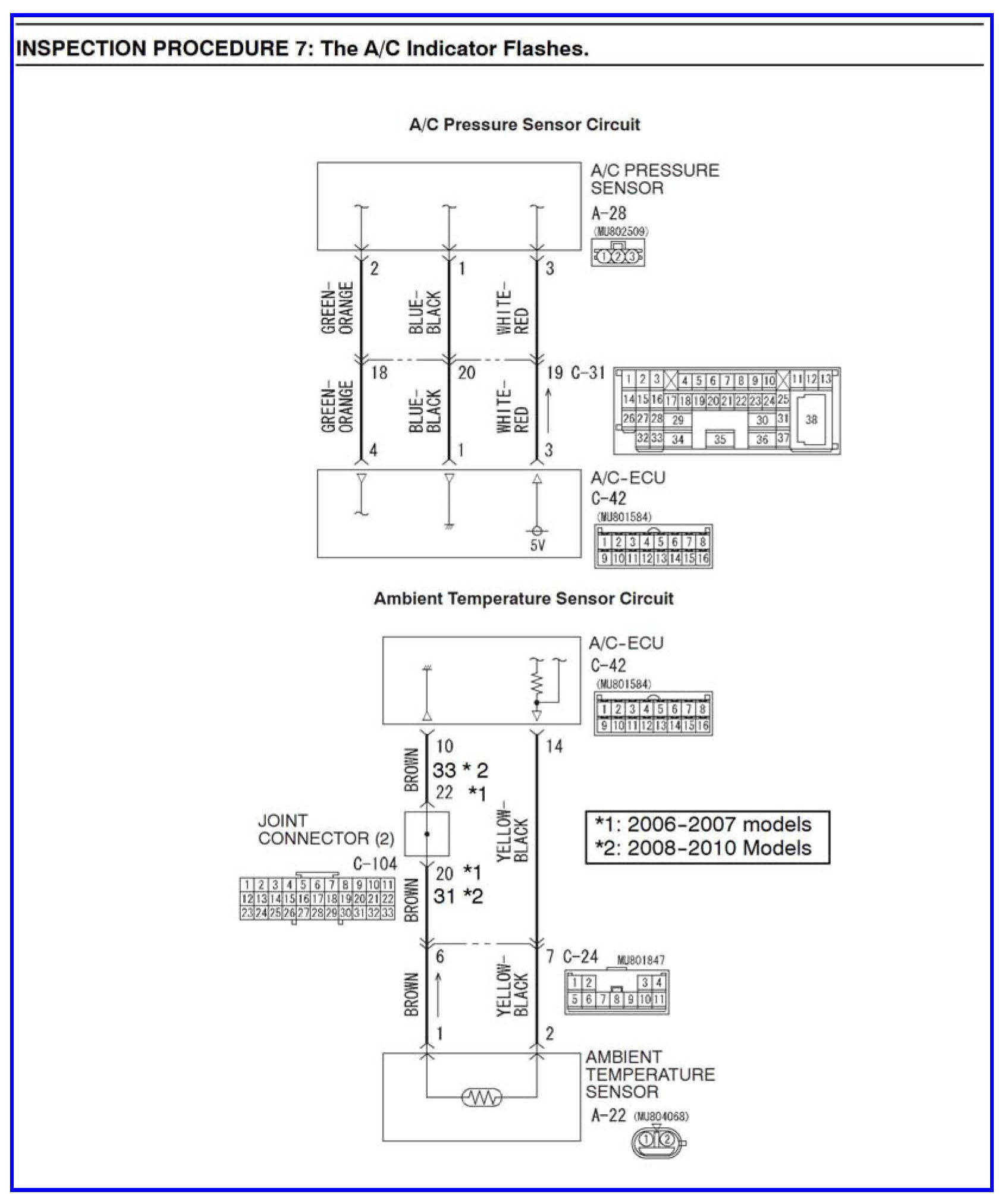

Inspection and troubleshooting procedures for A/C indicator light flashing are incomplete in the affected service manuals. This bulletin provides corrected inspection and troubleshooting procedures for flashing A/C indicator light for affected vehicles. The attached pages replace the existing service manual pages.
AFFECTED VEHICLES
2004-2010 Galant
2004-2010 Endeavor
AFFECTED SERVICE MANUALS
2004 Galant, pages 55A-156 thru -160; 55A-225 thru -232; 55B-17*
2005 Galant, pages 55A-153 thru 157; 55A-221 thru -228; 55B-17*
2006 Galant, pages 55A-156 thru 160; 55A-225 thru -232; 55B-18*
2007 Galant, pages 55A-156 thru 160; 55A-225 thru -232; 55B-18*
2008 Galant, pages 55A-152 thru 156; 55A-221 thru -228; 55B-18*
2009 Galant, pages 55A-104 thru 111
2009.5 Galant, pages 55A-104 thru 111
2010 Galant, pages 55A-106 thru 113
2004 Endeavor, pages 55A-111
2005 Endeavor, pages 55A-113
2006 Endeavor, pages 55A-109
2007 Endeavor, pages 55A-107
2008 Endeavor, pages 55A-105
2009 Endeavor, pages 55A-105
2010 Endeavor, pages 55A-104

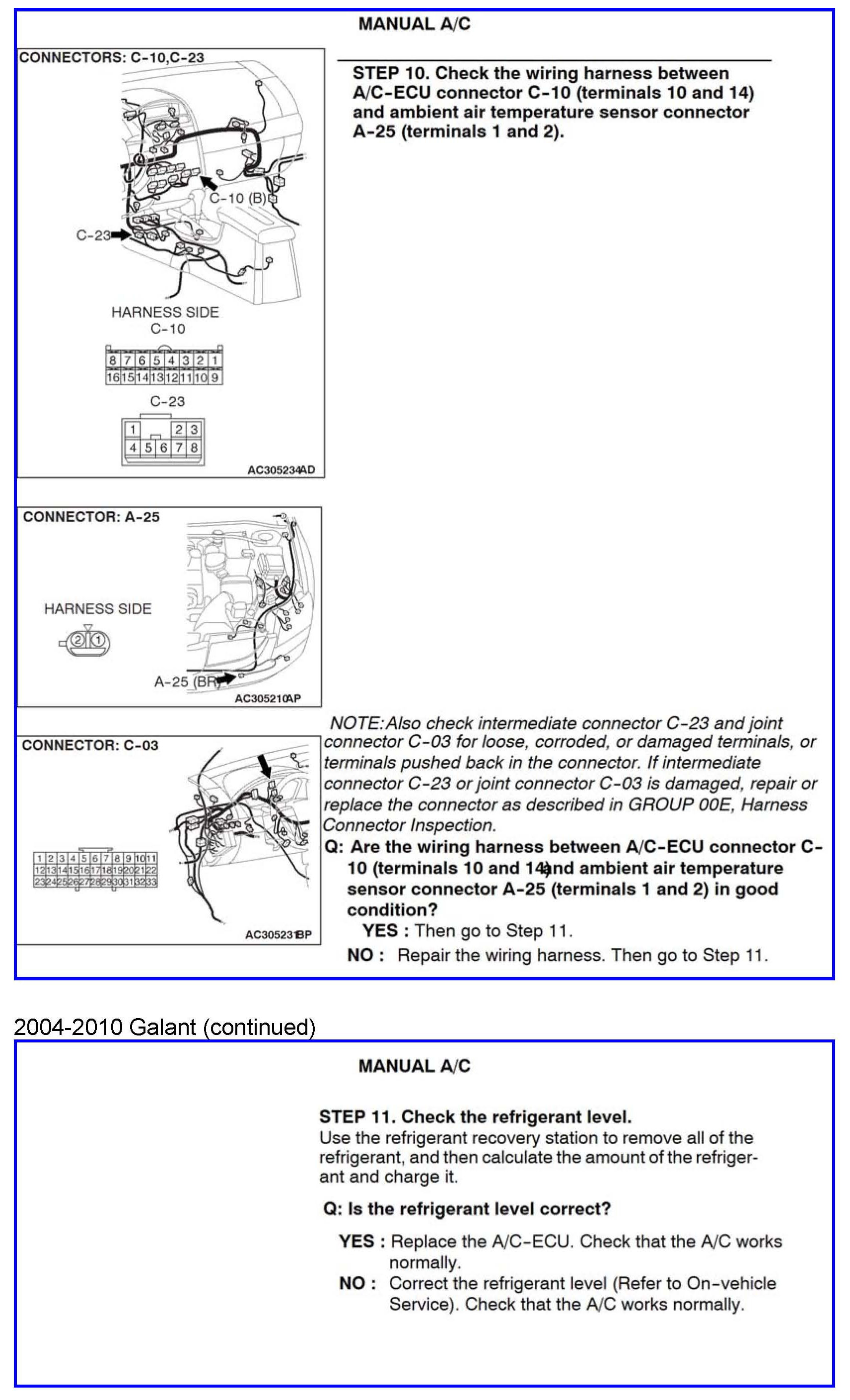

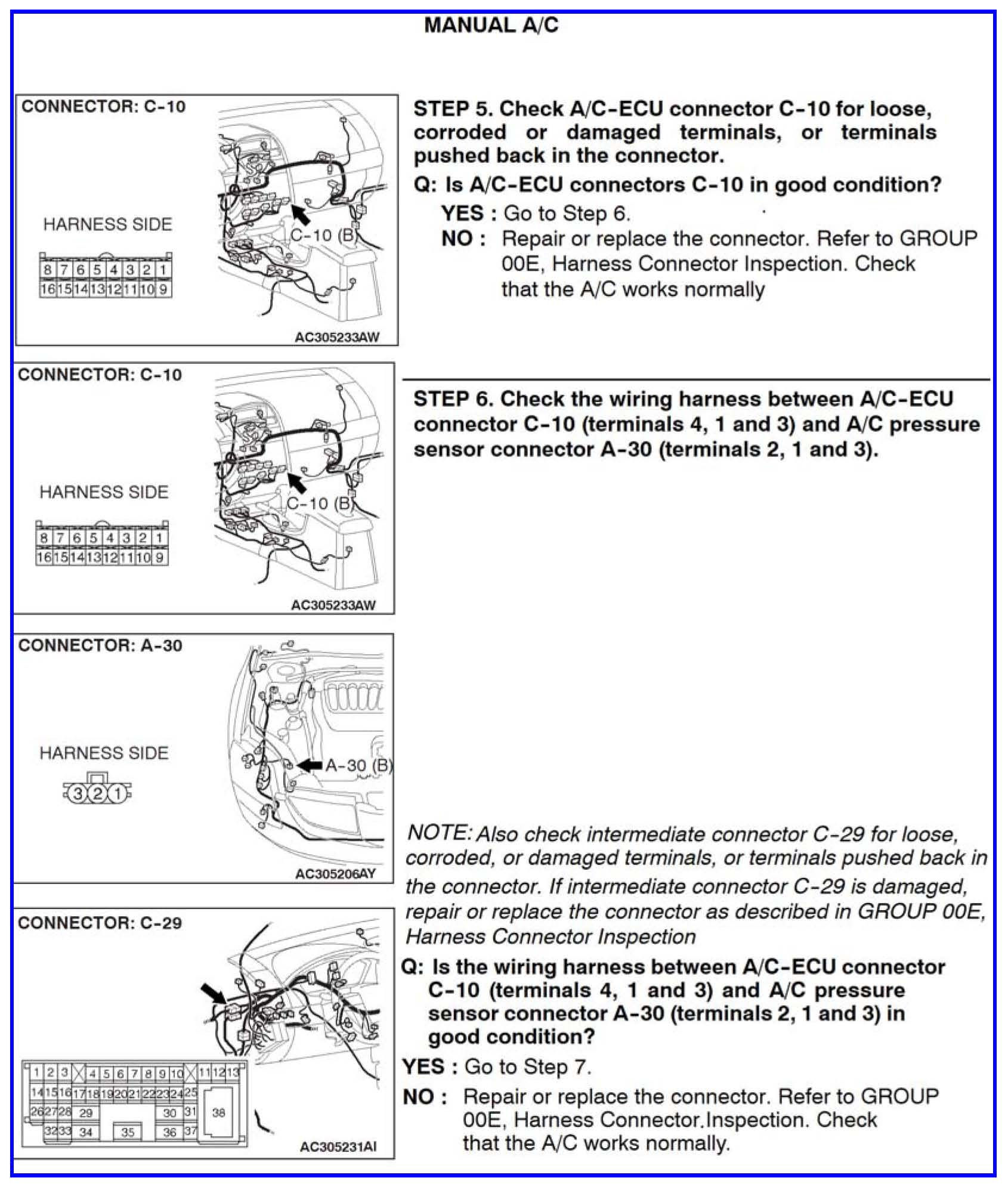

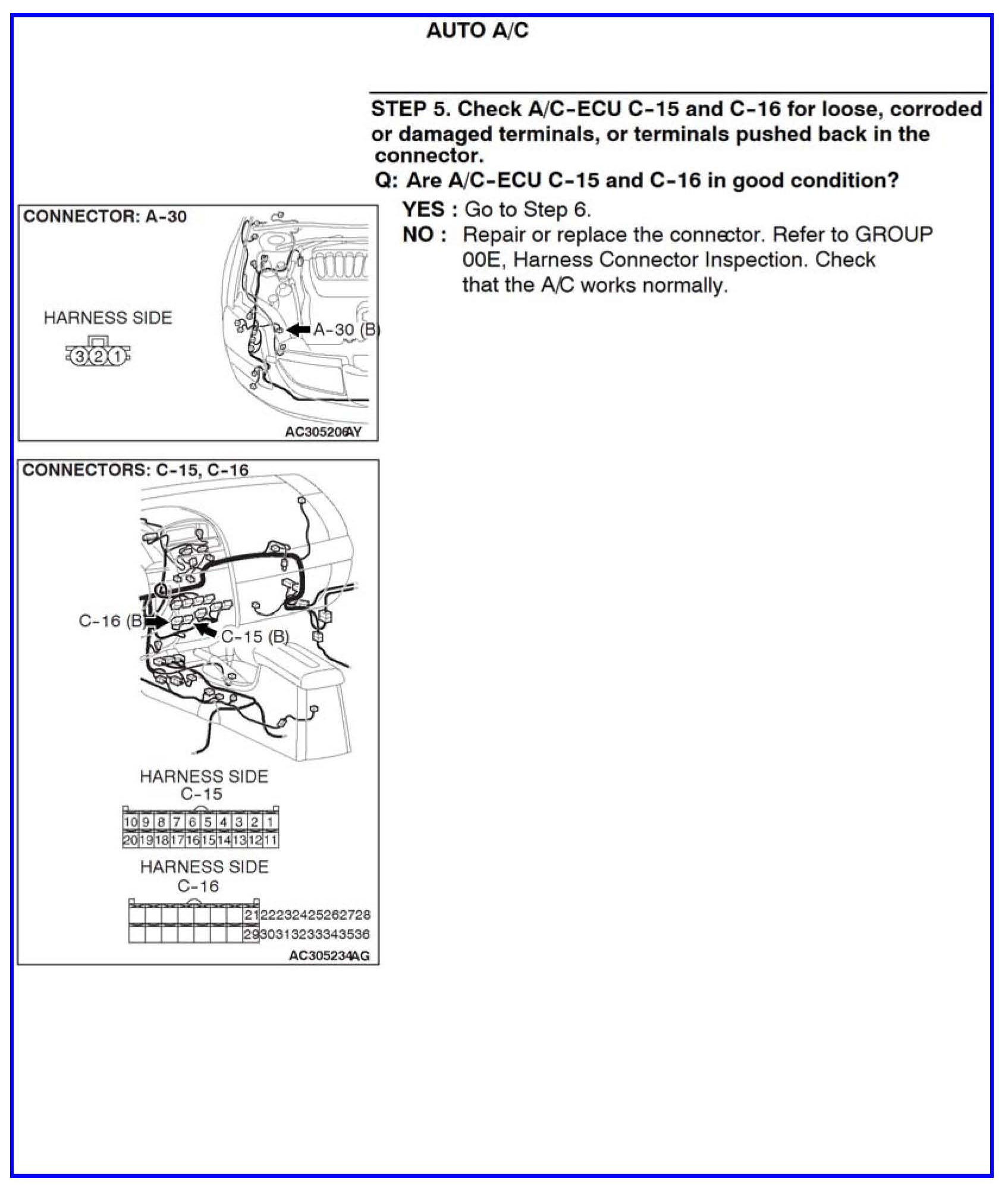

* NOTE: 2004-2008 Galant "middle grade" models equipped with manual A/C, refer to the attached procedures for auto A/C.
