Body - Service Manual Revisions
No: TSB-06-00-009DATE: August, 2006
MODEL: 2007 Galant
SUBJECT:
2007 GALANT MODEL CHANGES - SERVICE MANUAL REVISION
PURPOSE
This bulletin adds changes to the 2007 Galant to the 2004 Galant Technical Information and Body Repair Manual.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2007 Galant
AFFECTED SERVICE MANUAL
2004 Galant Technical Information and Body Repair Manual

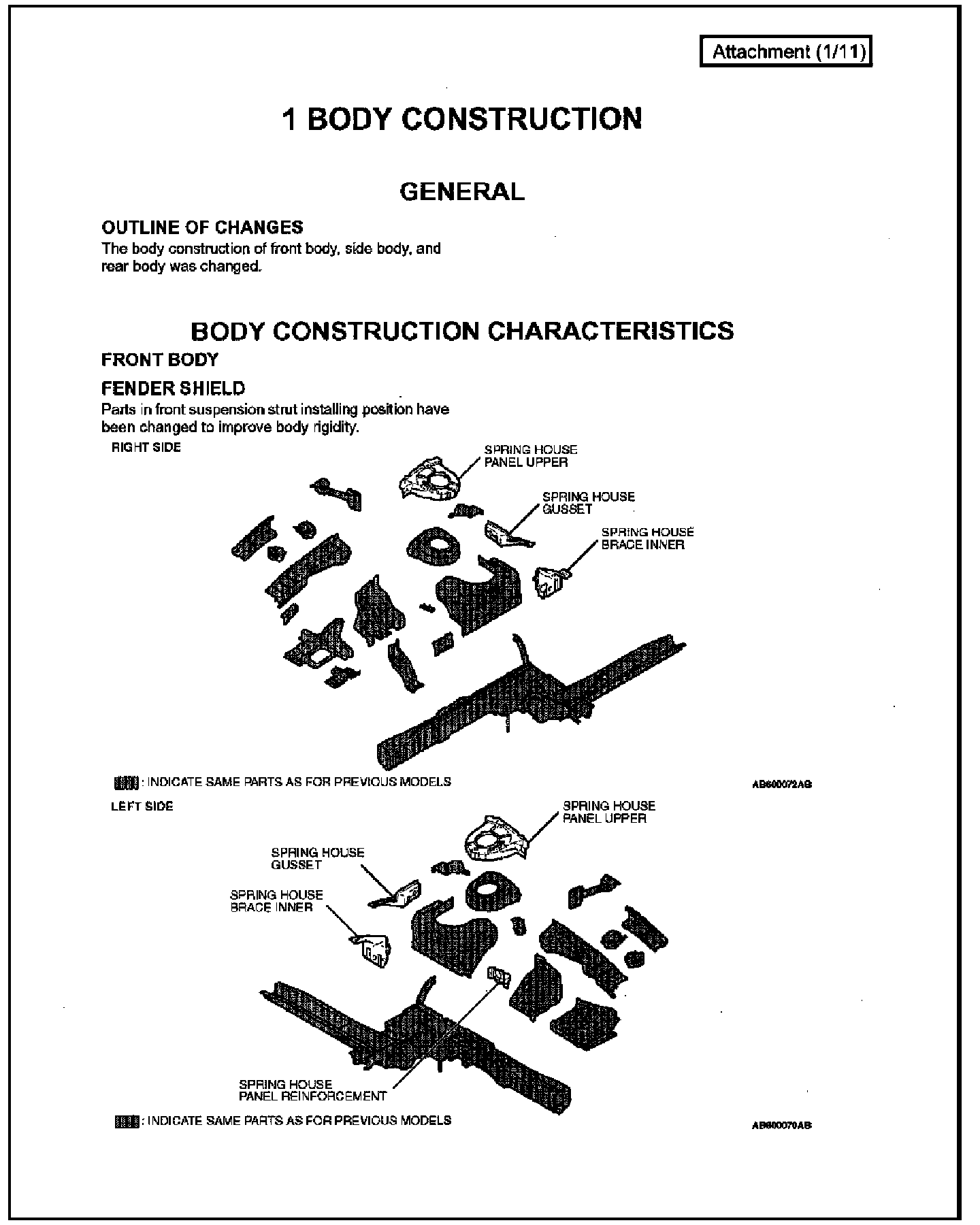

Add attachment 1/11 to page 1-20
Add attachment 2/11 to page 1-12
Add attachment 3/11 to page 1-16
Add attachment 4/11 to page 3-4
Add attachment 5/11 to page 3-5
Add attachment 6/11 to page 3-6

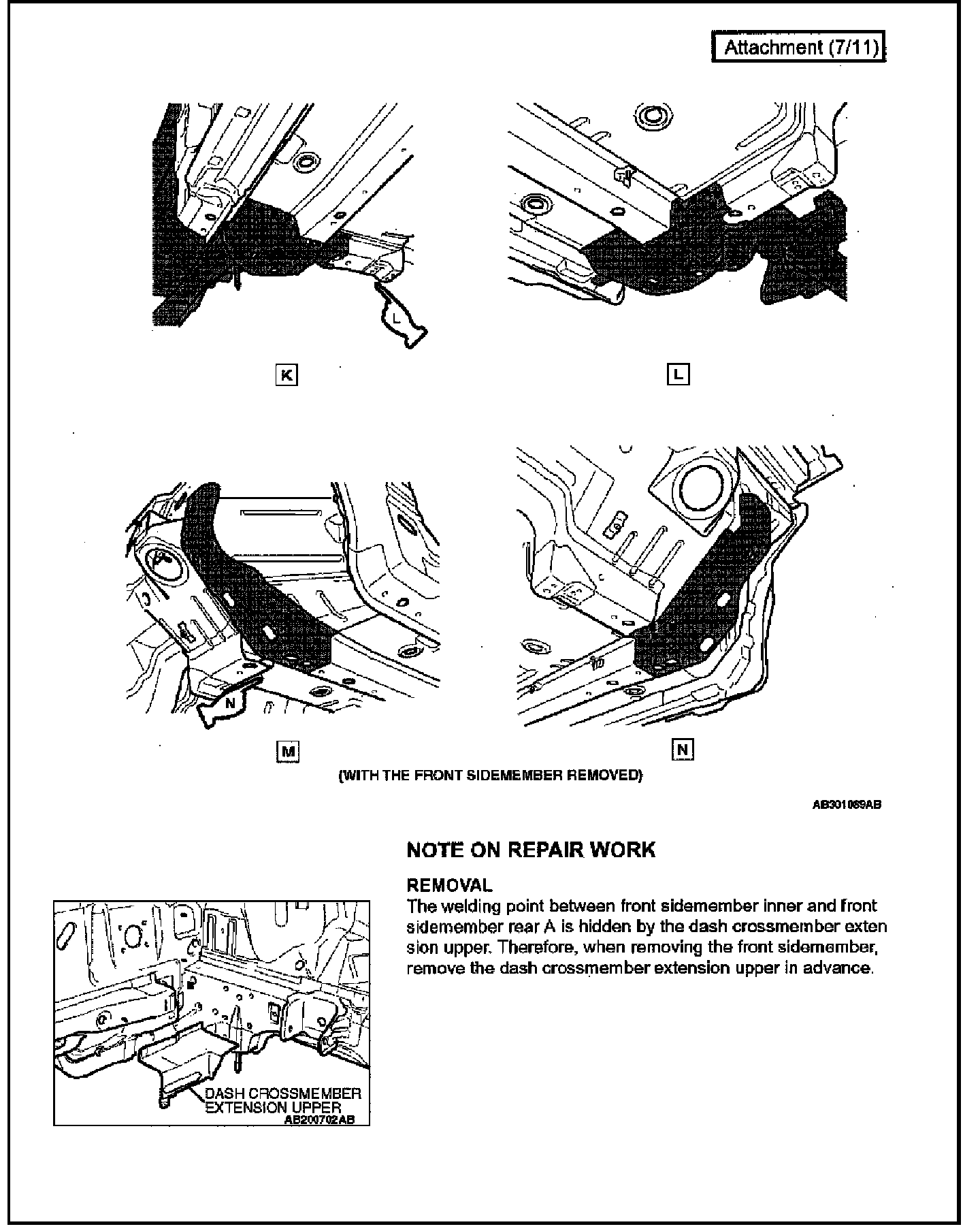

Add attachment 7/11 to page 3-7
Add attachment 8/11 to page 3-8
Add attachment 9/11 to page 3-8

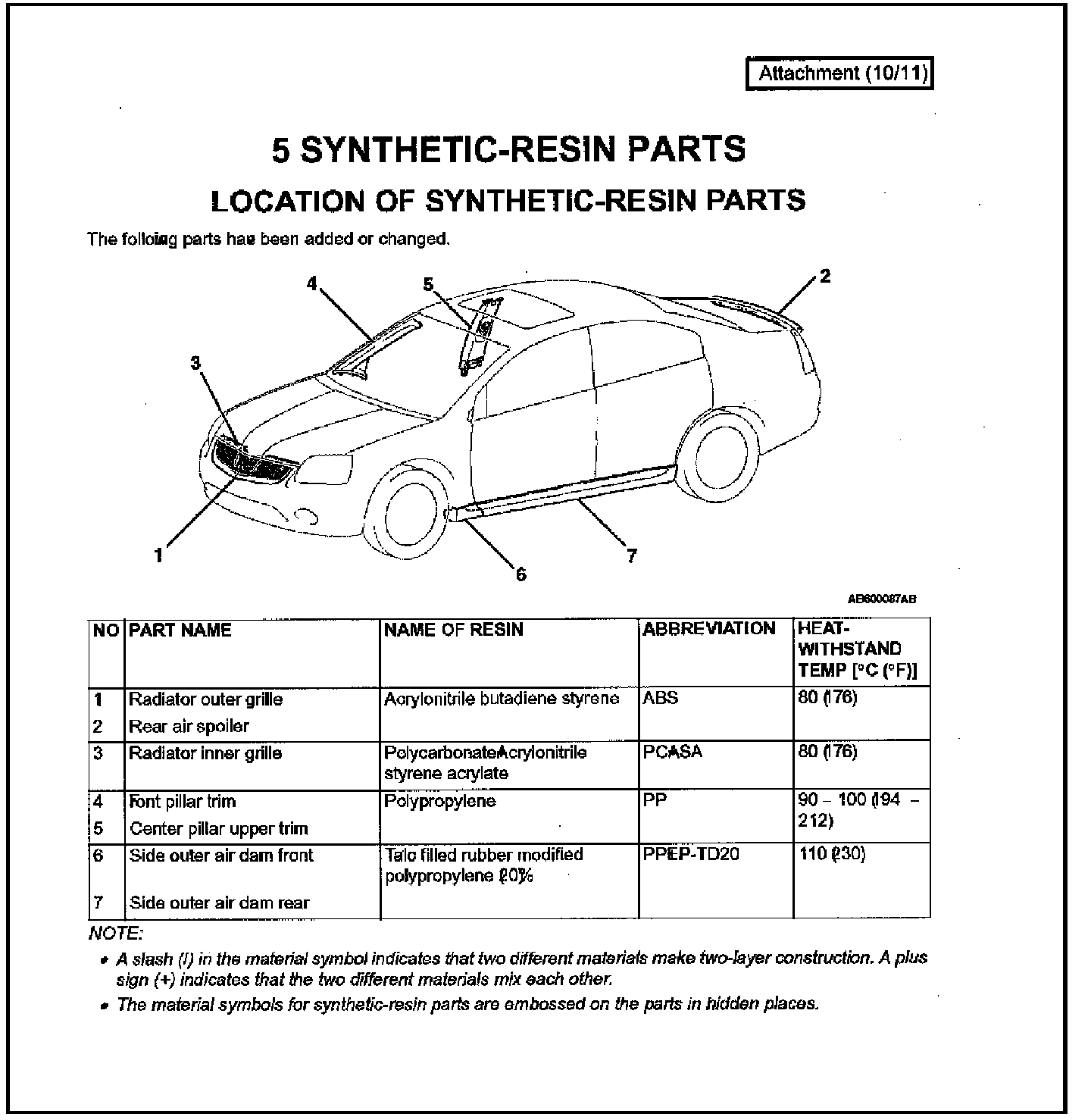

Add attachment 10/11 to page 5-2
Add attachment 11/11 to page 6-2
Add the page shown to page 1-10 of the 2004 Galant Body Repair Manual.
Add the page shown to page 1-12 of the 2004 Galant Body Repair Manual.
Add the page shown to page 1-16 of the 2004 Galant Body Repair Manual.
Add the page shown to page 3-4 of the 2004 Galant Body Repair Manual.
Add the page shown to page 3-5 of the 2004 Galant Body Repair Manual.
Add the page shown to page 3-6 of the 2004 Galant Body Repair Manual.
Add the page shown to page 3-7 of the 2004 Galant Body Repair Manual.
Add the page shown to page 3-8 of the 2004 Galant Body Repair Manual.
Add the page shown to page 5-2 of the 2004 Galant Body Repair Manual.
Add the page shown to page 6-2 of the 2004 Galant Body Repair Manual
