Tire Monitor System - Revised Sensor Registration Proc.

No: TSB-10-31-003

DATE: February, 2010

MODEL: See below

SUBJECT:
TPMS SENSOR REGISTRATION PROCEDURE - SERVICE MANUAL REVISION

PURPOSE

The tire pressure sensor ID registration procedure is incorrect in the affected service manuals. The Tire Pressure Monitoring System (TPMS) receiver can receive the ID signal triggered by a change in tire air pressure. This bulletin contains the corrected TPMS sensor ID registration procedure.

AFFECTED VEHICLES
2007 Galant
2007 Endeavor

AFFECTED SERVICE MANUALS
2007 Galant, pages 31-51 and 31-53 through 31-56
2007 Endeavor, pages 31-52 and 31-54 through 31-57

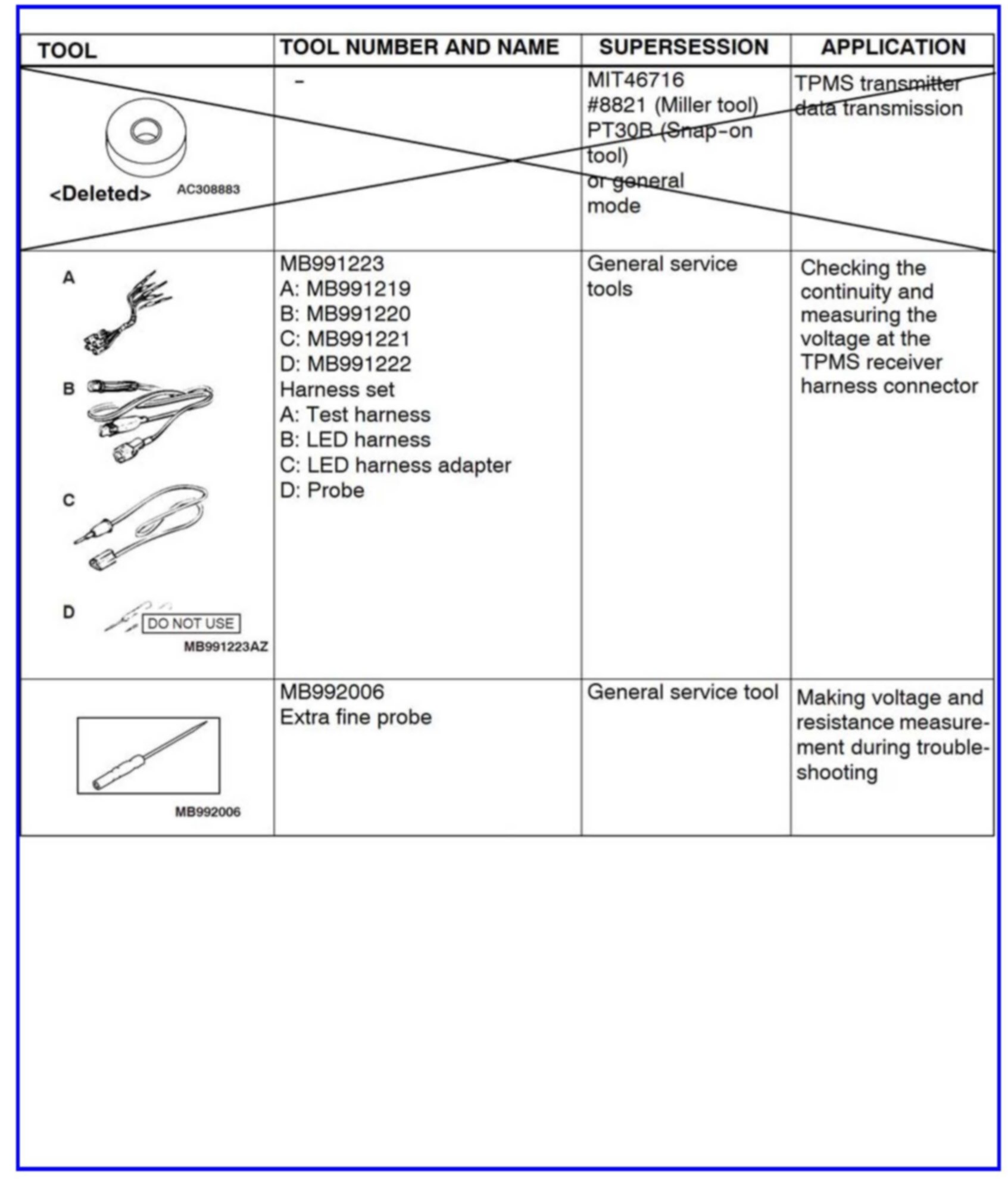

2007 Galant page 31-51; 2007 Endeavor, page 31-52

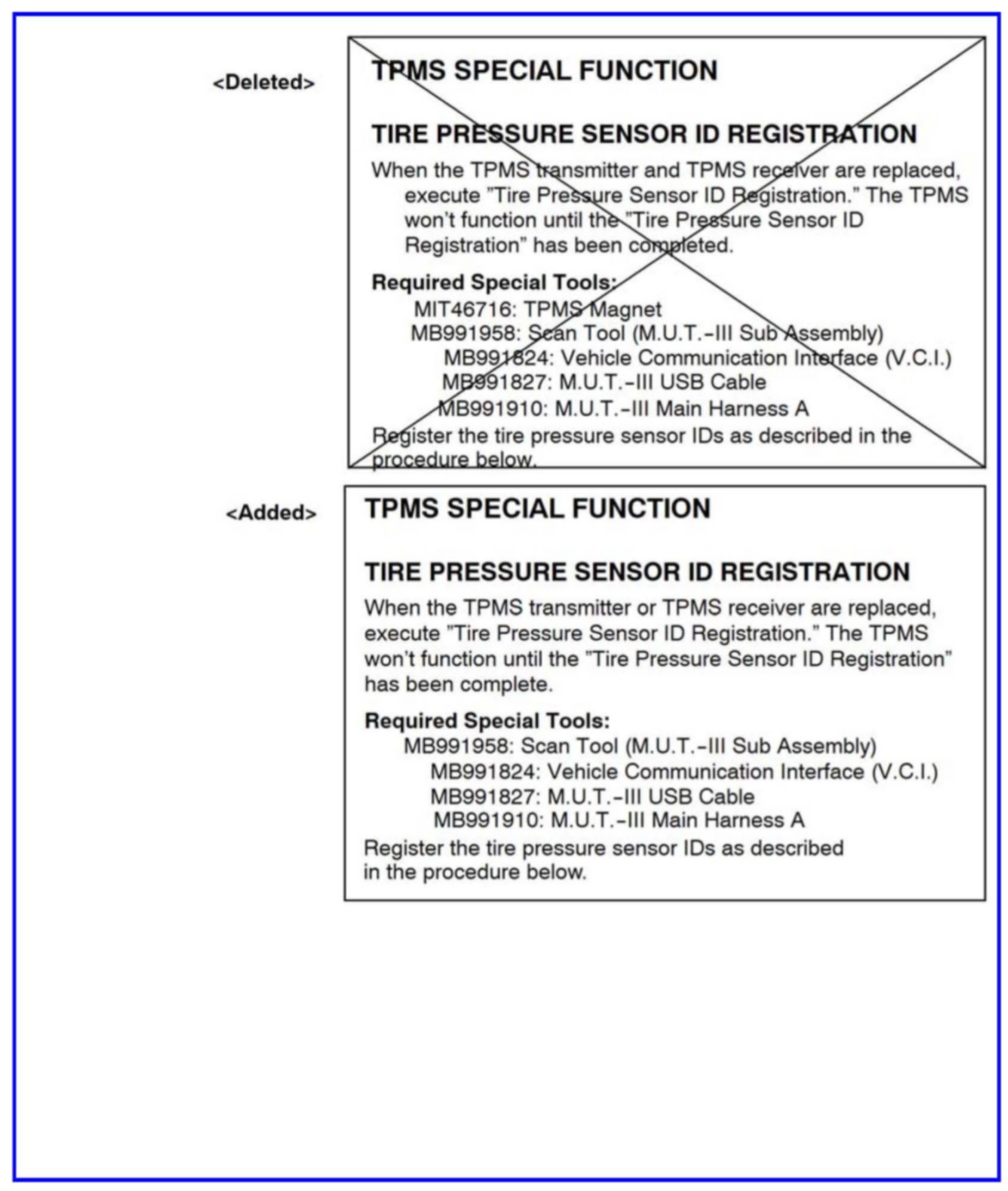

2007 Galant pages 31-53 thru 31-56; 2007 Endeavor, pages 31-54 thru 31-57

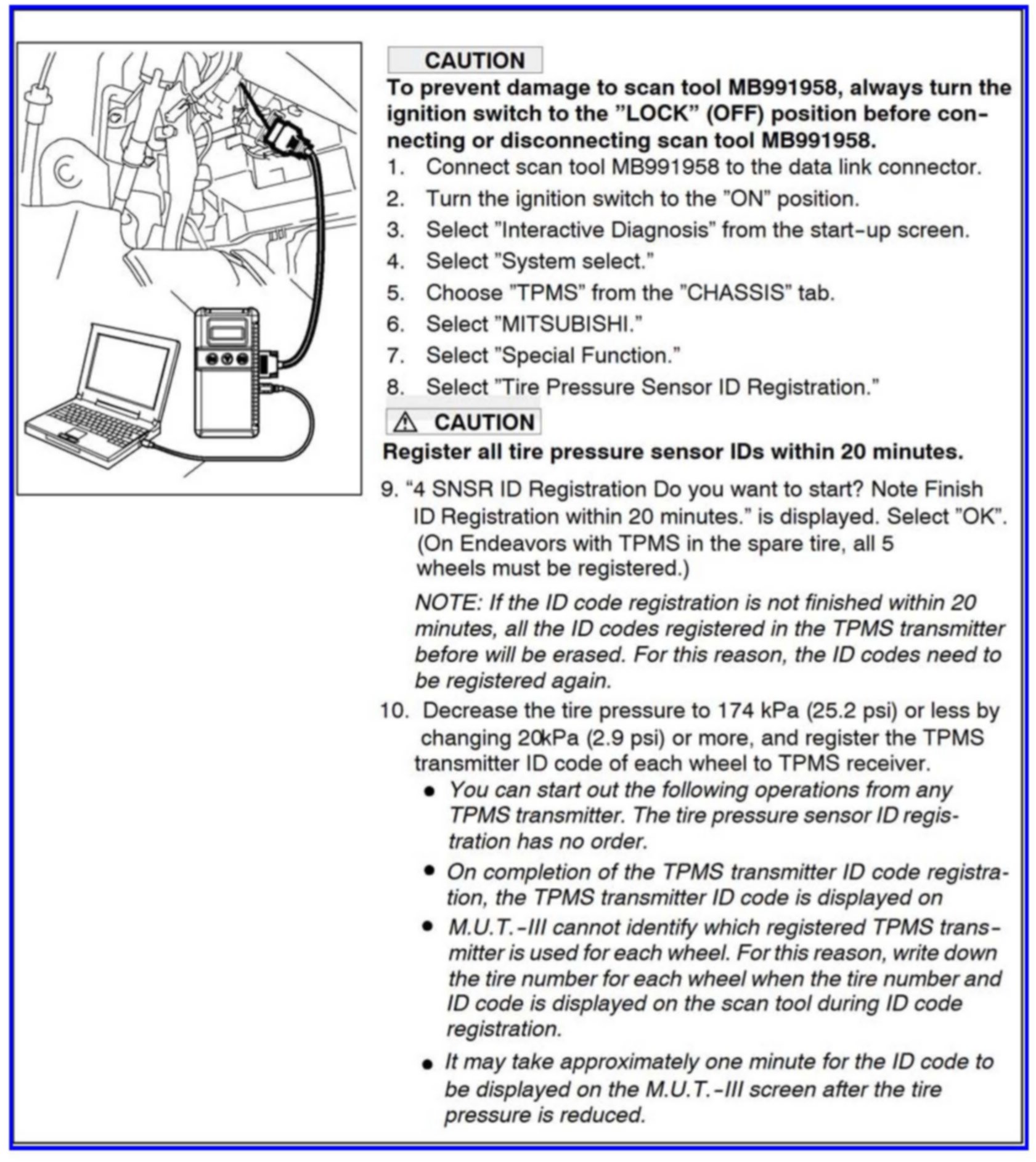

Replace the TPMS procedures with the following:





2007 Galant pages 31-53 thru 31-56; 2007 Endeavor, pages 31-54 thru 31-57

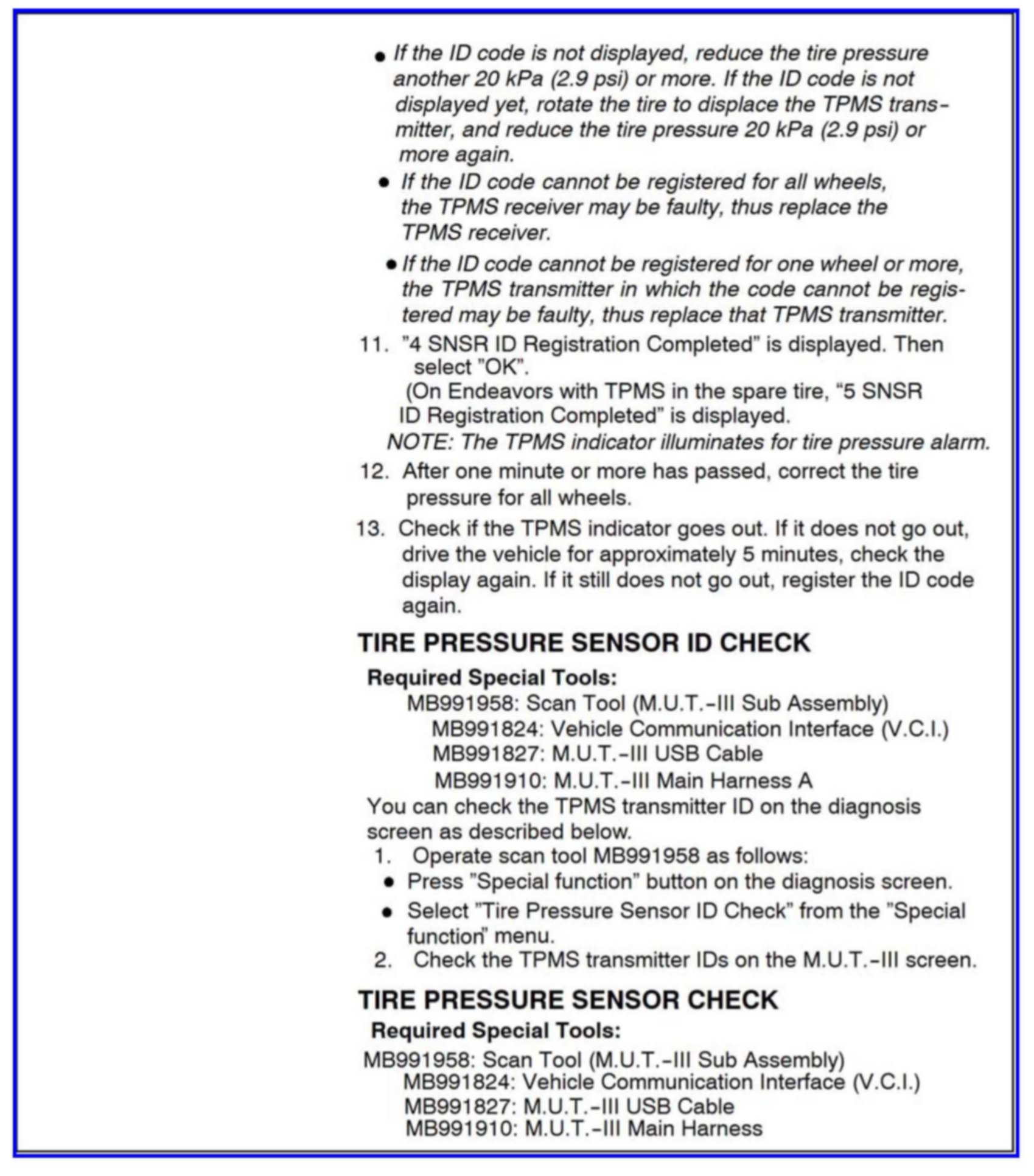

Replace the TPMS procedures with the following: (continued)





2007 Galant pages 31-53 thru 31-56; 2007 Endeavor, pages 31-54 thru 31-57

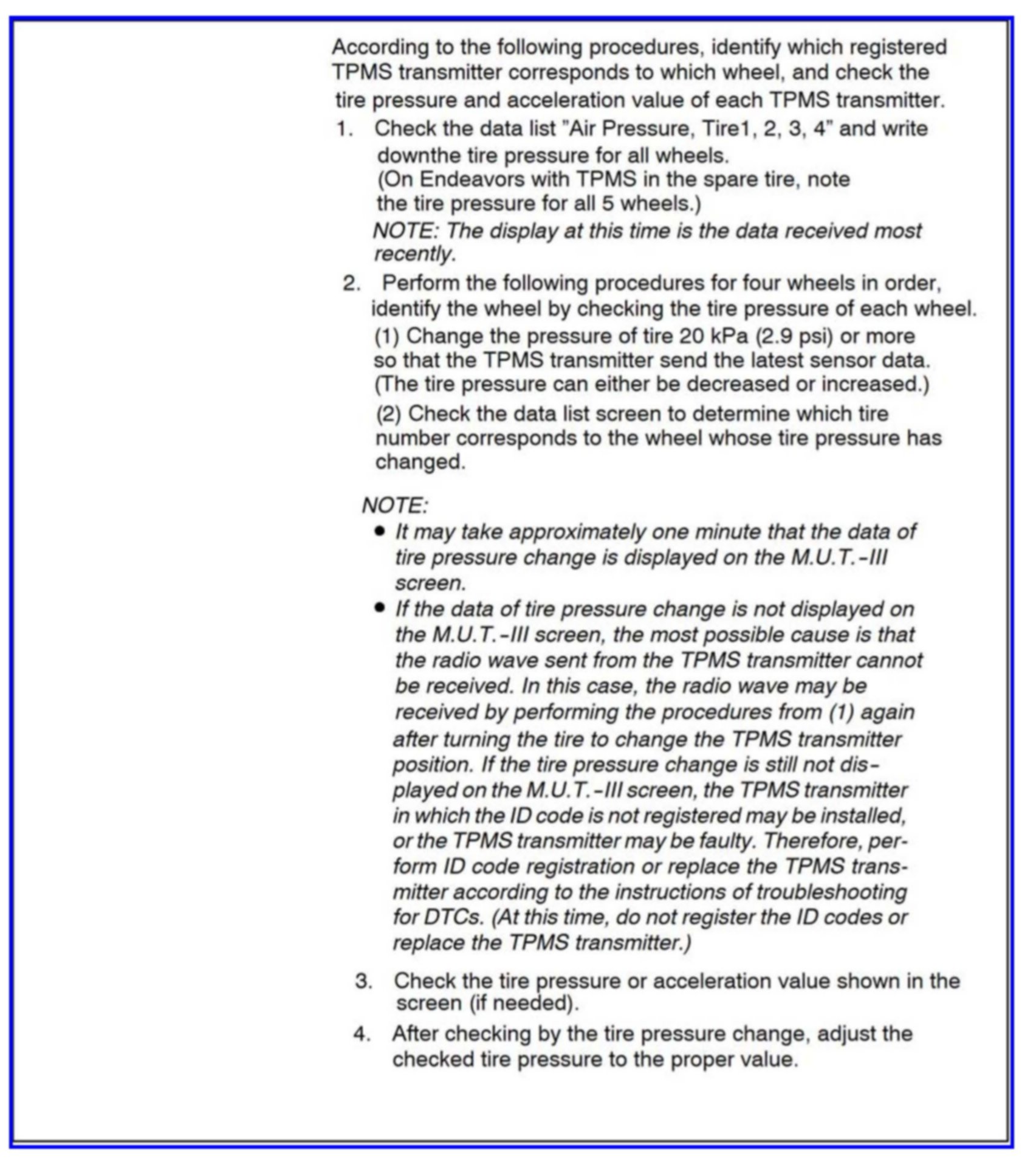

Replace the TPMS procedures with the following: (continued)





2007 Galant pages 31-53 thru 31-56; 2007 Endeavor, pages31-54 thru 31-57
Replace the TPMS procedures with the following: (continued)
