Powertrain Management: Locations

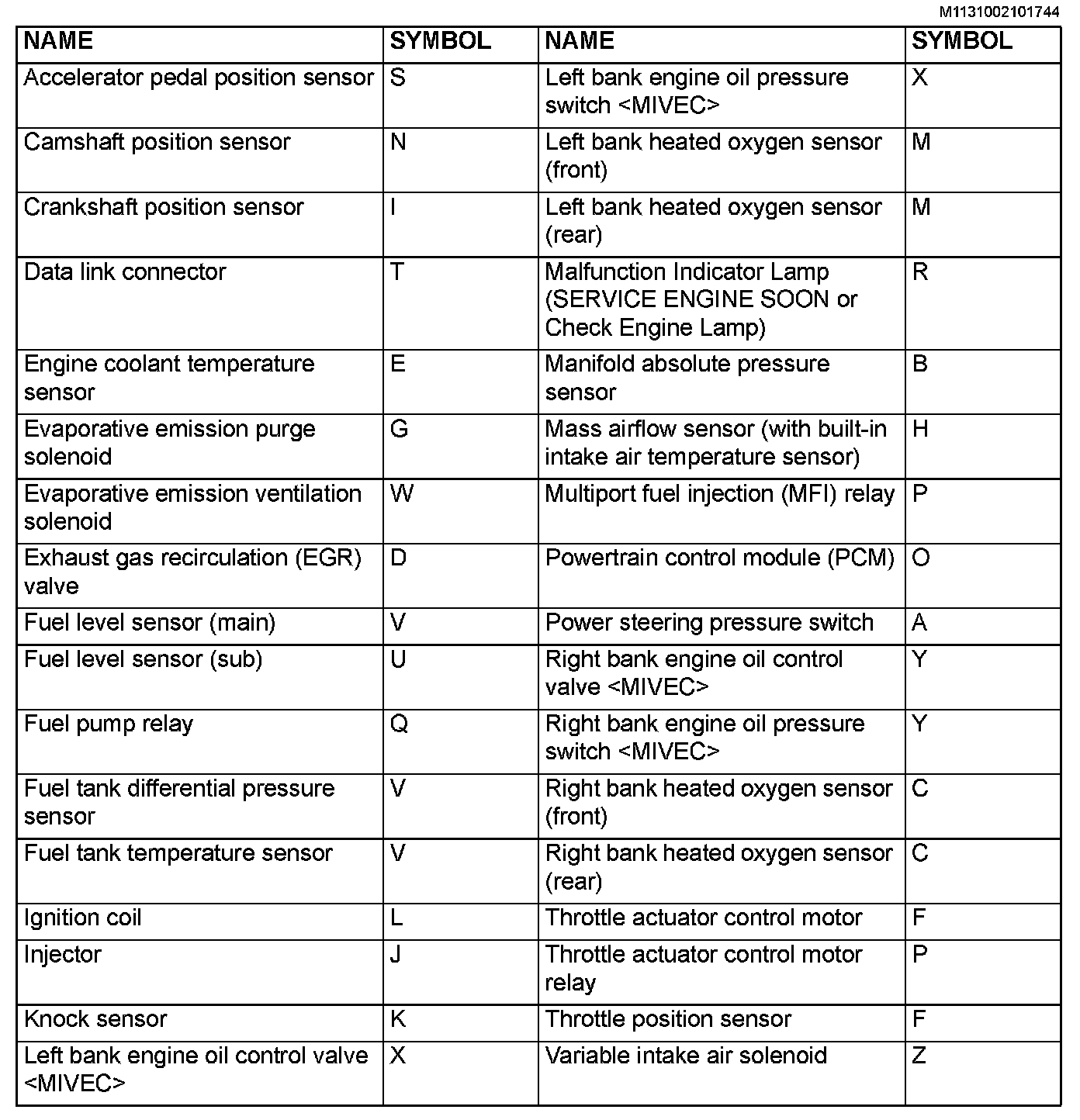

Component Location Index:
Overall View:

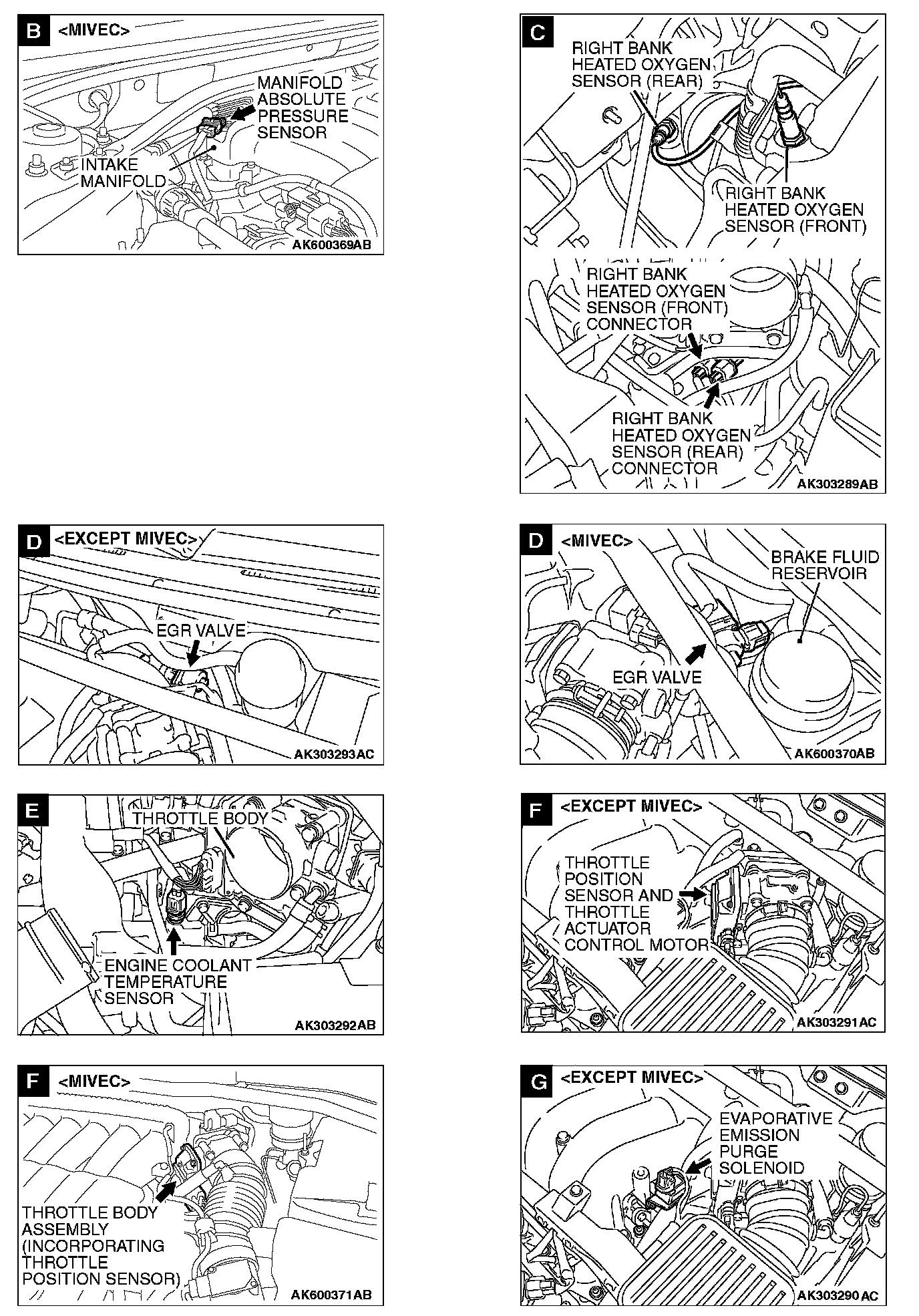

View B-G:

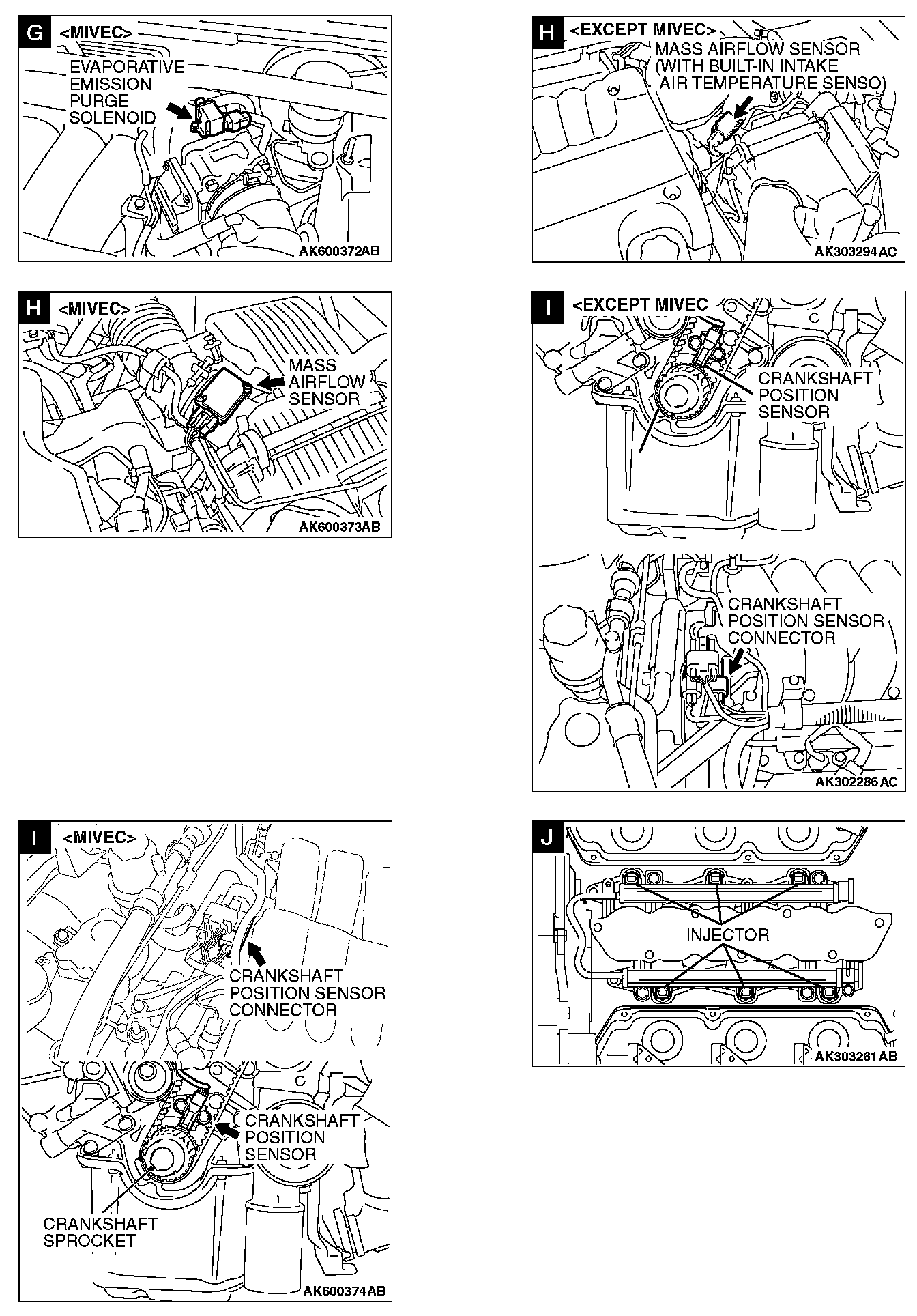

View G-J:

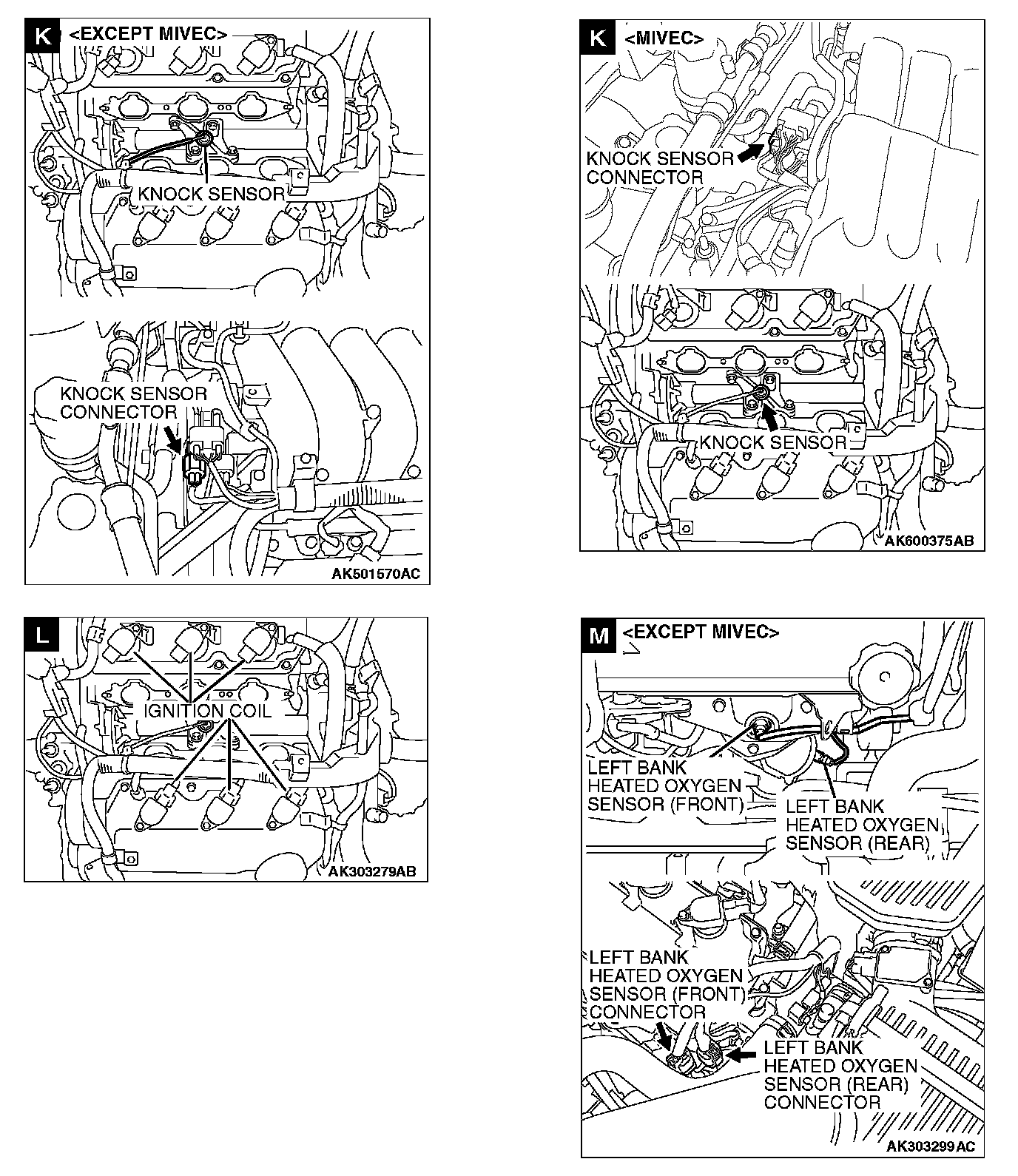

View K-M:

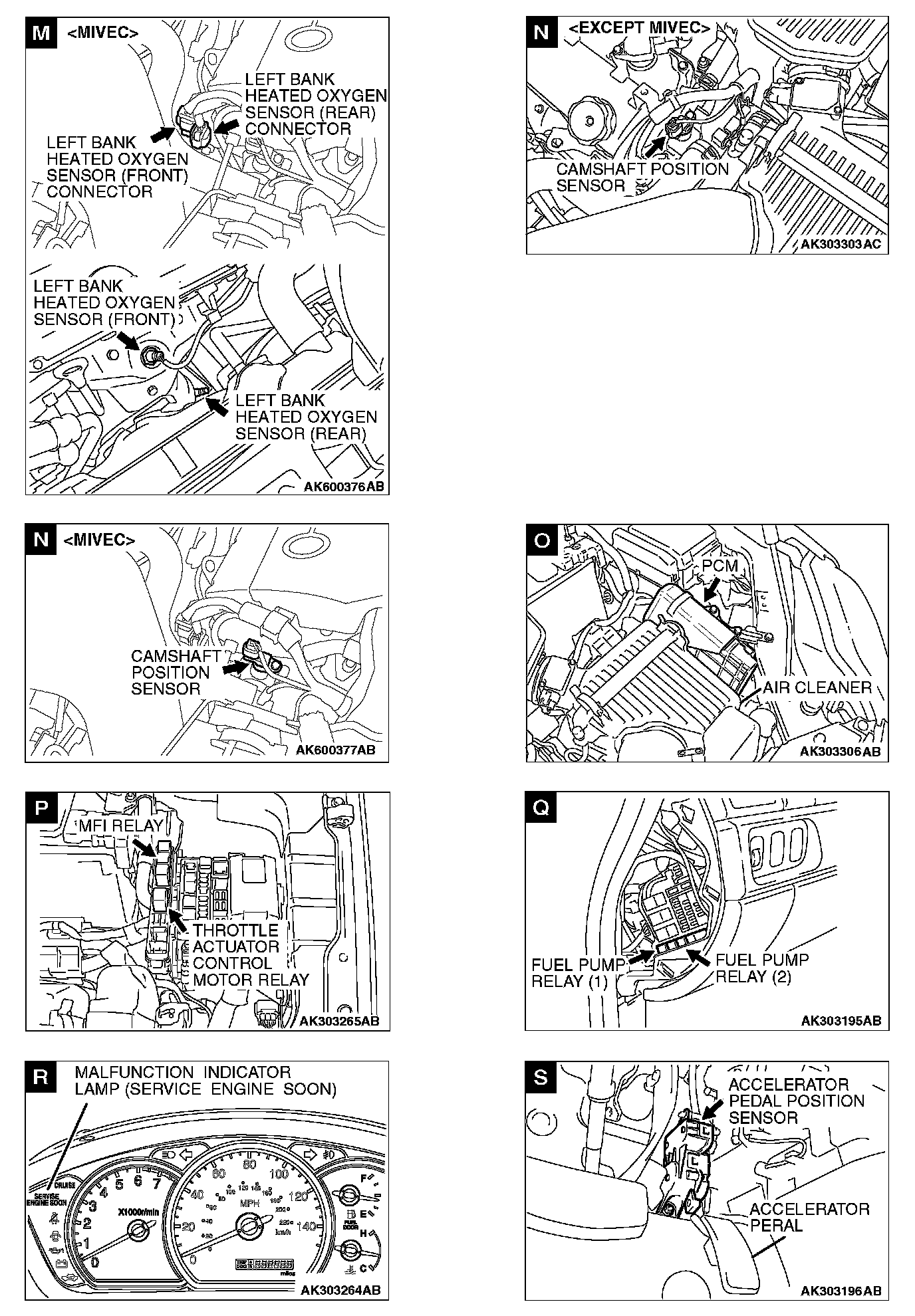

View M-S:

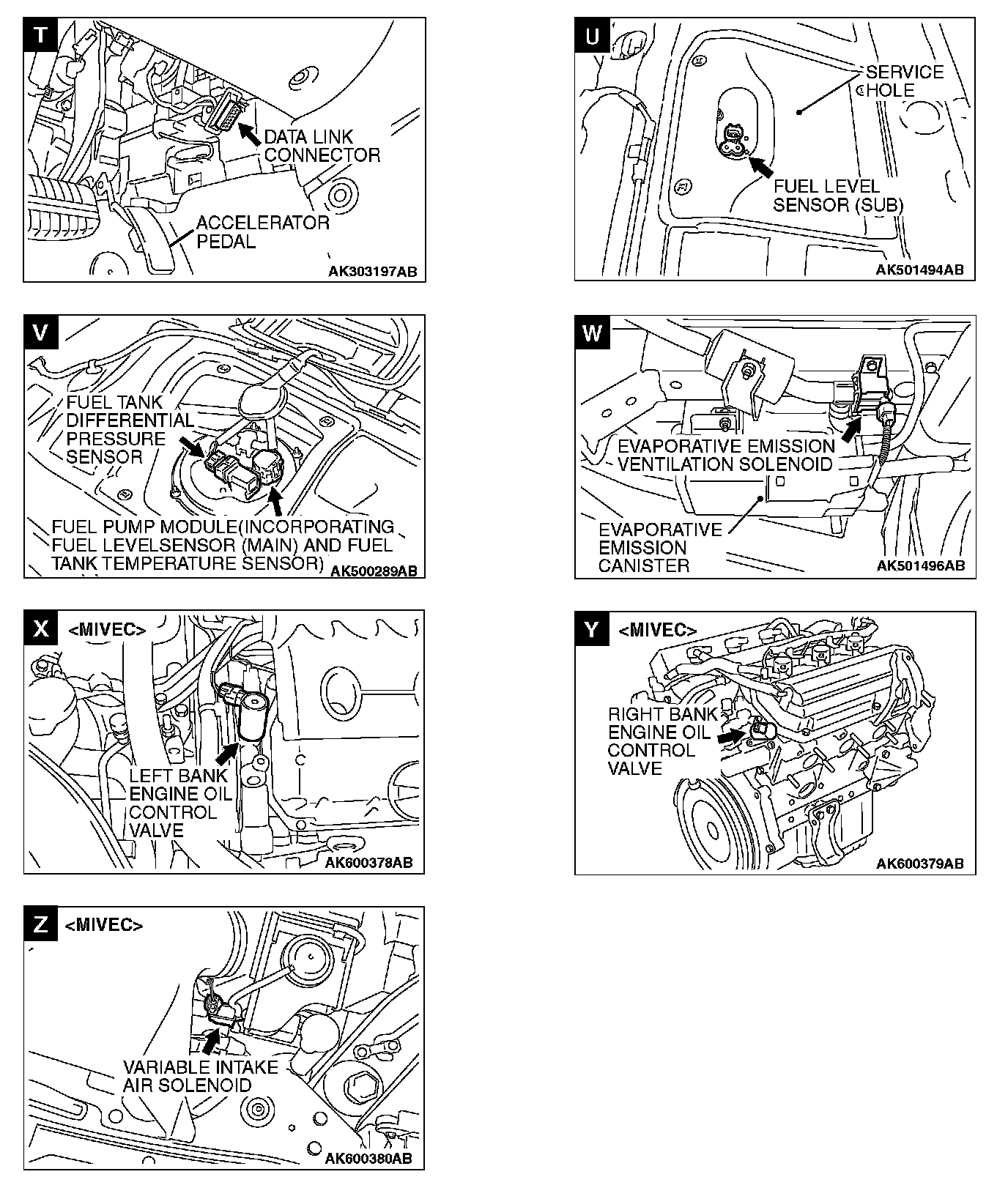

View T-Z:
