Body - Revised Front And Rear Pillar Removal

No.: TSB-08-42A-001

Date: May, 2008

Model:
2008-09 Galant, 2007-08 Endeavor

SUBJECT:
REMOVAL OF FRONT & REAR PILLAR INTERIOR TRIM - SERVICE MANUAL REVISION

PURPOSE

Due to the adoption of curtain airbags, the illustrations and instructions for removing the interior pillar trim is incorrect in the applicable Service Manual. This Technical Service Bulletin provides the corrected material.

AFFECTED VEHICLE(S)
2008-09 Galant
2007-08 Endeavor





APPLICABLE MANUAL(S)

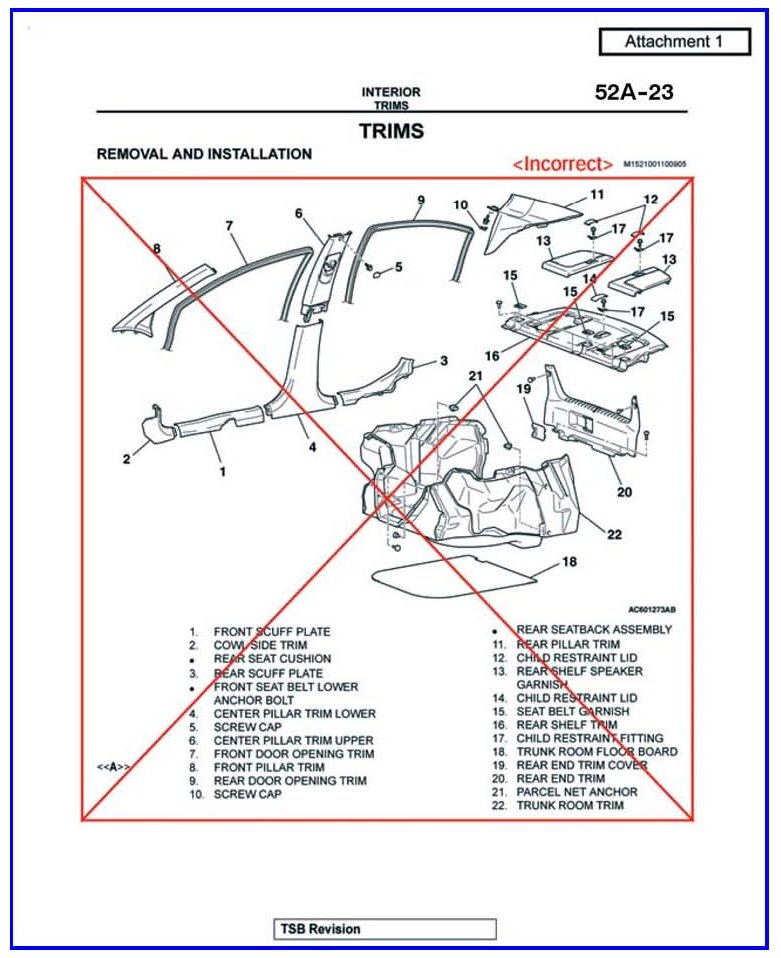

Attachment 1 - Page 52A-23

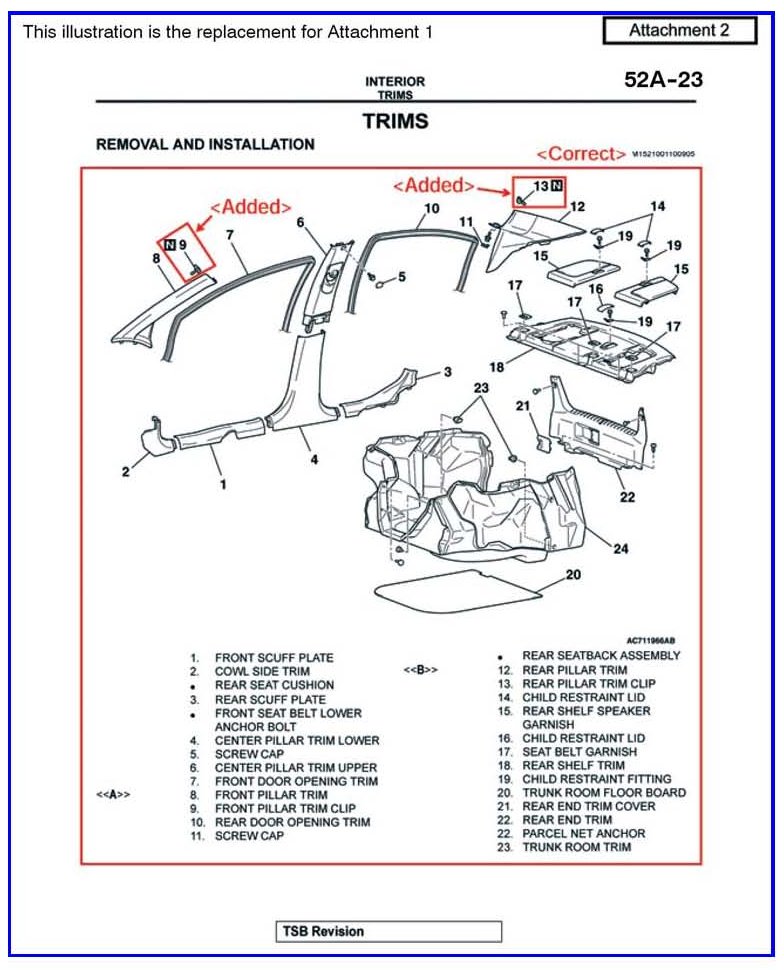

Attachment 2 - 52A-23

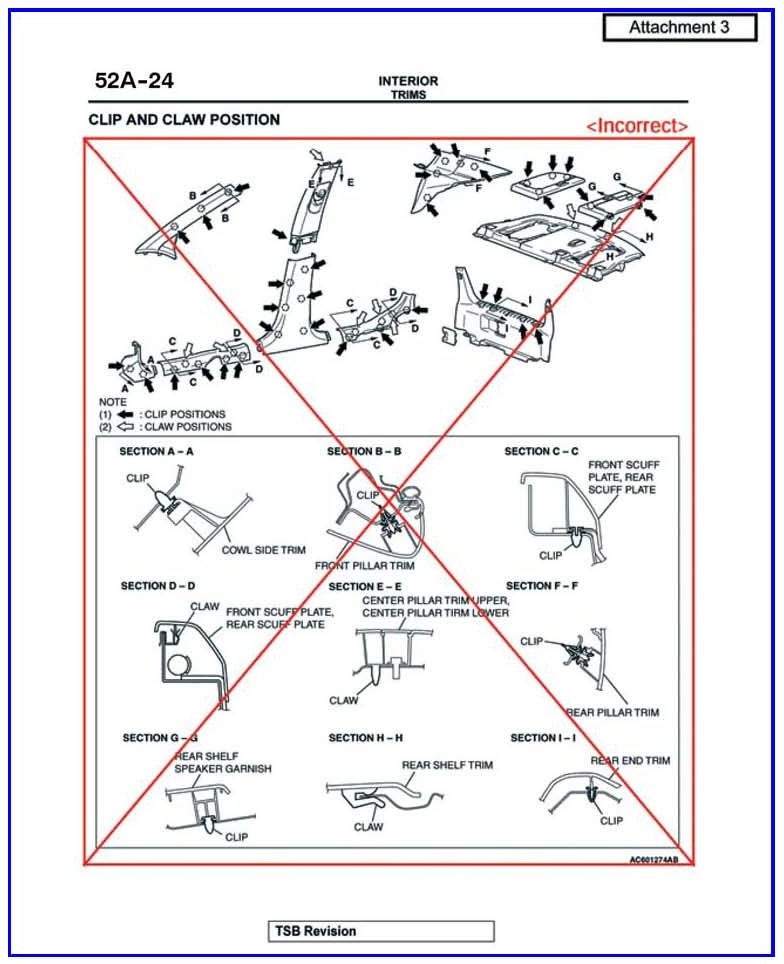

Attachment 3 - page 52A-24





Attachment 4 - page 52A-24

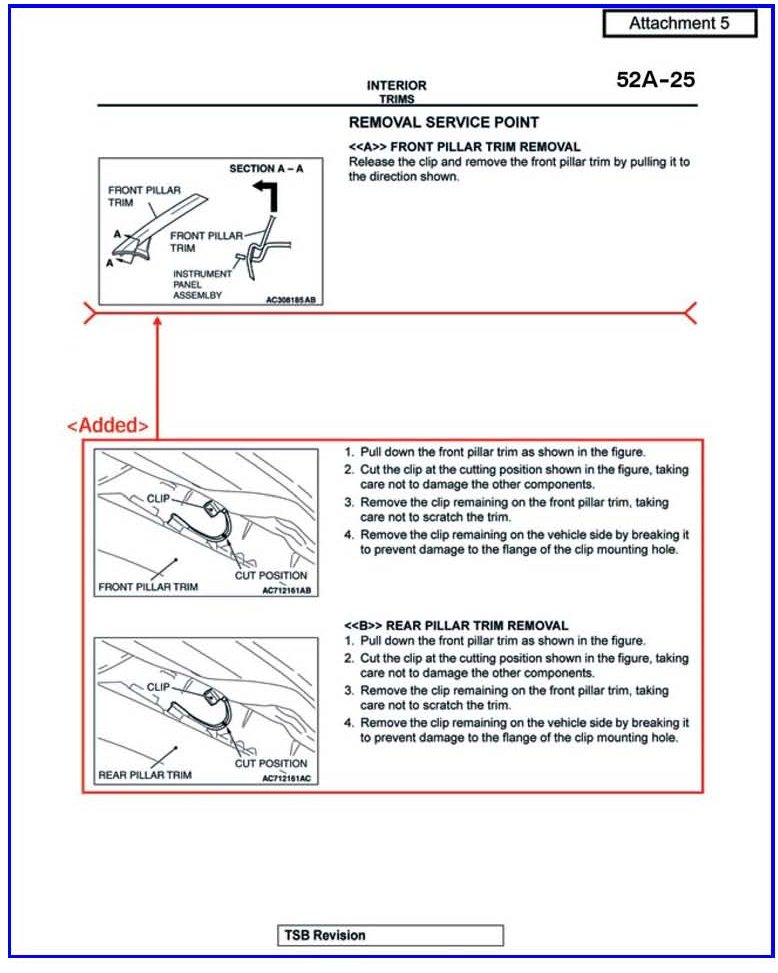

Attachment 5 - page 52A-25





Attachment 6 - page 52A-20, 52A-19





Attachment 7





Attachment 8 - page 52A-21, 52A-20

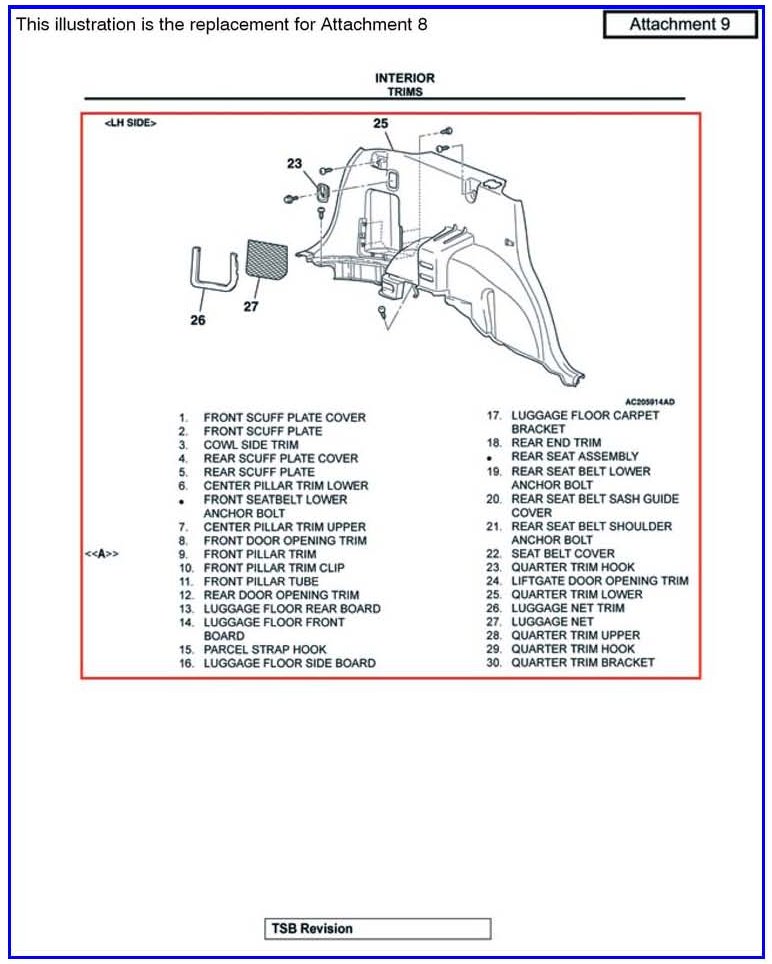

Attachment 9

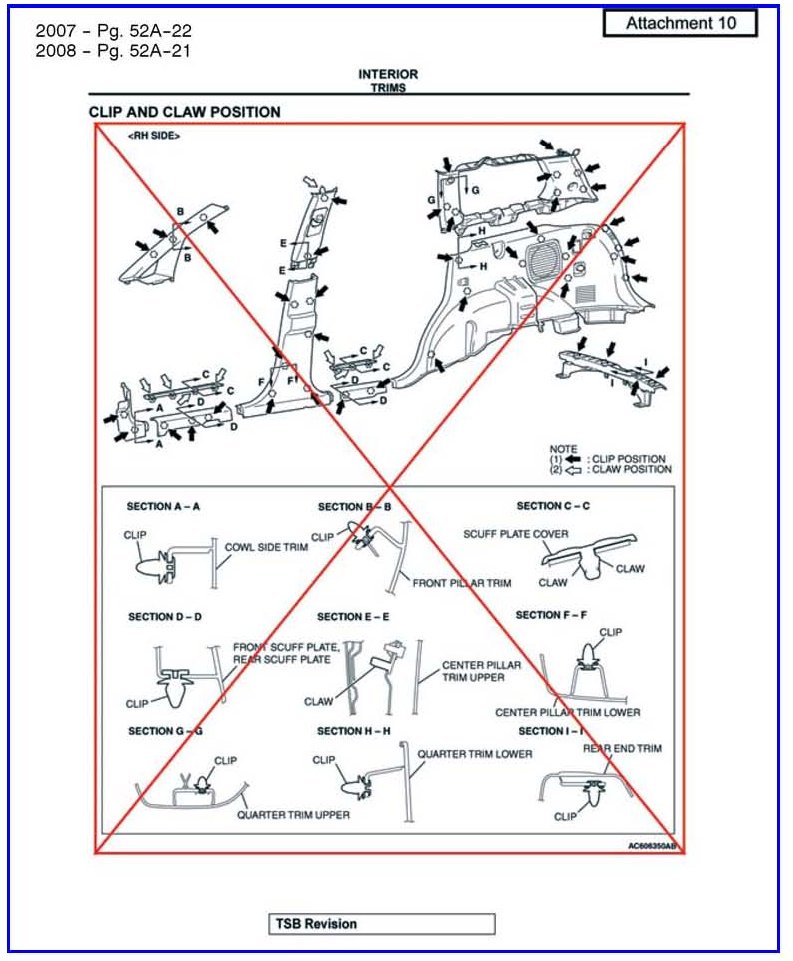

Attachment 10 - page 52A-22, 52A-21

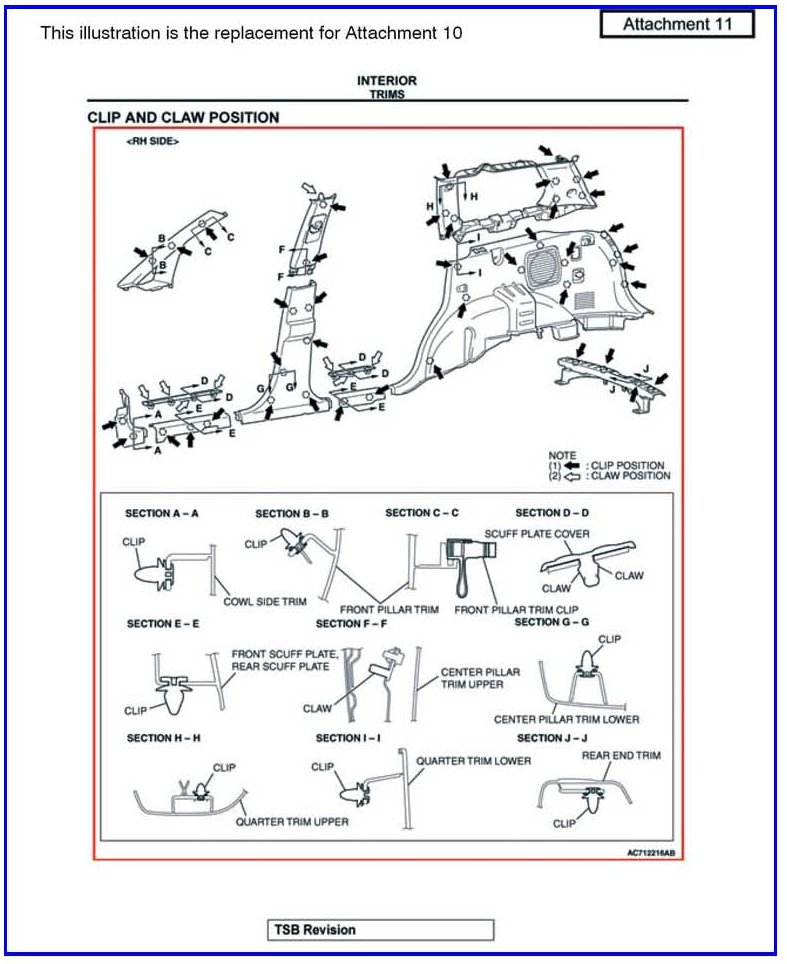

Attachment 11





Attachment 12 - page 52A-23, Page 52A-22

Updated Service Manual Pages
