Instruments - Center Display DTC Addition
No: TSB-09-54-003Date: February, 2009
Model: 2004-09 Galant
SUBJECT:
DIAGNOSTIC TROUBLE CODES FOR CENTER DISPLAY ADDED - SERVICE MANUAL REVISION
PURPOSE
To add diagnostic procedures for the listed multi-center display Diagnostic Trouble Codes shown above.
AFFECTED VEHICLE(S)
2004-2009 Galant
APPLICABLE MANUAL(S)

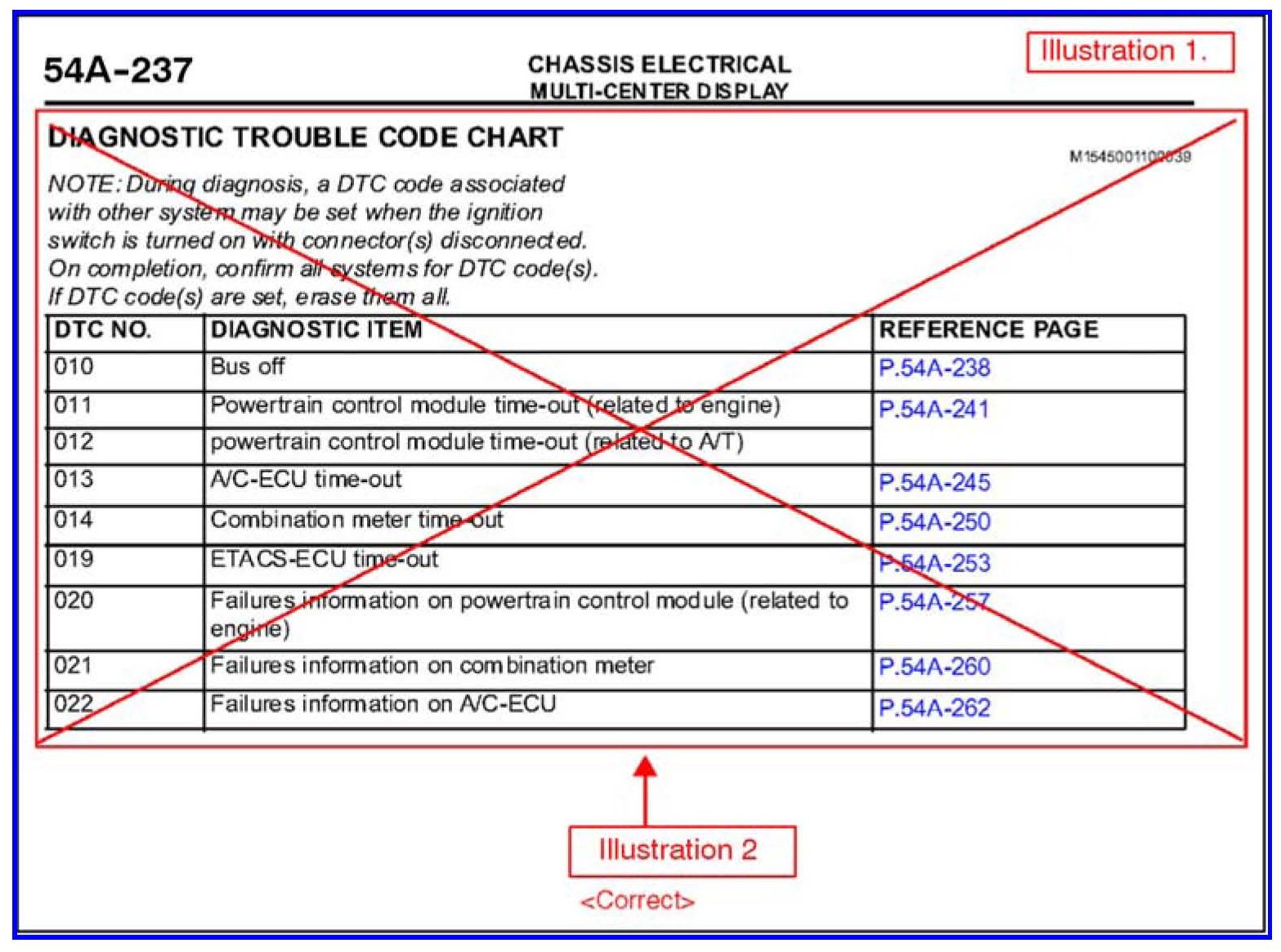

Illustration 1 - Pages 54A-237

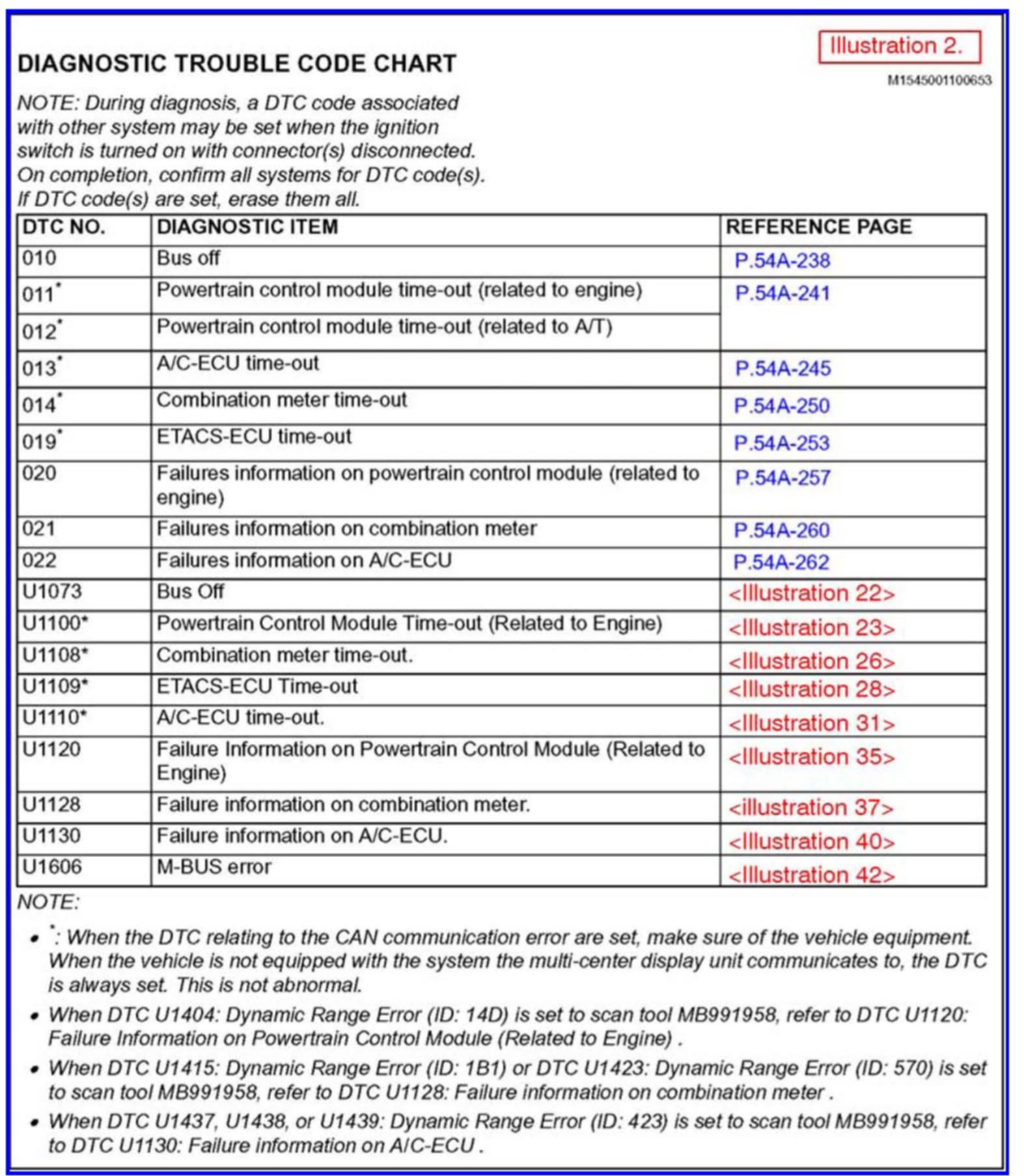

Illustration 2 - Diagnostic Trouble Code Chart
Illustration 3 - Pages 54A-224

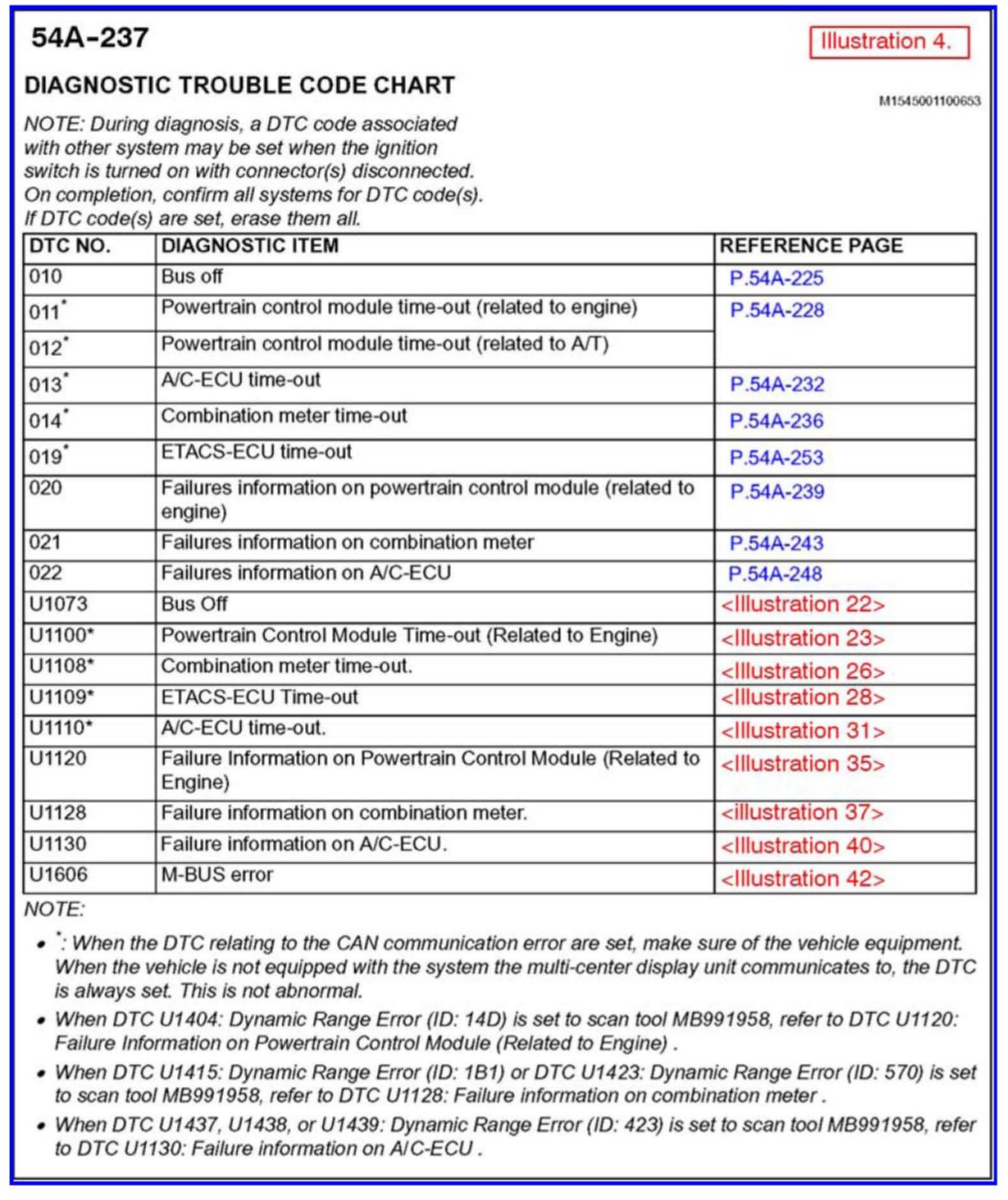

Illustration 4 - Pages 54A-237
Illustration 5 - Pages 54A-243
Illustration 6 - Diagnostic Trouble Code Chart
Illustration 7 - Pages 54A-257
Illustration 8 - Diagnostic Trouble Code Chart
Illustration 9 - Pages 54A-258

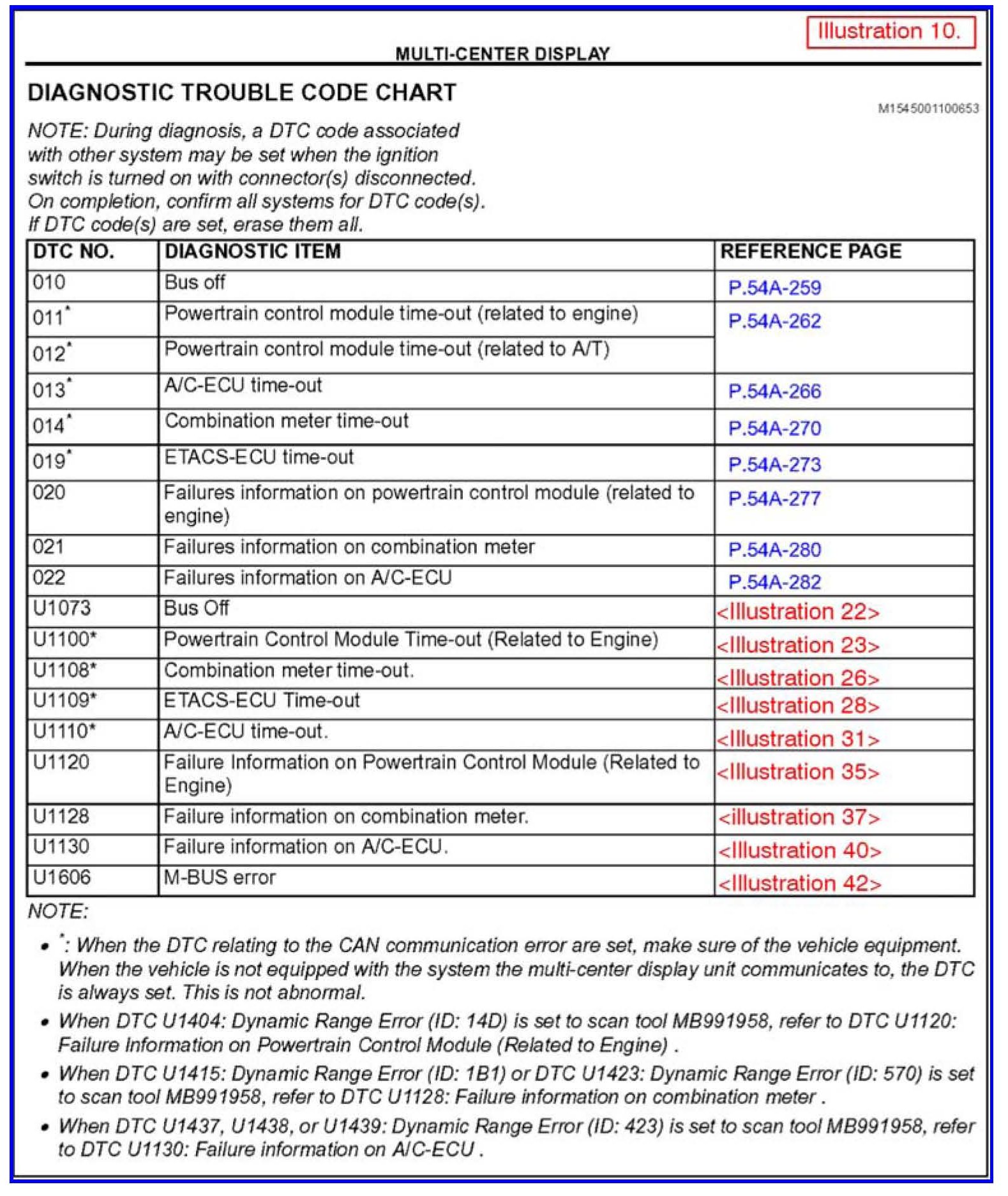

Illustration 10 - Diagnostic Trouble Code Chart
Illustration 11 - Pages 54A-252
Illustration 12 - Diagnostic Trouble Code Chart
Illustration 13 - Diagnostic Trouble Code Chart
Illustration 14 - Diagnostic Trouble Code Chart
Illustration 15 - Pages 54A-264

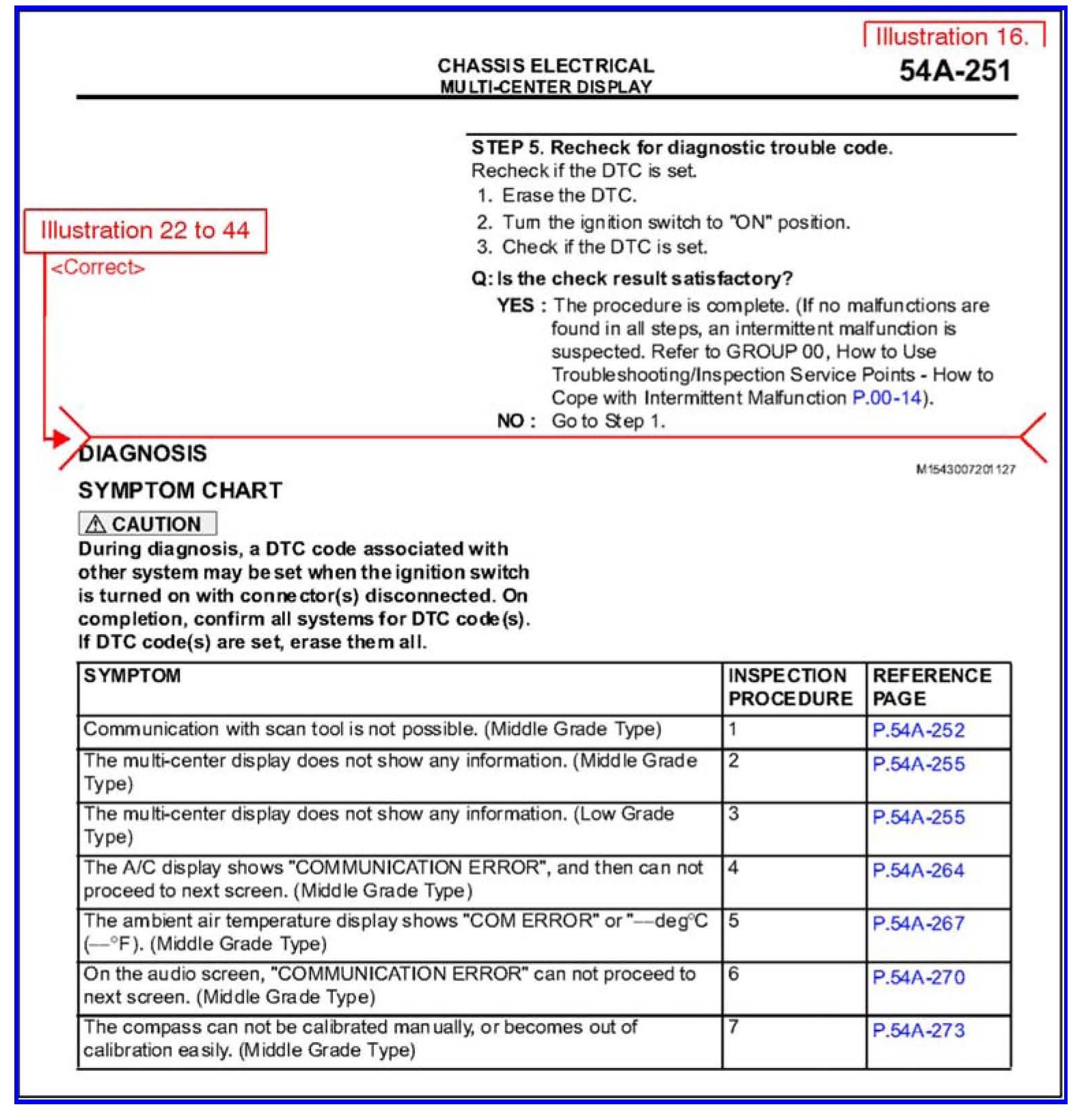

Illustration 16 - Pages 54A-251

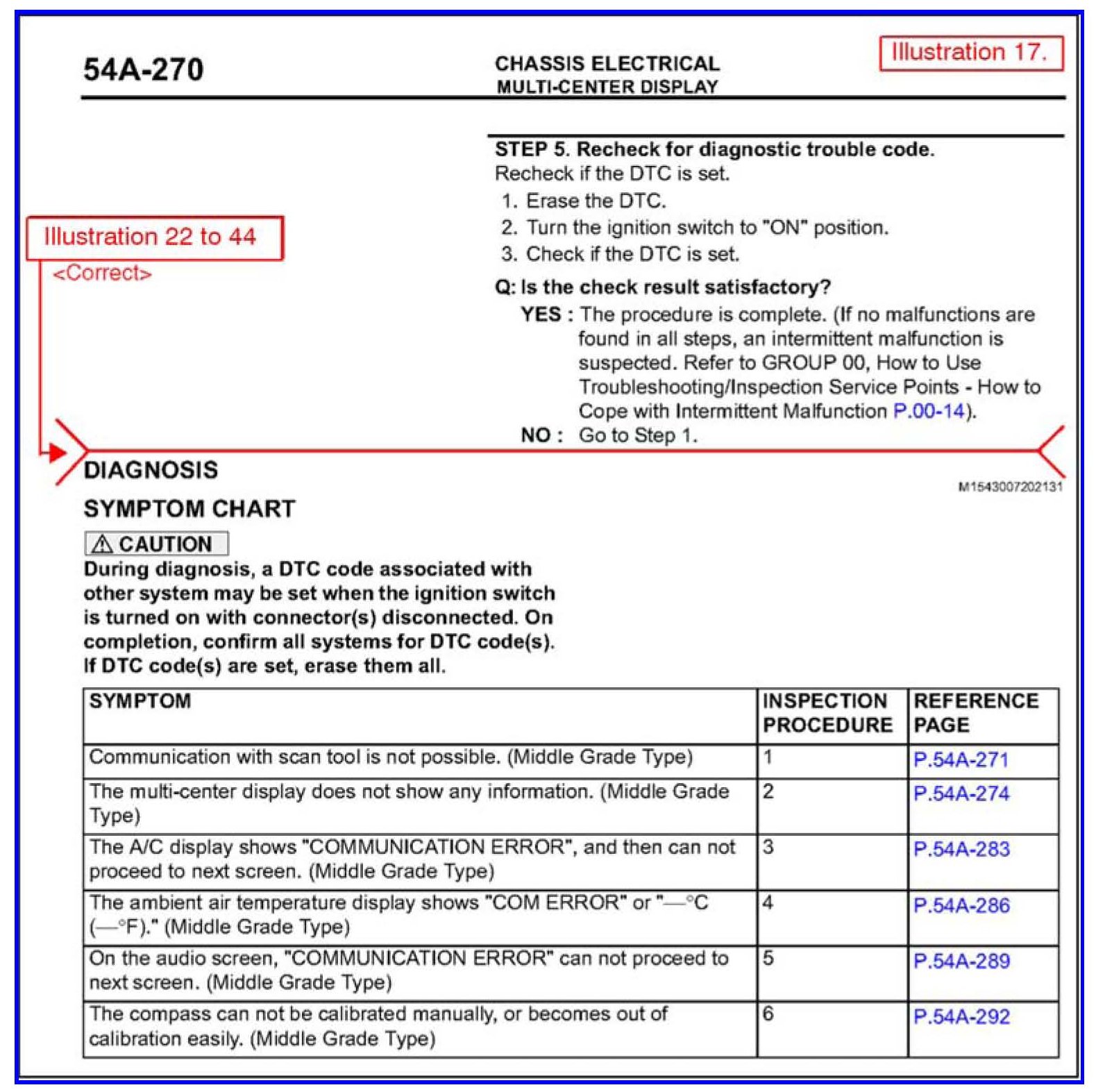

Illustration 17 - Pages 54A-270

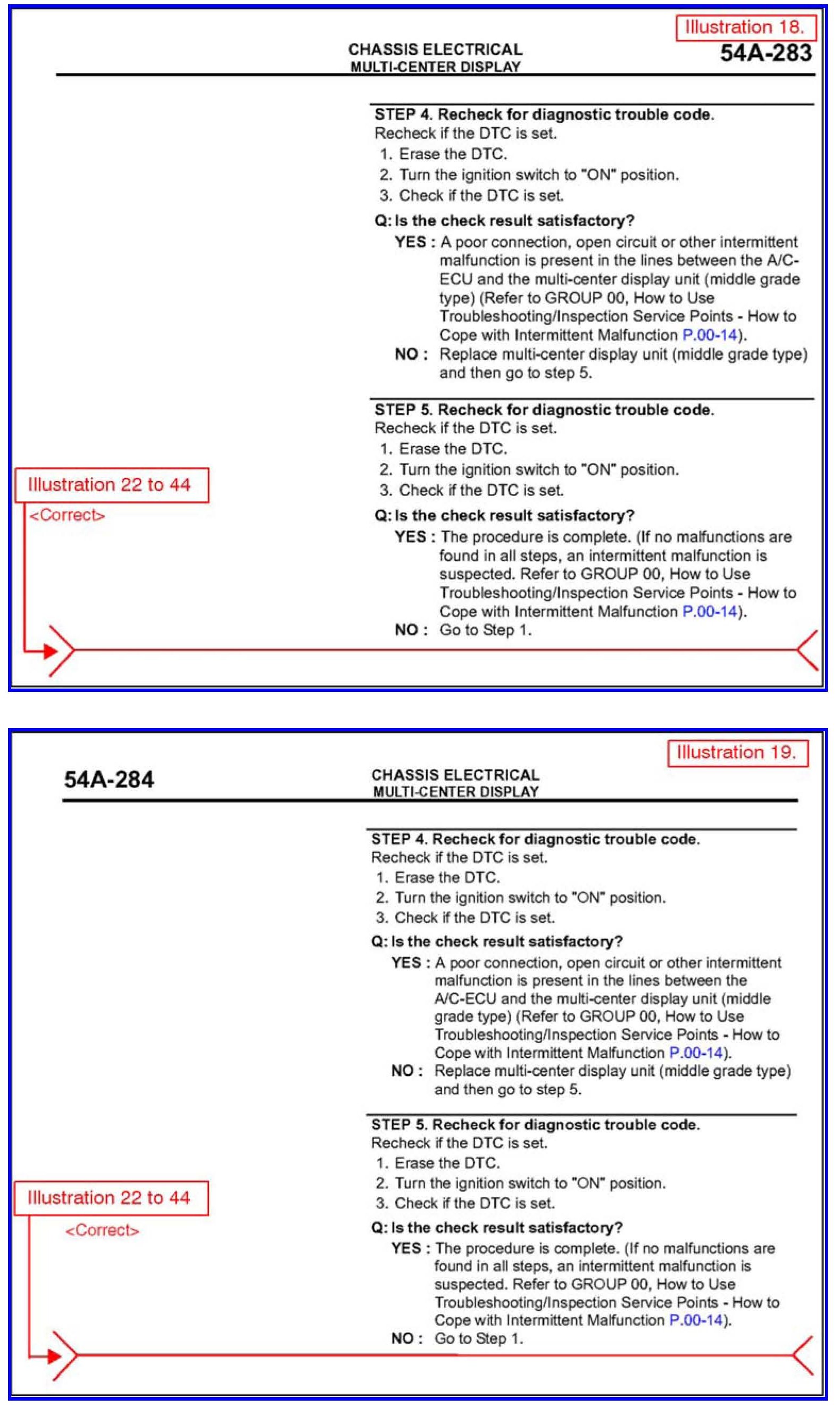

Illustration 18 Pages 54A-283 and Illustration 19 - Pages 54A-284

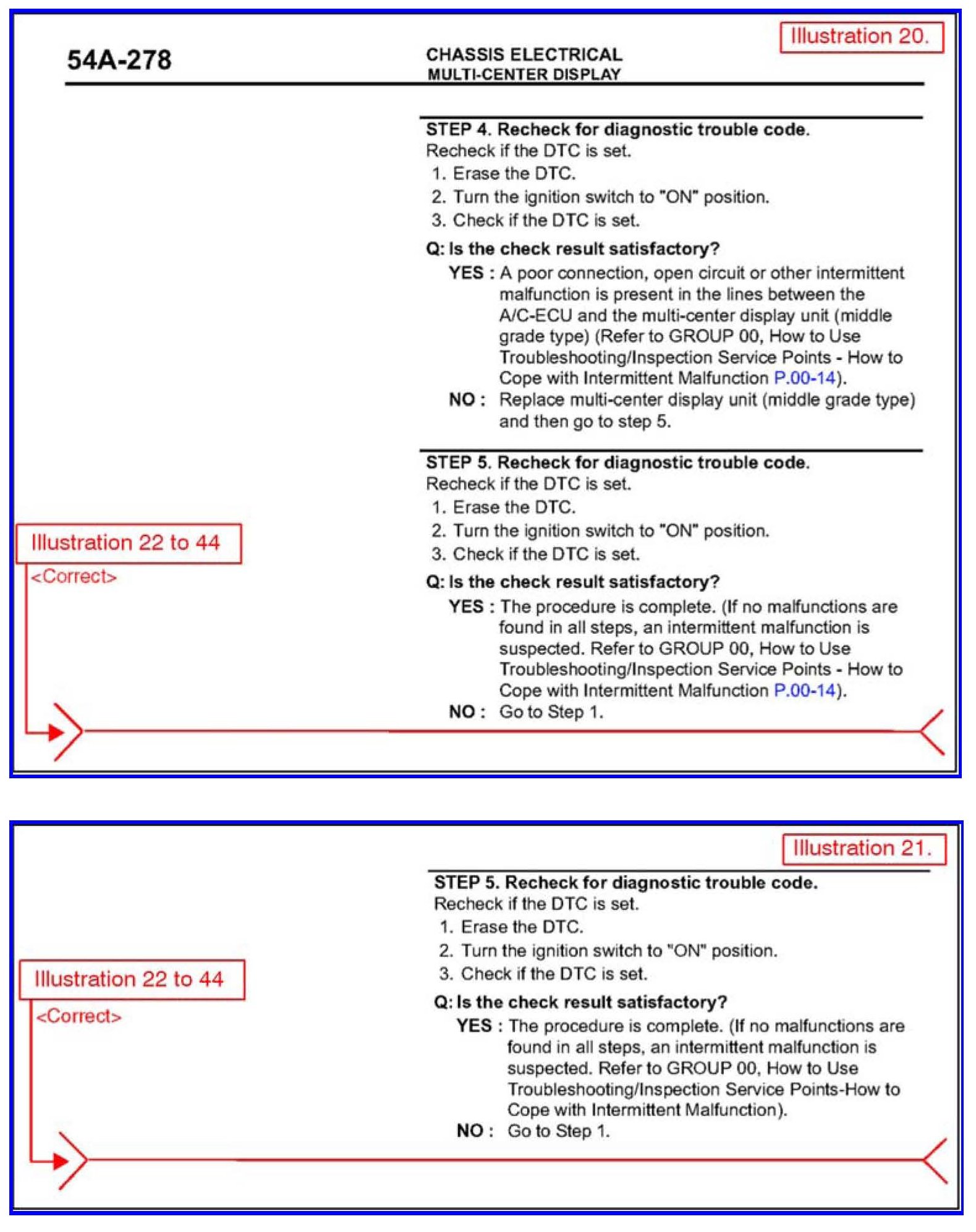

Illustration 20 - Pages 54A-278 and Illustration 21
Illustration 22 - DTC U1073 Bus Off
