F4A4B
F4A4B
TRANSAXLE
DISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-15:
Disassembly Steps 16-37:
Disassembly Steps 28-38:

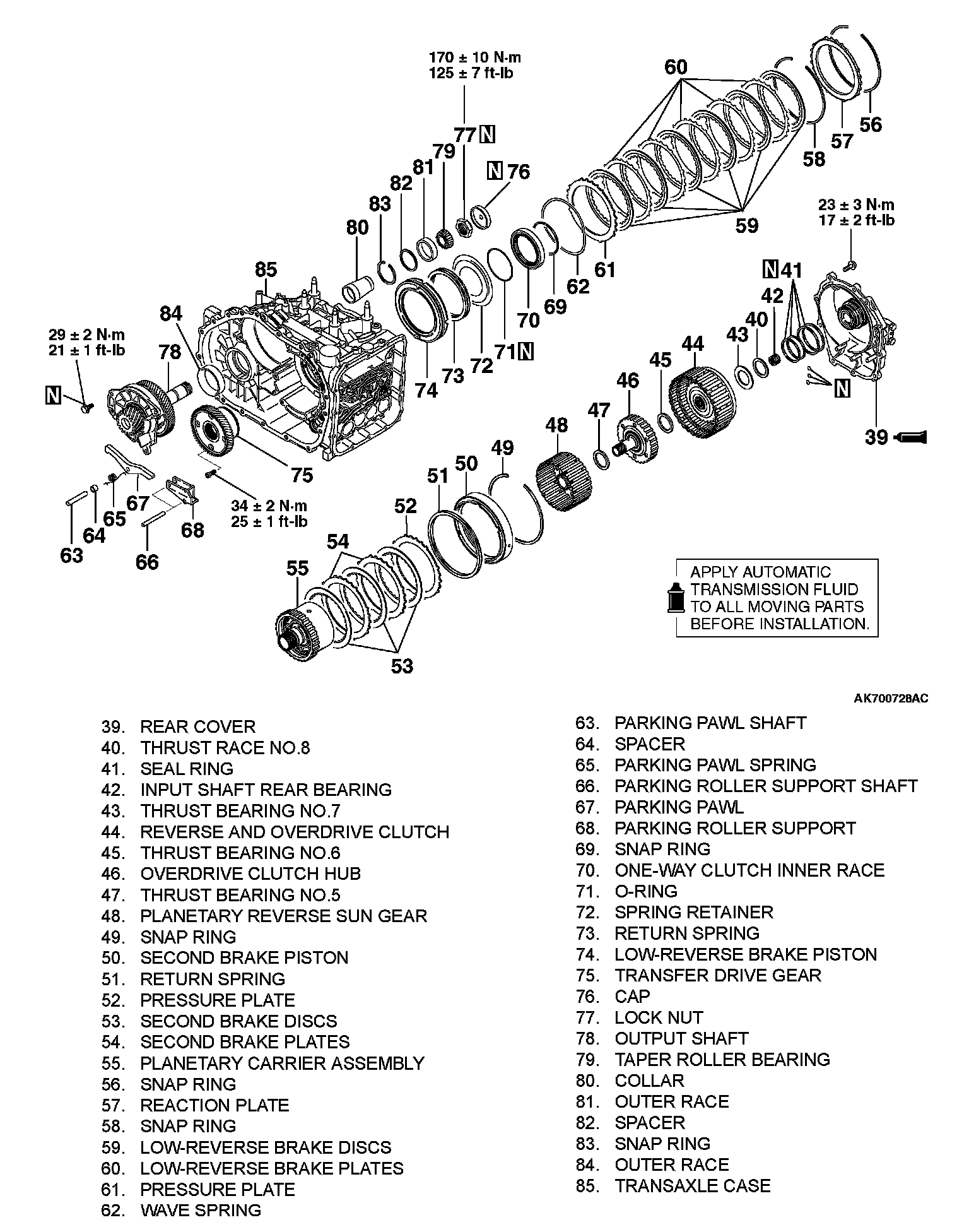

Disassembly Steps 39-85:
