Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2009
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

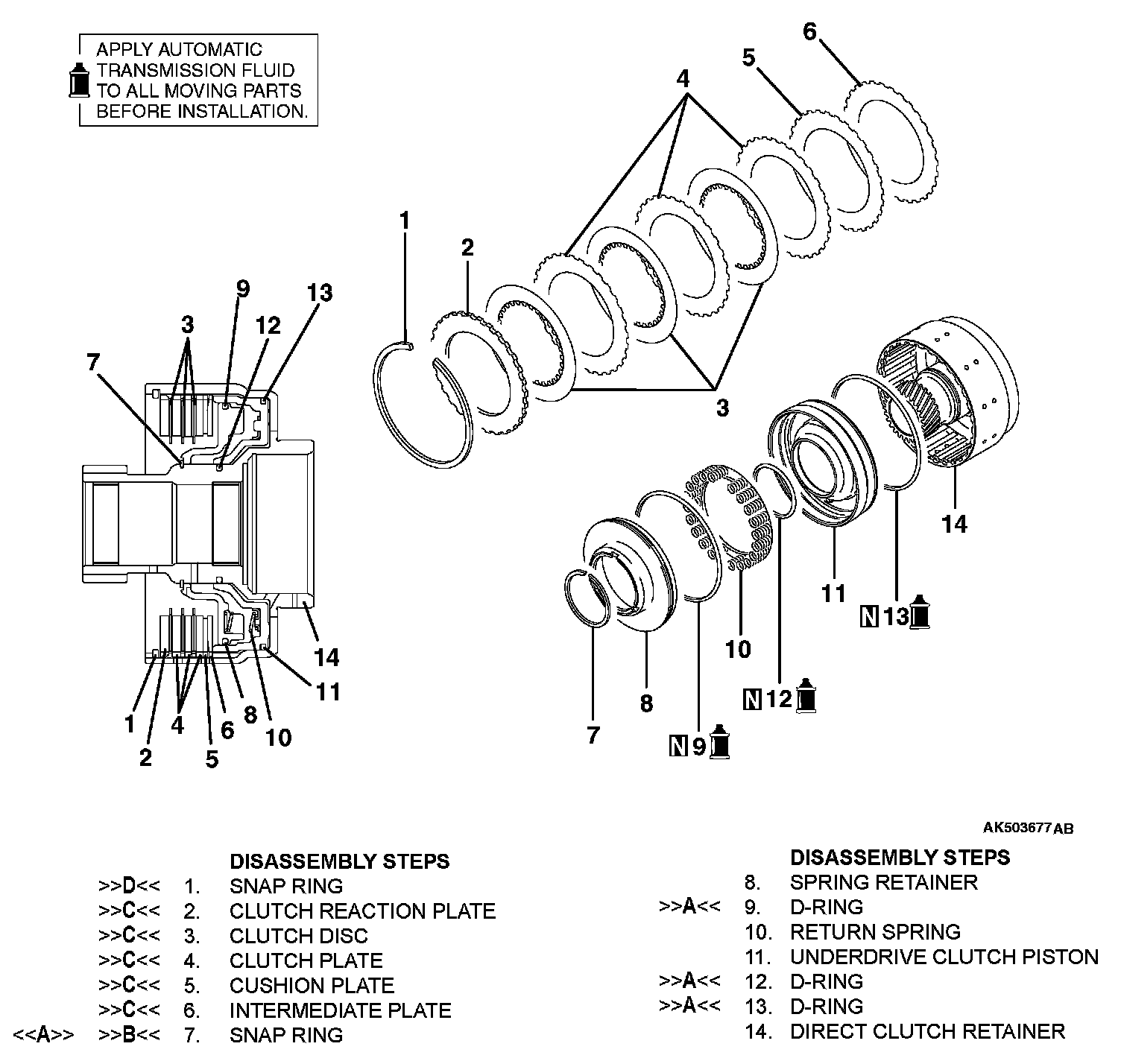

Direct Clutch
Direct Clutch
Disassembly Steps 1-14:
