Cooling System - Revised Radiator Removal Procedure
No: TSB-11-14-001DATE: October, 2011
MODEL: 2007-2011 Galant
SUBJECT:
RADIATOR REMOVAL - SERVICE MANUAL REVISION
[TSB Revision TSB-11-14-001]
PURPOSE
Some component removal procedures during radiator replacement are incorrect in the affected service manuals. This bulletin provides corrected procedures for the affected service manual pages.
AFFECTED VEHICLES
2007-2011 Galant
AFFECTED SERVICE MANUALS
2007 Galant page 42-89
2008 Galant pages 42-86 and-87
2009 Galant pages 14-11, 14-13, 42-9, -89, -90
2009.5 Galant pages 14-13, 14-15; 42-9 42-90, 42-91
2010 Galant pages 14-11 14-13 42-9 42-89 42-90
2011 Galant pages 14-13 14-14 42-8 42-88 42-89

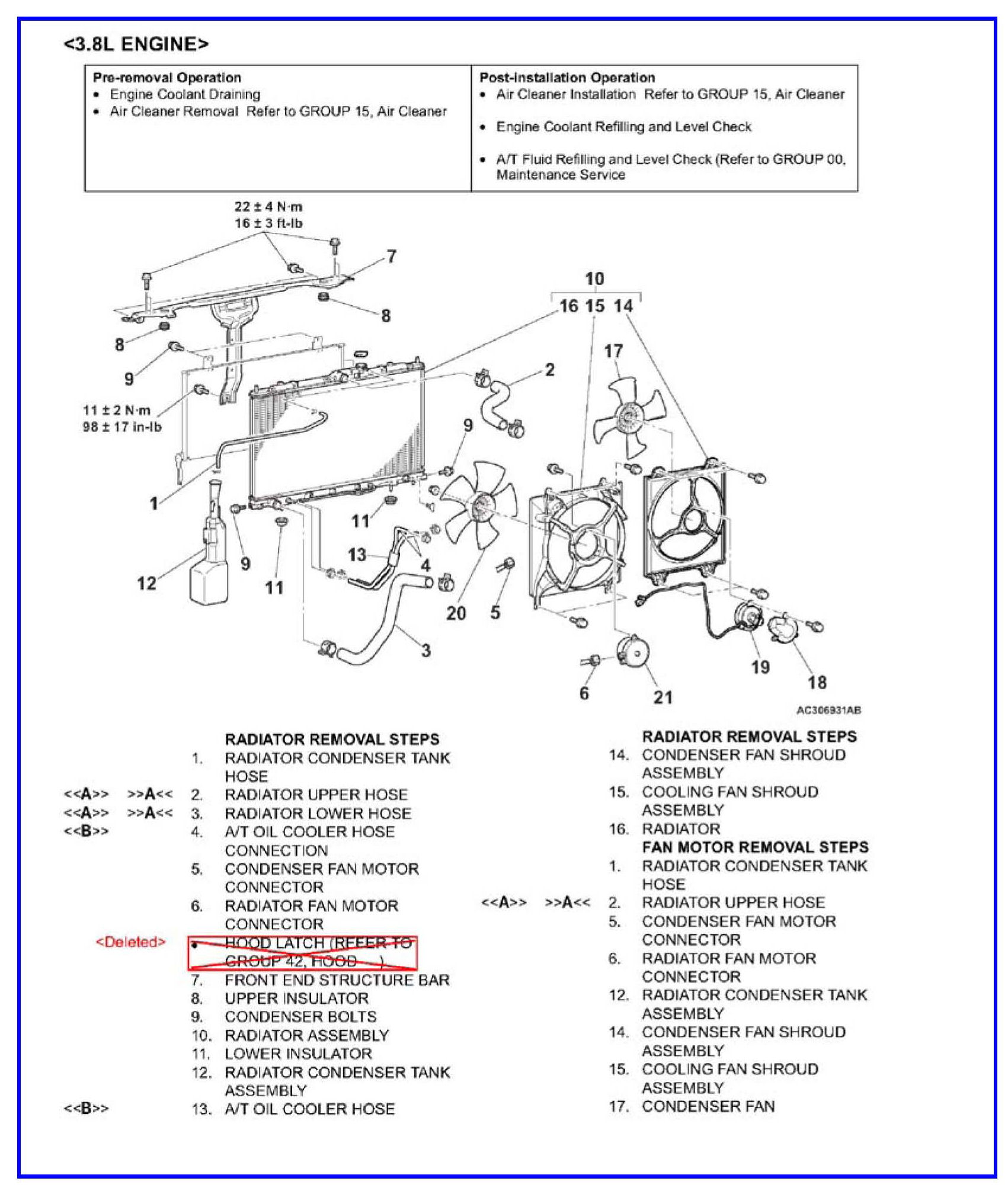

2007 Galant page 42-89; 2008 Galant page 42-86. Make the following correction:
2007 Galant page 42-89; 2008 Galant page 42-87. Make the following correction:
2009 Galant page 14-11; 2009.5 Galant page 14-13; 2010 Galant page 14-11; 2011 Galant page 14-13. Make the following correction:
2009 Galant page 14-13; 2009.5 Galant pages 14-15; 2010 Galant page 14-13; 2011 Galant page 14-14. Make the following correction:

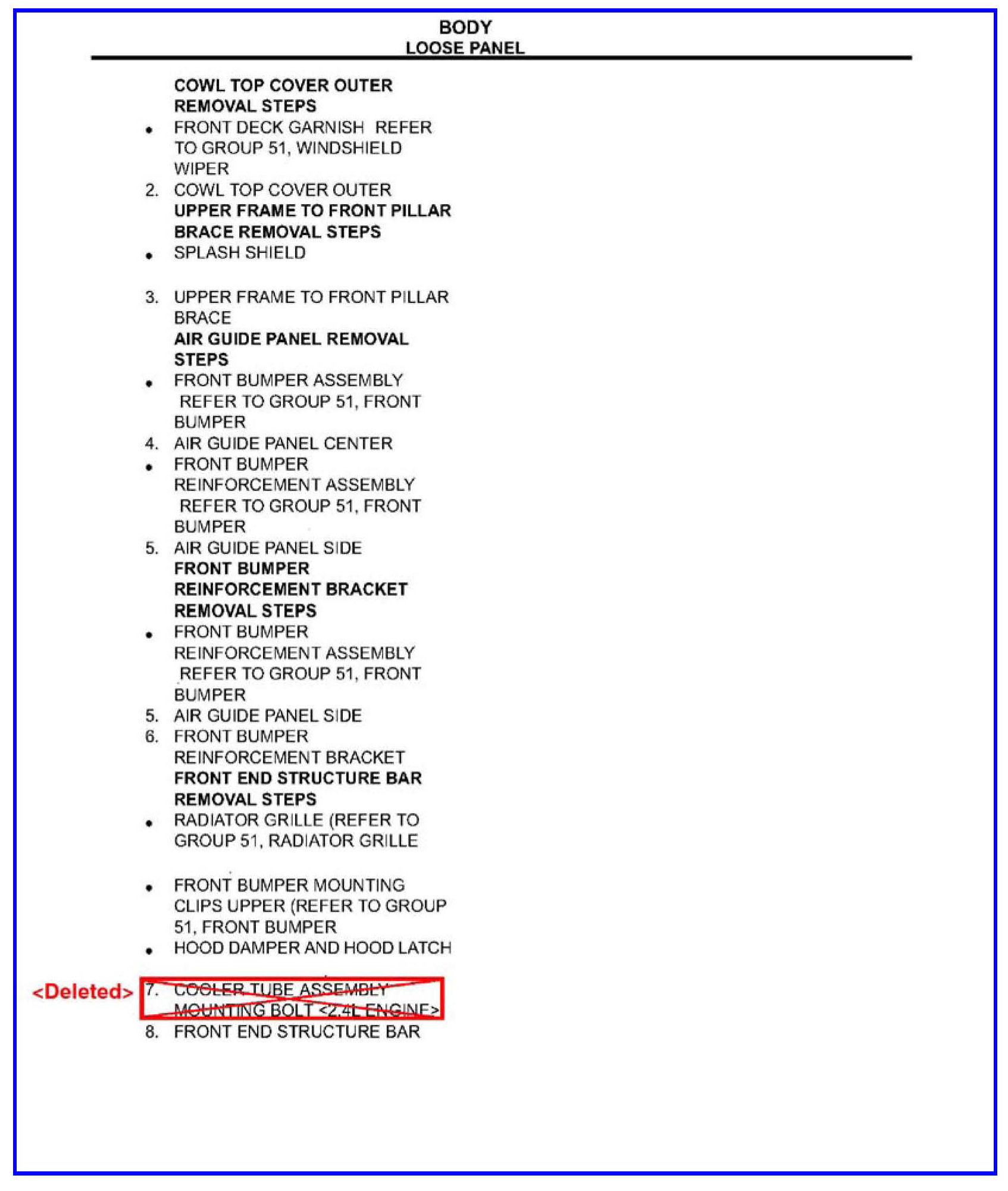

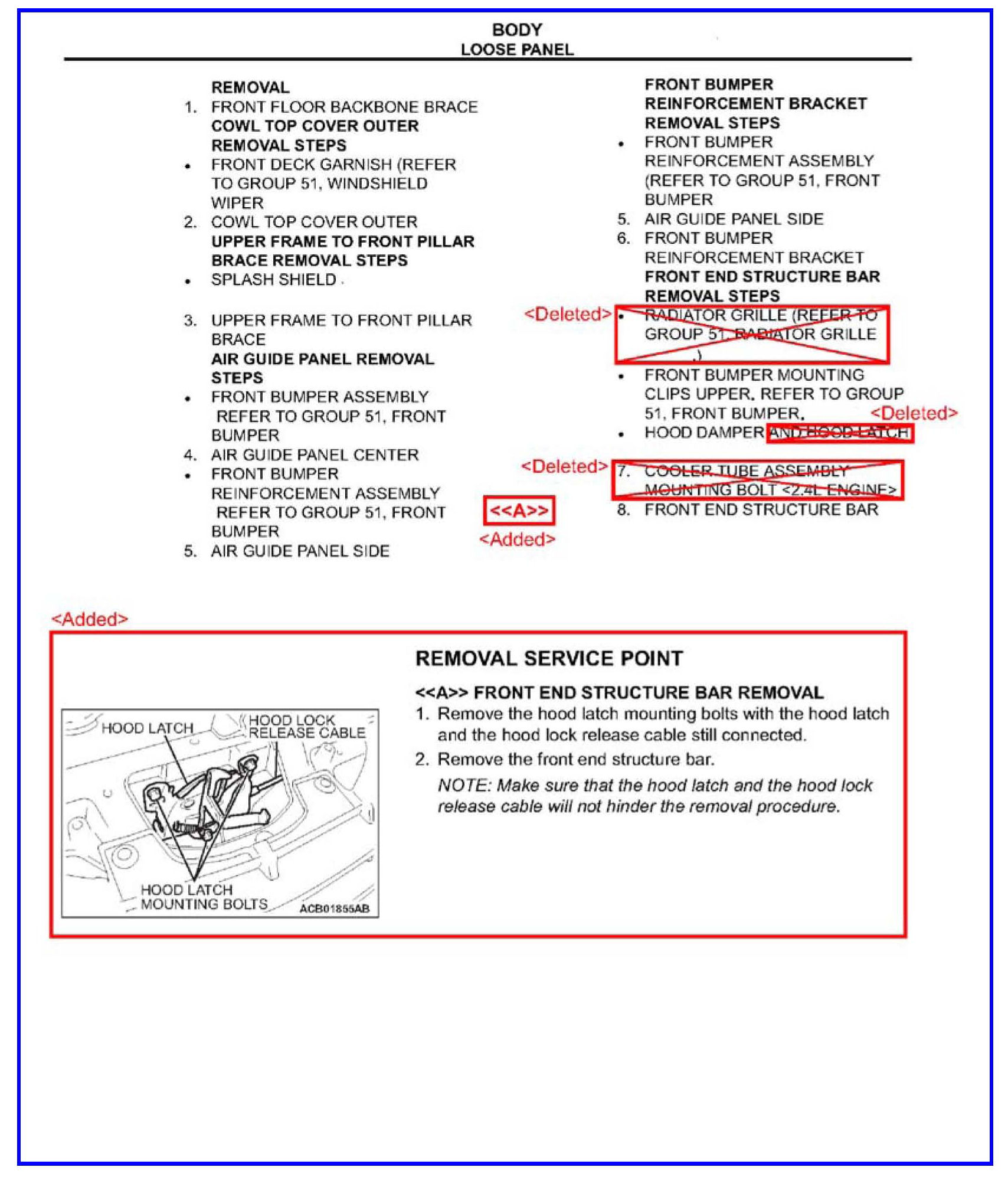

2009 2009.5 2010 Galant page 42-9; 2011 Galant page 42-8. Make the following corrections:

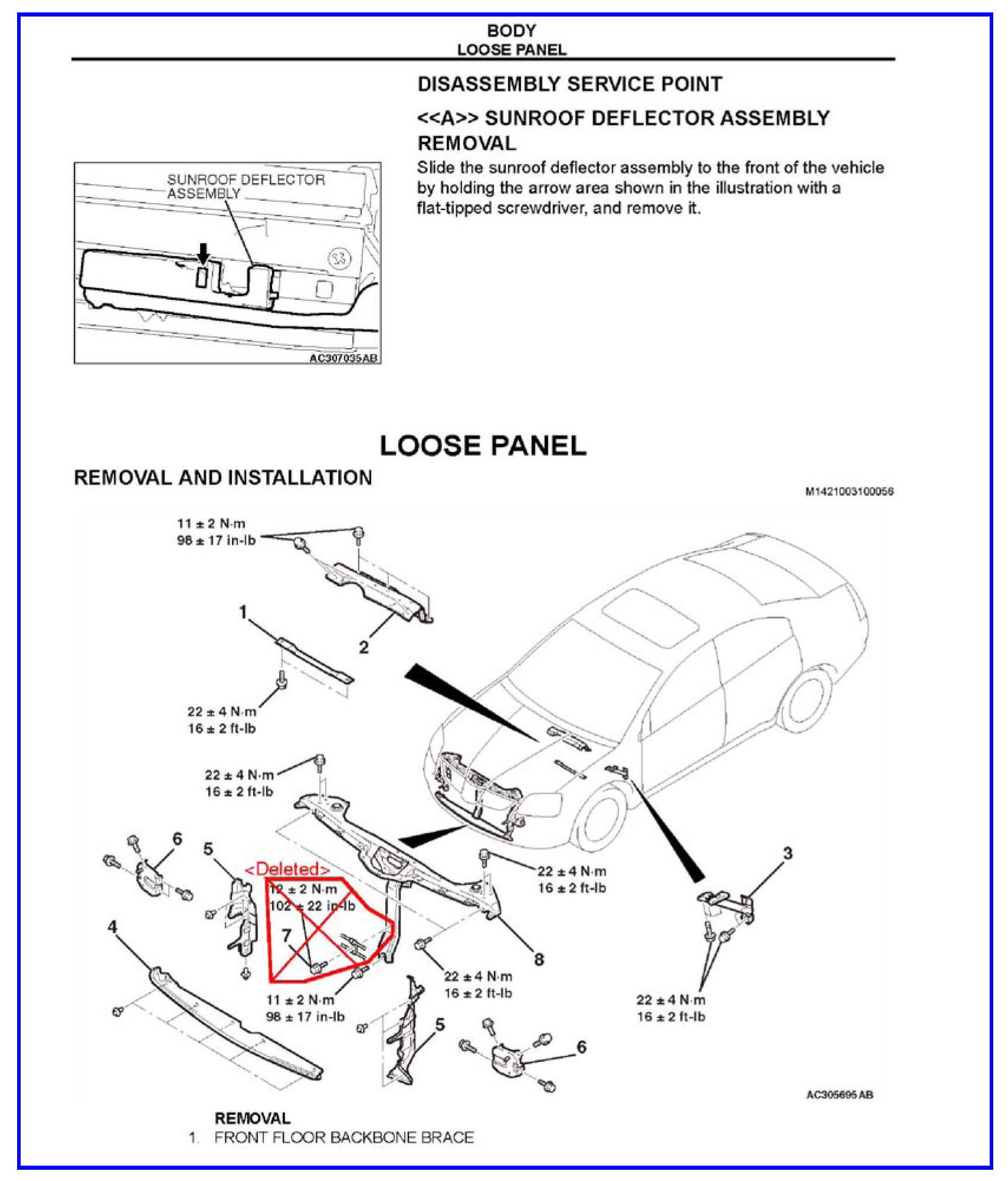

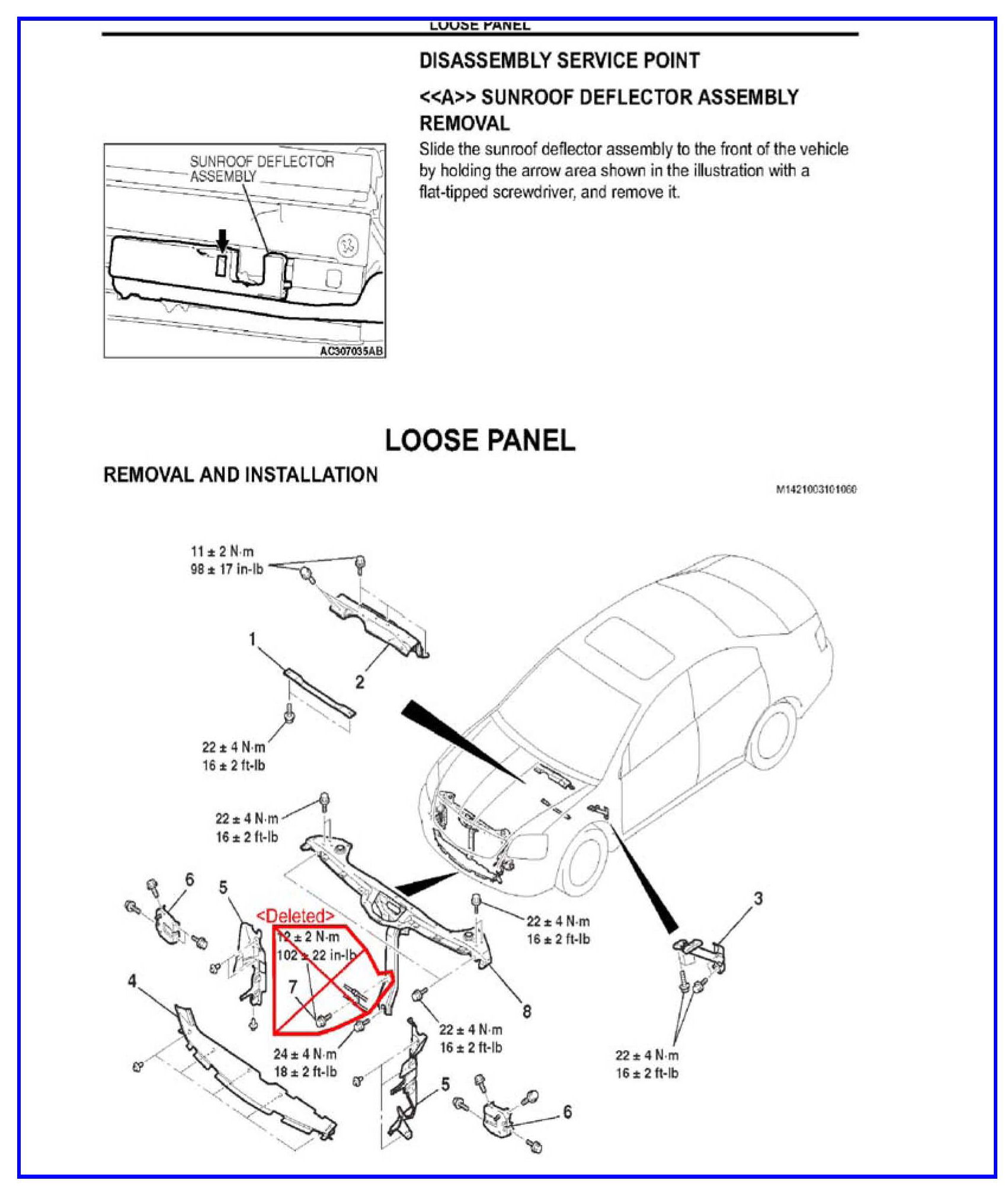

2009 Galant page 42-89 2009.5 Galant page 42-90; 2010 Galant page 42-89 2011 Galant page 42-88. Make the following correction:

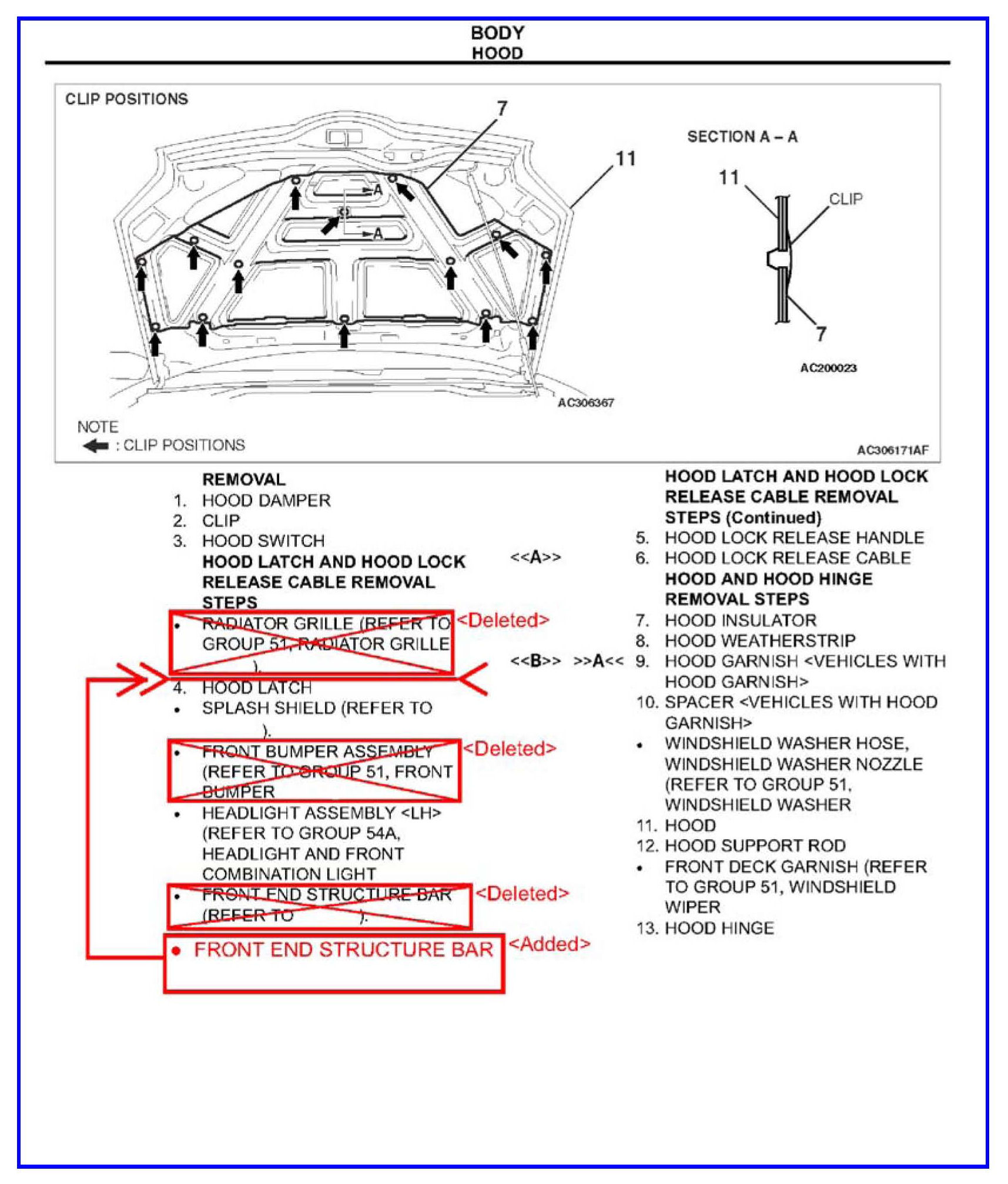

2009 Galant page 42-902009.5 Galant page 42-91; 2010 Galant page 42-90; 2011 Galant page 42-89. Make the following corrections:
