Drivetrain - Front Axle Shaft Heat Protector Addition

No: TSB-09-26-001

DATE: March, 2008

MODEL: 2009.5 Galant

SUBJECT:
FRONT DRIVE SHAFT HEAT PROTECTOR ADDED - SERVICE MANUAL REVISION

PURPOSE

To change the service manual to show steps for removal and installation of a new front axle heat protector.

AFFECTED VEHICLE(S)
2009.5 Galant built from early September, 2008.

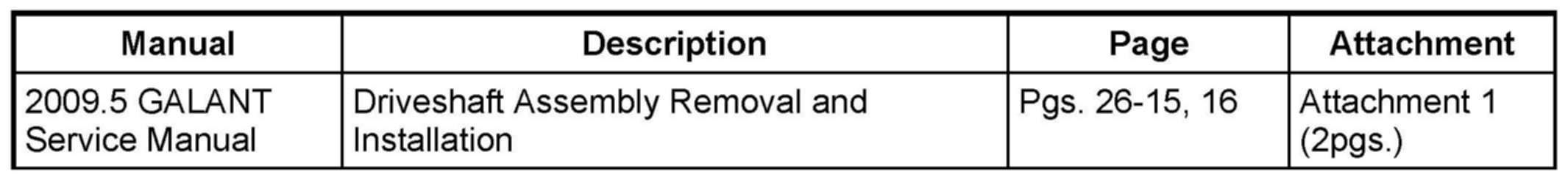

APPLICABLE MANUAL(S)

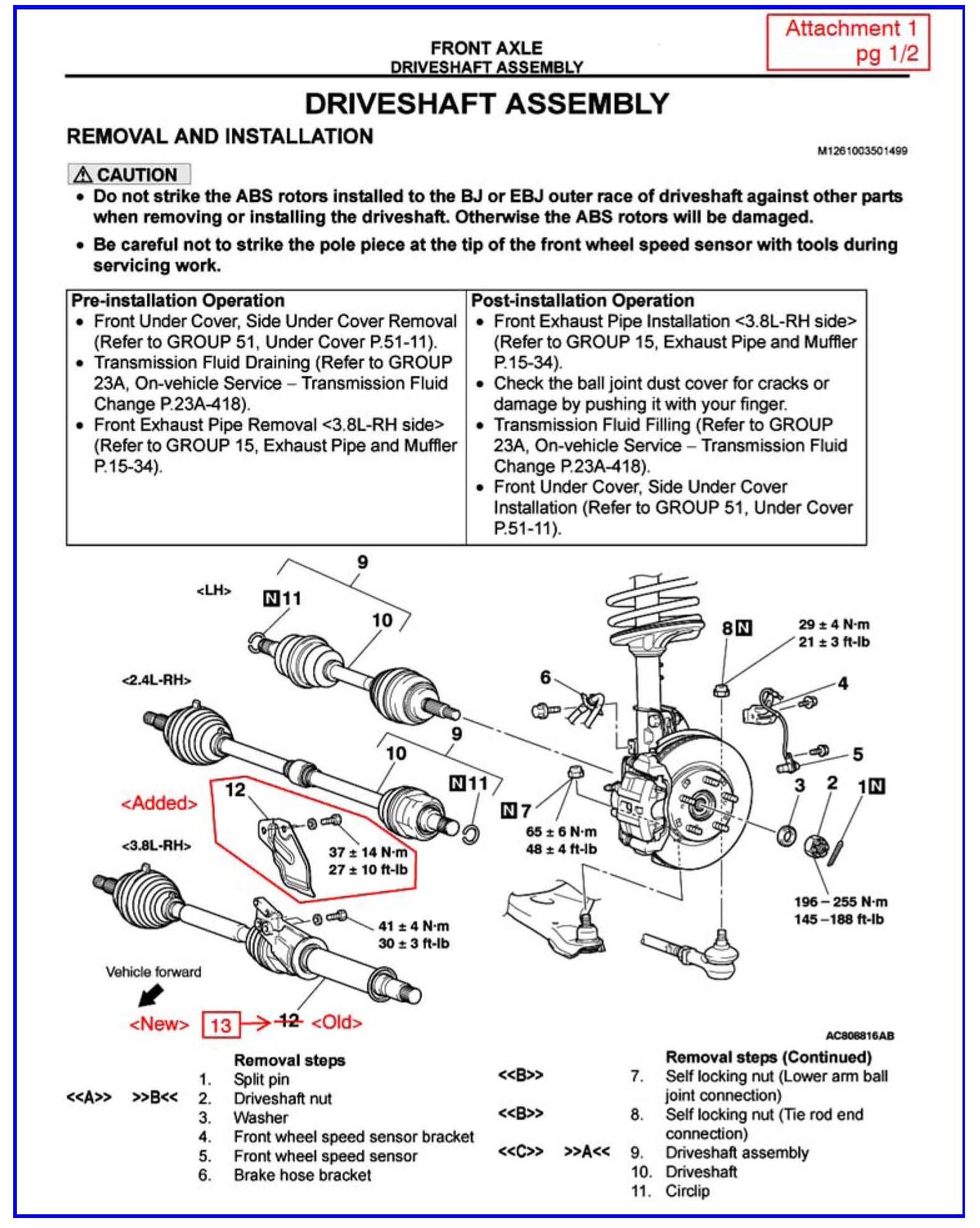

Attachment 1 - Page 1 of 2





Attachment 1 - Page 2 of 2
