Mitsubishi
>>
2009
>>
Lancer L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

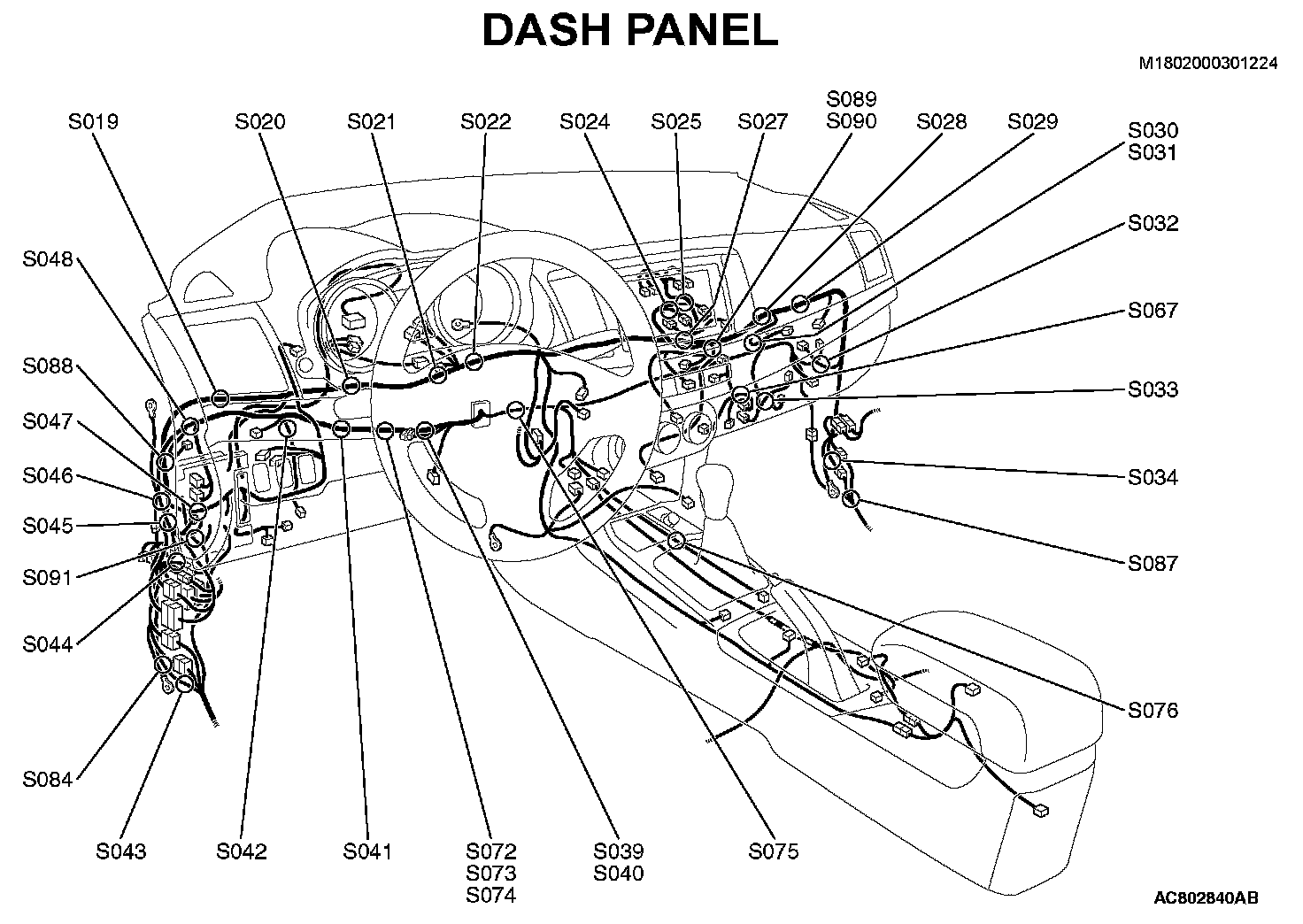

S019-S091 (Dash Panel)
S019-S091 (Dash Panel)
S019 To S091:
