Windshield Washer

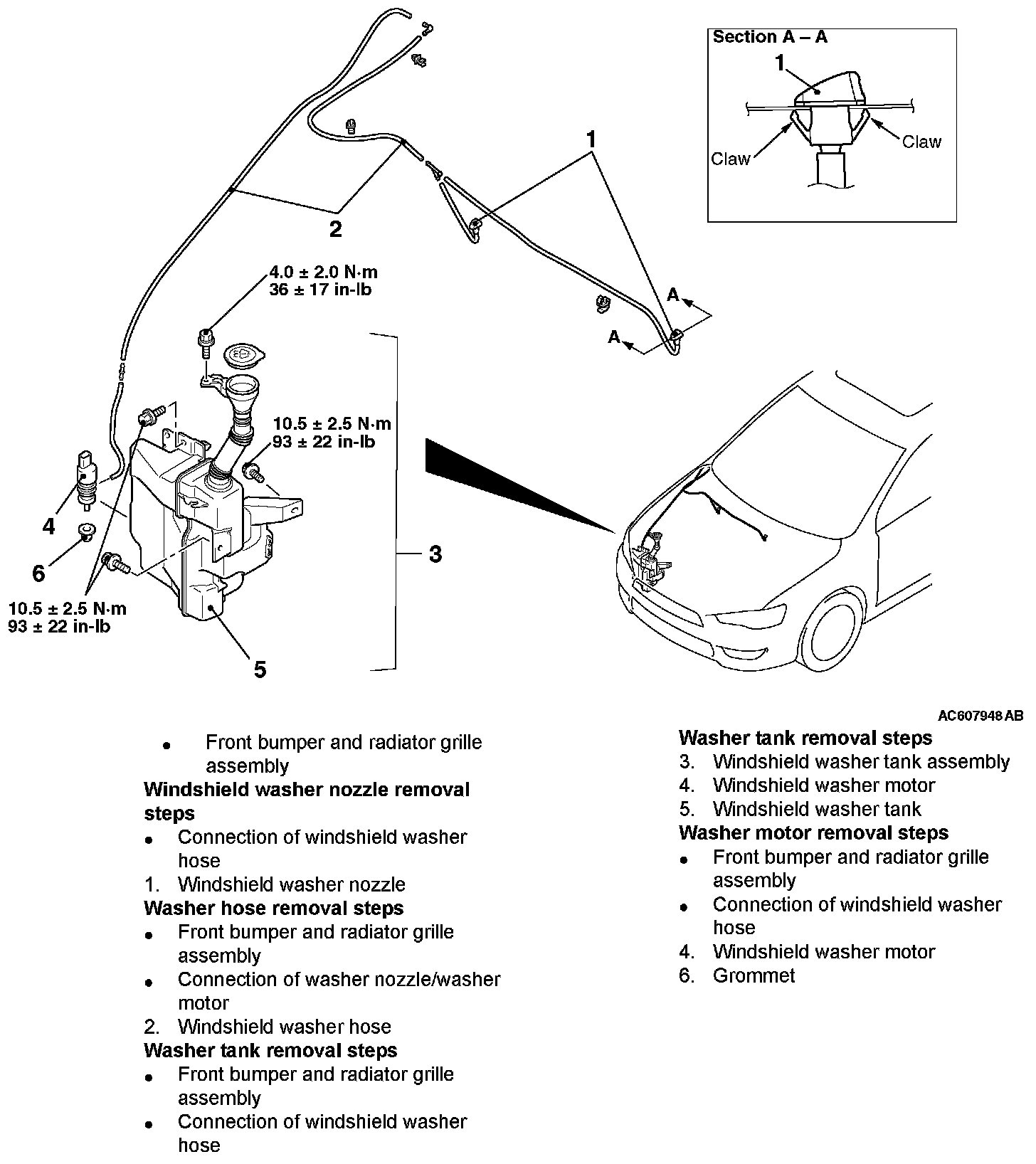

WINDSHIELD WASHER

REMOVAL AND INSTALLATION


Removal Steps 1-6:






NOTE: For removal and installation of the wiper and washer switch, refer to Chassis Electrical, Column switch.
