Injector Check

INJECTOR CHECK

[Right bank side (number 1, 3, 5 cylinders)]

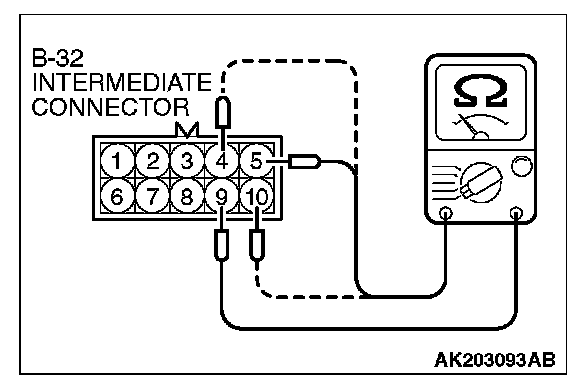

1. Disconnect the intermediate connector B-32.







2. Measure the resistance between the injector intermediate connector terminals.







3. Connect the injector intermediate connector.

[(Left bank side (number 2, 4, 6 cylinders)]







1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.

Standard value: 10.5 - 13.5 ohms [at 20 °C (68 °F)]

3. Connect the injector connector.
