Overhaul

DOOR MIRROR

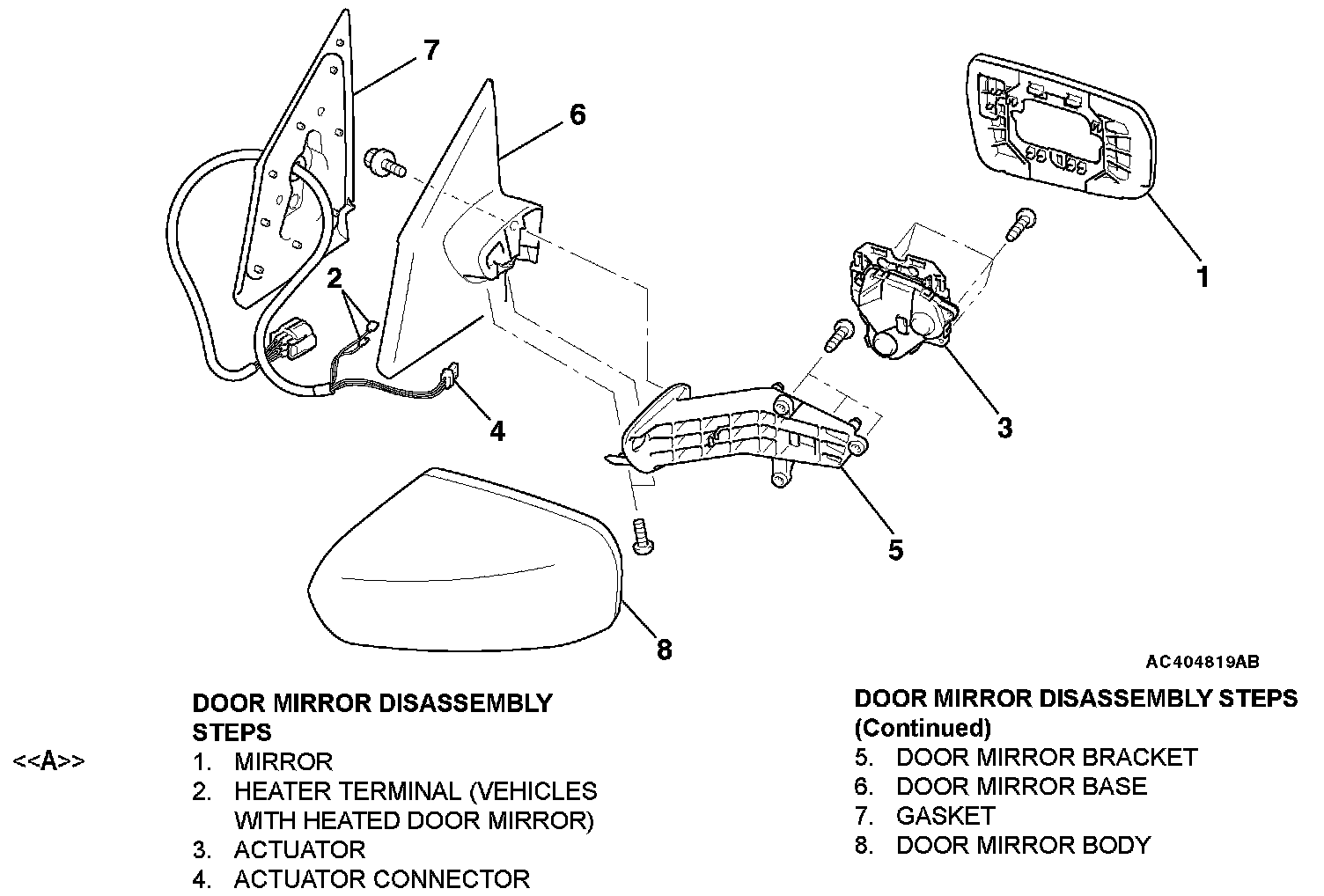

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-8:

DISASSEMBLY SERVICE POINT

[[A]] MIRROR REMOVAL







CAUTION: The claws of the mirror are prone to breakage when working in cold temperatures. Always warm up the mirror claws and their periphery to 20 °C (60 °F) or higher before handling.

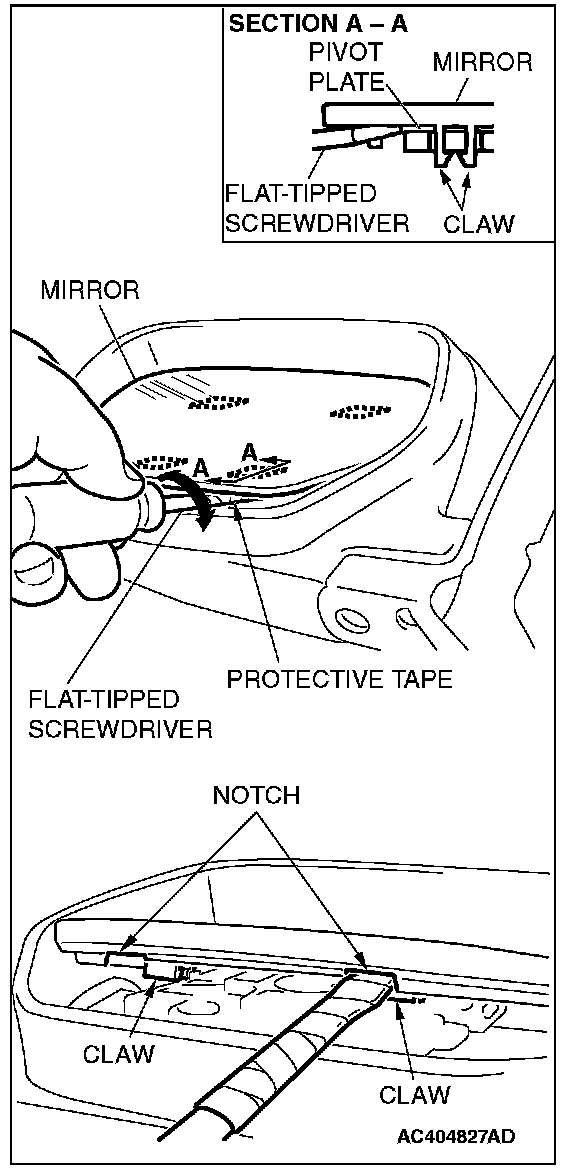

Slant the mirror upward with your hands. Then insert a flat-tipped screwdriver wrapped with protective tape between the pivot plate and mirror through the notch from behind the mirror. Now pry off the mirror claws and remove mirror as shown.
