Seat Belt Arming and Disarming: Service and Repair

SEAT BELTS WITH PRE-TENSIONER

The following information has been taken from REMOVAL AND INSTALLATION, for the complete article, please refer to Seat Belt Tensioner. Service and Repair



REMOVAL SERVICE POINTS

[[A]] NEGATIVE (-) BATTERY CABLE DISCONNECTION






DANGER: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.

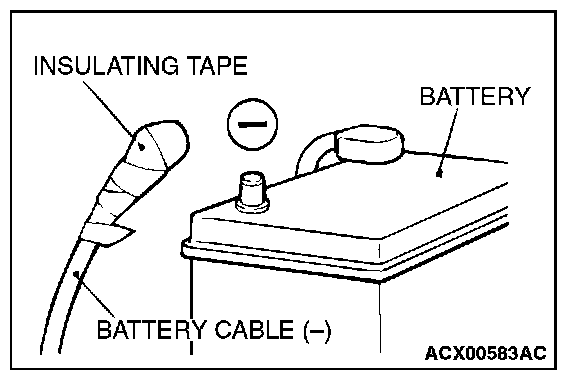

Disconnect the negative (-) battery cable from the battery and tape the terminal to prevent accidental connection and seat belt pre-tensioner operation.

DANGER: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.
