Operation CHARM: Car repair manuals for everyone.
Home >> Mitsubishi >> 2010 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connector - Dash Panel >> C-101 to C-142

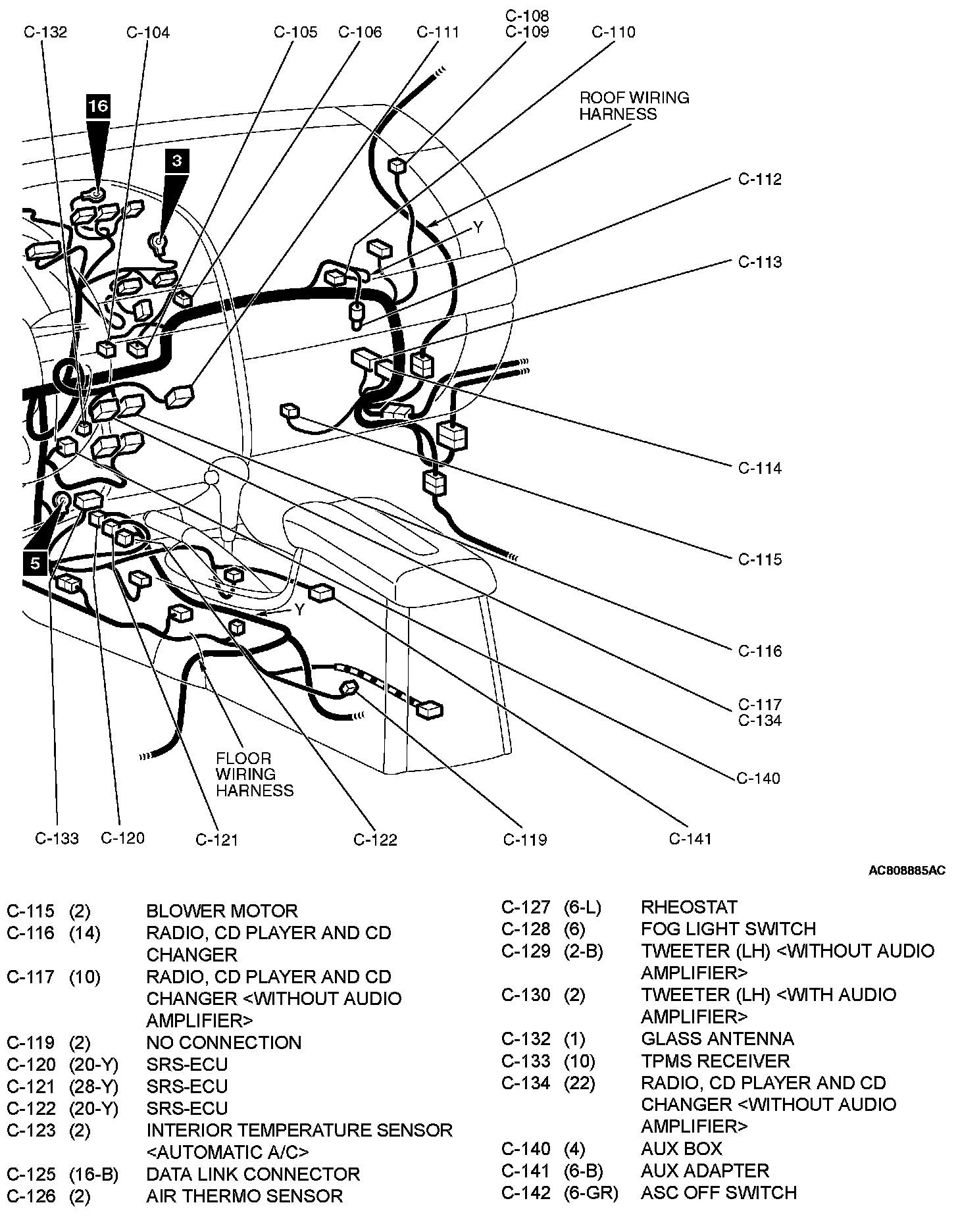

C-101 to C-142

C-101 To C-142 (Part 1):




C-101 To C-142 (Part 2):
