Home >> Mitsubishi >> 2010 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> D Connector - Floor and Roof

D Connector - Floor and Roof

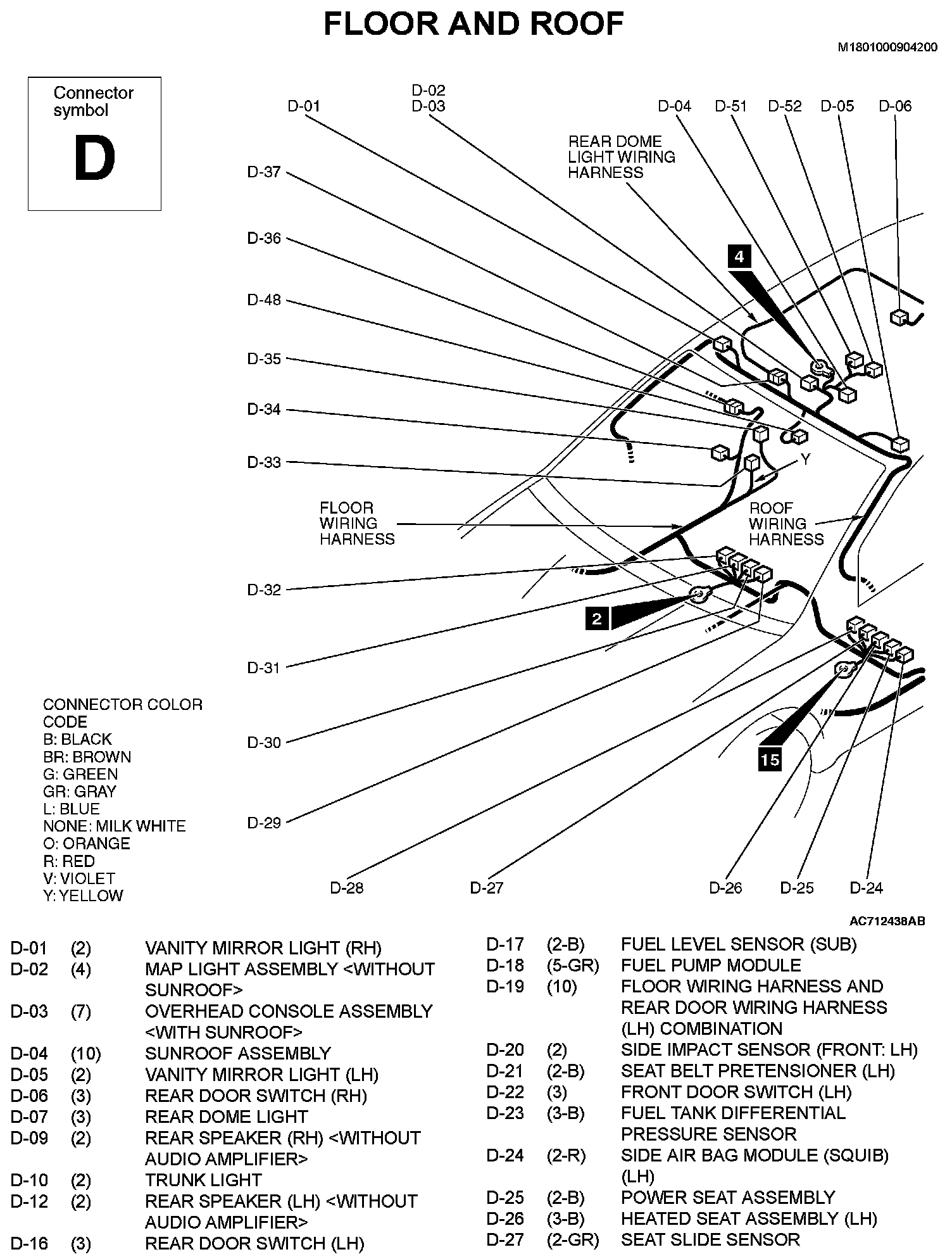

D-01 To D-52 (Part 1):

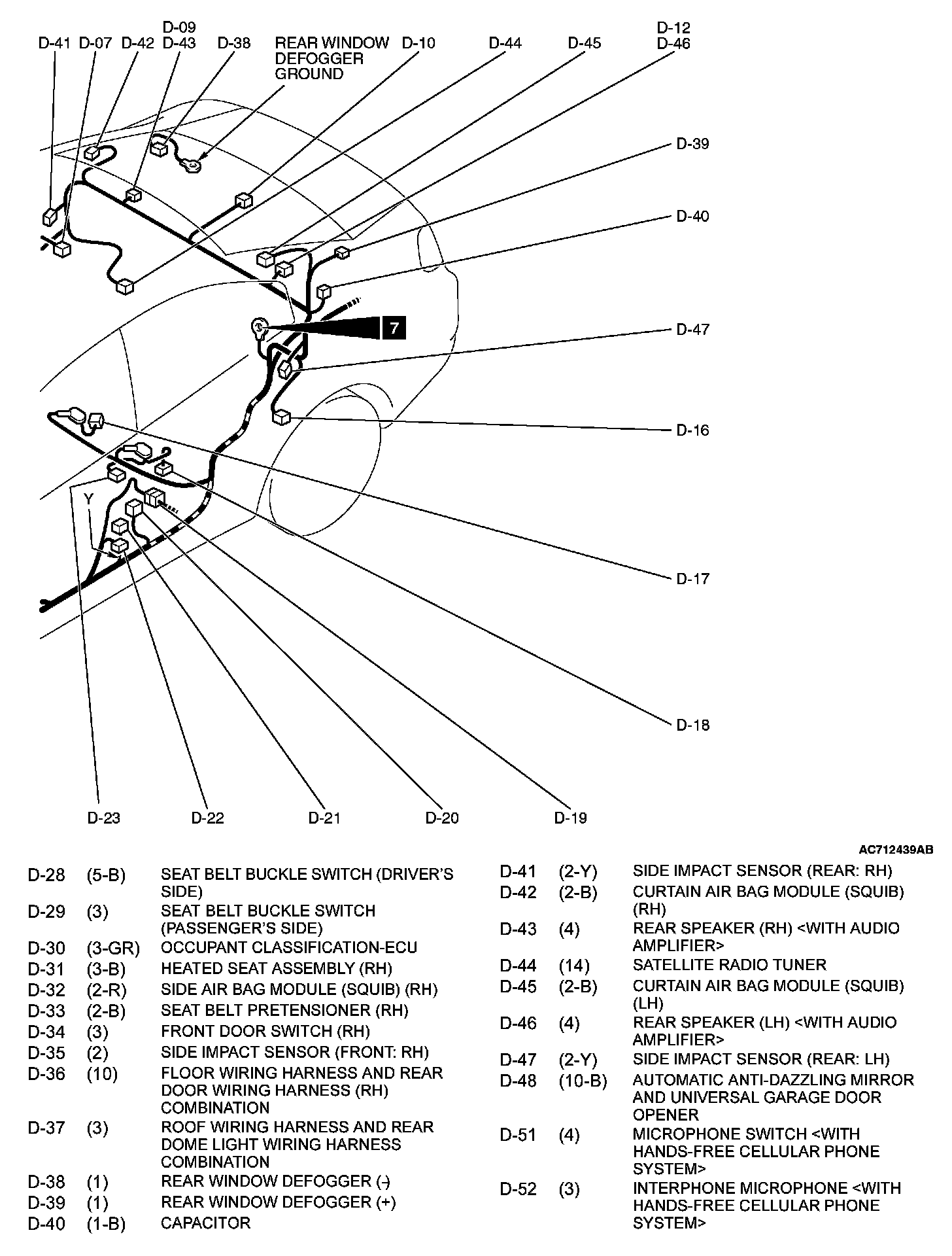

D-01 To D-52 (Part 2):
