Valve Body
VALVE BODY
DISASSEMBLY AND ASSEMBLY

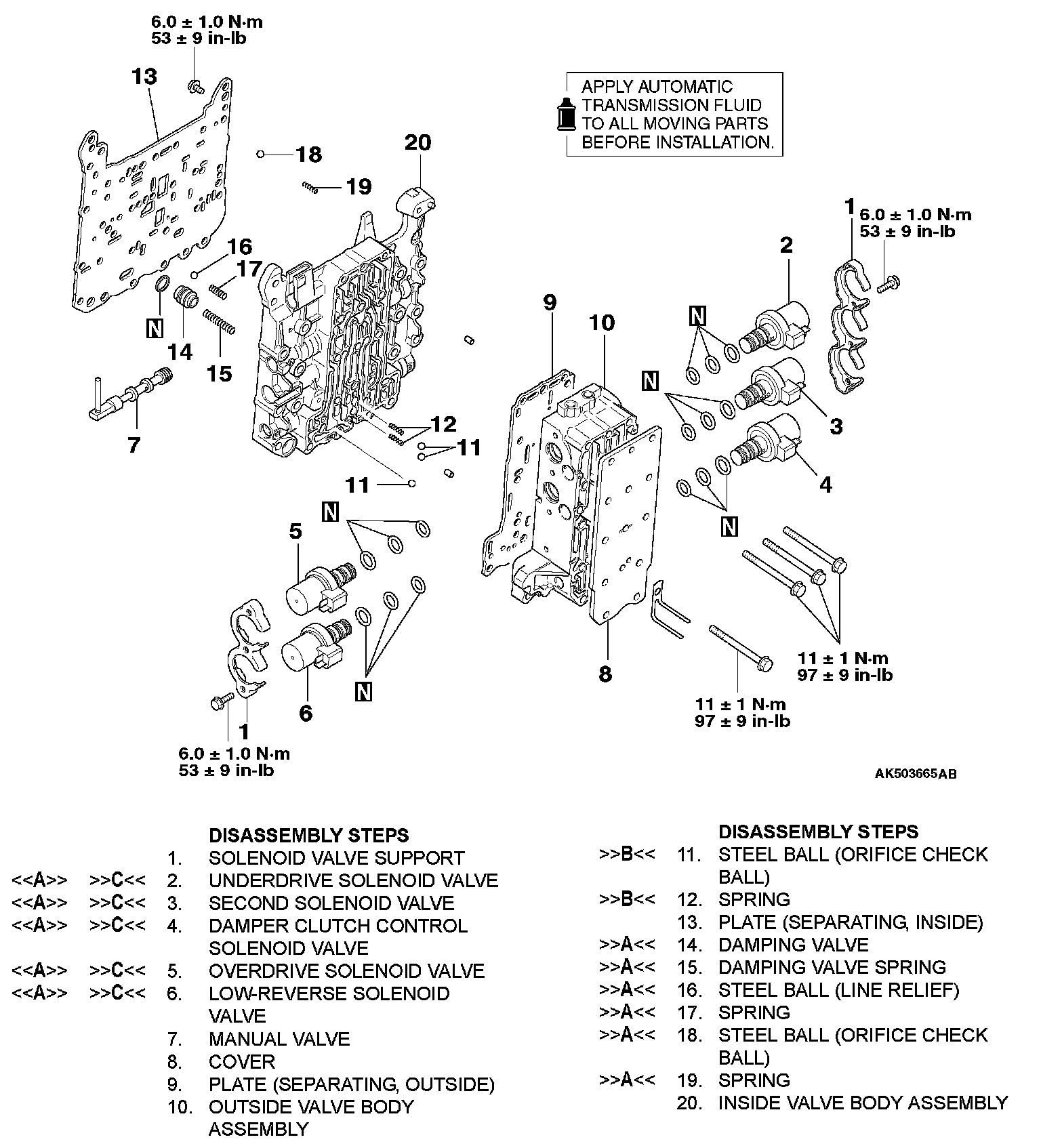

Disassembly Steps 1-20:
Disassembly Steps 21-41:

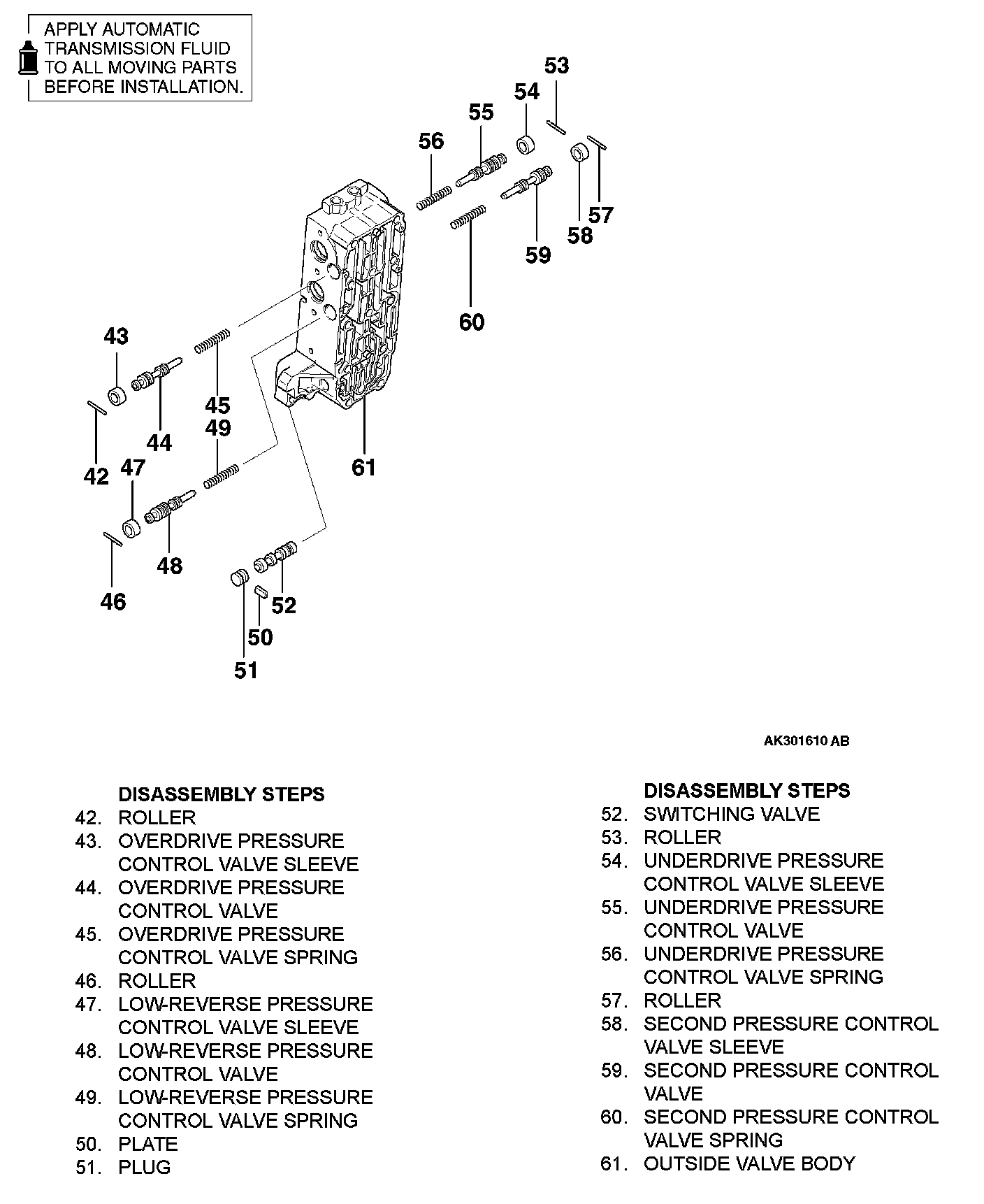

Disassembly Steps 42-61:
