Blower Motor Relay: Testing and Inspection
POWER RELAY CHECK

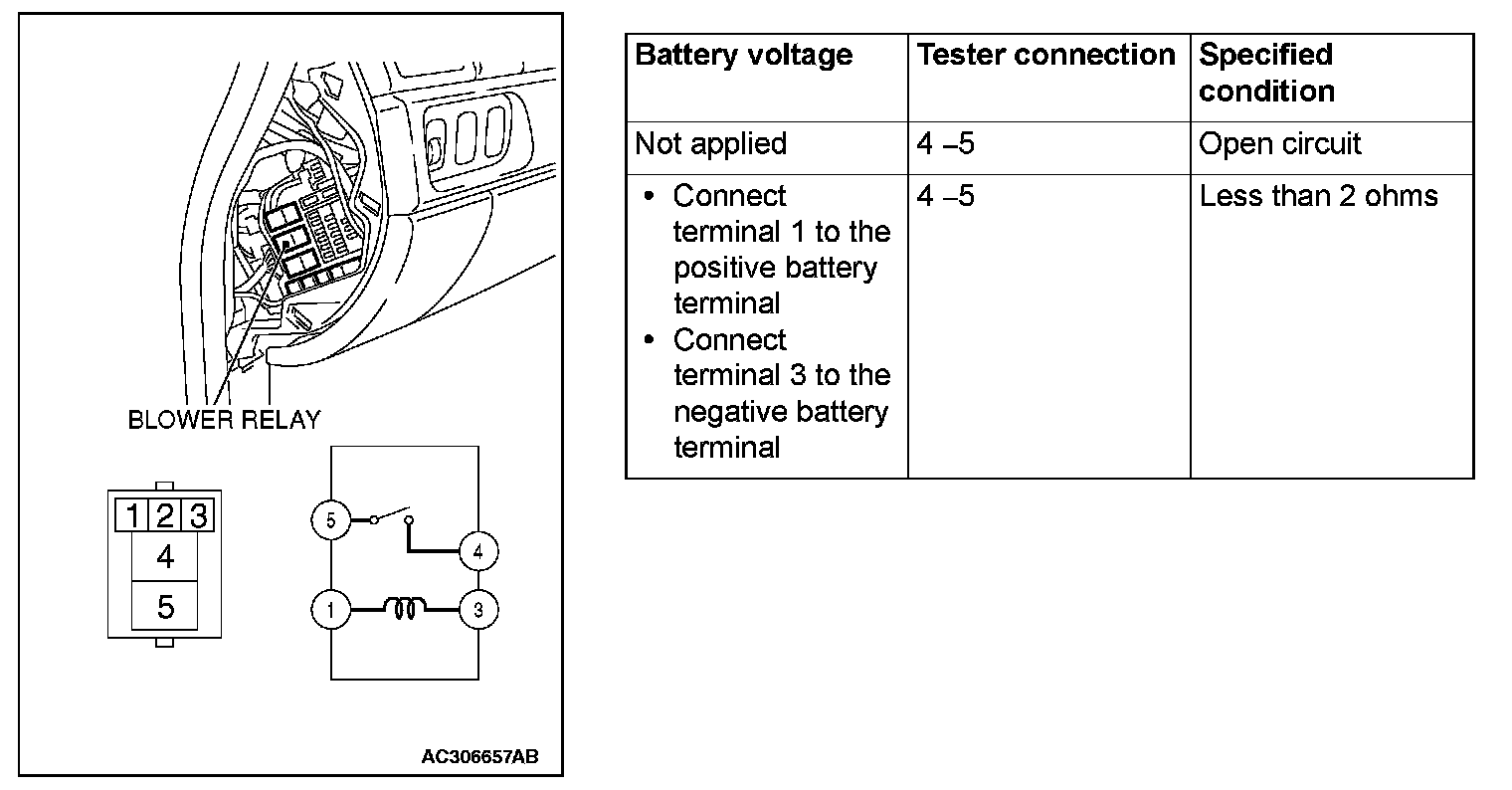

BLOWER RELAY CONTINUITY CHECK
Blower Relay Continuity Check:
