Automatic Air Conditioning

CHECK AT A/C-ECU TERMINAL

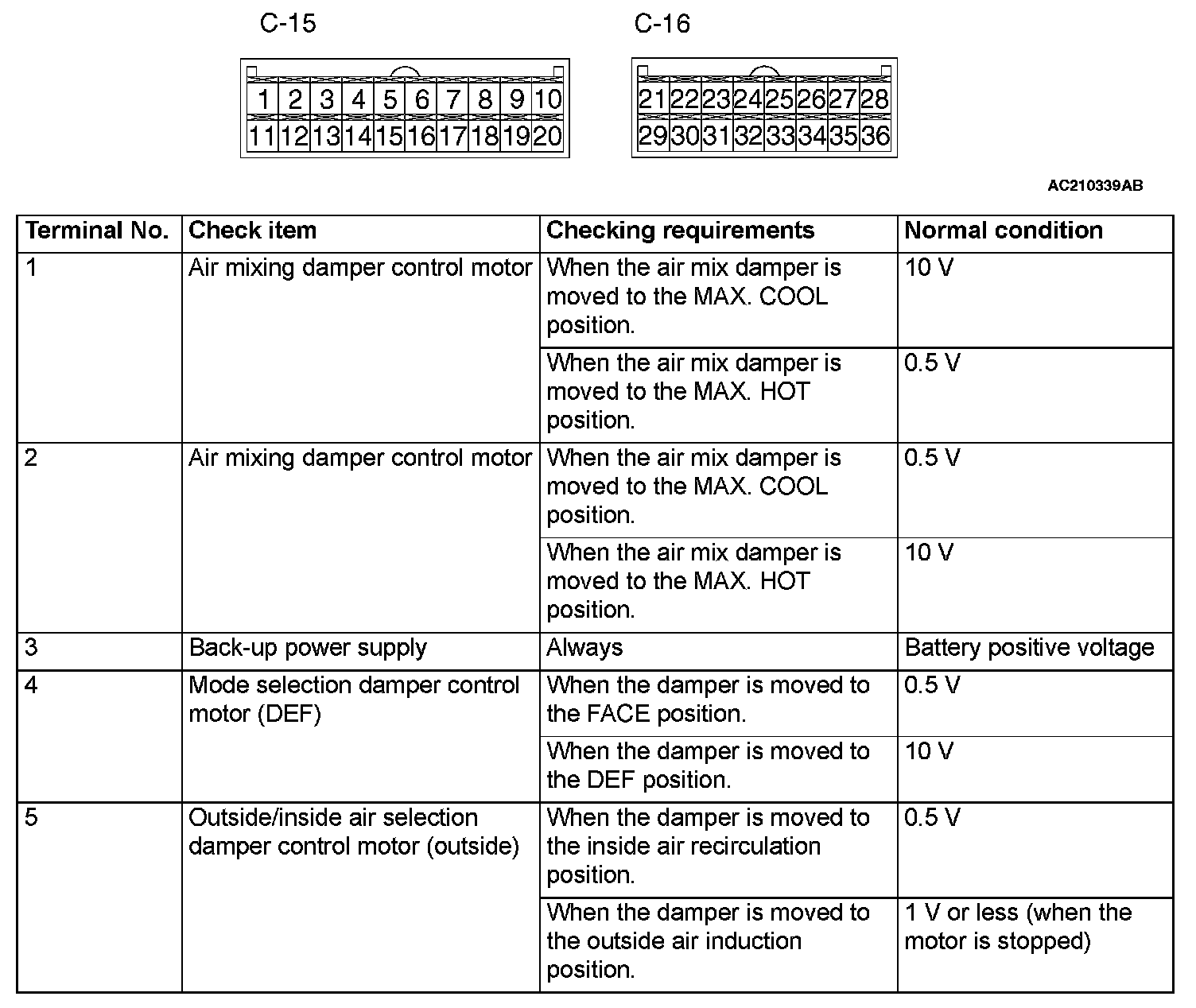

Check At A/C-ECU Terminal (Part 1):

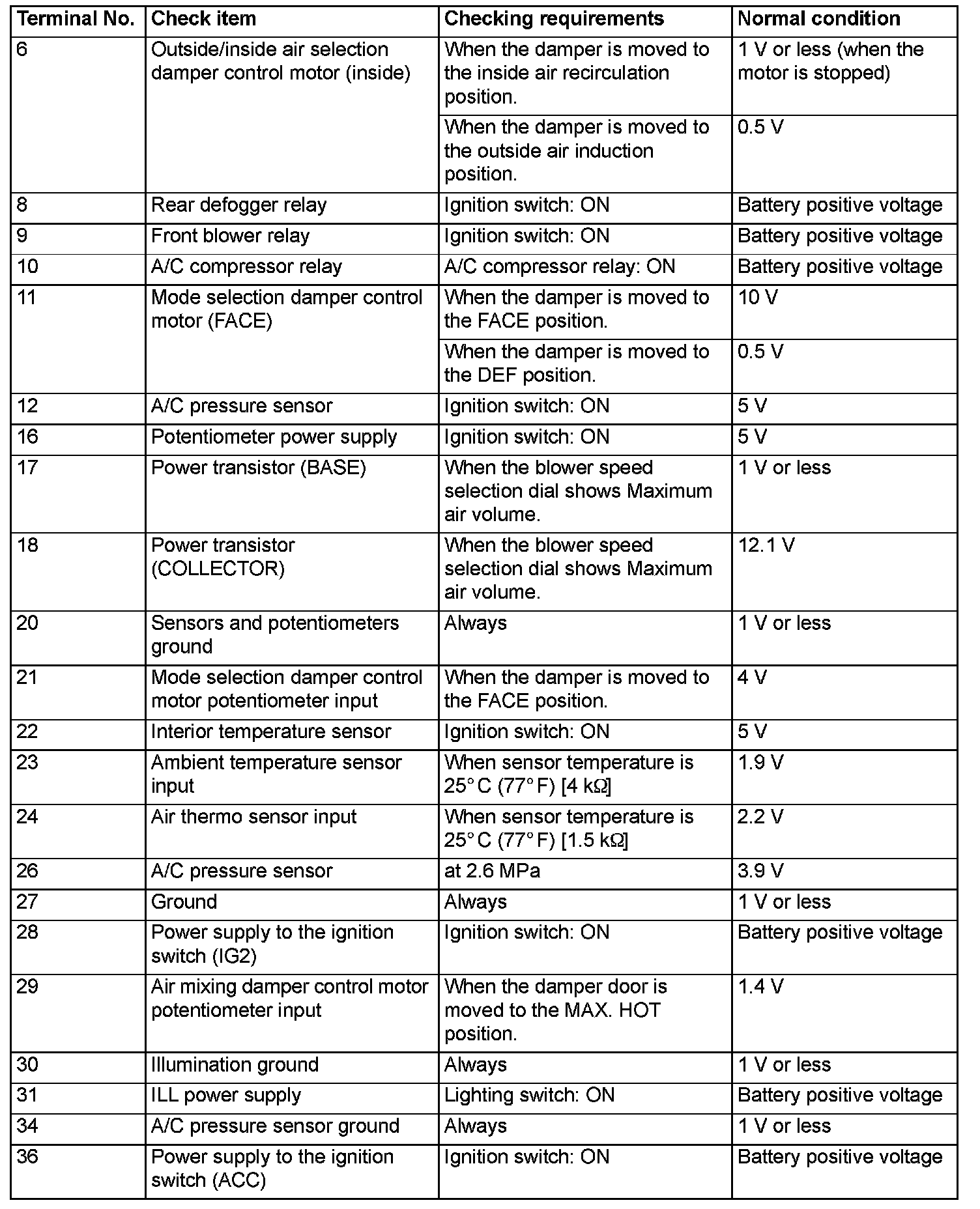

Check At A/C-ECU Terminal (Part 2):
