Dome Lamp: Service and Repair

DOME LIGHT REMOVAL AND INSTALLATION

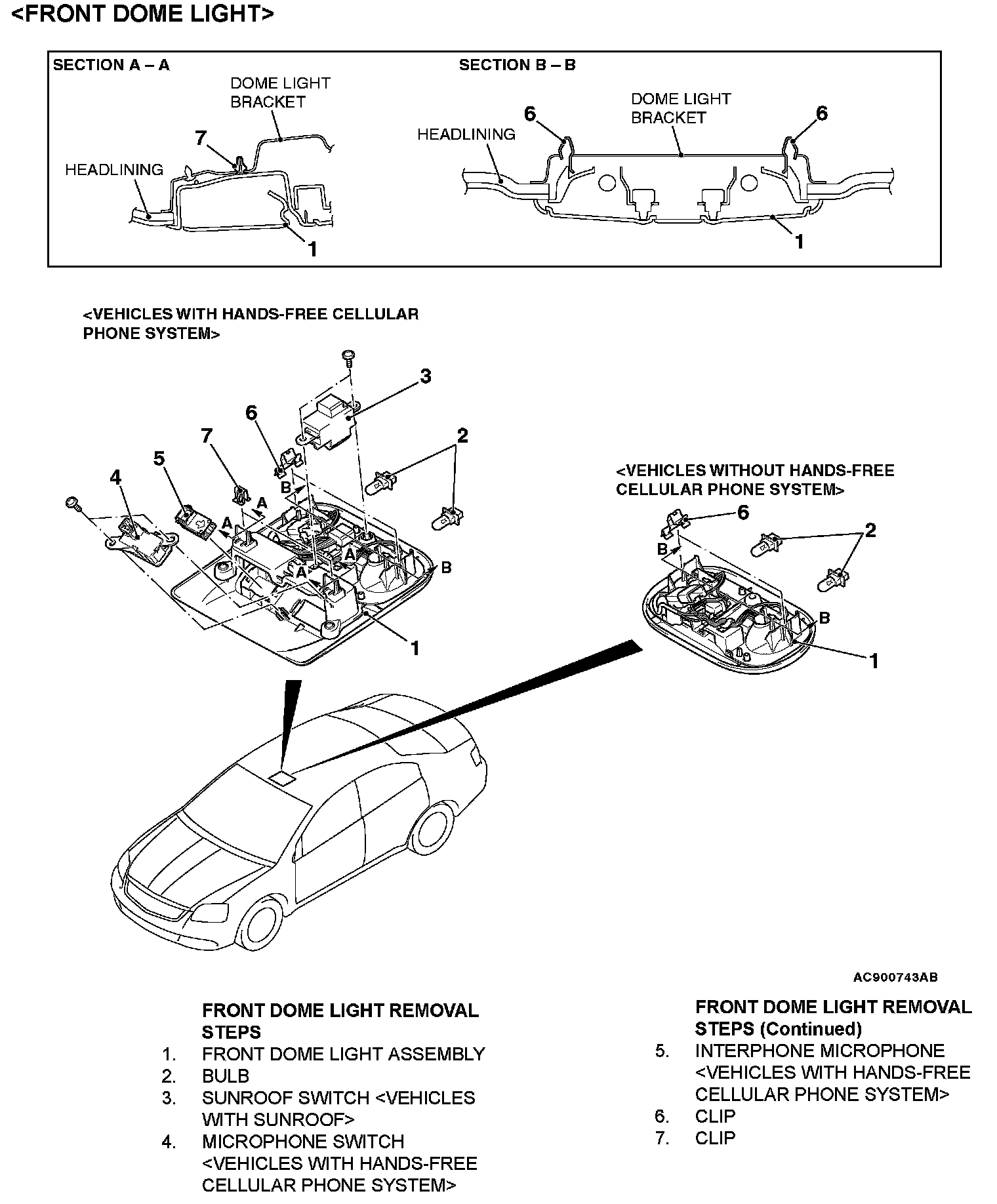

Removal Steps 1-7:

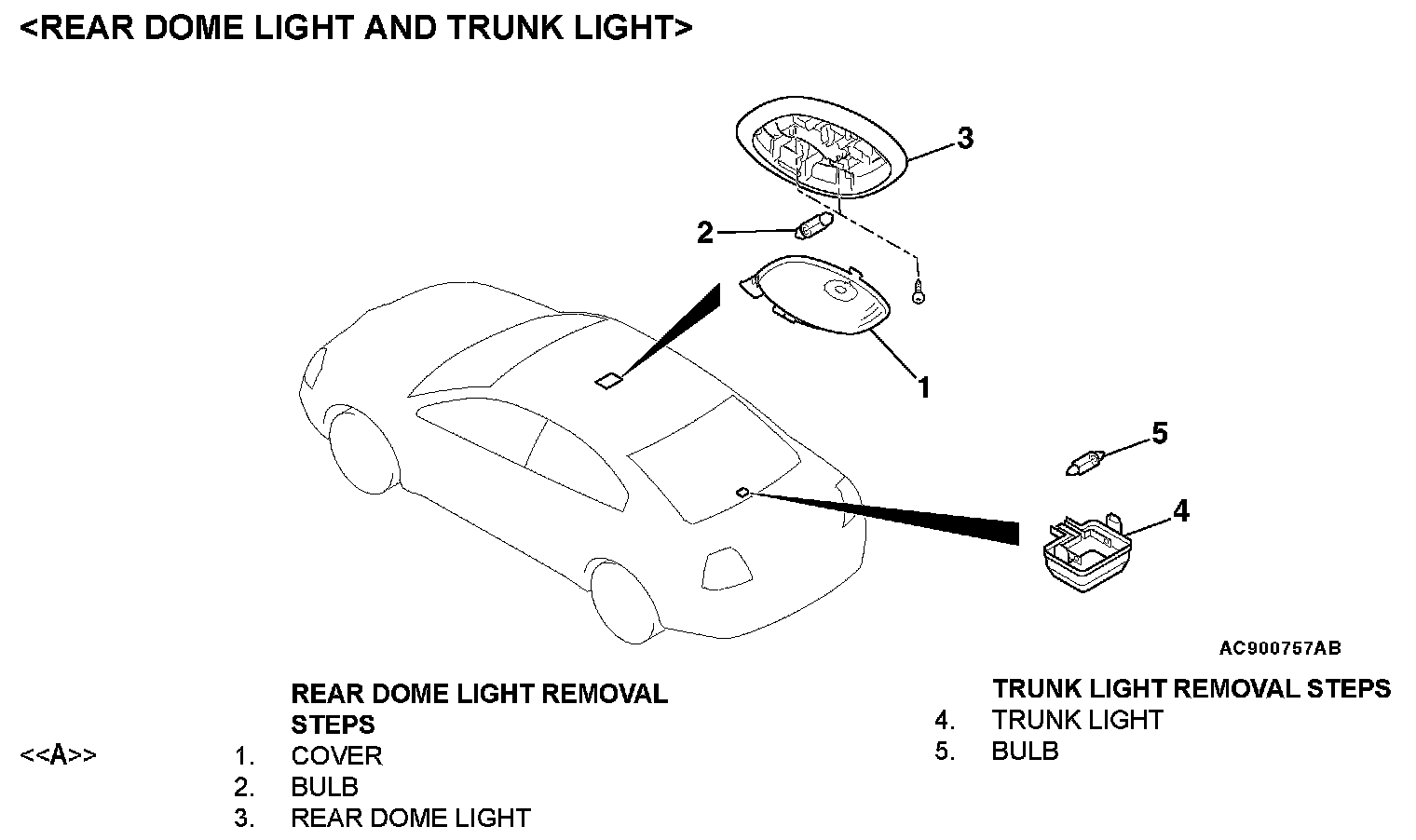

Removal Steps 1-5:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

[[A]] HAZARD WARNING LIGHT SWITCH REMOVAL







Remove the hazard warning light by pushing the claw toward the arrow in the illustration.
