Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2010
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
Fuse: Application and ID

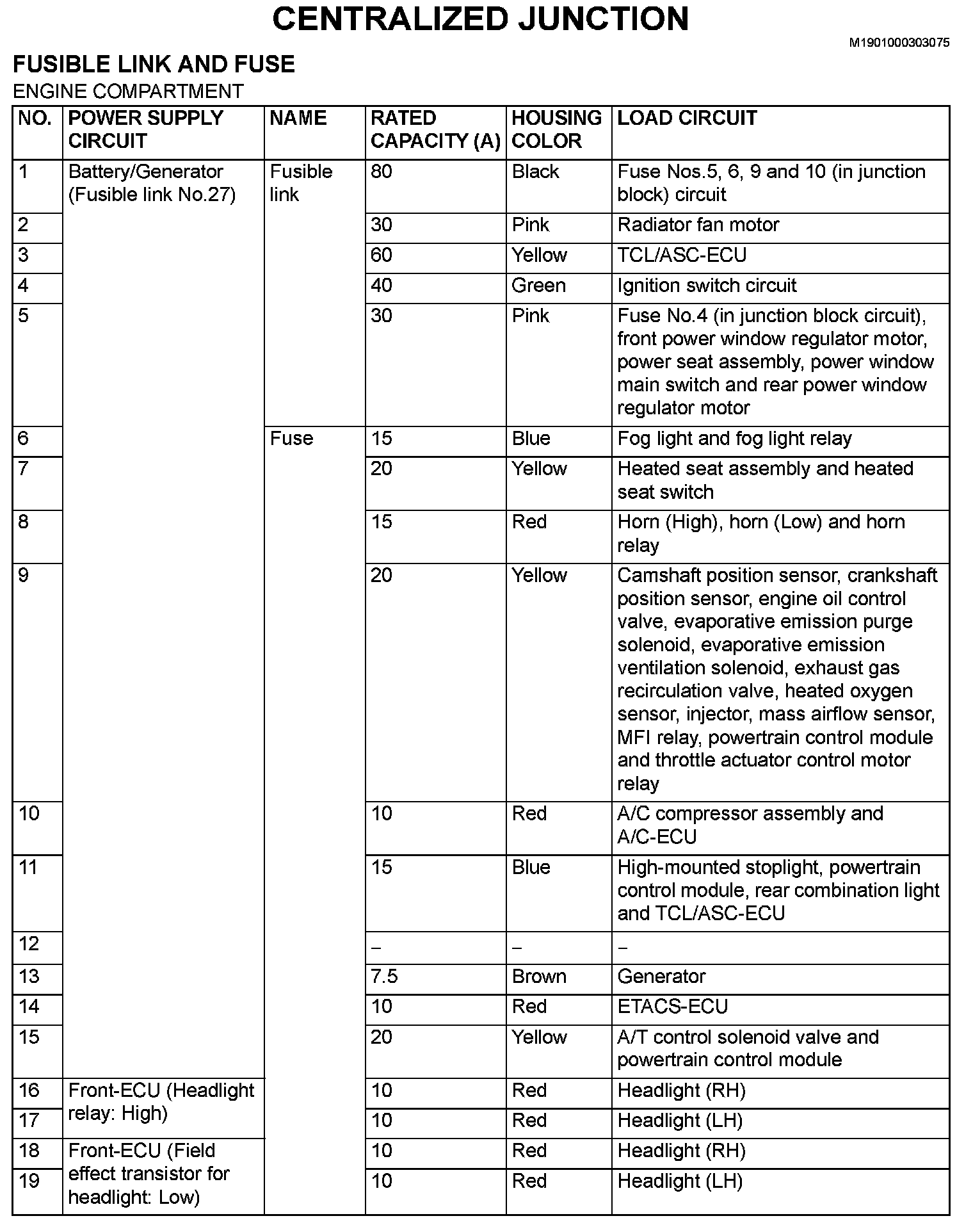

FUSIBLE LINK
AND FUSE
ENGINE COMPARTMENT

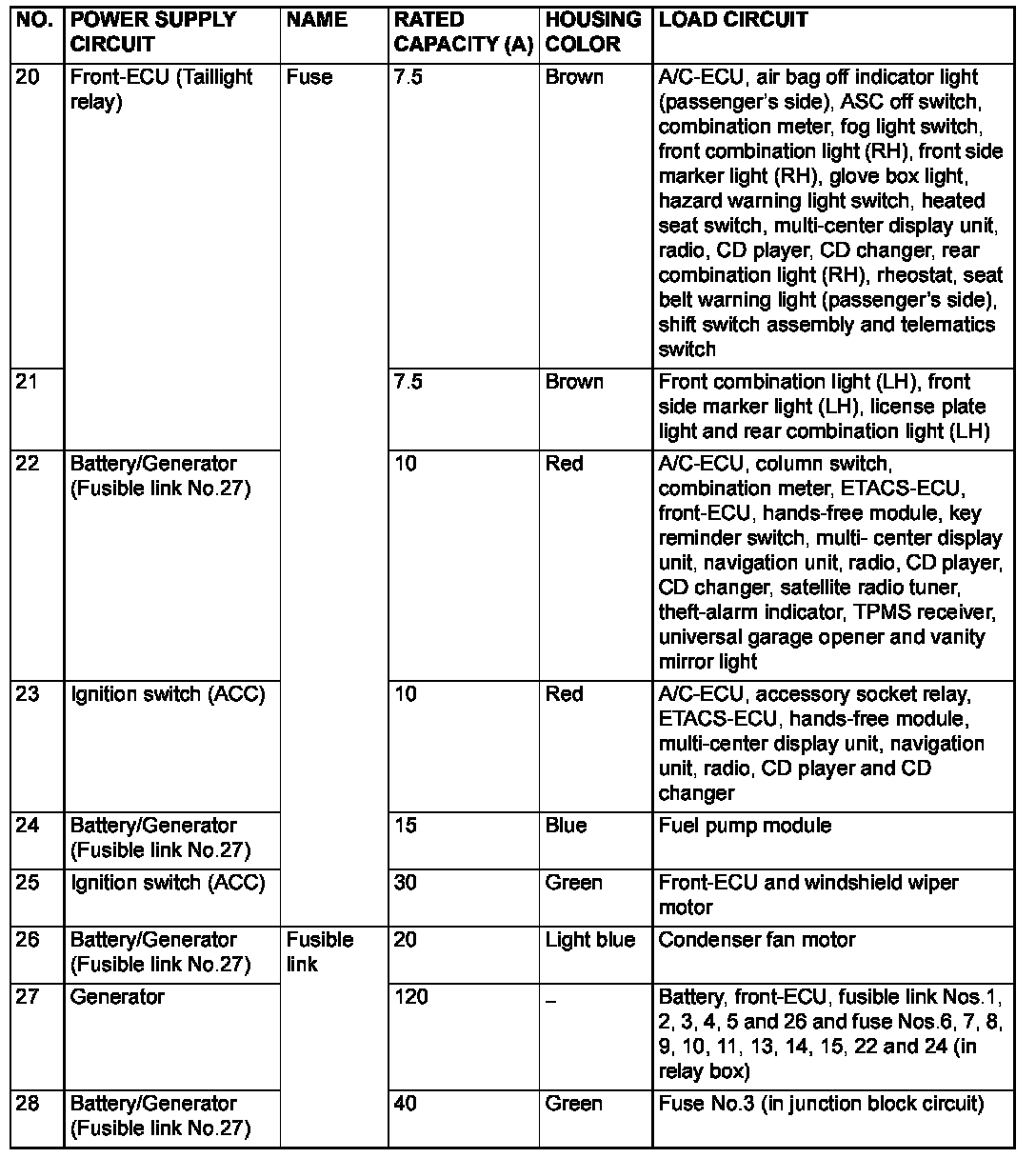

Application Table (Part 1):
Application Table (Part 1):

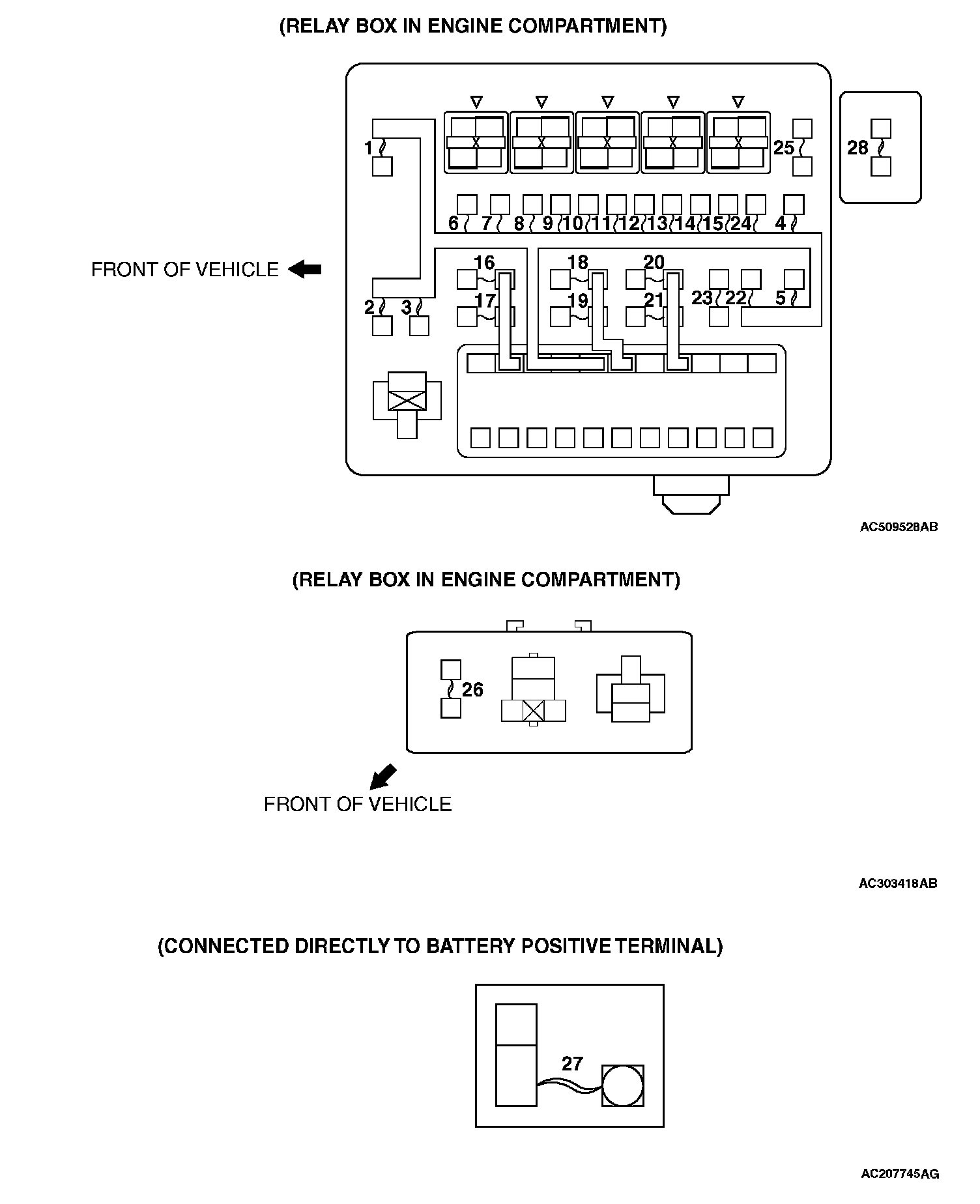

Location View:
PASSENGER COMPARTMENT

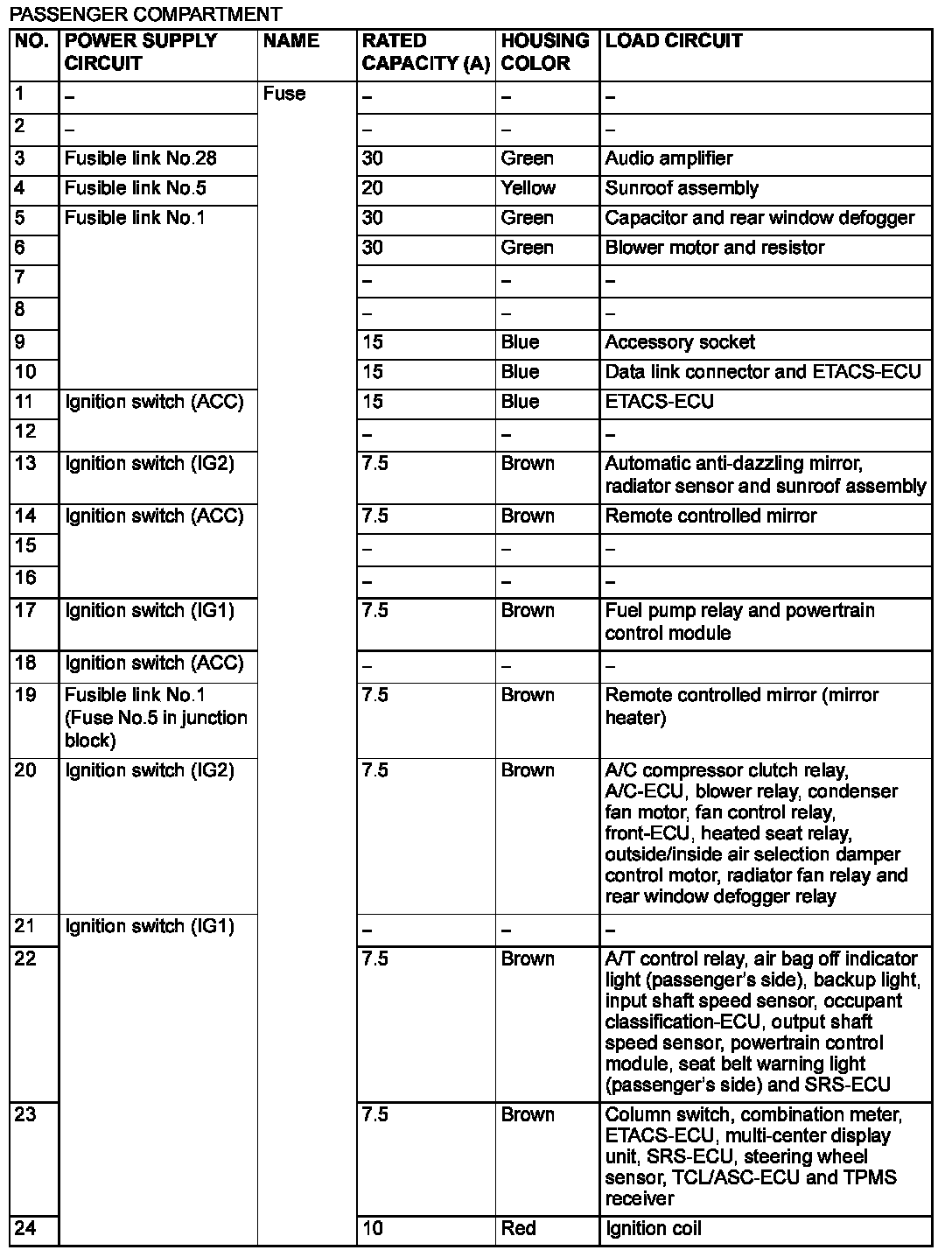

Application Table:

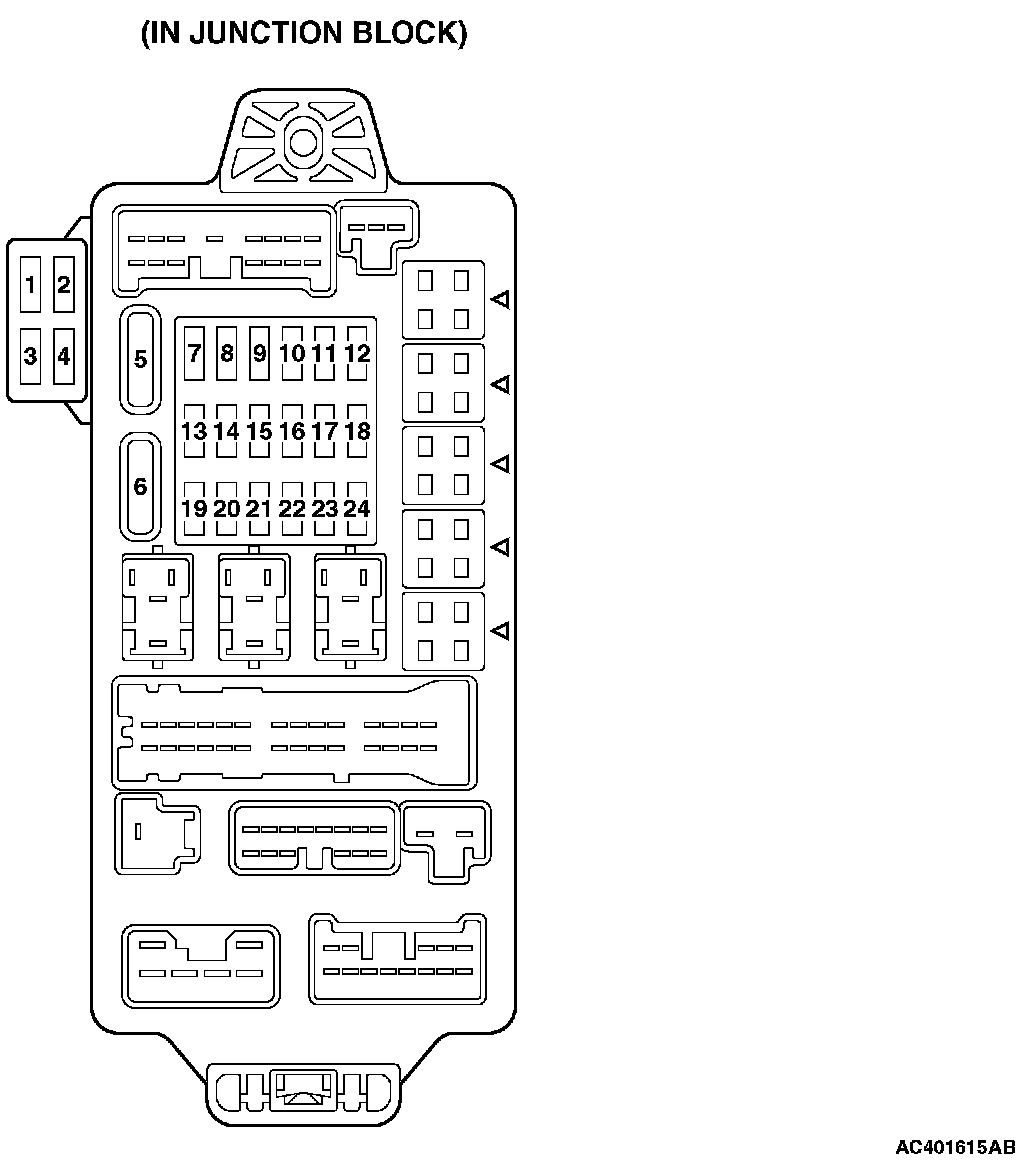

Location View:
