Powertrain Management: Locations

ON-VEHICLE SERVICE

COMPONENT LOCATION

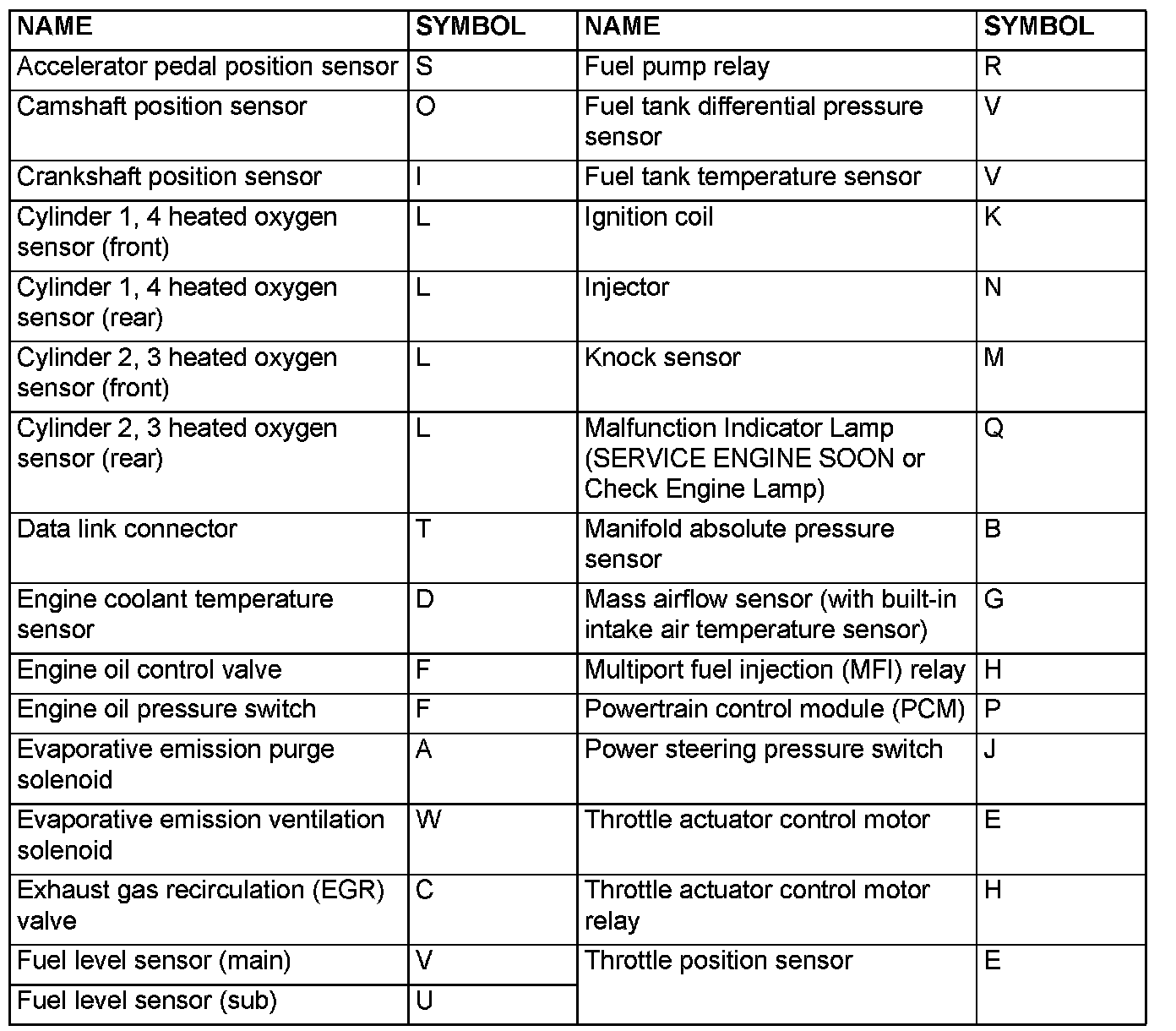

Component Location:

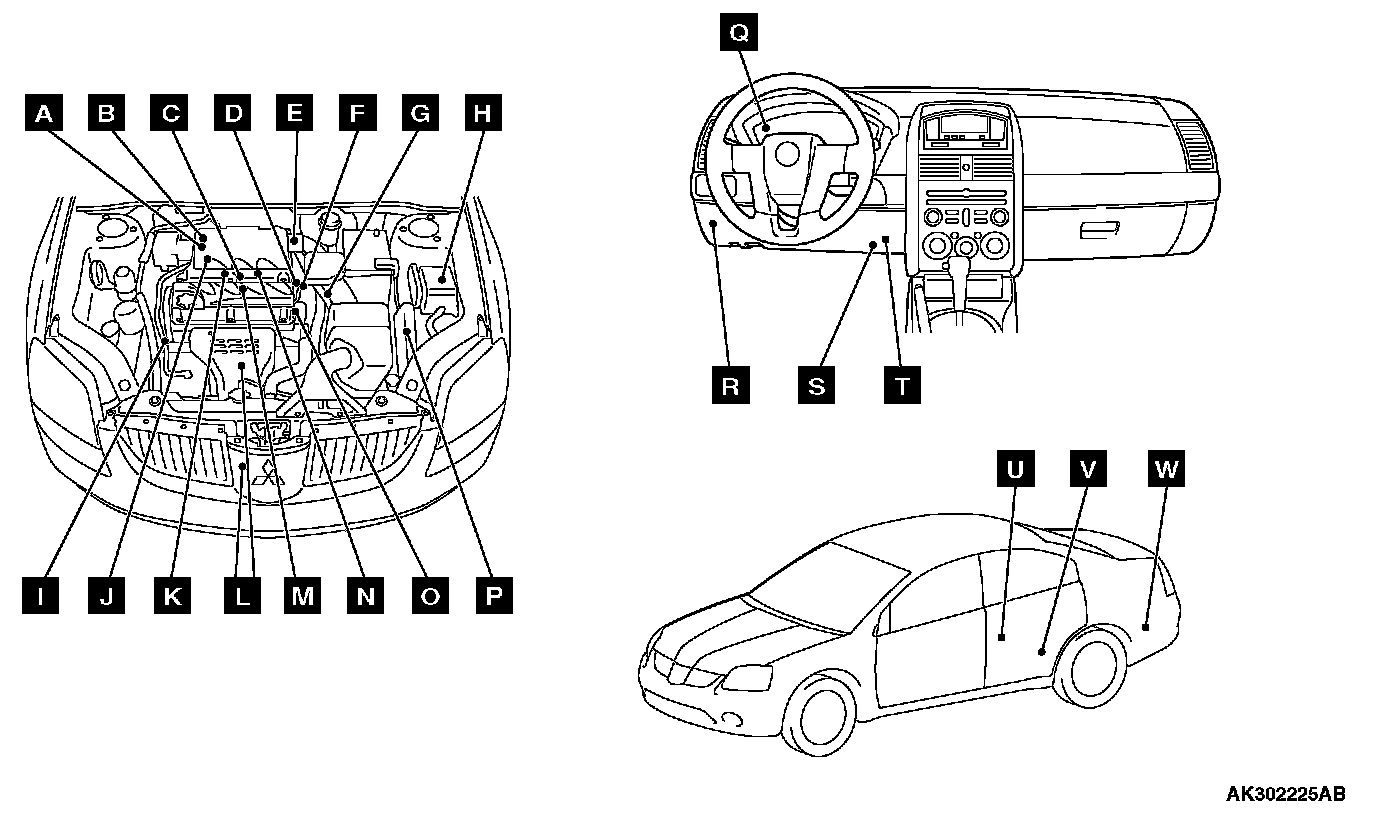

Overall View:

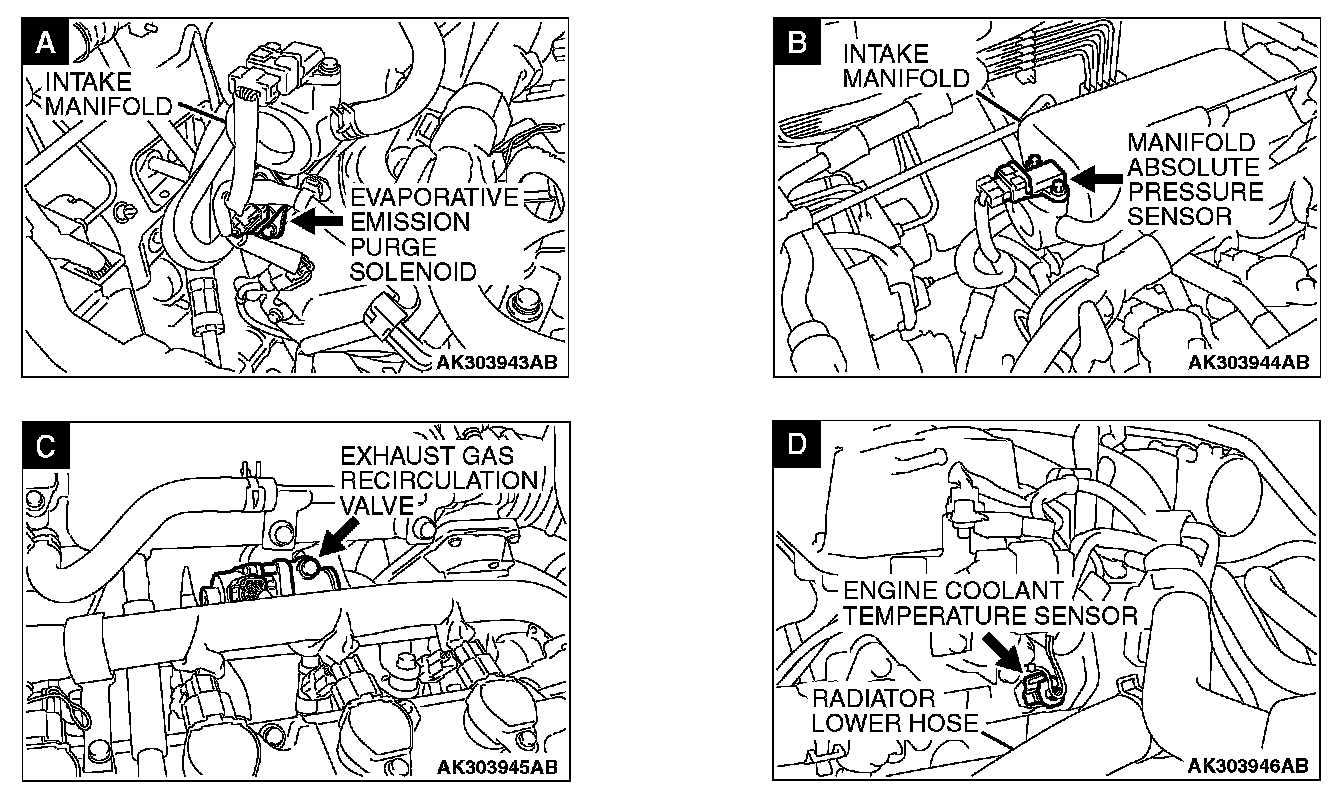

View A-D:

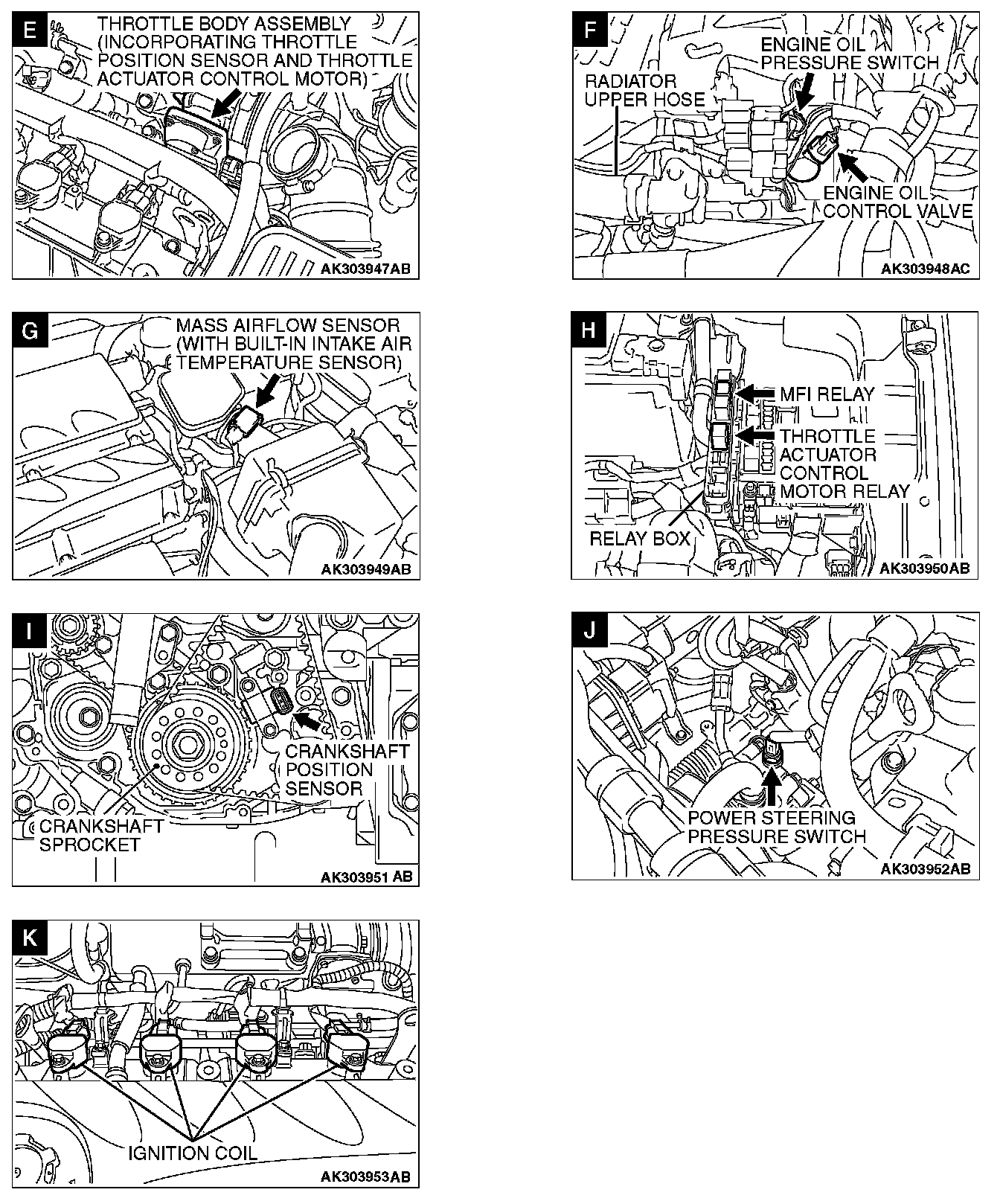

View E-k:

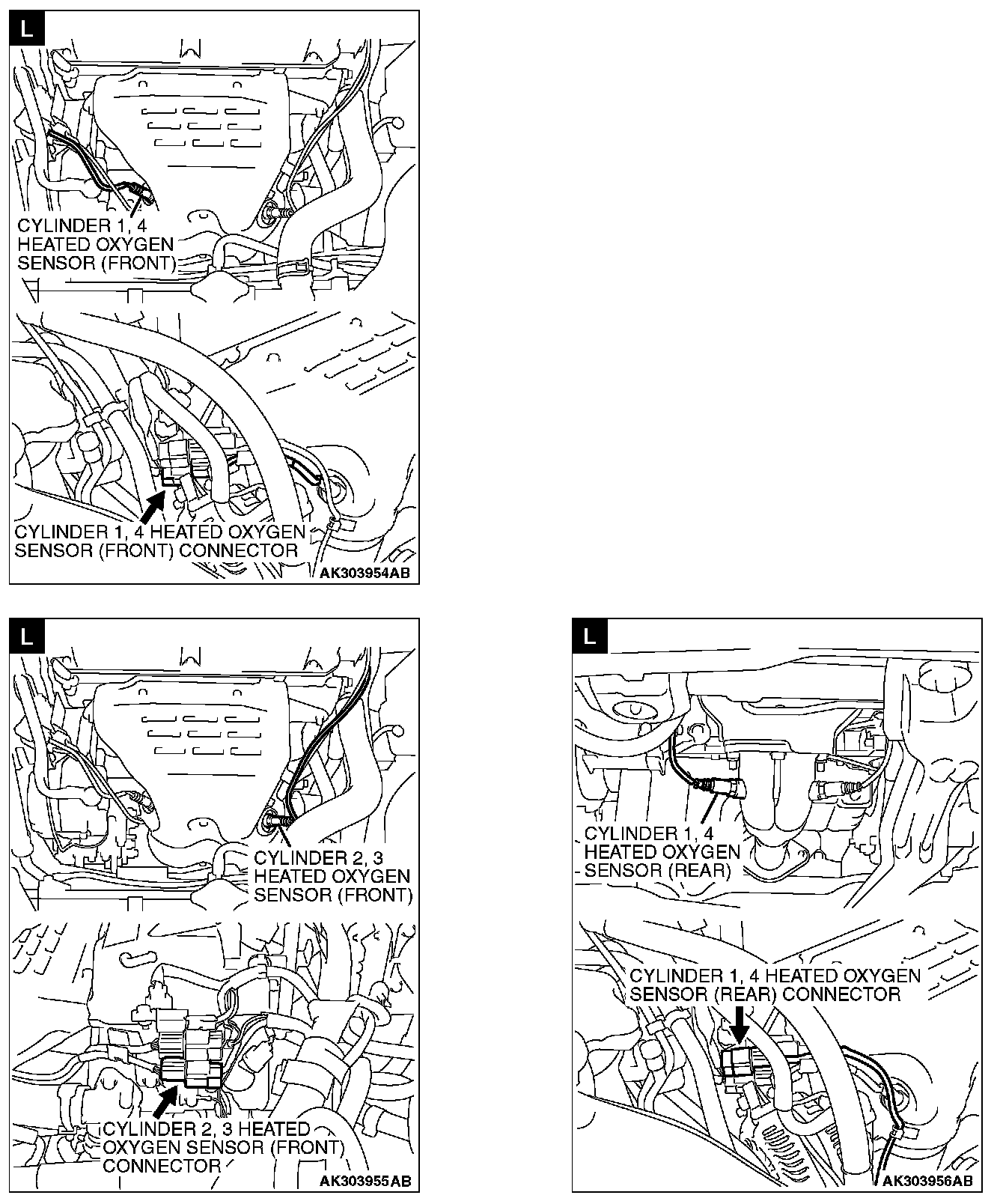

View L:

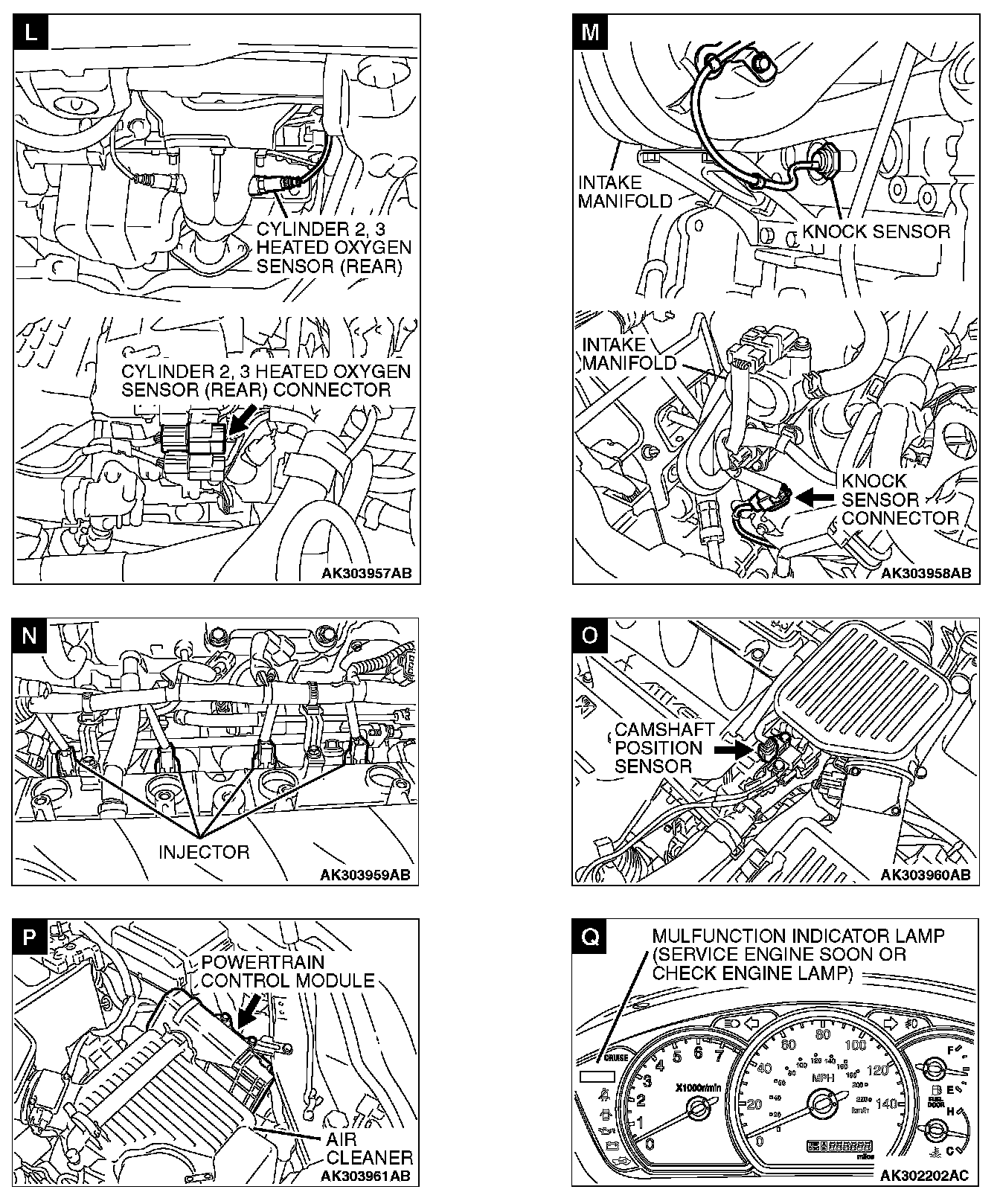

View L-Q:

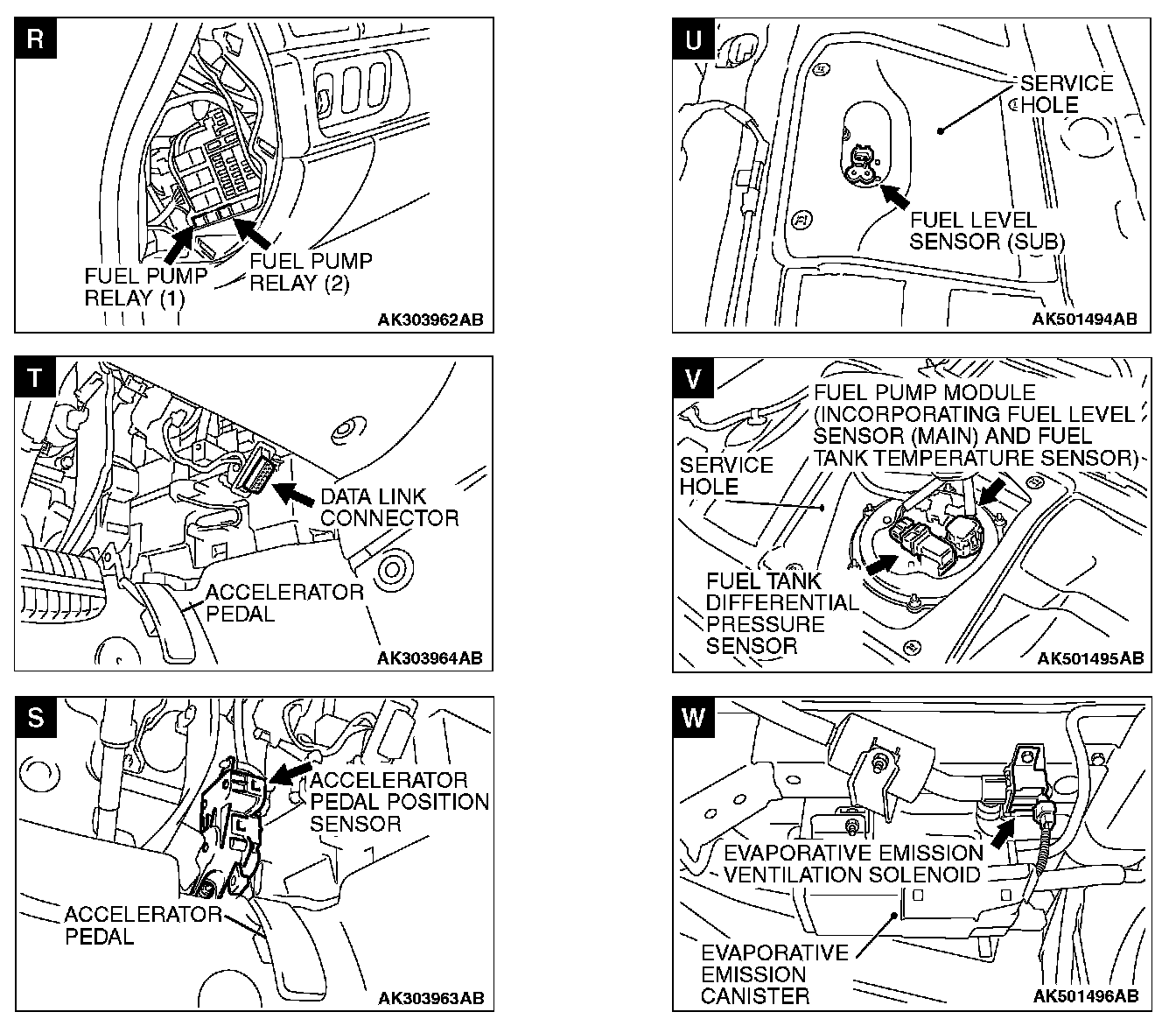

View R-W:
