Antilock Brakes / Traction Control Systems

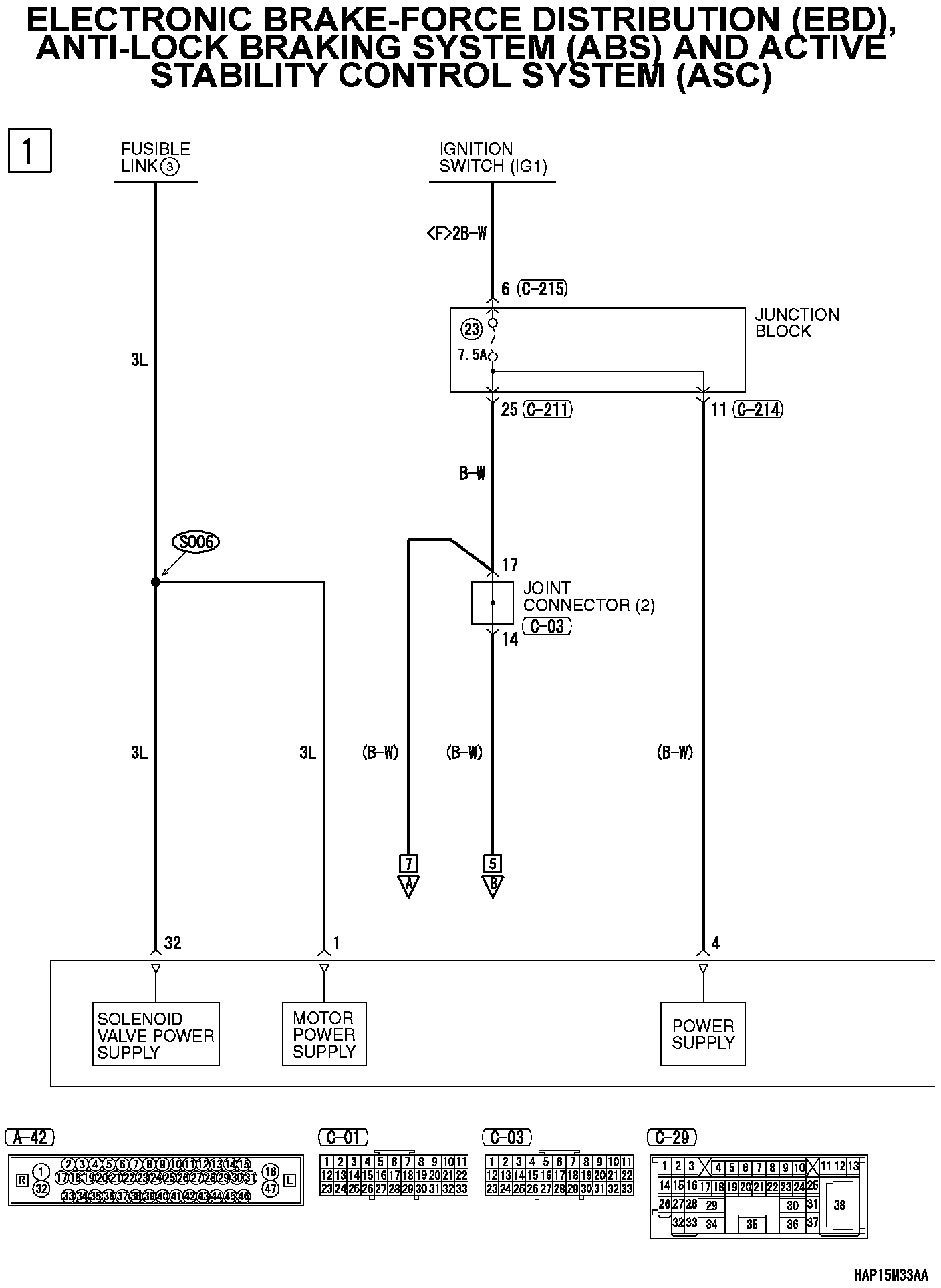

Electronic Brake-Force Distribution (EBD), Anti-Lock Braking System (ABS) And Active Stability Control System (ASC) (Part 1):

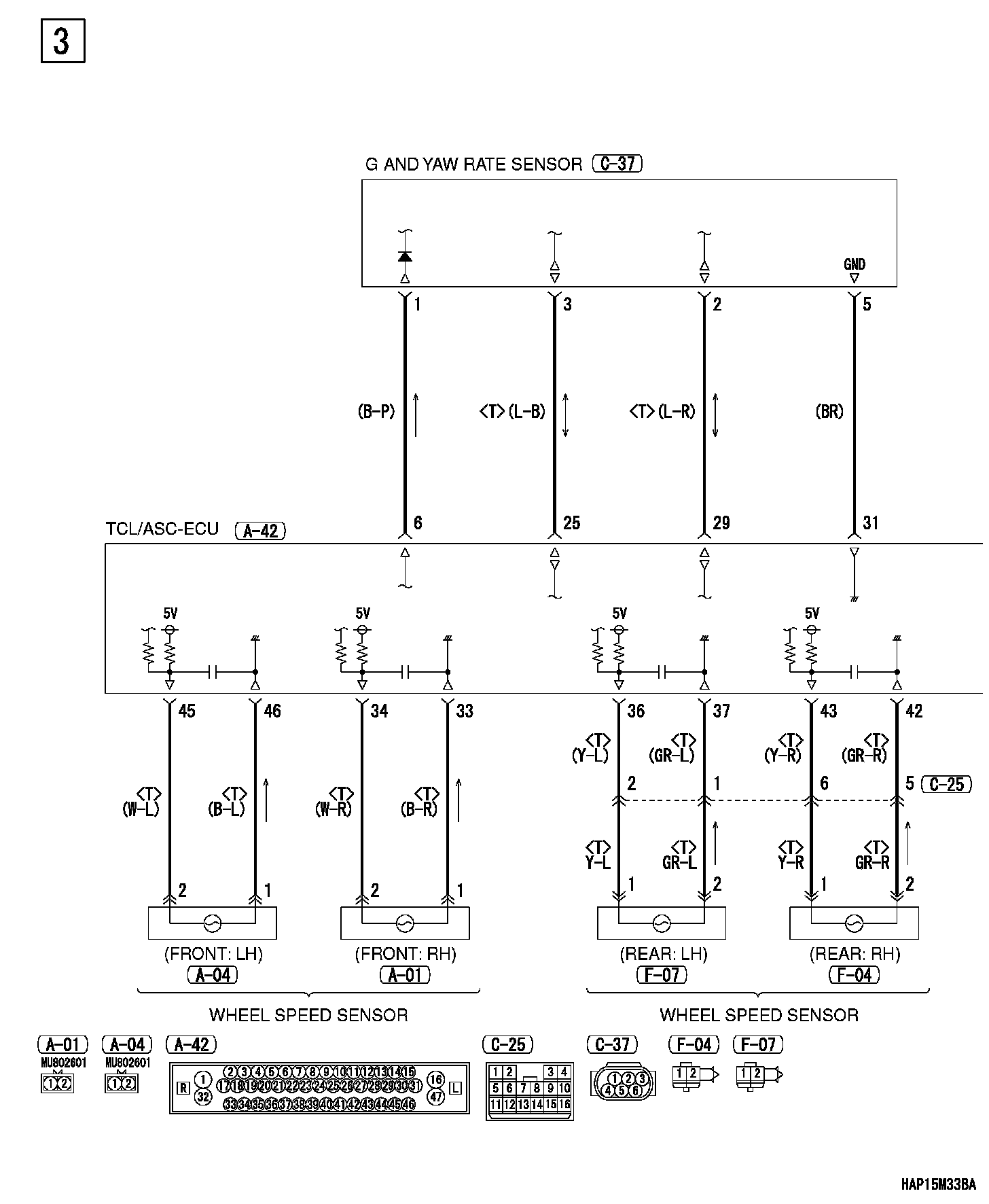

Electronic Brake-Force Distribution (EBD), Anti-Lock Braking System (ABS) And Active Stability Control System (ASC) (Part 2):

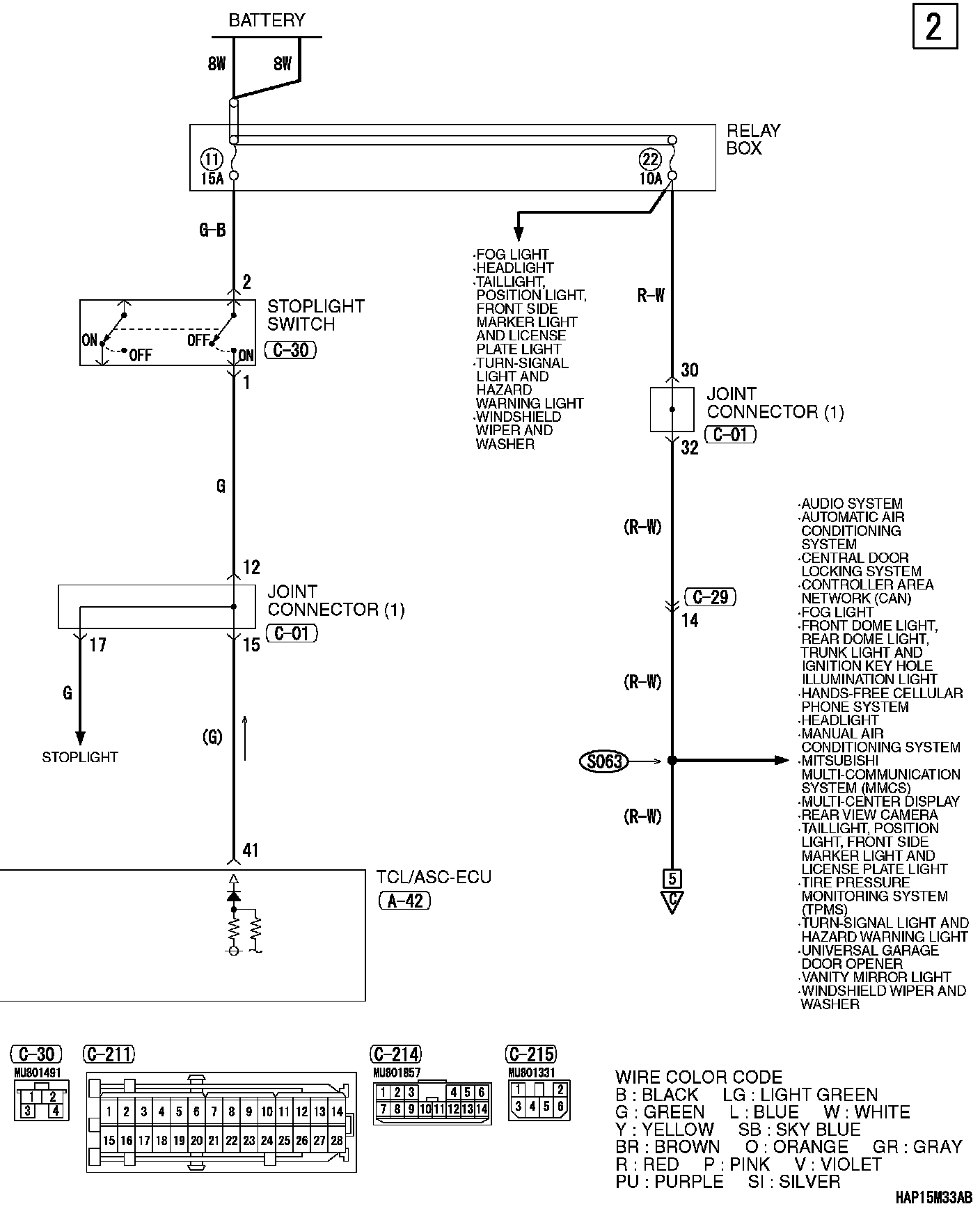

Electronic Brake-Force Distribution (EBD), Anti-Lock Braking System (ABS) And Active Stability Control System (ASC) (Part 3):

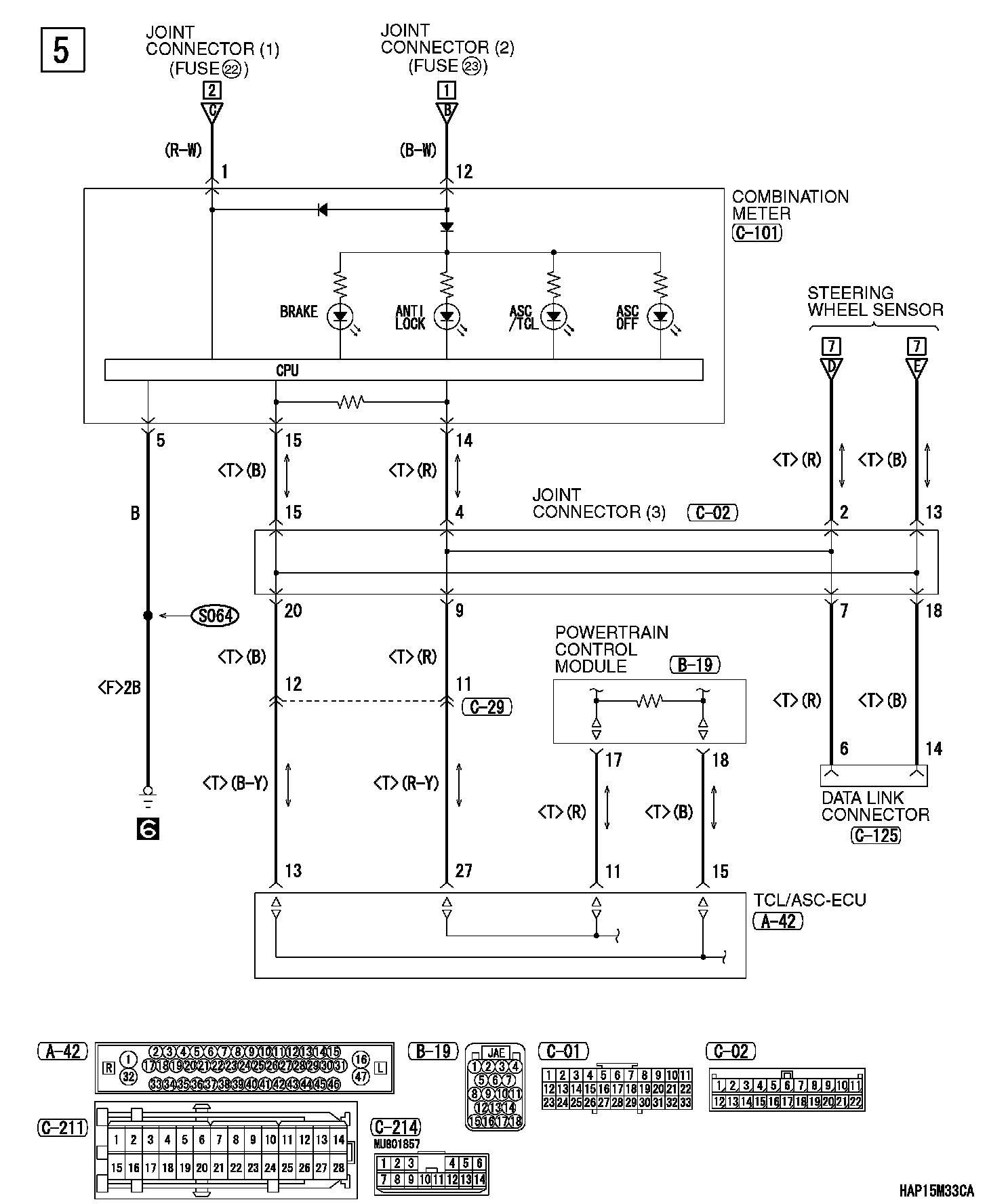

Electronic Brake-Force Distribution (EBD), Anti-Lock Braking System (ABS) And Active Stability Control System (ASC) (Part 4):

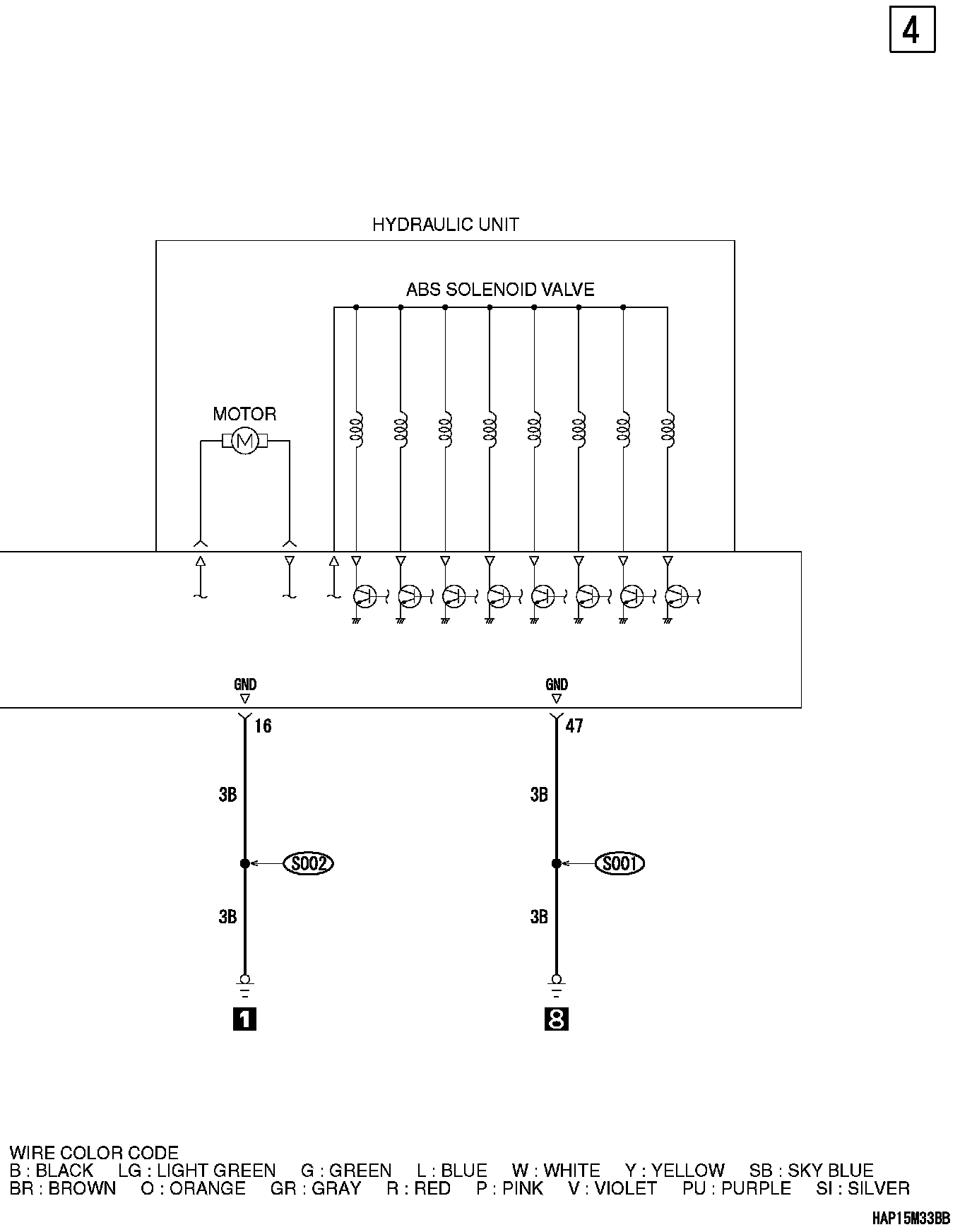

Electronic Brake-Force Distribution (EBD), Anti-Lock Braking System (ABS) And Active Stability Control System (ASC) (Part 5):

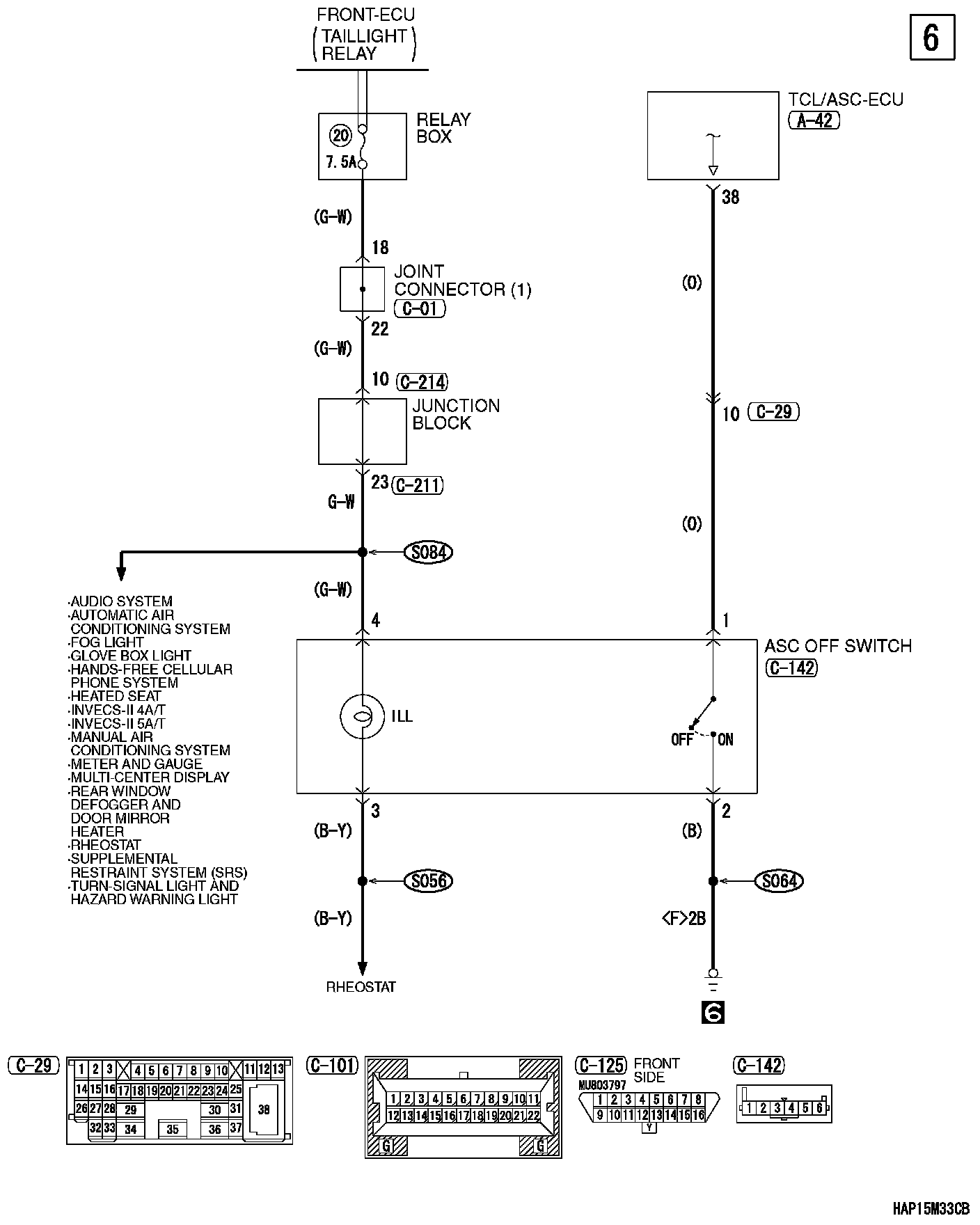

Electronic Brake-Force Distribution (EBD), Anti-Lock Braking System (ABS) And Active Stability Control System (ASC) (Part 6):

Electronic Brake-Force Distribution (EBD), Anti-Lock Braking System (ABS) And Active Stability Control System (ASC) (Part 7):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
